XS Series 10" 600 Watt Classic Marine Subwoofer

Catalogue Code: 200507
£ 144.95 In Stock
Save £ 14.05 RRP £ 159.00
See Product Description Add to Wish List
  • Order within the next 20 hours 58 minutes for dispatch tomorrow
  • Ask a question
Optional Extras Tick to add optional extras to your basket
Signature Series 6 Channel Marine Amplifier
Signature Series 6 Channel Marine Amplifier £499.95 Save £69.04 RRP £568.99
Signature Series 5 Channel Marine Amplifier
Signature Series 5 Channel Marine Amplifier £349.95 Save £49.05 RRP £399.00

View all 4 optional extras

  • Description
  • Availability
  • Size Guide
  • Delivery & Returns
Description

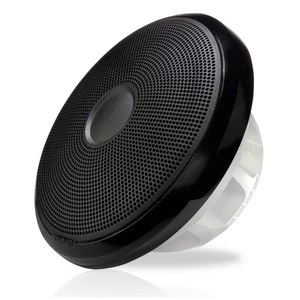

Fusion XS Series 10" 600 Watt Classic Marine Subwoofer

The XS Classic subwoofer offers quality audio reproduction and enhanced marine aesthetics at a mid-range price point. Optimized for use in the marine environment, and built for performance, the XS Series subwoofer is designed to consistently produce quality low frequency audio at any volume level, season after season.


With an IP65 weatherproof rating, True-Marine accreditation and an industry-leading 3-year warranty, you can enjoy peace of mind that your XS Series subwoofer is built to last on your boat.


Features


Versatile Design: With versatile options for integrating your subwoofer into your audio system, you can customize your setup to suit your audio requirements. Wire your subwoofer traditionally through an amplifier or create a 2.1 audio zone by connecting your subwoofer and two speakers directly to a compatible Fusion stereo with DSP, like the Apollo Series, without requiring an external amplifier.


Quality Audio Reproduction: Enjoy quality low frequency audio at any volume level.


True-Marine Designed and Engineered: Extensively tested to perform in the harsh marine environment, the XS Series carry an IP65 weatherproof rating along with True-Marine accreditation.


Two Grille Options Supplied: Enjoy the freedom to choose the finish to suit your vessel, with both Sports Grey and Sports White grilles supplied in the box.


Specifications



  • Subwoofer Size 10"

  • Peak Power 600 Watts

  • RMS Power Rating 120 Watts

  • Efficiency (1W/1M) 87dB

  • Frequency Response 30 Hz - 2 kHz

  • Nominal Impedance 4 ohms

  • Recommended Amplifier Power (RMS) 40 - 300 W/Ch

  • Cone / Surround Material Polypropylene with rubber surround

  • Mounting Diameter Clearance 223mm (8-3/4")

  • Mounting Depth Clearance 113mm (4-7/16")

  • Optimum Enclosure Volume (Sealed enclosure, fully filled with absorption material) 40 L

  • Operating Temperature Range 0 to 50°C (32 to 122°F)

  • Storage Temperature Range -20 to 70°C (-4 to 158°F)

  • Water and Dust Resistance (IPX rating) IP65

  • Warranty 3 years


In The Box



  • 1 x Fusion XS Classic 10" Subwoofer

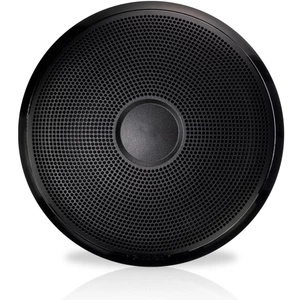

  • 1 x Classic Black Grille

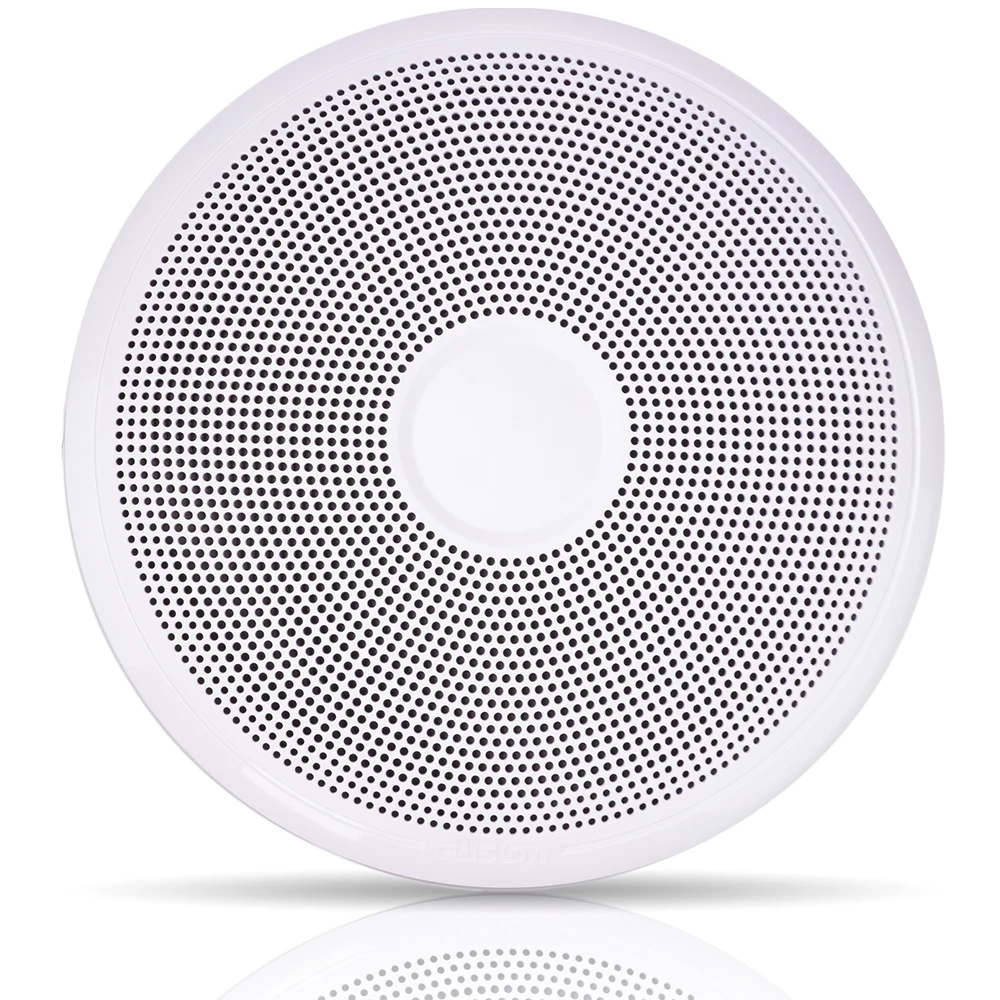

  • 1 x Classic White Grille

  • 6 x Mounting Screws

  • 1 x Mounting Template
