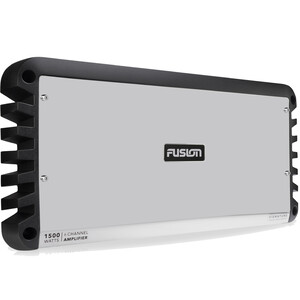

Fusion Signature Series 6 Channel Marine Amplifier

The MS-DA61500 is a 6 Channel, Class-D Hi-Fi Marine amplifier. The key benefit of a Class-D amplifier is low battery drain with a high output, making this the perfect amplifier for the marine environment. The MS-DA61500 incorporates heat-tempered and conformal coated PCBs for maximum product life, plus the amplifier chassis is a heat sink, to reduce component core temperature and increase efficiency.

The 1500 Watt peak power output will power up to 6 pairs of speakers at 2 Ohms (2 x 4 Ohm speakers per channel in parallel) or up to 4 pairs of speakers at 2 Ohms (2 x 4 Ohm speakers per channel in parallel) and 1 subwoofer. RCA line-level inputs allow for easy connection to new or existing systems.

The attractive stainless steel cover conceals the amplifier set up controls and connections for a discreet look to complement any vessel.

This product is rated True-Marine and carries with it a 3 year limited consumer warranty.

Features

Class-D Amplifier Technology - The highly efficient Class-D design provides 1500-Watts peak power whilst drawing less current than a standard Class-AB amplifier. This design provides increased efficiency and power output to your speakers, letting you enjoy your music for longer.

1500 Watts Peak Power – With a peak power of 1500 watts, you can easily power up to 6 pairs of speakers or up to 4 pairs of speakers with a subwoofer.

Marine-Ready Design with Conformal Coated PCBs - Extending the life of your amplifiers, the Signature Series are designed specifically for marine use with conformal coated PCBs to provide extra protection from the marine elements.

Rigid Aluminum Alloy Heat Sink - Molded to form a singular die-cast chassis, the fin layout is calculated with precision to increase the surface area of the heat sink and improve heat dissipation.

Stainless Mirror Finish - The polished stainless-steel control panel cover conceals and protects all cable connections and settings controls whilst providing an attractive finish to complement any installation.

Speaker Configuration - Whether you require 2 Ohms per channel or 4 Ohms bridged, your Signature Series amplifier has your installation options covered to achieve the optimum output levels. Connect up to 2 speakers per channel (2 x 4 Ohm speakers in parallel) with your SG-DA61500.

Zone Designation - To align with the Fusion entertainment system zone philosophy, the input and output connections are labelled as zones.

True-Marine Design - Signature Series amplifiers are perfect for the marine environment, and carry a 3-year warranty.

Specifications

• Frequency Response 10Hz - 40kHz
• Peak Power 1500 Watts
• Rated Power (4 Ohms) 100 Watts RMS x 4 @ 14.4V - 4 Ohms 1% THD
• Rated Power (2 Ohms) 140 Watts RMS x 4 @ 14.4V - 2 Ohms 1% THD
• Rated Power (4 Ohms Bridged) 280 Watts RMS x 2 @ 14.4V - 4 Ohm Bridged 1% THD

Mounting Dimensions

• Height 57mm [2 1/4”]
• Length 420mm [16-9/16”]
• Depth 210mm [8-1/4”]
