Black Box Sonar Modules & Live Sonar Systems
Black Box sonar modules process the sonar data from your transducer before sending it to your fishfinder display. They unlock advanced features such as live sonar, ultra‑high‑definition scanning, SideScan/DownScan imaging, 3D sonar and enhanced CHIRP performance.
Certain transducers produce more sonar data than your fish finder or MFD can interpret alone. A Marine Sonar Module processes those high‑bandwidth signals before they reach the display. This gives you sharper detail, improved clarity and stronger performance in deeper water.
At Force 4 Chandlery, we stock fish finder black boxes and sonar modules from leading brands including Garmin, Lowrance and Navico. Helping you unlock the full performance of your marine electronics setup.
What Is a Black Box Sonar System?
A black box sonar system is a separate sonar processing module that connects to a compatible fish finder, chartplotter or multifunction display.
These systems are commonly used when:
- Upgrading an existing fish finder system
- Adding live sonar functionality
- Integrating advanced scanning sonar
- Building larger marine electronics networks
- Seeking improved sonar performance
Because the sonar processing takes place within the dedicated module, black box systems can often provide more powerful sonar capabilities than standard fish finder units alone.
Types of Black Box Modules

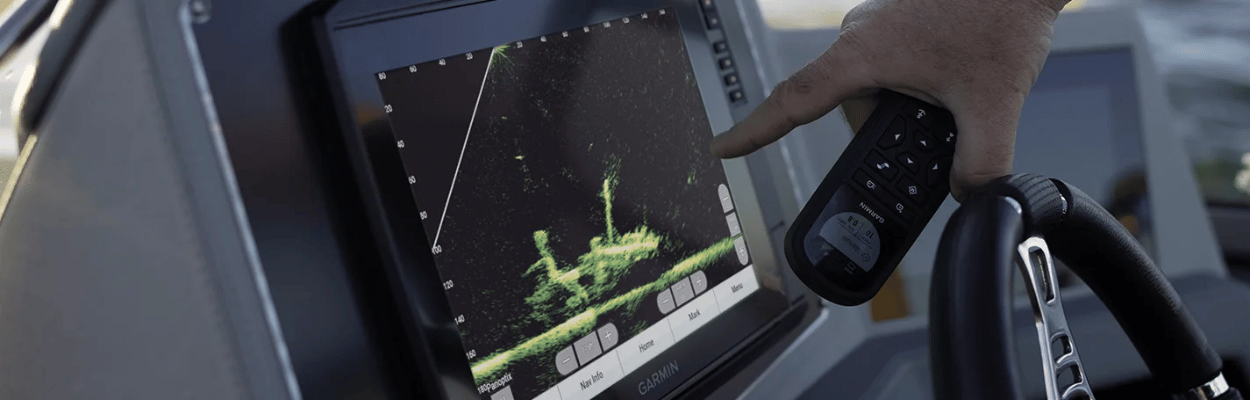

Live Sonar Systems
Real‑time imaging that shows fish movement, lure action and structure as it happens.
Examples: Garmin LiveScope, Lowrance ActiveTarget.
UHD / High‑Definition Scanning Modules
Ultra‑sharp detail for wrecks, reefs and seabed structure.
Examples: Garmin UHD, Navico S3100.
SideScan / DownScan Modules
Enhanced left/right and downward imaging for structure hunting.
Examples: Garmin GCV, Simrad StructureScan.
3D Sonar Modules
Three‑dimensional views of the seabed and structure.
Examples: StructureScan 3D.
