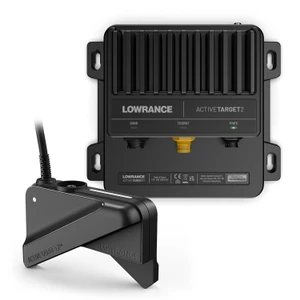

Lowrance ActiveTarget 2XL Live Sonar System

ActiveTarget® 2 XL is the world’s clearest and most complete live sonar. Surface-to-surface 180° live views leave nothing unseen, while best-in-class resolution shows fish, structure, and your lure in unrivalled detail. It’s even easier to use, with the ability to switch instantly between Forward and Down views on your display. Double-up with two XL systems for an industry-first 360° Scout XL view all around your boat*.

*Dual sonar and transducers required, HDS PRO only.

• Best-in-class resolution
• Surface-to-surface 180° live view
• 360° Scout XL live view (requires two systems. HDS PRO Only)
• 180 XL Views in Forward, Down and Scout modes
• Switch between Forward XL & Down XL views on your display
• Improved switching to Scout XL views
• Quick-reference markers for deep and shallow water (Scout Mode)
• Single transducer installation
• Shaft mount or Motor-mount* (*exclusive to Recon)
• Compatible with existing ActiveTarget® 2 sonar module
• Compatible with HDS® Pro, HDS® Live, HDS® Carbon and Elite FS®

Largest field of vision

Leave nothing unseen with full 180° XL live views across
Forward, Down, and Scout modes – all from a single transducer.

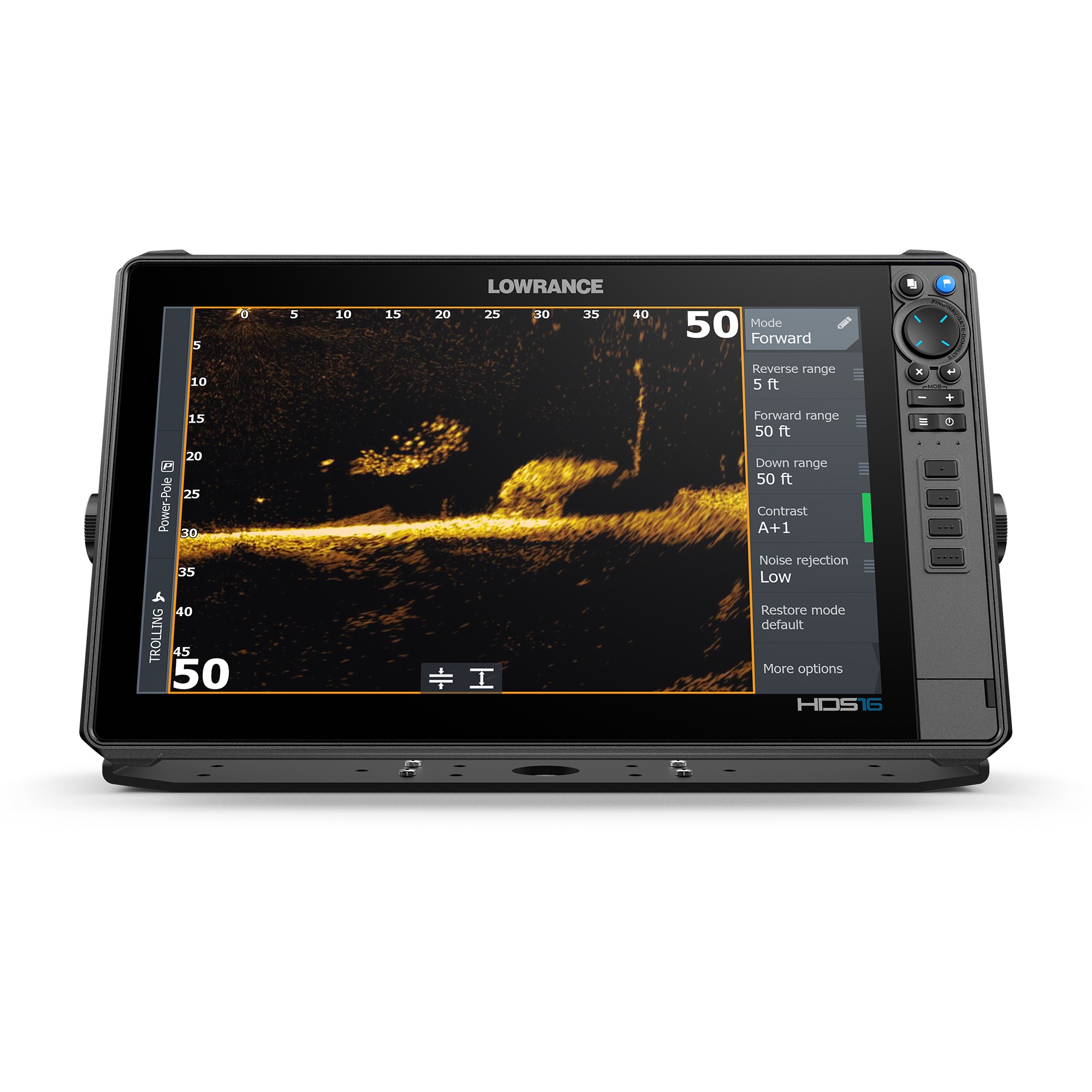

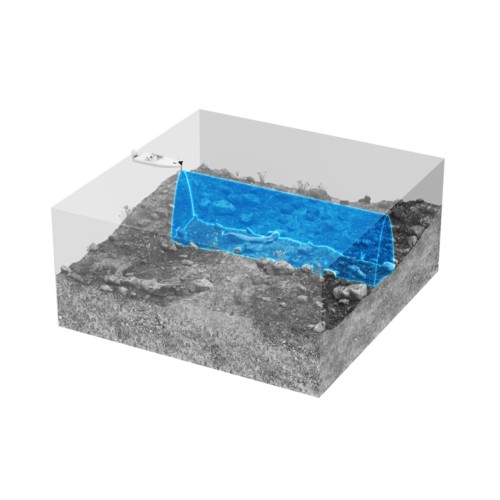

Forward XL View

Surface-to-surface 180° views utilize the whole display, so you never miss a thing, from the moment your lure drops to the bite itself.

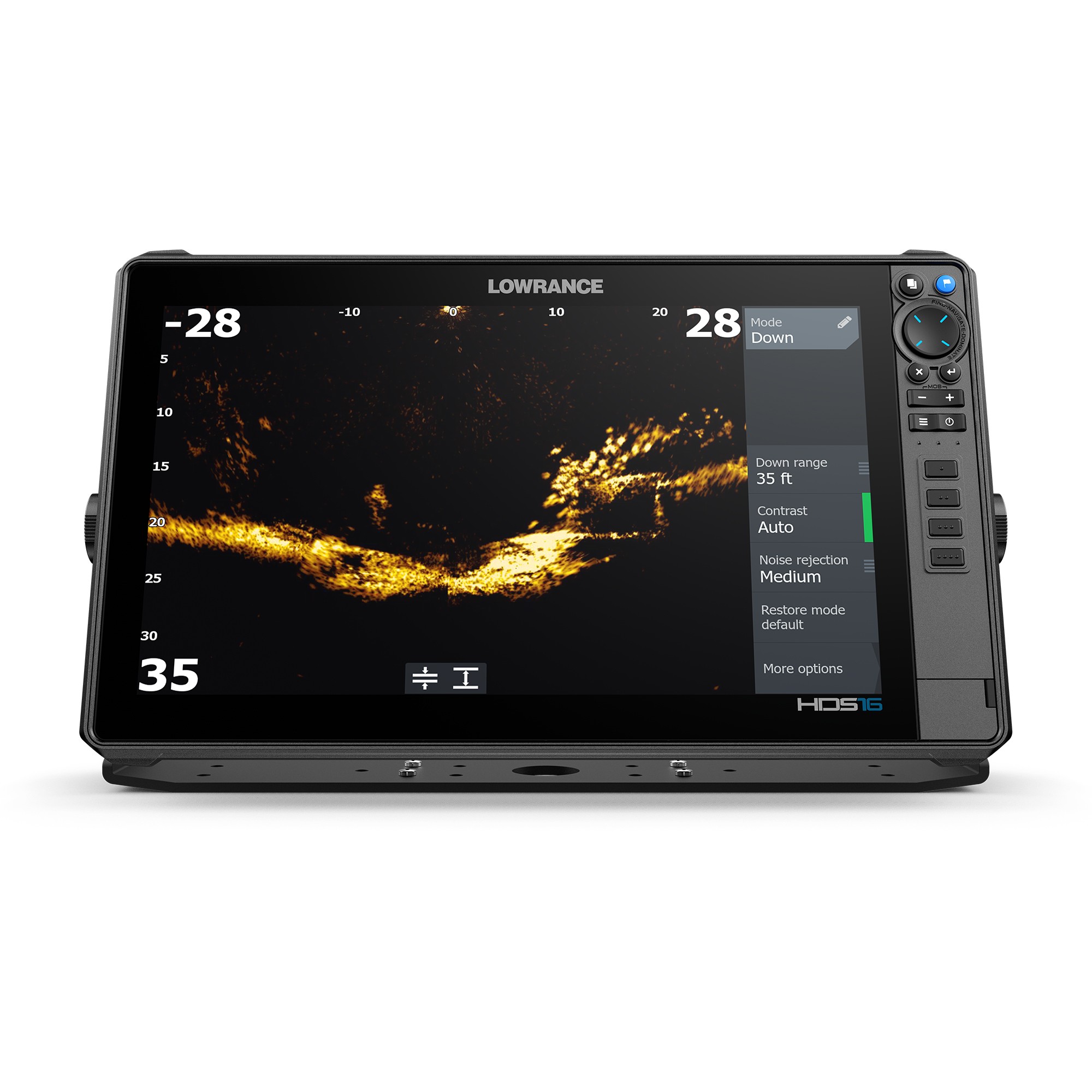

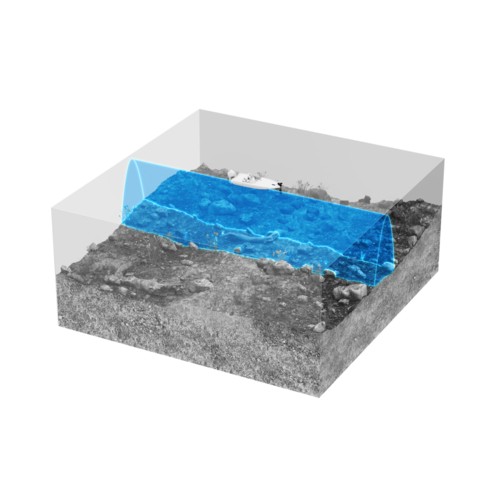

Down XL View

See the full expanded 180° live image beneath your boat, running right the way from front to back.

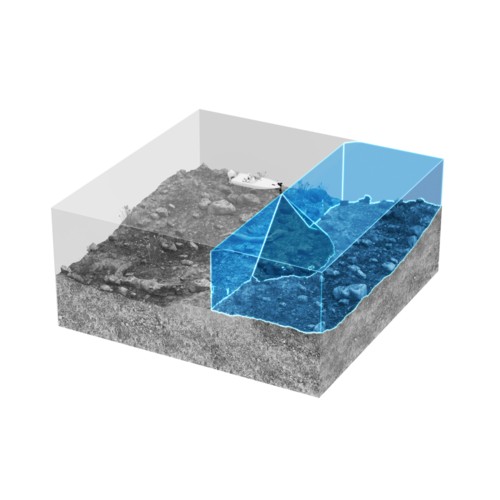

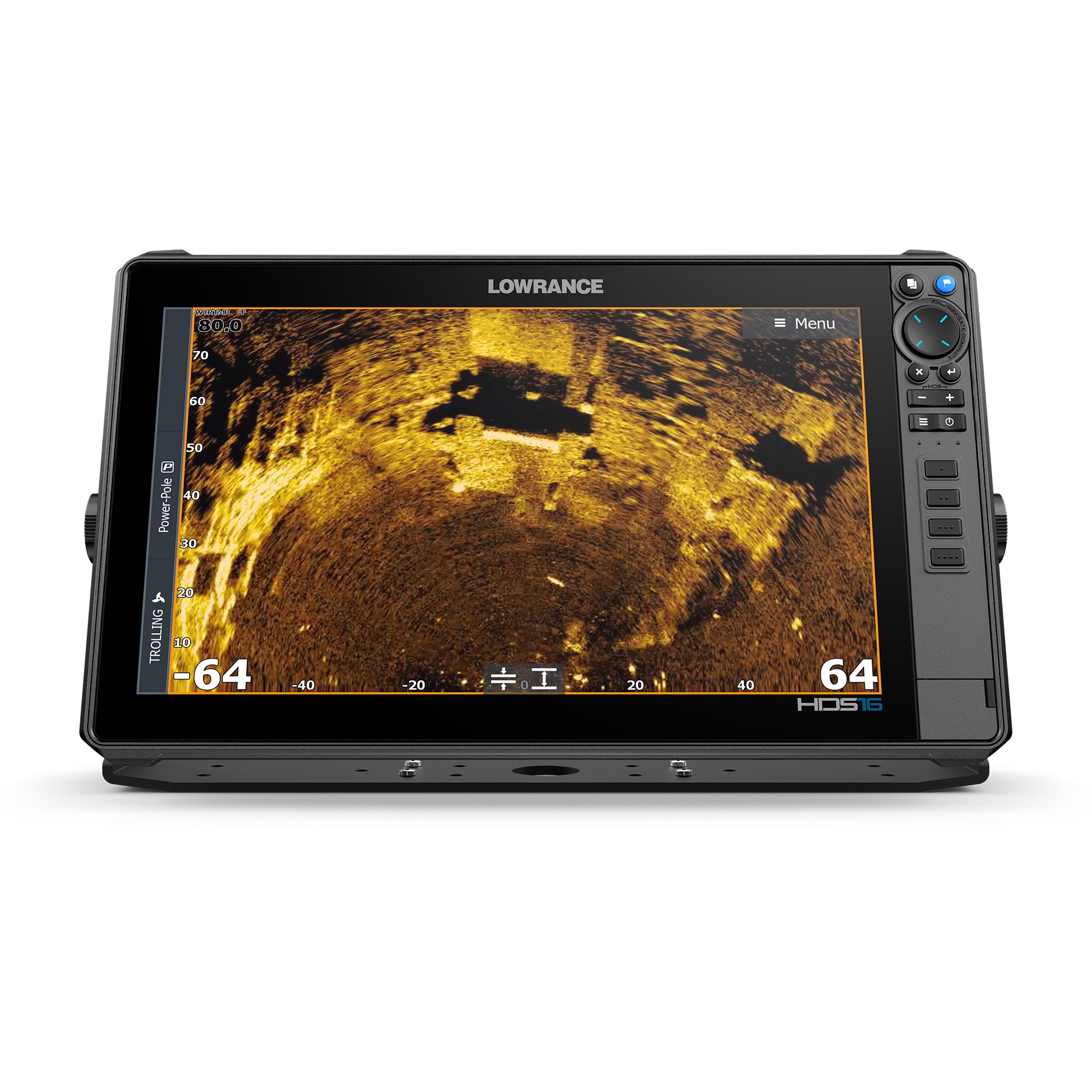

Scout XL View

A live overhead 180° view helps you spot bait balls and big schools of fish up ahead of your boat.

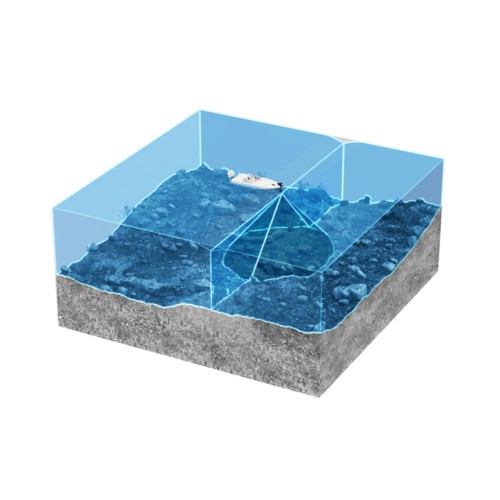

Industry-First Scout Live 360° View

Combining two systems unlocks an industry-first Scout Live 360° view around your entire boat*. This truly comprehensive live view means you can select the perfect place to cast without even having to move your boat. And you can say goodbye to interference with our industry-first ping sync technology.

*Dual transducers and modules required, HDS PRO only.

Know where to cast

Catching fish is easier when you can see them interacting with structure and responding to your lure – in real time – with Lowrance® ActiveTarget® 2 XL Live Sonar.

Get an even better picture

See the clearest, highest-resolution images of fish swimming in and around cover and structure with ActiveTarget® 2 XL Live Sonar.

Clear in all conditions

Optimized image and stabilization settings deliver crisp and clear live action views of fish and structure, even in rough conditions.

Fewer adjustments

Get even more benefits when you combine two ActiveTarget 2 XL systems. With the ability to track Forward XL or Down XL and Scout XL views simultaneously, there’s no need to raise your trolling motor to adjust the transducer.

Easy to use

Quickly recognize if your lure presentation is working or if you need to make an adjustment to get fish to strike – information that is harder to get from traditional sonar or structure imaging.

Know whether fish are active

It’s easy. Drop your lure on a fish and watch the catch unfold in real time – from the fish striking your lure to reeling the fish to the surface – you'll see it all in incredible detail.

See the smoothest picture

Delivering a smoother and more consistent image across the entire range, ActiveTarget® 2 XL shows you exactly what’s going on under the surface as a live action feed.

Increased detail

Enhancements to the beams broadcast from the ActiveTarget® 2 XL system make it possible to show more detailed images further from the boat than ever before.

See all around the boat

Track fish and your lure presentation with high-resolution views in front, below and to the sides your boat, or use the Scout mode to see an ultra-wide, overhead view of structure and fish activity in front of your boat. Perfect for finding bait balls and big schools of fish.

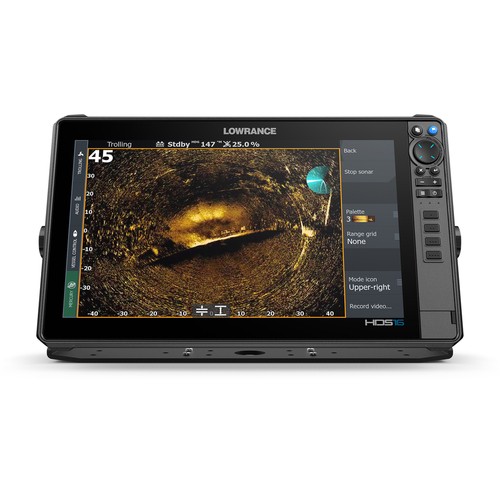

360 Scout XL Live View*

Add a second system and enable 360° Scout XL live view around your entire boat*. Using multiple transducers also reduces need to lift your trolling motor at all, simply have one set to Forward XL/Down XL and one set to Scout XL.

*Two Transducers and Two Modules required. HDS Pro only.

Compatibility

Compatible with HDS® PRO, HDS® LIVE, HDS® Carbon and Elite FS®.

Specifications

• Power Consumption, max.: 2.2A @ 10.8VDC
• Power Consumption, typical: 1.5A @ 13.8VDC
• Recommended Fuse Rating: 5A
• Supply Voltage: 10.8 VDC - 31.2 VDC
• Humidity: 60°C, 95% relative humidity (RH) for 18 hours
• Operating Temperature Range:
  • Module: 5°F to 131°F (-15°C to 55°C )
  • Transducer: 32°F to 95°F (0°C to 35°C)
• Shock and Vibration: 100,000 cycles of 20 G
• Storage Temperature Range: -22°F to 158°F (-30°C to 70°C)
• Waterproof rating: IP67
• Dimensions (W x H x D)
  • Module: 8.63" (219.3mm) x 7.56" (192.1mm) x 2.86" (72.9mm)
  • Transducer: 7.08" (179.9mm) x 4.47" (113.6mm) x 2.68" (68mm)
• Mounting Type:
  • Module: Surface Mount
  • Transducer: Bracket Mount
• Weight:
  • Module: 4.12 lbs (1.86 kg)
  • Transducer: 3.55lbs (1.61kg)
• Frequencies: 650-1300 kHz
• Max Depth: 200' (60.96m)

In the box

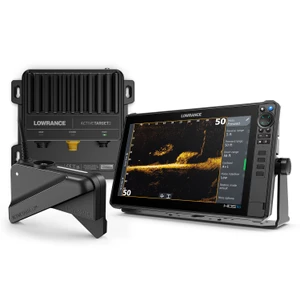

• Active Target 2 Sonar Module

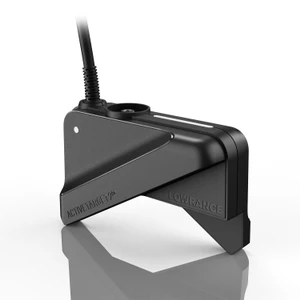

• Active Target 2 XL Transducer with 25ft Cable

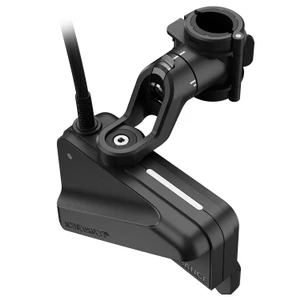

• Active Target 2 XL Shaft Mount
• 15ft Ethernet Cable
• 4 pin power Cable
