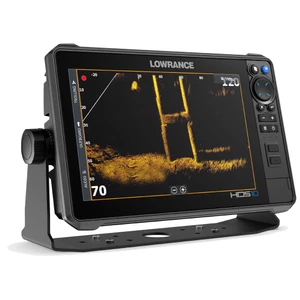

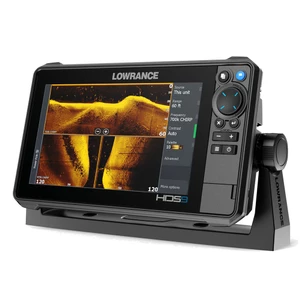

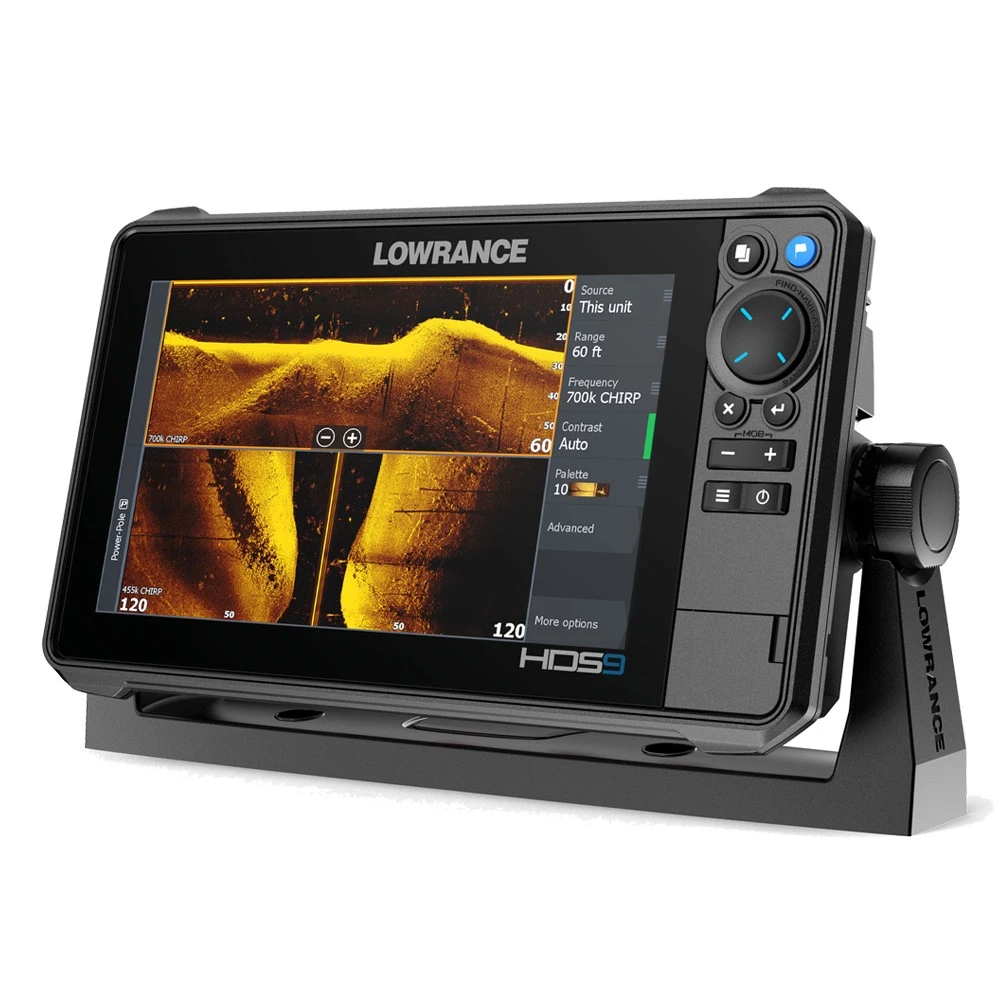

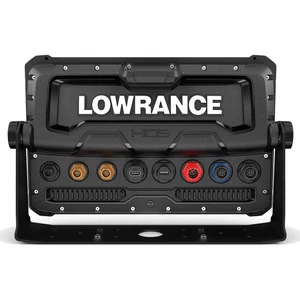

Lowrance HDS Pro Multifunction Display

Lowrance Cashback Promotion 2024 - Up £500 Savings

See more and catch more with the new HDS PRO, giving you the clearest and most-detailed views with new, higher-resolution ActiveTarget® 2 Live Sonar and new, ultra high-definition ActiveImaging™ HD.

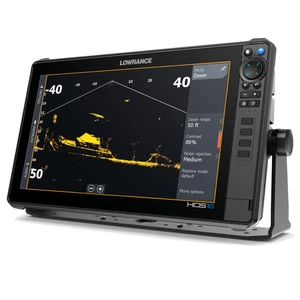

Lowrance’s clearest sonar ever, Active Imaging HD delivers high-definition views of Lowrance CHIRP sonar, SideScan and DownScan Imaging™. FishReveal™ has also been expanded to be available on SideScan* and DownScan, making fish easier to identify to the sides and beneath the boat. (*Requires S3100 Module)

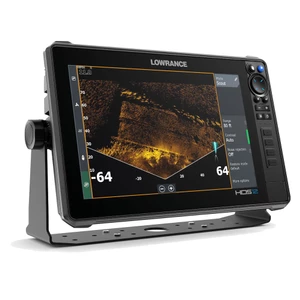

ActiveTarget 2 Live Sonar provides wider, higher-resolution views of fish movement and structure. It also supports plug-and-play installation of two ActiveTarget transducers, making it possible to watch multiple views simultaneously, and to widen Front and Scout modes for better bait tracking.

The ultimate clarity

The better your view, the better your fishing. From the high-definition touchscreen display to the high-level clarity of the newly-enhanced Lowrance sonar, HDS Pro delivers a full range of meaningful underwater views that will take your fishing experience from good to great.

The SolarMAX™ HD touchscreen provides stunning images of fish, structure and chart details that are easy to see from any angle, in direct sunlight and through polarized lenses – a real difference maker on the water. See unmatched clarity on-screen with Lowrance’s superior, high-resolution Active Imaging™ HD sonar and ActiveTarget® 2 Live Sonar technologies.

All the chart details

Powerful, intuitive charts are key to any fishing system, helping anglers find the best fishing spots and navigate there safely. HDS Pro is compatible with either C-MAP® DISCOVER™ or REVEAL™, so you can spend more time catching fish and less time finding them. C-MAP charts bring great routes, social layers, and even real-time mapping with the powerful Genesis® Live. HDS PRO is also compatible with Navionics and other chart suppliers.

Complete bow to stern boat control

HDS PRO gives you full bow-to-stern networking and control of the Ultimate Fishing System.

With HDS PRO at the heart of your fishing system, it’s easy to customize your boat to fit the way you fish with your choice of fish-finding, navigation, network and entertainment options. HDS PRO offers support for the complete range of top fish-finding technologies – from ActiveTarget® 2 Live Sonar and Active Imaging™ HD to touchscreen control of Power-Pole® Anchors, Ghost® Trolling Motor and more.

Expand your system -- taking advantage of radar, autopilot and NMEA 2000® compatibility – and add SiriusXM® Weather/Audio to monitor changing weather conditions and to listen to your favorite tunes.

More options

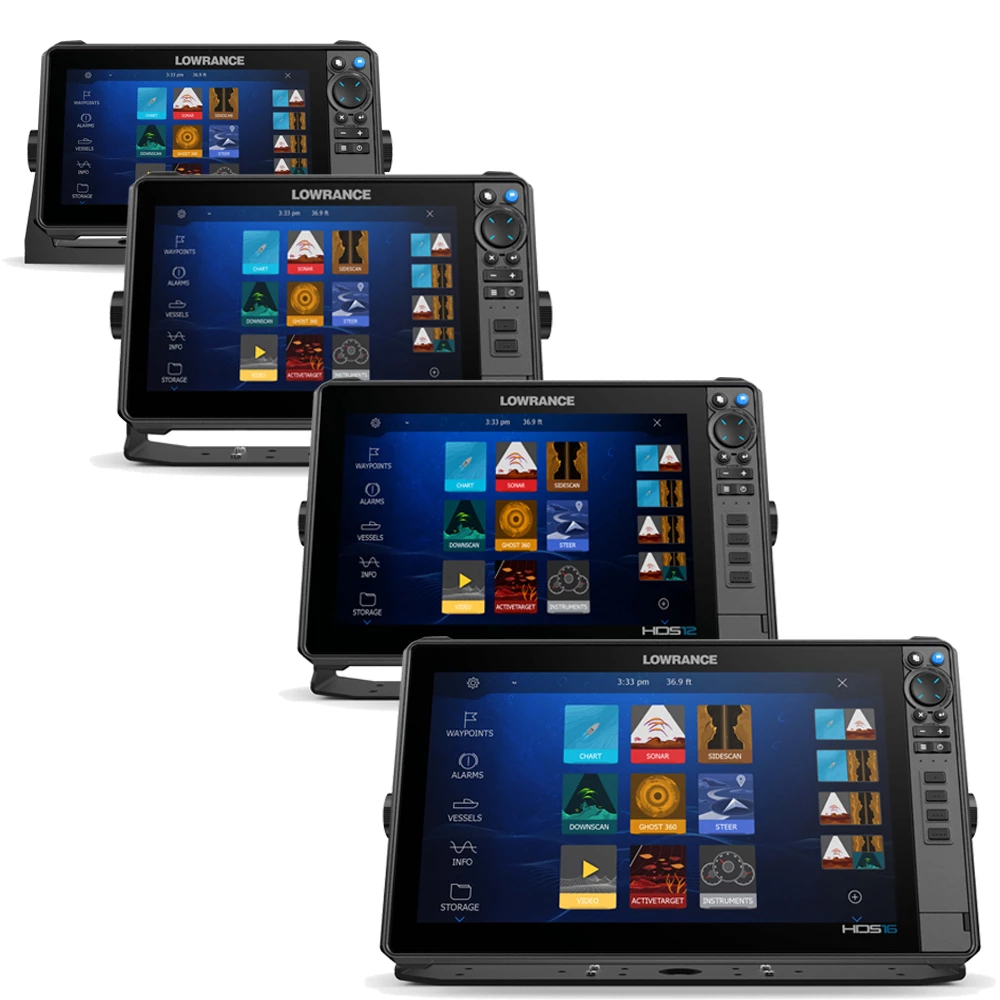

The expanded options and capabilities of HDS PRO give you more ways to customize your boat to better fit your fishing needs. Beyond the 9, 10, 12 and 16-inch screen sizes, HDS PRO can also be expanded to deliver additional views and features. Simply add an S3100 sonar module and Active Imaging Transducer to enable the new FishReveal™ SideScan view, making it easier to identify fish to the sides of the boat. Anglers can also add a second ActiveTarget® Transducer to better target fish by viewing multiple ActiveTarget 2 live sonar displays at the same time. With plug-and-play installation, expanding your fishing has never been easier.

Features

• SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses
• New! High-definition up to 1.2MHz Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
• New! High-resolution ActiveTarget® 2 Live Sonar ready
• Supports FishReveal™ with new SideScan view, as well as Downscan*
• Available in 9, 10, 12 and 16-inch display size
• Worldwide basemap with upgrade options for C-MAP® DISCOVER and REVEAL or other charting suppliers.
• Real-time mapping available with C-MAP® Genesis Live.
• Support for new ActiveTarget® Scout and Ghost® Trolling Motor 360 chart overlay views
• Large programmable keys for 10, 12 and 16-inch sizes
• Touchscreen control of Power-Pole® anchors, Ghost® Trolling Motor, Autopilot and Lowrance Outboard Pilot
• NMEA 2000®, Wireless and Bluetooth®, connectivity – plus smartphone notifications
• Wide range of optional chart upgrades including C-MAP® REVEAL, Navionics®, Florida Marine Tracks and more.

*SidescanFishReveal requires S3100 module and a compatible transducer

Specifications

General

• Interface:Touchscreen:Full Multi-touch touchscreen, Keypad:8-way directional keypad Zoom +/-Exit Enter Menu Waypoint Power/Light
• AIS: AIS Chart and Radar overlay. Target vessel details.
• Autopilot: Outboard Pilot,NAC-1,NAC-2,Ghost Trolling, MotorMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
• Cartography supported: C-MAP Reveal,C-MAP Discover, Navionics+, Platinum+
• Digital Switching: Czone,Naviop
• External Storage: 2 micro SD cards up to 32GB
• GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
• Internal Storage: 8.0 GB Internal
• Multimedia: SonicHub, SonicHub2, FusionLink, any NMEA 2000 compliant Marine Audio products
• Radar: 3G/4G (Broadband), Halo20/20+ (Pulse Compression Dome Radar),Halo24 (Pulse Compression Dome Radar),Halo 3'/4'/6' (Open Array Pulse Compression Radar)
• Sonar: Integrated: CHIRP Broadband, Active Imaging, DownScan Active Imaging, SideScan Active Imaging, HD DownScan Active Imaging, HD SideScan
• Compatible with: ActiveTarget, ActiveTarget2, S3100, SonarHub, StructureScan, StructureScanHD, StructureScan3D, LiveSight (requires PSI-1 module)
• Waypoints, Routes, Tracks: 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
• Compass Safe Distance - Metric, imperial: 65 cm (2.1 ft)
• Languages: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文Eastern European Language Pack:Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/TürkçeRussia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ УкраїнськаMiddle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano

Display

• SolarMAX HD (TM) IPS technology Multi-touch
• Backlight Colour: Pure White LED
• Resolution: 9”& 10” - 1280x720, 12” – 1280x800, 16” – 1920x1080
• Screen Brightness: >1200 Nits
• Viewing Angles: 80° top/bottom, 80° left/right

Electrical

• Power Consumption, typical: 9 & 10”- 2.0A, 12” – 2.3A, 16” – 3.0A
• Recommended Fuse Rating: 9 & 10” - 3A, 12 & 16” – 5A
• Supply Voltage: 12 v DC (10.8-17VDC)

Connectivity

• NMEA 0183: 1x RS422 port Baud rates: 1200, 2400, 4800 (Default), 9600, 19200, 38400, 57600, 115200
• NMEA 2000: 1x Micro-C
• Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
• Ethernet: 9 & 10” – 1, 12 & 16” - 2 x 100 Mbit, 6 max MFD's on a network
• Video Input: Composite video RCA – single channel via optional adaptor
• HDMI: 12 & 16” – 1 port for external input
• WiFi: Internal 802.11b/g/n and Compatible with WiFi-1 Module

Environment

• Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
• Shock and Vibration: 100,000 cycles of 20 G
• Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
• Waterproof rating: IPX7 with card door closed

Physical

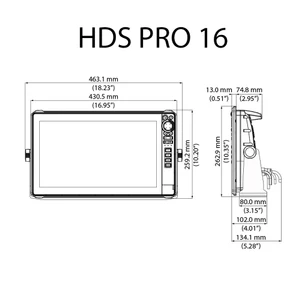

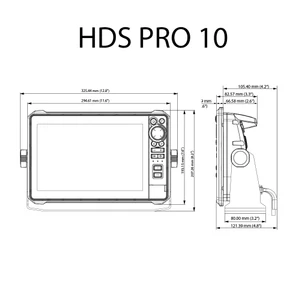

• Dimensions (W x H x D):

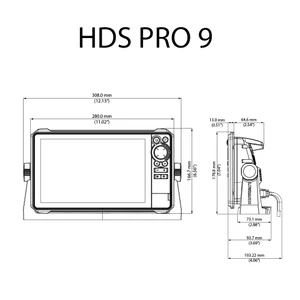

• 9” - 11.02" (280 mm) x 6.56" (166.7 mm) x 3.06" (77.7 mm)
• 10”- 11.06" (294.61 mm) x 7.6" (193.15 mm) x 3.3" (82.57 mm)

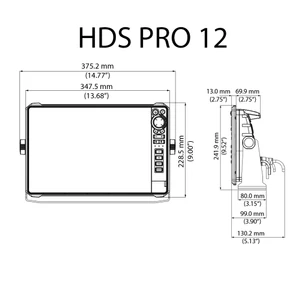

• 12”- 13.68" (347.5 mm) x 9.00" (225.5 mm) x 3.26" (82.9 mm)
• 16” - 16.95" (430.5 mm) x 10.20" (259.2 mm) x 3.46 (87.8 mm)
• Mounting Type Gimbal BracketFront Dash Flush MountRear Dash Flush Mount
• Weight:
• 9”- 3.06 lb (1.39 kg)
• 10”- 3.66lb (1.66kg)
• 12”- 5.76 lb (2.61 kg)
• 16” - 7.94 lb (3.60 kg)

In the Box

• HDS Pro MFD
• Gimbal Bracket Kit
• Sun Cover
• Power Cable
• Fuse and Fuse Holder
• Documentation Pack

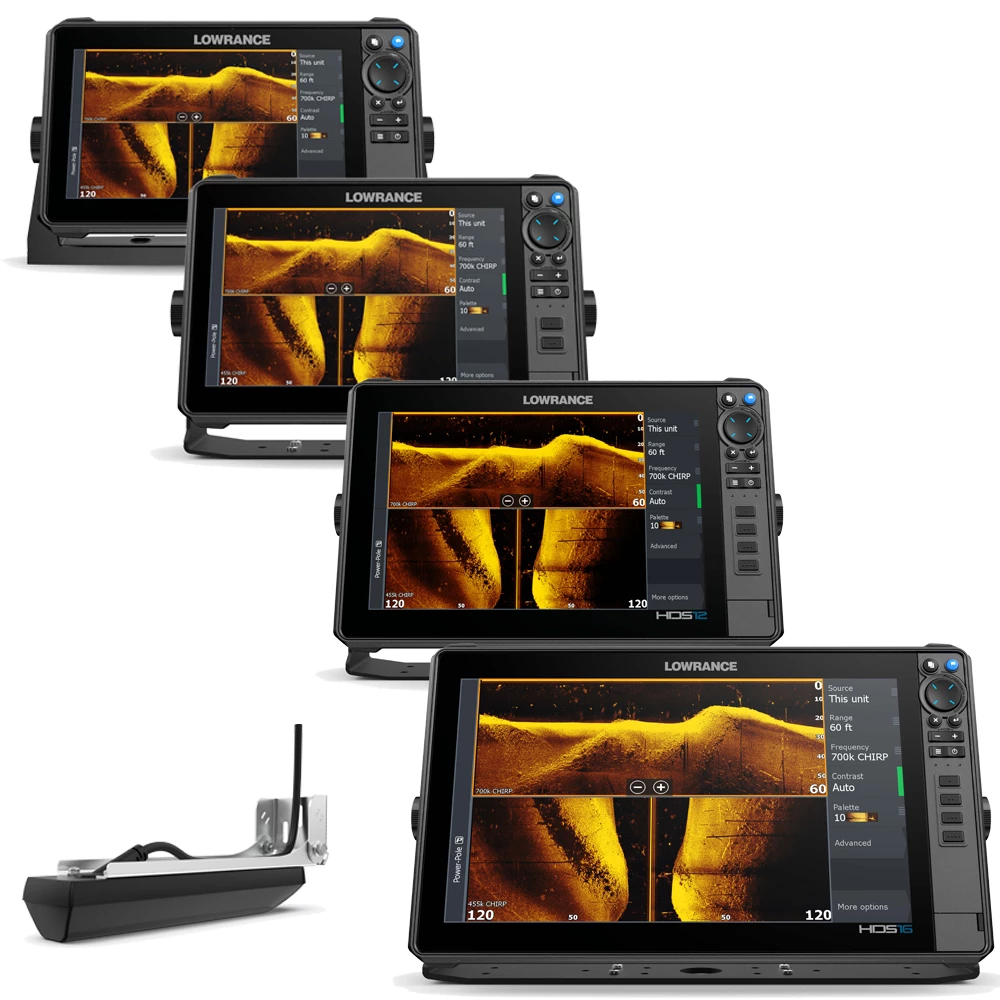

• Active Imaging HD Transom Mount Transducer ( 3in1 HD Bundled units only)

Click here form the 9 & 10 Installation manual

Click here form the 12 & 16 Installation manual
