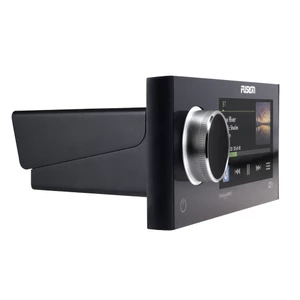

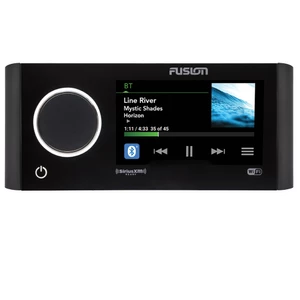

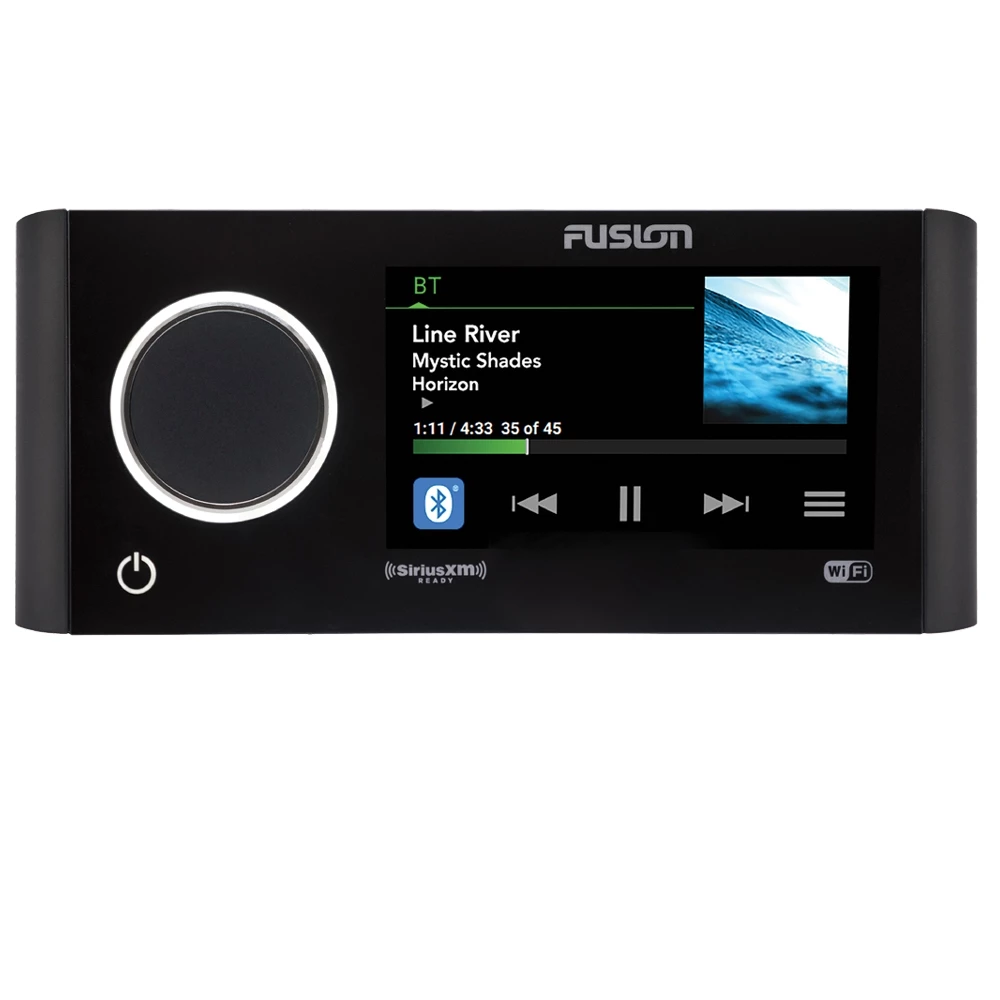

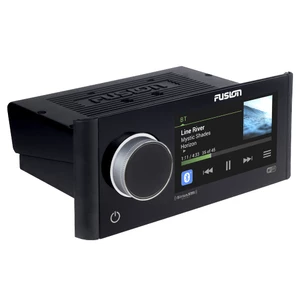

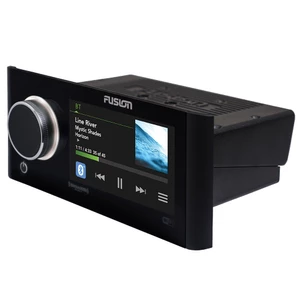

Fusion Apollo MS-RA770 Marine Entertainment System With Built-In Wi-Fi

The world’s first touchscreen marine stereo with built-in Wi-Fi, the Apollo RA770 has redefined audio excellence with revolutionary technology and innovative design including Fusion’s Digital Signal Processing, PartyBus, over-the-air software updates, a one-piece glass display and more source options than ever before. From the kick drum to the eardrum, Apollo has made it inherently simple to customize your audio entertainment for superior sound quality in any area of your boat. The future of marine audio entertainment has arrived.

World’s First Marine Wi-Fi Stereo

High quality audio streaming is now available via Wi-Fi, delivering a higher data transfer rate in comparison with Bluetooth. Enjoy perfectly synced music throughout your vessel by wirelessly connecting multiple Apollo stereos via PartyBus.

Digital Signal Processing (DSP)

A technically superior listening experience made simple, Fusion DSP produces superior sound quality in every environment. Precisely calculated loudness curves optimized for the human ear ensure quality, full range audio at every volume level, while the feed-forward limiter anticipates a peak in the audio and adjusts the gain to make distortion, at any volume level, a thing of the past. Using environmental information and customized Fusion speaker profiles, you can now achieve customized, optimized audio for any area of your boat, resulting in an entertainment system that is perfectly tuned for premium audio reproduction, and programmed to protect your system season after season. (Setting up your DSP profiles is made simple with the free Fusion-Link app. With just a few clicks, you can set up the preconfigured DSP profile once and get back to enjoying what you love on the water, while listening to high quality audio customized for your ears and the environment.)

PartyBus

Enjoy the freedom of musical choice with the Apollo Series and Fusion-PartyBus™. With Party Mode, Personal Mode, and finally the ability to switch between the two without disrupting the audio in other areas of the vessel, PartyBus is Fusion’s audio distribution network of the future.

Glass Touchscreen Display

The future of marine audio entertainment has arrived in the Apollo RA770 with its 4.3” LCD color touchscreen display. Simply tap the screen to pause and play, or swipe through your playlist to your favorite song – fiddling around to locate the right button is now a thing of the past.

Over-The-Air Software Updates

The Apollo Series is intelligently simple and always up to date, thanks to the over-the-air software updates available from your smartphone or compatible device via the free Fusion-Link app.

More Source Options Than Ever Before

The Apollo RA770 features more source options than ever before, with Bluetooth, UPnP, Optical Audio, advanced SiriusXM features and DAB+ radio available, AM/FM radio, AUX and USB connections ready at your fingertips.

True-Marine™ Designed and Engineered

Built on Fusion’s True-Marine design philosophy, the Apollo RA770 has an impressive IPX7 rated water resistant front panel, and has been tested to a high level for protection against salt fog, temperature, vibration and UV protection.

Fusion-Link™

The industry standard protocol for on-water audio integration and control, Fusion-Link enables control of your entertainment directly from partnered marine Multi-Function Displays, compatible Apple or Android devices, and Garmin watches. With multiple control options, no matter what you are doing on your boat, you can always be in control of your audio entertainment.

Multi-Zone Technology™

Four independent audio zones are available for a customized listening experience across your vessel, each with advanced localized menu controls including volume limits, zone naming, disabling zones and more. Note: Subwoofer and full range line outs require additional amplification

Sources

• AM/FM Radio
• Bluetooth Streaming
• Wifi Streaming
• Digital optical input
• USB
• Aux input x 2
• UPnp
• MTP
• DAB+ ( requires DAB module - not included)

Specifications

• Display: 4.3" capacitive touch glass LCD color display
• Sources: AM/FM/ Bluetooth / Wi-Fi audio streaming / digital optical input / USB audio / AUX x2 / UPnP / MTP / SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner) / DAB+ ready (available in Europe and Australia only) Note: SiriusXM and DAB+ do not support traffic and weather.
• Digital Signal Processing (DSP): Yes
• Speaker Presets (easy to tune): Yes
• Fusion-Link Control (Wireless): Yes
• PartyBus Technology: Yes (receive and broadcast - wired or wirelessly)
• Bluetooth Wireless Technology: Bluetooth audio streaming, music control (via devices compatible with A2DP/AVRCP 1.3 Bluetooth protocols)
• SiriusXM-Ready: Yes
• Wi-Fi: Yes
• ANT Technology:Yes
• NMEA 2000 (Control via MFD - Fusion-Link): Yes
• Works with NRX Remotes: Yes
• Optical Input 1 x Digital Optical Input (SPDIF)
• Fits DIN Cut-Out : Yes
• Water Resistance (IPX rating):  IPx7 from the front panel when installed correctly.
• Internal Amplifier: Class-D
• Peak Power: 280W max
• Multi-Language User Interface: English / French / German / Spanish / Dutch / Italian
• Auxiliary Inputs: 2 x RCA Inputs (AUX1, AUX2)
• Ethernet:  One Ethernet port
• USB 2.0 Port: One USB 2.0 port (for phone charging / media playback)
• SiriusXM: One SiriusXM port (requires optional SiriusXM Connect vehicle tuner, does not support traffic and weather)
• AM/FM radio:  One Motorola antenna connector port
• Speaker connections:  4 x speaker connections (2 zone amplified)
• RCA Pre-Out (Left, Right and Subwoofer): 4 zones
• Operating Voltage : +10.8 - 16V dc
• DAB+ Ready Fusion DAB+ module is required (sold separately). Only available where DAB or DAB+ broadcast is supported
• Line Out: 4 (1 x L + R per zone. Requires external amplification)
• Subwoofer Out: 4 (1 per zone. Requires external amplification)
• Software Updates: Over-the-air software updates via the free Fusion-Link app or USB

In The Box

• RA770 Stereo
• Mounting gasket
• Four 8-gauge, self-tapping screws
• Two screw covers
• Power and speaker wiring harness
• Auxiliary-in, line-out, and subwoofer-out wiring harnesses
• 2 m (6 ft.) NMEA 2000® drop cable
• Dust cover
