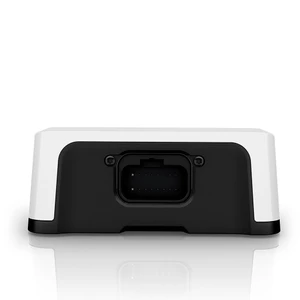

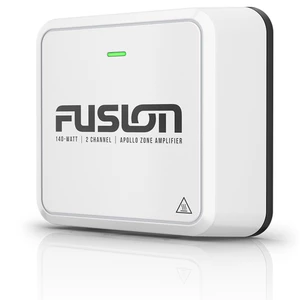

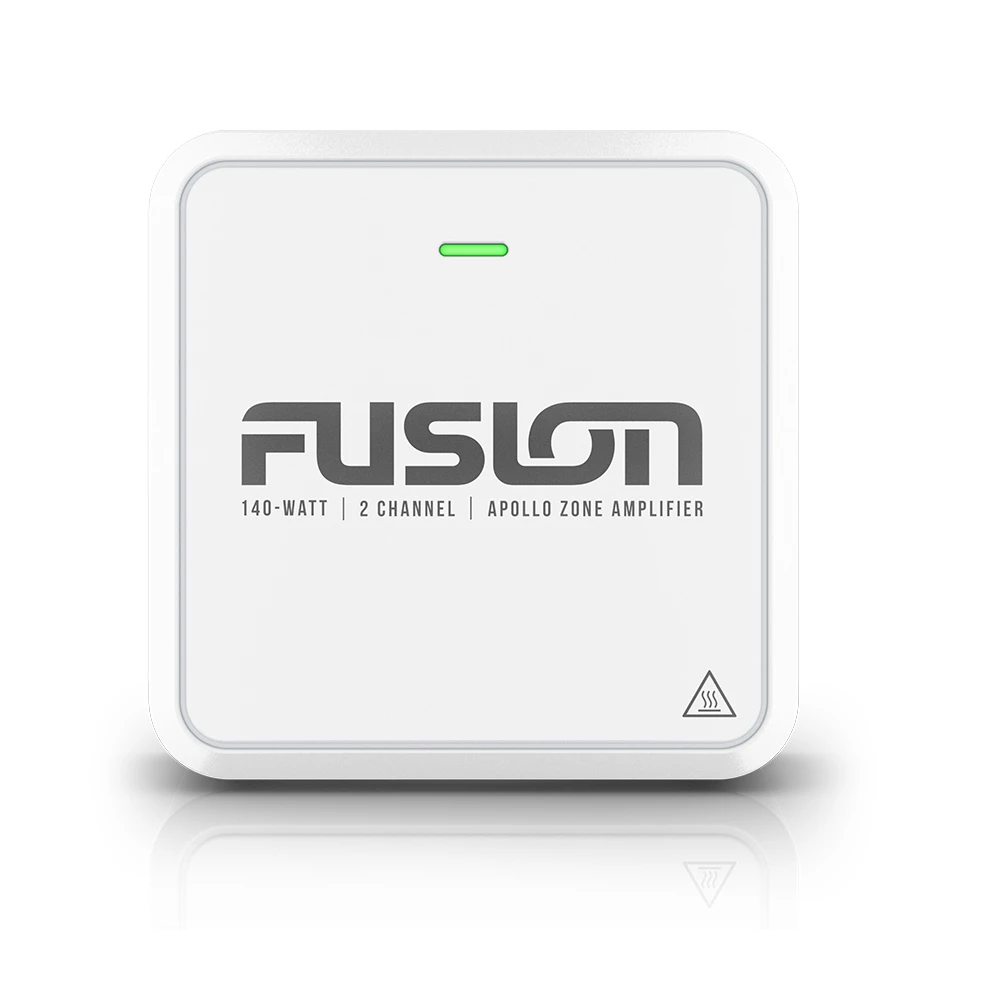

Fusion Apollo Zone Marine Amplifier

A 2 channel zone amplifier designed exclusively for use with Fusion DSP-enabled stereos (Apollo RA770, Apollo RA670, Apollo WB670 and RA210) and Fusion speakers.

This efficient zone amplifier provides audio zone expansion for high-quality sound in more areas on your boat. With 20-watt RMS per channel (at 4 ohm), this 2 channel amplifier allows you to add an extra pair of speakers on board. The Easy Tune feature automatically regulates audio settings for the best sound quality without manual adjustments (Requires setup using the Fusion-Link™ app on a compatible smartphone).

Features

• RMS Power: 20-watt RMS per channel (at 4 ohm), allowing you to add an extra pair of speakers on board.
• Efficient Class-D Design: Uses less power, so you can listen to music for longer at higher volumes, with less drain on the battery.
• Easy Tune Feature: Automatically adjusts audio settings for the best possible sound quality with no manual adjustments required (Requires setup using the Fusion-Link app on a compatible smartphone).
• Compact Design: The compact size of the zone amplifier makes it a versatile option for mounting on board.
• LED Indicator: Show issues with electrical currents and shorts as well as temperature.
• Less Total Harmonic Distortion: The amplifier is designed with minimal distortion and noise, allowing for better quality audio.
• Ignition Protected: Intelligent electronic fuse prevents damage from over/under current, temperature, output short and other faults.
• Conformal Coated PCBs: The amplifier circuit board has been specially coated to provide enhanced protection from the marine elements.
• Powder Coated Aluminium Finish: Salt fog, temperature, vibration and UV tested with a modern aesthetic design to add style to your boat.
• Easy Installation: A mounting bracket is included in the box allowing you to simply clip the amplifier in place for a clean finish.
• 12- and 24-Volt Compatible: The zone amplifier is designed to work with both 12- and 24-volt electrical systems.
• True-Marine™ Design: Designed to withstand the harshest marine environments season after season, the zone amplifier is IPX7 rated and comes with a 3-year warranty.

Specifications

• Physical Dimensions Without Bracket (WxHxD): 100 x 100 x 45 mm
• Physical Dimensions With Bracket (WxHxD): 100 x 100 x 48 mm)
• Weight: 460 g
• Water Rating: IPX7
• Amplifier Class: Class-D
• CEA-2006 Power Rating: 20W RMS x 1 @ 14.4 V input - 4 ohm < 1% THD
• Total Rated Power Output - 2 ohm (watt): 30W RMS x 1 @ 14.4 V input - 2 ohm < 1% THD
• Peak Power: 140W
• Input Sensitivity: 0.45 V RMS
• Input Impedance: 9k ohm
• Operating Voltage: 10.8 V - 32 V DC
• Current Consumption (StandBy): < 1 mA @ 14.4 V input
• Current Consumption (Idle): < 0.04 A @ 14.4 V input
• Current Consumption (Max): 10 A
• Fuse Rating: 16 A electronic fuse (no replacement necessary)
• Ignition Safety Protected (SAE J1171): Yes
• Protection Circuits: Reverse voltage, input under/over voltage, over temperature, output short circuit
• Operating Temperature Range: 32° to 122° F (0° to 50° C)
• Warranty: 3 years

In The Box

• Apollo Zone Amplifier
• Wiring Harness
• Quick mount bracket and screws
• Installation instructions

Click here for Installation Instructions
