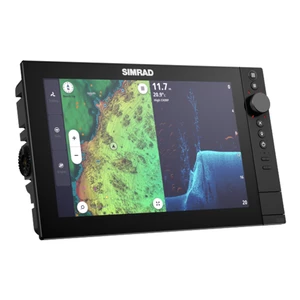

Simrad NSS 4 Multifunction Display

Catalogue Code: 220736
£2,399.95
Save £340.05
RRP £2,740.00
In Stock
Colour: No Colour
Size Guide
Select Your Size (Required):
See Product Description Check Stock in Store Add to Wish List
  • Get it on Monday, 7th July if ordered within the next 7 hours 55 mins 42s and select Next Day Delivery *UK Mainland Only
  • Ask a question
Optional Extras Tick to add optional extras to your basket
RS40B VHF with Internal AIS Transponder
RS40B VHF with Internal AIS Transponder £999.95 Save £170.04 RRP £1,169.99
Active Imaging HD 3-IN-1 Thru Hull Transducer
Active Imaging HD 3-IN-1 Thru Hull Transducer £869.95 Save £95.04 RRP £964.99

View all 5 optional extras

  • Description
  • Videos
  • Availability
  • Delivery & Returns
  • Reviews
Description
Simrad NSS 4 Multifunction Display

The NSS 4 chartplotter and fishfinder redefines what’s possible out on the water. With a trio of hybrid controls, a lightning quick Qualcomm® processor, and dual channel CHIRP sonar, NSS 4 is a premium, all-in-one offering for sportfishing enthusiasts and cruisers.

Redesigned inside and out, NSS® 4 is sleeker, faster and smarter. The touchscreen, rotary dial, and keypad all work in harmony for superior control. Inside, our most powerful Qualcomm® 8-core processor delivers smoother transitions and faster updates. And advanced fishfinding capabilities such as dual channel CHIRP sonar, Active Imaging™ HD support, and enhanced customization complete the package for our premium, all-in-one sports chartplotter and fishfinder.

  • Trio of hybrid controls: touch, rotary, and keypad
  • Premium glass-to-edge design
  • Lightning fast Qualcomm® 8-core processor
  • Redesigned operating system
  • Built-in dual channel 1kW CHIRP echosounder
  • Support for Active Imaging™ & Active Imaging™ HD
  • Support for C-MAP® X-gen charts and others
  • Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible
  • Compatible with Simrad suite: S3100 & S5100 sonar modules, radar, and more...
  • Support for Mercury®, CZone®, SiriusXM®, and more...

SLEEKER

Next-gen design, inside and out

NSS 4 looks stunning from the moment you lay eyes on it. A trio of hybrid control options revolutionize the way you interact with your display, with touch, rotary dial and keypad all working in harmony for control in all conditions.

An updated glass-to-edge design delivers a more premium look and feel to the helm, revolutionizing dashboards instantly. The sleek design continues when you boot up, with a streamlined interface optimized for ease of use.

FASTER

Lightning quick user experience

At the heart of NSS 4 lies Simrad's most powerful Qualcomm® 8-core processor, delivering unimaginably fast speeds throughout the user experience. NSS 4 brings smoother page transitions, faster auto-routing and, ultimately, faster boating.

Speed is also built into the latest operating system, which is quicker at every touchpoint. A streamlined UI allows users to pin their favorite apps and customize screens to suit their boating style. New configurable buttons provide instant access to your favorite apps. And lightning fast connections make updating a breeze, with Wi-Fi 5 and Gigabit internet capability.

SMARTER

Advanced angling

NSS 4 is built for more ambitious angling. A dual channel 1kW CHIRP echosounder provides enhanced target separation and a clearer and more complete picture of the waters below. Support for the stunning Active Imaging™ HD means images of underwater structure and fish are clearer than ever. And integration with the latest trolling motors, including Simrad® RECON™, helps you hold your position over fish.

When your line is dropped, NSS 4 takes customization to a new level. Users can set custom frequencies, take control of their colour palettes, and even track four sonar sources on a single display for the first time. And a new Waypoint Fish Tagging feature makes it easier to track the best catch spots. Navigate between them with the stunning DISCOVER® X and REVEAL® X charts from C-MAP®.

SLEEKER DESIGN

  • Next-gen design with hybrid controls: touch, rotary dial, and keypad
  • Glass-to-edge design for a premium look and feel
  • Streamlined, user-friendly interface

FASTER PERFORMANCE

  • Powered by a lightning-fast Qualcomm® 8-core processor for smooth performance
  • Faster page transitions, our faster auto-routing yet, and Wi-Fi 5/Gigabit internet support
  • Configurable buttons for quick access apps and functions
  • Customizable screens and app shortcuts for personalized use

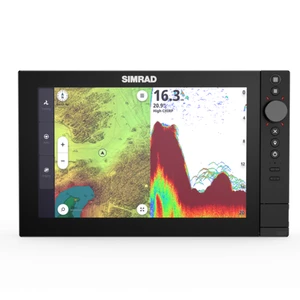

SMARTER FISHING

  • Built-in dual-channel 1kW CHIRP echosounder for sonar capabilities and finding fish
  • Active Imaging™ HD for better fish and structure detail
  • Monitor and track up to four sonar sources/feeds on the device.
  • Waypoint Fish Tagging – Add a species icon to saved waypoints for easy organization and future recall based on the fish type caught.

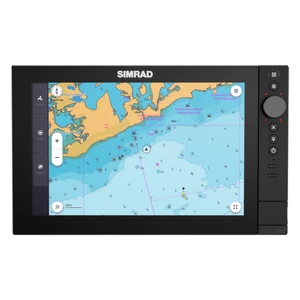

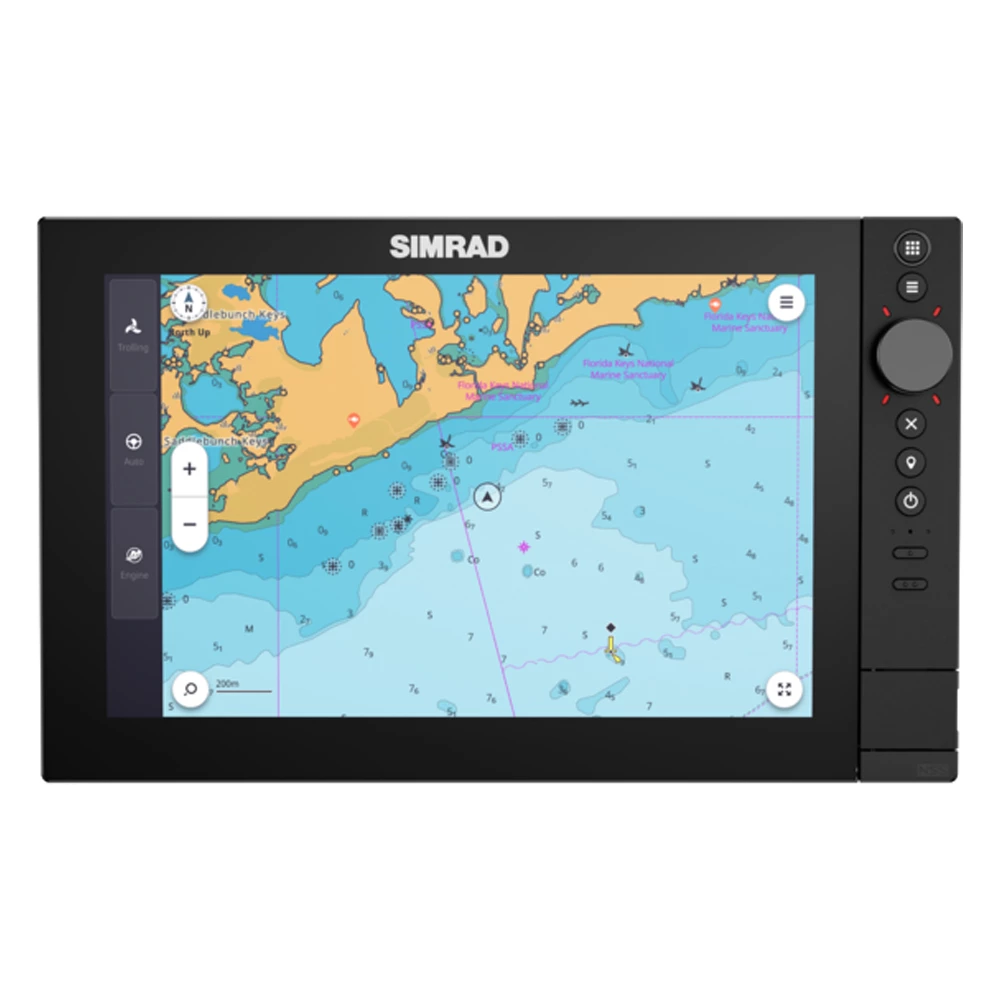

NEXT LEVEL CHARTING

  • Designed specifically for C-MAP® X-Gen charts: DISCOVER® X and REVEAL™ X options
  • Fully compatible with additional chart options: C-MAP®, CMOR Mapping , Standard Mapping and more to come.

INTEGRATED FOR THE FUTURE

  • Seamless integration with Simrad® suite of products (HALO® radars, RECON™ trolling motor, S3100 and S5100 sonar modules, auto-pilot systems and more)
  • Supports third-party tech like Mercury® SmartCraft, SiriusXM®, CZone®, Omnisense and FLIR cameras, RGBW and much more
  • Simrad® RECON™, Rhodan®, and MotorGuide® Trolling Motor Compatible



ADDITIONAL FEATURES

  • Custom configurable buttons - provide easy, instant access to your favorite apps and features with a touch of a button (featured on 12” and 16” sizes only)
  • Latest operating system: Redesigned to feel familiar and easy to use right out of the box.
  • Leading angling tech: Supports a variety of the most powerful sonar technology, including SideScan & DownScan with FishReveal™ - helping you identify fish amongst cover
  • Sonar sharing across like devices
  • Compatible with a wide range of 1Kw transducers

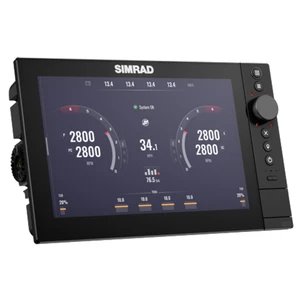

  • Class-leading engine control with Mercury® and seamless compatibility with Honda and Suzuki
  • SolarMax™ IPS Display – clear view in direct sunlight, through polarized sunglasses, and from any angle
  • NMEA® 2000 connectivity
  • Built-in Wi-Fi and GPS
  • C-MAP® Safety Alerts – Automatically warns boaters of upcoming hazards, from shallow waters to buoys.
  • X-Chart Manager allows users to manage C-MAP® chart updates and custom area downloads directly from the device.
  • 2-year limited warranty
  • Flush-mount and gimbal mount installation options

Specifications

MFD

  • AIS: Receive AIS data over NMEA 2000
  • Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible
  • Cartography included: World wide basemap (not for navigation).Detailed chart card required
  • Cartography supported:  C-MAP Discover™ X, C-MAP Reveal™ X. Third party charts CMOR, StikeLines (check with provider for available content)
  • Digital Switching: Czone / DDS
  • External Storage: 2x (microSD®, SDHC®), 1 x USB port
  • GPS: 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS. SBAS (WAAS)

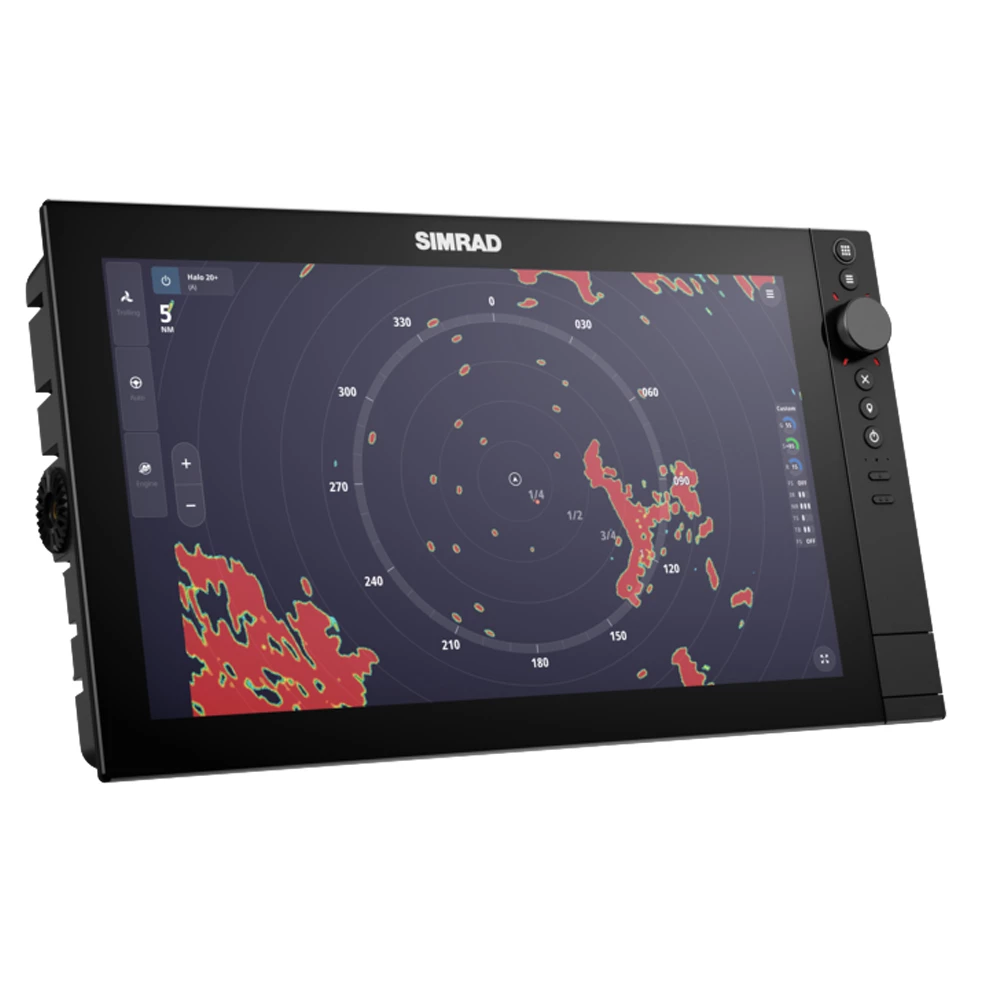

  • Radar (inc. compatibility): Halo dome radars, Simrad Halo open array radars, 3G/4G, Simrad 10/25 kW HD Radars
  • Sonar (inc. compatibility): Two 9 pin Xsonic 1 kW Sonar ports. Sonar port: Low, Medium, and High Chirp up to 1kW RMS: Downscan: 455 kHz, 800 kHz, 700 kHz CHIRP, 1200 kHz CHIRP. Imaging port: Sonar: Low, Medium, and High Chirp up to 1kW RMS. Downscan: 455 kHz, 800 kHz, 700 kHz CHIRP, 1200 kHz CHIRP. Sidescan: 455 kHz, 800 kHz, 455 kHz CHIRP, 1200 kHz CHIRP. Network Sonar modules S3100, S5100
  • Waypoints, Routes, Tracks: 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: Zeus3, Zeus3 GH maximums will apply if on the same network
  • Compass Safe Distance - Metric, imperial: 65 cm (2.1 ft)

Display

  • Backlight Colour: White
  • Resolution:
    • 10 & 12”: 1280 x 800
    • 16”: 1920 x 1080
  • Screen Brightness: >1200 nits
  • Screen Type: SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses
  • Viewing Angles: 80° top/bottom, 80° left/right

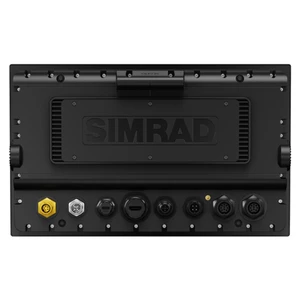

Connectivity

  • NMEA 0183: No
  • NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN
  • Video: Video In, Video out via USB. IPCAM-1, FLIR 232/300 series. ONVIF IP Camera IP Cameras: IPCAM-1, FLIR 232/300 series. ONVIF IP Cameras
  • WiFi: Wi-Fi 5 (IEEE 802.11ax)

Electrical

  • Power Consumption, max.:
    • 10”: 28W
    • 12”: 40W
    • 16”: 44W
  • Recommended Fuse Rating: 5 A
  • Supply Voltage:                12/24 V DC (10 - 31.2 V DC min - max)

Environment

  • Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
  • Operating Temperature Range: -15°C to 55°C (5°F to 131°F)
  • Shock and Vibration: 100,000 cycles of 20 G
  • Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
  • Waterproof rating: IPX6 and IPX7

Physical

  • Dimensions (W x H x D):
    • 10”: Display only: 287.9 mm x 176.1 mm x 79.6 mm (11.33″ x 6.93″ x 3.13″) With bracket: 315.8.8 mm x 196.5 mm x 79.6 mm (12.43″ x 7.73″ x 3.34″)
    • 12”: Display only: 338.9 mm x 208.4 mm x 84.8 mm (13.34″ x 8.20″ x 3.13″) With bracket: 367.8 mm x 232.8 mm x 84.8 mm (14.48″ x 9.17″ x 3.34″)
    • 16”: Display only: 423.5 mm x 241.6 mm x 88.6 mm (16.67″ x 9.51″ x 3.49″) With bracket: 453.4 mm x 266.4 mm x 88.6 mm (17.85″ x 10.49″ x 3.49″)
  • Mounting Type: Bracket mount (bracket supplied). Rear mount (brackets supplied)
  • Weight:
    • 10”: 1.8 kg (3.97 lb)
    • 12”: 2.8 kg (6.17 lb)
    • 16”: 3.8 kg (8.38 lb)
  • Warranty Period: 2 Years

In The Box

  • Simrad® NSS® 4 unit
  • 4-pin power cable and fuse block
  • Rear mount dash kit and dash gasket
  • Gimbal bracket (10” and 12” sizes only)
  • Sun cover
  • Documentation Pack
