RS40B VHF with Internal AIS Transponder
- Delivery & Returns
- Questions & Answers
The new RS40-B VHF Radio has an integrated Class-B AIS receiver and transmitter, for an all-in-one, space-saving installation on board. View AIS information on the radio's screen, or overlay on your chartplotter. There'a also an internal GPS receiver and full DSC functionality.
- Low profile design to align with style of Simrad MFD’s
- Large screen with intuitive user interface
- Class D DSC approved VHF radio
- See and be seen with an integrated Class B AIS transceiver
- Integrated GPS receiver
- Removable fist mic supports front or rear connection
- Connect up to two wireless handsets
- Add an optional loudhailer or external speaker
- NMEA 0183® and NMEA 2000® connectivity
- Track up to 5 vessels with the ‘Track Buddy’ feature
- Use Navigation Mode to display speed and course
- Includes Man Overboard (MOB) function
NOTE: Two VHF antennas are needed for RS40-B, one for VHF and one for AIS. Alternatively an NSPL-500 can be used.
A dual-channel AIS receiver monitors the position of nearby AIS-equipped vessels, helping you to avoid collisions in crowded harbours and waterways.
For the first time a VHF Radio can automatically transmit AIS information. When moving, the RS40-B will send out a transmission every 30 seconds containing important information so that vessels around you know where you are, where you’re going and how fast you’re going. Information includes:
- Speed over Ground
- Course over ground
- Vessel Name
- Vessel Callsign
- Vessel dimensions
RS40-B also has a “silent mode” so if you are going fishing and don’t want everyone to know where you are you can turn off transmissions temporarily. You can then disable silent mode when you are coming back into an area with a lot of traffic.
GPS Built In
To meet both DSC and AIS regulations RS40-B gives the user the option of an internal GPS antenna, located in the face of the radio, or an external GPS antenna (GPS-500) which connects directly to the rear of the radio. It is not possible to get GPS information from a networked antenna (NMEA0183/2000). This is due to AIS regulations Note: RS40-B can be used as a GPS source for other products with both NMEA0183 and 2000
Add up to two optional wireless handsets to take your radio anywhere on board. The HS40 handset was designed as an intuitive portable companion to the RS40-B. Each handset duplicates your radio’s display and controls, enabling remote access to all key functions. Having multiple stations also allows the RS40-B to double as a handy on-board intercom.
- Normal Working Voltage +13.6 DC V DC
- Minimum operating Voltage =10 V DC
- Low battery detect Voltage 10.5 ± 0.5 V DC
- Over Voltage Protection >15.8 ± 0.5 V DC
- Digital Selectivity Calling (DSC) Class D
- LCD Display FSTN 256x160 Pixels
- Hailer Audio Power Out 30 W
- AIS Max Targets 150
- Class: Class-B CSTDMA

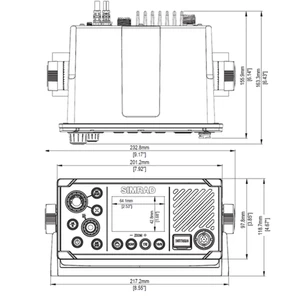

- Dimensions (mm): 201.2W x 97.8H x 163.3D
- Cut out (mm) :190W X 82H
In The Box
- RS40-B VHF with Fist mic
- Flush mounting kit
- Bracket mount and knobs
- Mic Hanger
