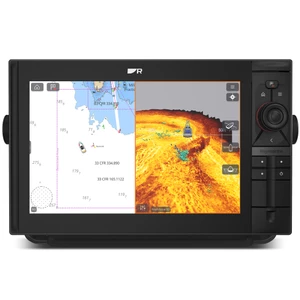

Raymarine Axiom2 Pro RVM

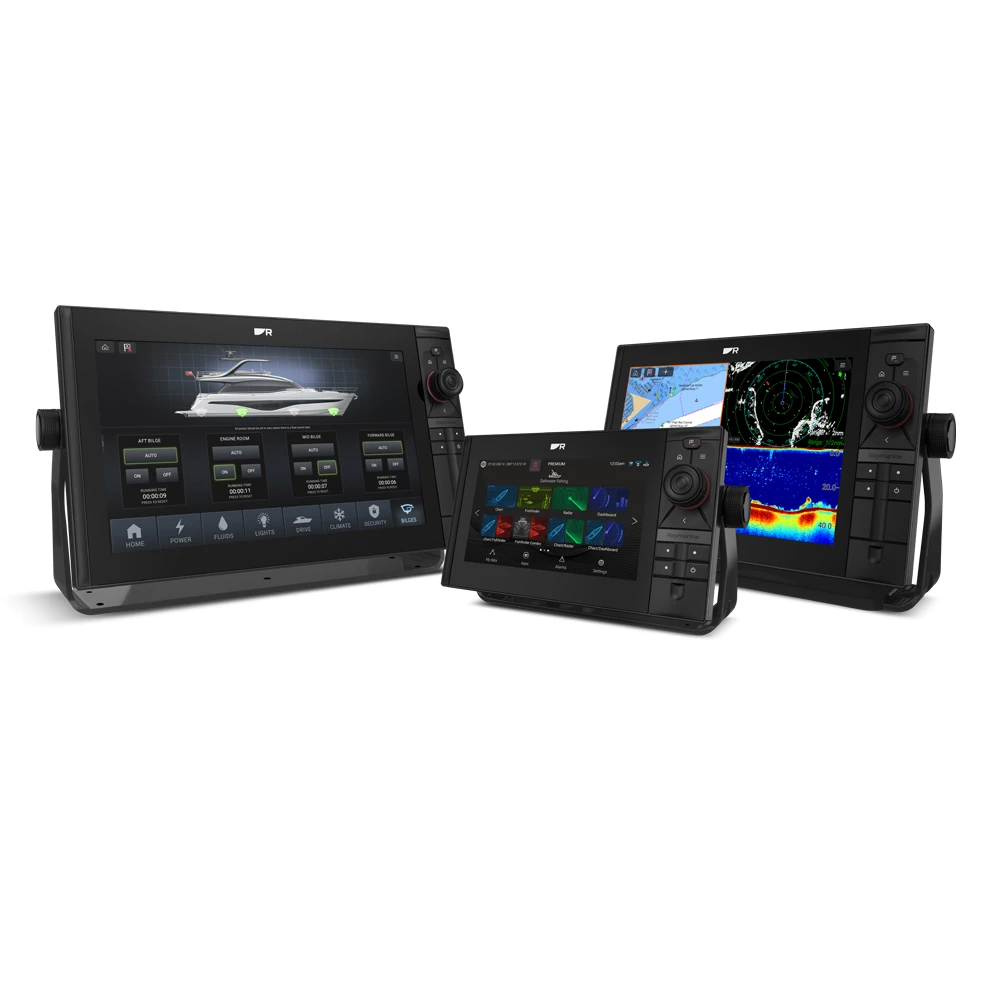

9, 12 and 16 inch HybridTouch chartplotters with RealVision MAX and 1kW CHIRP sonar

Axiom 2 Pro combines chartplotter, fish finder, radar, autopilot, and video into a powerful all-in-one fishing system. Plan your next offshore adventure and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Designed for discovering the deep, Axiom 2 Pro RVM chartplotters feature an integrated multi-channel fish finder with RealVision MAX CHIRP sonar technology.

POWER THAT PUSHES THE LIMITS

Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. Chartplotter, radar, autopilot, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.

READY FOR ALL CONDITIONS

Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.

Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.

CONFIDENT CONTROL

Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.

Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.

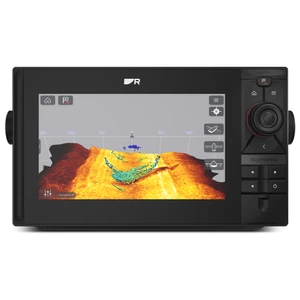

FIND MORE FISH WITH REALVISION MAX

RealVision MAX ups your fish-finding game with increased range, better resolution, and sharper fish targets.

Axiom 2 Pro models with RealVision MAX feature built-in CHIRP DownVision, SideVision, RealVision 3D, and 600-watt traditional CHIRP fish finder for coastal fishing, plus a 1kW dual channel CHIRP fish finder for deep water.

Advanced Engine Integration

Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines

Stream, Watch, and Listen

Stream Netflix and Spotify, connect and control Fusion, JL Audio, and Rockford Fosgate marine audio systems, or view Axiom 2 Pro on the big screen with HDMI output.

Axiom on your Smartphone

Built-in Wi-Fi lets you view and control your Axiom 2 Pro on your phone or tablet with the Raymarine Mobile App.

Specifications

Display

• Type: IPS (In-Plane Switching)
• Axiom 2 Pro 9: 9.0" 1280 x 720 HD 1300 nits
• Axiom 2 Pro 12: 12.1" 1280 x 800 WXGA 1200 nits
• Axiom 2 Pro 16: 15.6" 1920 x1080 FHD 1200 nits
• Viewing Angle: Top 88° / Bottom 88° / Left 88° / Right 88°

Sonar

• Power output:
  • RealVision MAX high CHIRP sonar channel: 600 Watts RMS
  • Traditional dual channel CHIRP channel: 1kW RMS
• Sonar channels:
  • RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz)
  • 1kW CHIRP Port: 42 - 250kHz (Transducer dependent)
• RealVision MAX Depth range: 25-pin RealVision type connector: High CHIRP conical sonar: 366 m (1200 ft), DownVision: 183 m (600 ft), SideVision: 91 m (300 ft), RealVision 3D: 91 m (300 ft)
• 1 kW Depth range: 11 pin 1kW connector: : 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using a 1kW transducer)
• Transducer connection: 1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, and 1 x 11-pin 1kW transducer connect

GPS (GNSS)

• Antenna: Internal - Ceramic chip mounted near top of unit
• GNSS compatibility: GPS, Galileo, GLONASS, Beidou
• Refresh rate: 10 Hz (10 times per second)

Power

• Nominal supply voltage: 12 V dc / 24 V dc
• Power consumption @ 12 V dc: 9” - 33.12W, 12” – 29.88W, 16” - 42.36W

Environmental

• Operating temperature : -25°C to +55°C (-13°F to 131°F)
• Relative humidity: Up to 93% @ 40°C (104°F)
• Waterproof rating: IPx6, IPx7

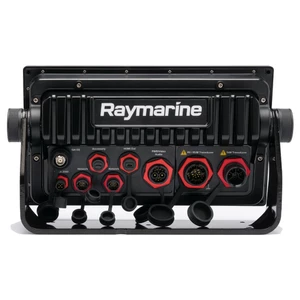

Connections

• Ethernet connection: 2 RayNet (10/100/1,000 Mbits/s) ports
• NMEA 2000 connection: DeviceNet connector
• Wi-Fi: Multiband - 2.4GHz, and 5Ghz 802.11b/g/n
• Bluetooth: v4.0
• Accessory connection: USB Micro B
• External storage: 2 front mounted MicroSDXC card slots
• Digital Video and Audio: HDMI Out Micro connector type D
• Analog video connections: BNC Analog video input (on power cable)
• Analog audio connections: RCA connectors via power cable
• External GPS antenna: TNC connector

Dimensions

Trunnion Mounted

• Axiom 2 Pro 9 (mm): 186.2H x 329.5W x 234.9D (including cables)
• Axiom 2 Pro 12 (mm): 246.13H x 388.5W x 233.4D (including cables)
• Axiom 2 Pro 16 (mm): 281.2H x 482.5W x 233.4D (including cables)

Surface/Flush Mounted

• Axiom 2 Pro 9 (mm): 173.8H x 299.3W x 234.9D (including cables)
• Axiom 2 Pro 12 (mm): 222.8H x 358W x 233.4D (including cables)
• Axiom 2 Pro 16 (mm): 258H x 452W x 240.4D (including cables)

In The Box

1. Display unit
2. User Configurable Keypad
3. Suncover
4. Gasket
5. Trunnion bracket (Axiom 2 Pro 9 and 12 Only)
6. Trunnion knobs (x 2)
7. Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
8. DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
9. RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
10. Mounting fixings x4
11. Documentation
12. Power/Video/Audio cable 1.5 m (4.92 ft)
