Quantum 2 Q24D Doppler Radar With 10m Power and Data cables
- Delivery & Returns
- Questions & Answers
Navigate like a Pro this spring with Raymarine and save up to £1900
When you buy a qualifying Axiom Pro, you are eligible to further savings on the Quantum Q24D Doppler 2 Radar, M323 Thermal Pan and Tilt IP Camera & EV-200 Autopilot (choose from 3 packs)
See here for full details of the offer.
The Quantum 2 next generation CHIRP pulse compression radar by Raymarine provides superior target awareness at both long and extremely short ranges.
Using advanced Doppler processing, the system instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound. Quantum with Doppler makes it easy to discern potentially dangerous targets when navigating in high-traffic areas.
- Doppler moving target display allows for superior situational awareness at-a-glance
- Fully automatic ARPA target tracking, along with manual MARPA mode
- Adjustable TrueTrails target history shows the motion history of moving contacts
- CHIRP Pulse Compression detects contacts as close as 18-feet for zero-visibility navigation
- 24-mile range for early detection of traffic, navigation aids, landfall and weather
- Immediate awareness – Quantum starts up and is ready to go in seconds
- Superior interference rejection eliminates noise from other radars
- Simplified installation with Wi-Fi or thin wire network connectivity
- Easy upgrade – Quantum 2 fits the same bolt pattern as other Raymarine scanners
- Lightweight and easy to install – Quantum weighs up to 50% less than comparable magnetron radars
- Safe emissions – mount Quantum anywhere onboard
- Low power consumption for extended battery life under sail

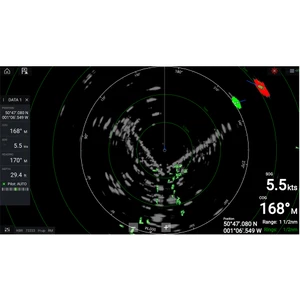

DOPPLER TARGET PROCESSING
Doppler radar is tuned specifically to detect the radar echo frequency shift returned by moving vs. stationary targets.
Quantum 2 then uniquely color codes moving targets to indicate whether they are getting closer, or moving away.
- Inbound targets are colored red.
- Outbound targets are colored green.
Color coded targets make it simple to pick out moving traffic from other stationary targets like land, navigation aids or stopped/anchored vessels.
Quantum 2 features Raymarine’s new True Trails target history display. The True Trails features enables you to see a historical “wake” behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels, and make smart maneuvering decisions to pass safely.
AUTOMATIC TARGET ACQUISITION & TRACKING
The Quantum 2 also features fully automatic target acquisition and tracking. Configure custom safety or alarm zones and be alerted to new radar contacts entering the zone. Quantum 2 can begin tracking those contacts automatically, calculating their course, speed, closest point of approach and more. You’ll be alerted to dangerous contacts with audible alerts and easy to understand on-screen graphics
RUGGED & LIGHTWEIGHT DESIGN
Like every Raymarine Quantum system, you’ll also benefit from arugged and lightweight design that is super-easy to install. Quantum 2 has very low power consumption making it especially friendly to vessels running exclusively on battery power. Quantum 2 with Doppler can be installed in a traditional wired configuration, or use its built-in Wi-Fi technology to connect it to your Raymarine MFD.
- Input Voltage: 12 or 24 Vdc (Min: 10.8V, Max: 31.2 V)
- Networking Wi-Fi or wired Ethernet (RayNet)
- Power Consumption:Transmit mode 17W; standby mode 7W; sleep mode 2W
- Range Scales: From 1/16 to 24 nautical miles
- Transmit Frequency: 9354 to 9446 MHz
- Peak Power Output: 20W
- Noise Less than 4 dB
- Max. Range Scale from 1/16 to 24 nautical miles
- Beamwidth (nominal) 4.9º horizontal and 20º vertical
- Waterproofing: IPX6
- Weight: 5.6 kg (12.3 lb)
In The Box
- Quantum 2 Radome
- 10m Power cable
- 10m Data cable
- 4 x M8 mounting bolts and spring washers
- Documentation pack (including mounting template)
