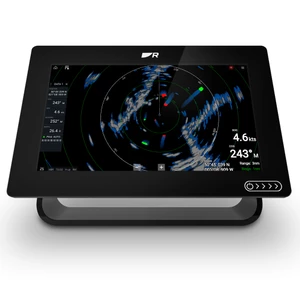

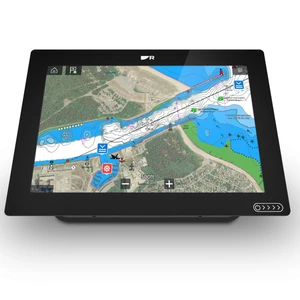

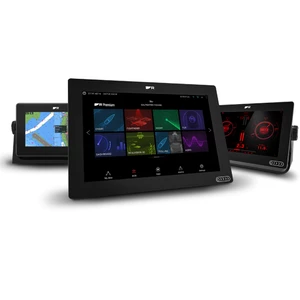

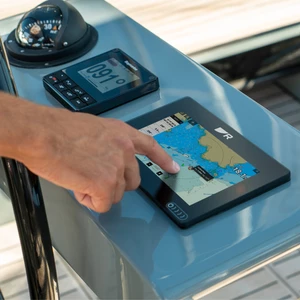

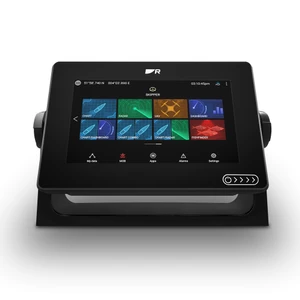

Raymarine Axiom Plus Multifunction Display

Axiom + -  The Latest generation of high-performance multifunction displays from Raymarine.

Smarter, brighter, and tougher than ever, Axiom+ boasts an upgraded display with IPS technology that delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays.  Available in 7, 9, and 12-inch display sizes, Axiom+ displays are 25% brighter and feature Raymarines new HydroToughTM impact-resistant glass that repels water, oil, and smudges and delivers improved clarity and accurate touch controls. Axiom+ also offers fast quad-core performance, enhanced GPS, and increased onboard storage for apps and new LightHouse Charts

HYDROTOUGH™ DISPLAY

Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls

SHARPER

IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays. e touch controls.

MAXIMUM VISIBILITY

Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning colour.

BRIGHTER

7, 9, and 12 inch all-weather displays are up to 25 percent brighter (up to 1,800 nits).

ENHANCED GPS

Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning

FAST & FLUID

Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts.

QUAD-CORE POWER

Powerful quad-core processor, plus increased onboard storage for personal data and apps

LIGHTHOUSE 3 OS

Smart and intuitive LightHouse 3 OS makes navigating easy.

AUGMENTED REALITY

ClearCruise™ Augmented Reality-capable for smarter navigation decisions.

Specifications

  • Display Type: Multitouch with HydroTough™ rugged hydrophobic coating
  • Mounting Options: Surface, Flush, Trunnion, (Front installation bracket available)
  • Waterproof Rating: IPX6 / IPX7
  • Operating Temperature Range: -25°C to +55°C (-13°F to +131°F)
  • Supply Voltage: 12Vdc (8-16Vdc)
  • GNSS / GPS: Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required
  • Radar Compatibility:  Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars
  • AIS:  NMEA2000 compatible
  • Autopilot Control:  Evolution Autopilot
  • Thermal Night Vision:  FLIR AX8, M232, M300 Series, M400, M500
  • Video / Camera: Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras)
  • Weather: GRIB View - Free GRIB viewer and Theyr Ltd Subscription
  • Audio: NMEA2000 / Bluetooth speaker controls
  • Digital Switching: Empirbus & C-Zone compatible
  • Remote Control:  Optional RMK-10 (A80438)
  • Ethernet: 1 x 10/100 Mbit/s Network (RayNet)
  • NMEA0183: No
  • NMEA2000: NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter
  • USB: 1 x USB microAB
  • Wi-Fi: WiFi - 802.11 a/b/g/n
  • BlueTooth: Bluetooth v4.0
  • Cartography: Lighthouse Charts, Navionics, and C-MAP compatible
  • Waypoint/Routes/Tracks: 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
  • Internal Memory: 16 GB Solid State
  • External Memory: 1x MicroSD Card Slot
  • Languages: 24
  • Conformances: NMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210

Axiom +7

  • Display Size: 7.0 inch High Density IPS
  • Display Resolution: 1024 x 600 (WSVGA)
  • Brightness:            1,500 nits
  • Viewing Angle: 85° Top, Bottom, Left, Right
  • Dimensions: W x H x D: 210 x 142 x 77mm (Excluding trunnion and cables)
  • Weight: 1.4 KG
  • Power Consumption (Full brightness): 7.34 Watts

Axiom +9

  • Display Size: 9.0 inch High Density IPS
  • Display Resolution: 1280 x 720 (WXGA)
  • Brightness:1,500 nits
  • Viewing Angle: 85° Top, Bottom, Left, Right
  • Dimensions: W x H x D: 244 x 158 x 77mm (Excluding trunnion and cables)
  • Weight: 2.3 KG
  • Power Consumption (Full brightness): 8.95 Watts

Axiom +12

  • Display Size: 12.1 inch High Density IPS
  • Display Resolution: 1280 x 800 (WXGA)
  • Brightness:1,800 nits
  • Viewing Angle: 88° Top, Bottom, Left, Right
  • Dimensions: W x H x D: 314 x 217 x 77mm (Excluding trunnion and cables)
  • Weight: 2.95 KG
  • Power Consumption (Full brightness): 15.48 Watts

In The Box

  • Multifunction Display
  • Trunnion bracket
  • Trunnion knobs x 2
  • Suncover — Trunnion mount
  • Panel mount gasket for surface/flush mounting
  • Rear mounting brackets: (9 & 12” models only)
  • Documentation pack
  • M5x58 Threaded studs x 4
  • M5 Thumb nuts x 4
  • Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).

Videos
Videos
Availability
Stock Availability

Stock can move quickly, so this is just a suggestion of current levels, please phone the shop to confirm.

The ship to store service is based on Head Office sending stock to a branch.

If you wish to call & collect stock, please do so over the phone using the number provided.

- - 7

Store Availability Telephone
Cardiff Not currently in stock 02920 220929
Chichester Not currently in stock 01243 773788
Deacons 02380 402182
Lymington 01590 673698
Plymouth 01752 548301
Poole Not currently in stock 01202 723311
Port Hamble Not currently in stock 02380 454858
Southampton 02380 632 725
Gloucestershire (Distribution Hub) 0345 130 0710

- - 9

Store Availability Telephone
Cardiff 02920 220929
Chichester 01243 773788
Deacons 02380 402182
Lymington Not currently in stock 01590 673698
Plymouth 01752 548301
Poole 01202 723311
Port Hamble 02380 454858
Southampton 02380 632 725
Gloucestershire (Distribution Hub) 0345 130 0710

- - 12

Store Availability Telephone
Cardiff Not currently in stock 02920 220929
Chichester Not currently in stock 01243 773788
Deacons Not currently in stock 02380 402182
Lymington Not currently in stock 01590 673698
Plymouth Not currently in stock 01752 548301
Poole Not currently in stock 01202 723311
Port Hamble 02380 454858
Southampton Not currently in stock 02380 632 725
Gloucestershire (Distribution Hub) 0345 130 0710

- Good Availability

- Low Availability

- One item left

Delivery & Returns
Delivery

Royal Mail Service Update: Please be aware when choosing Royal Mail as your preferred delivery method, your delivery time may be impacted by ongoing strikes and may take up to 20 working days. If your order is time critical we suggest choosing a courier or Next Day Service



Our Mail Order team ship chandlery, yacht parts and sailing clothing around the world. We use the best value couriers available, and we will endeavour to get your products to you as quickly and as cost effectively as possible.

International Orders: Due to delays we have had to suspend our international delivery options.

UK Standard Delivery

  • UK Mainland 0 - 2Kg (small jiffy) £3.95 Royal Mail Service. Despatch within 3- 5 working days, delivery in 7-10 working days for orders under £50.00
  • UK Mainland up to 25Kg £5.95 Courier service with signature. Despatch within 3- 5 working days, delivery in 7-10 working days
  • UK Mainland 25Kg+ Price on request
  • UK Mainland Next Day 0 - 25Kg £9.95 Courier service with signature, orders must be placed before midday
  • Northern Ireland, Highlands & Islands 0 - 2Kg (small jiffy) £3.95 Royal Mail Service. Despatch within 3- 5 working days, delivery in 5-7 working days for orders under £50.00
  • Northern Ireland, Highlands & Islands 1 - 25Kg £10.95 Courier service with signature. Despatch within 3- 5 working days, delivery in 7-10 working days
  • Northern Ireland, Highlands & Islands 25Kg+ Price on request
  • Channel Islands 0 - 2Kg (small jiffy) £5.95 Royal Mail Service Despatch within 3- 5 working days, delivery in 5-7 working days for orders under £50.00
  • Channel Islands 1 - 25Kg £13.50 Courier service with signature. Despatch within 3- 5 working days, delivery in 5-7 working days
  • Channel Islands 25Kg+ Price on request

UK Exceptional Delivery

  • UK Mainland; Antifoul & paints £5.95
  • UK Mainland; Inflatable dinghy £10.00
  • UK Mainland; Liferafts £17.50
  • UK Mainland; Flares £49.95
  • Northern Ireland, Highlands & Islands; Antifoul & paints £9.95
  • Northern Ireland, Highlands & Islands; Inflatable dinghy price on request
  • Northern Ireland, Highlands & Islands; Liferafts price on request
  • Northern Ireland, Highlands & Islands; Flares not available to ship at this time
  • Channel Islands; Antifoul & paints £13.50
  • Channel Islands; Inflatable dinghy price on request Channel Islands; Flares not available to ship at this time

For further delivery information click here.

Returns

Standard Returns

If you are not entirely happy with your purchase, we will exchange or refund your goods in full, provided that the items are returned within 14 days of receipt.*

Please check the condition of goods on arrival - we are unable to accept goods damaged during shipping after 14 days.

Returned goods must be packaged securely, with all original packaging undamaged and in a saleable condition i.e. shoe boxes must be in the same condition as when received.

Goods must be unused and security seals intact.*

If you would like to return goods because they were ordered incorrectly or if clothing does not fit, return postage will be at your expense. If you would like us to replace the goods with another size or colour, we will charge carriage on the replacement.

Please be aware that some navigational and safety products may be dated, and as such a full refund may in some cases not be possible. If you are purchasing dated navigational charts we suggest you contact us for more information.

Faulty Goods

If you receive your goods and believe them to be faulty, please contact us straight away with a brief description of the problem. If we require you to return the product for a replacement, we will send you a pre-paid Royal Mail label for delivery back to us. Unfortuantely we cannot send the courier back to collect the items.

Returning goods to Force 4 is easy!

  1. Please contact us by ringing 0345 1300 710 or email on [email protected]. This way we'll be able to determine whether you would like to return the product for a refund or whether you'd like to exchange the product. We are unable to process the return of faulty goods that we're not expecting.
  2. We'll then give you a returns number. This returns number will need to be clearly marked on the outside of your parcel so it can be identified on arrival. Please note, failure to mark a returns reference number on the outside of your parcel may result in a delay in processing your return.
  3. Don't forget your proof of postage, just in case!
  4. Once we receive the item we'll be able to proceed with a refund or an exchange.

*this excludes faulty goods with manufacturers defects. If goods are found to be faulty during use, after the returns period, please just give us a ring on 0345 1300 710 and we'll be happy to help.

Questions & Answers
Questions & Answers
I have recently bought and fitted an Axion 12 Pro S and I’d like to put an Axiom 9 plus at the chart table. Can I network them wirelessly or will I need to run a raynet cable between them as well as sealtalkng cable? Also if I run a CPT-S transducer cable to this Axiom 9 plus will it then share the sonar data with the master Axiom 12 Pro S at the wheel? (it would be easier for me to run the CPT-S cable to the chart table)/ Thanks Mike Searle

Hello

Yes it is possible to do connect the transducer to the Axiom 9 via the SeaTalking/ NEMA2000 system, and then running ethernet cable between both Axioms to share data, but you will nee d to set up the Axiom 9 as the "master unit" so I'm not 100% sure what that means about the use of features that the 12 has and the 9 does not, I have emailed Raymarine to ask.



Please find below some information from Raymarine on the subject:



Within a system of MFDs running LightHouse II or LightHouse 3 software, it is important that each MFD within the system be running the same version of software, preferably the latest available version of LightHouse II or LightHouse 3 software.

Of the system's MFDs, one of the MFDs will be interfaced to the system's powered and properly terminated SeaTalkng / NMEA 2000 backbone should there be a SeaTalkng / NMEA 2000 backbone installed onboard the boat.

This MFD will then need to be designated as the system's Data Master MFD.The function of the system's Data Master MFD is to bridge data from the system's SeaTalkng / NMEA 2000 backbone to the system's Ethernet communications network from which the system's other MFDS will access this data. Cartography, radar, fishfinder, SiriusXM satellite weather/radio, IP camera, thermal camera, and Fusion 7xx Series Stereo resources are also designed to be shared between the MFD's via the system's Ethernet communications network.

Depending upon the model of MFD, each MFD will feature one, two, or three Ethernet communications interfaces. Should the system's MFDs not feature a sufficient number of Ethernet communications interfaces to permit MFDs and peripherals having an Ethernet communications interface to be networked to one another, then a HS5 RayNet Network Switch(es) would need to be installed to provide the additional Ethernet interfaced required to network the products .

Hi what’s the difference between the axiom and axiom +? can to tell me the cutout size required for the axiom 7 and the axiom 9. Also is the screen size 7”/9” measured length or measured diagonally Thx Antony Stinson
The Axiom Plus has an upgraded screen resolution with IPS technology (in-plane switching panel) which gives sharper colours and a wider viewing angle (the angle at which you can see the screen when you're stood in front of it). The screen sizes are measured diagonally. The cut out for the Axiom 7 is 188mm x 120mm and the Axiom 9 is 231mm x 145mm. 2/12/22
Which language packs come with this plotter? Holger
Languages The following user interface languages are available: Arabic (ar-AE) Bulgarian(bg-BG) Chinese (Simplified)(zh-CN) Chinese(Traditional)(zh-TW) Croatian (hr-HR) Czech (cs-CZ) Danish (da-DK) Dutch (nl-NL) English (en-GB) English (en-US) Estonian (et-EE) Finnish (fi-FI) French (fr-FR) German (de-DE) Greek (el-GR) Hebrew (he-IL) Hungarian (he-IL) Icelandic (is-IS) Indonesian(Bahasa) (id-ID) Italian (it-IT) Japanese (ja-JP) Korean (ko-KR) Latvian (lv-LV) Lithuanian (lt-LT) Malay (Bahasa)(ms-MY ZSM) Norwegian(nb-NO) Polish (pl-PL) Portuguese (Brazilian) (pt-BR) Russian (ru-RU) Slovenian (sl-SI) Spanish (es-ES) Swedish (sv-SE) Thai (th-TH) Turkish (tr-TR) Vietnamese (vi-VN) The selected language also determines the display’s default units of measure.
