AIS700 Class B AIS Transceiver
AIS700 Class B AIS Transceiver
AIS700 Class B AIS Transceiver
AIS700 Class B AIS Transceiver AIS700 Class B AIS Transceiver AIS700 Class B AIS Transceiver
Raymarine

AIS700 Class B AIS Transceiver

Catalogue Code: 220501
£1,049.95 In Stock Online
Save £145.05 RRP £1,195.00
See Product Description Check Stock in Store Add to Wish List
  • Get it on Friday, 14th June if ordered within the next --:--:-- and select Next Day Delivery *UK Mainland Only
  • Ask a question
Optional Extras Tick to add optional extras to your basket
Axiom 9 Multifunction Display
Axiom 9 Multifunction Display £1,089.95 Save £155.05 RRP £1,245.00
Axiom 7 Multifunction Display
Axiom 7 Multifunction Display £649.95 Save £95.05 RRP £745.00

View all 4 optional extras

  • Description
  • Availability
  • Delivery & Returns
  • Questions & Answers
  • Reviews
Description

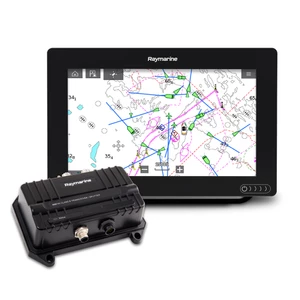

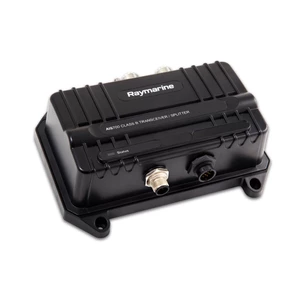

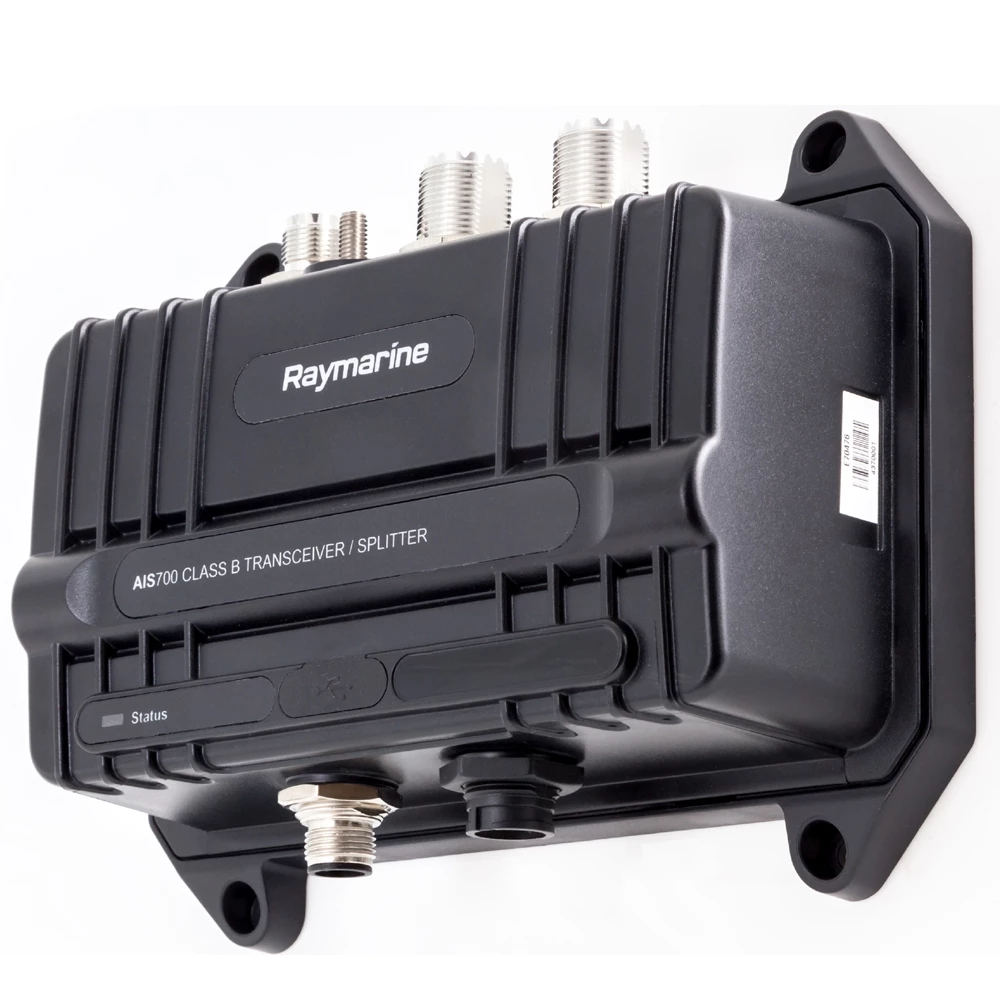

Raymarine AIS700 Class B AIS Transceiver

The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver with a built-in antenna splitter. As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boat’s information too helping you to be seen on other vessels’ systems.

  • Full transmit and receive AIS for enhanced situational awareness and safety
  • Latest SO-TDMA networking for longer range and faster performance
  • Built-in antenna splitter simplifies installation with existing VHF radio antenna
  • NMEA2000, NMEA0183, PC and SeaTalkng Compatible
  • Software or hardware switchable Silent Mode for enhanced security when needed

Specifications

  • Operating temperature -15°C to +55°C
  • Storage temperature -20°C to +75°C
  • Water ingress IPX6 and IPX7
  • Humidity Up to 93% @ 40°C
  • Power Supply 12v and 24 nominal
  • Power Consumption <3W
  • Peak current 3A
  • Load Equivalency Number 1 LEN
  • Positional source GPS & GLONASS
  • GPS receiver channels 72 channels
  • VHF antenna connector type SO-239 co-axial
  • VHF radio connector type SO-239 co-axial
  • GNSS antenna connector 50O TNC co-axial
  • NMEA0183, NMEA2000 DeviceNet male
  • USB Micro-B

In The Box

  • AIS700 Class B AIS Transceiver with built-in VHF antenna splitter
  • GNSS (GPS) Antenna
  • Power / data cable 2m (6.56 ft)
  • VHF Radio cable 1m (3.28 ft)
  • DeviceNet to SeaTalkng® adaptor cable 1m (3.28 ft)
  • GNSS antenna gasket
  • GNSS antenna pole mount
  • Unit fixings (4 x No.8x19 self tapping screws)
  • M5 nut and washer (grounding)
  • Documentation kit
  • GNSS antenna fixings (3 x M3x40 stud and thumb nut)
  • Software CD




Availability
Stock Availability

Stock can move quickly, so this is just a suggestion of current levels, please phone the shop to confirm.

The ship to store service is based on Head Office sending stock to a branch.

If you wish to call & collect stock, please do so over the phone using the number provided.

Store Availability Telephone
Cardiff Not currently in stock 02920 220929
Chichester 01243 773788
Deacons 02380 402182
Lymington 01590 673698
Plymouth Not currently in stock 01752 548301
Poole 01202 723311
Port Hamble 02380 454858
Southampton Not currently in stock 02380 632 725
Gloucestershire (Distribution Hub) 0345 130 0710

- Good Availability

- Low Availability

- One item left

Delivery & Returns
Delivery

Royal Mail Service Update: Please be aware when choosing Royal Mail as your preferred delivery method, your delivery time may be impacted by ongoing strikes and may take up to 20 working days. If your order is time critical we suggest choosing a courier or Next Day Service



Our Mail Order team ship chandlery, yacht parts and sailing clothing around the world. We use the best value couriers available, and we will endeavour to get your products to you as quickly and as cost effectively as possible.

International Orders: Due to delays we have had to suspend our international delivery options.

UK Standard Delivery

  • UK Mainland 0 - 2Kg (small jiffy) £3.95 Royal Mail Service. Despatch within 3- 5 working days, delivery in 7-10 working days for orders under £50.00
  • UK Mainland up to 25Kg £5.95 Courier service with signature. Despatch within 3- 5 working days, delivery in 7-10 working days
  • UK Mainland 25Kg+ Price on request
  • UK Mainland Next Day 0 - 25Kg £9.95 Courier service with signature, orders must be placed before midday
  • Northern Ireland, Highlands & Islands 0 - 2Kg (small jiffy) £3.95 Royal Mail Service. Despatch within 3- 5 working days, delivery in 5-7 working days for orders under £50.00
  • Northern Ireland, Highlands & Islands 1 - 25Kg £10.95 Courier service with signature. Despatch within 3- 5 working days, delivery in 7-10 working days
  • Northern Ireland, Highlands & Islands 25Kg+ Price on request
  • Channel Islands 0 - 2Kg (small jiffy) £5.95 Royal Mail Service Despatch within 3- 5 working days, delivery in 5-7 working days for orders under £50.00
  • Channel Islands 1 - 25Kg £13.50 Courier service with signature. Despatch within 3- 5 working days, delivery in 5-7 working days
  • Channel Islands 25Kg+ Price on request

UK Exceptional Delivery

  • UK Mainland; Antifoul & paints £5.95
  • UK Mainland; Inflatable dinghy £10.00
  • UK Mainland; Liferafts £17.50
  • UK Mainland; Flares £49.95
  • Northern Ireland, Highlands & Islands; Antifoul & paints £9.95
  • Northern Ireland, Highlands & Islands; Inflatable dinghy price on request
  • Northern Ireland, Highlands & Islands; Liferafts price on request
  • Northern Ireland, Highlands & Islands; Flares not available to ship at this time
  • Channel Islands; Antifoul & paints £13.50
  • Channel Islands; Inflatable dinghy price on request Channel Islands; Flares not available to ship at this time

For further delivery information click here.

Returns

Standard Returns

If you are not entirely happy with your purchase, we will exchange or refund your goods in full, provided that the items are returned within 14 days of receipt.*

Please check the condition of goods on arrival - we are unable to accept goods damaged during shipping after 14 days.

Returned goods must be packaged securely, with all original packaging undamaged and in a saleable condition i.e. shoe boxes must be in the same condition as when received.

Goods must be unused and security seals intact.*

If you would like to return goods because they were ordered incorrectly or if clothing does not fit, return postage will be at your expense. If you would like us to replace the goods with another size or colour, we will charge carriage on the replacement.

Please be aware that some navigational and safety products may be dated, and as such a full refund may in some cases not be possible. If you are purchasing dated navigational charts we suggest you contact us for more information.

Faulty Goods

If you receive your goods and believe them to be faulty, please contact us straight away with a brief description of the problem. If we require you to return the product for a replacement, we will send you a pre-paid Royal Mail label for delivery back to us. Unfortuantely we cannot send the courier back to collect the items.

Returning goods to Force 4 is easy!

  1. Please contact us by ringing 0345 1300 710 or email on [email protected]. This way we'll be able to determine whether you would like to return the product for a refund or whether you'd like to exchange the product. We are unable to process the return of faulty goods that we're not expecting.
  2. We'll then give you a returns number. This returns number will need to be clearly marked on the outside of your parcel so it can be identified on arrival. Please note, failure to mark a returns reference number on the outside of your parcel may result in a delay in processing your return.
  3. Don't forget your proof of postage, just in case!
  4. Once we receive the item we'll be able to proceed with a refund or an exchange.

*this excludes faulty goods with manufacturers defects. If goods are found to be faulty during use, after the returns period, please just give us a ring on 0345 1300 710 and we'll be happy to help.

Questions & Answers
Questions & Answers

Can I program my MMSI code into the unit or do you need to do this?

Nick Fowle
You will need to program the MMSI number, and instructions will be provided with the unit. 08/12/20
Dimensions of this please can it be mounted flat or must it be vertically on a bulkhead Thanks Derek
Total size is: 171.65mm width, 132.55mm height & 57mm depth. Fixing holes are 171.65mm width & 113.04mm height. This can be mounted vertical or horizontal. However needs to be a dry, solid space with clearance for cables to flex.
