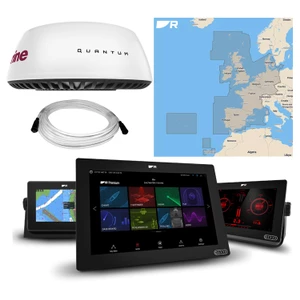

Raymarine Axiom Plus 12 and Quantum Q24C Radar Bundle

Axiom + -  The Latest generation of high-performance multifunction displays from Raymarine.

Smarter, brighter, and tougher than ever, Axiom+ boasts an upgraded display with IPS technology that delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays. Axiom+ displays are 25% brighter and feature Raymarines' new HydroTough^TM impact-resistant glass that repels water, oil, and smudges and delivers improved clarity and accurate touch controls. Axiom+ also offers fast quad-core performance, enhanced GPS, and increased onboard storage for apps and new LightHouse Charts

HYDROTOUGH™ DISPLAY

Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls

SHARPER

IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays. e touch controls.

MAXIMUM VISIBILITY

Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning colour.

BRIGHTER

9 inch all-weather display is up to 25 percent brighter (up to 1,800 nits).

ENHANCED GPS

Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning

FAST & FLUID

Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts.

QUAD-CORE POWER

Powerful quad-core processor, plus increased onboard storage for personal data and apps

LIGHTHOUSE 4 OS

Smart and intuitive LightHouse 4 OS makes navigating easy.

AUGMENTED REALITY

ClearCruise™ Augmented Reality-capable for smarter navigation decisions.

Specifications

• Display Type: Multitouch with HydroTough™ rugged hydrophobic coating
• Mounting Options: Surface, Flush, Trunnion, (Front installation bracket available)
• Waterproof Rating: IPX6 / IPX7
• Operating Temperature Range: -25°C to +55°C (-13°F to +131°F)
• Supply Voltage: 12Vdc (8-16Vdc)
• GNSS / GPS: Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required
• Radar Compatibility:  Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars
• AIS:  NMEA2000 compatible
• Autopilot Control:  Evolution Autopilot
• Thermal Night Vision:  FLIR AX8, M232, M300 Series, M400, M500
• Video / Camera: Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras)
• Weather: GRIB View - Free GRIB viewer and Theyr Ltd Subscription
• Audio: NMEA2000 / Bluetooth speaker controls
• Digital Switching: Empirbus & C-Zone compatible
• Remote Control:  Optional RMK-10 (A80438)
• Ethernet: 1 x 10/100 Mbit/s Network (RayNet)
• NMEA0183: No
• NMEA2000: NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter
• USB: 1 x USB microAB
• Wi-Fi: WiFi - 802.11 a/b/g/n
• BlueTooth: Bluetooth v4.0
• Cartography: Lighthouse Charts, Navionics, and C-MAP compatible
• Waypoint/Routes/Tracks: 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
• Internal Memory: 16 GB Solid State
• External Memory: 1x MicroSD Card Slot
• Languages: 24
• Conformances: NMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210

Axiom +12

• Display Size: 12.1 inch High Density IPS
• Display Resolution: 1280 x 800 (WXGA)
• Brightness:1,800 nits
• Viewing Angle: 88° Top, Bottom, Left, Right
• Dimensions: W x H x D: 314 x 217 x 77mm (Excluding trunnion and cables)
• Weight: 2.95 KG
• Power Consumption (Full brightness): 15.48 Watts

In The Box

• Multifunction Display
• Western European Lighthouse Chart
• Trunnion bracket
• Trunnion knobs x 2
• Suncover — Trunnion mount
• Panel mount gasket for surface/flush mounting
• Rear mounting brackets: (9 & 12” models only)
• Documentation pack
• M5x58 Threaded studs x 4
• M5 Thumb nuts x 4
• Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).

Quantum Q24C radar with 10m Cable

Raymarine Quantum Radar is the next generation of marine radar featuring CHIRP pulse compression technology.
