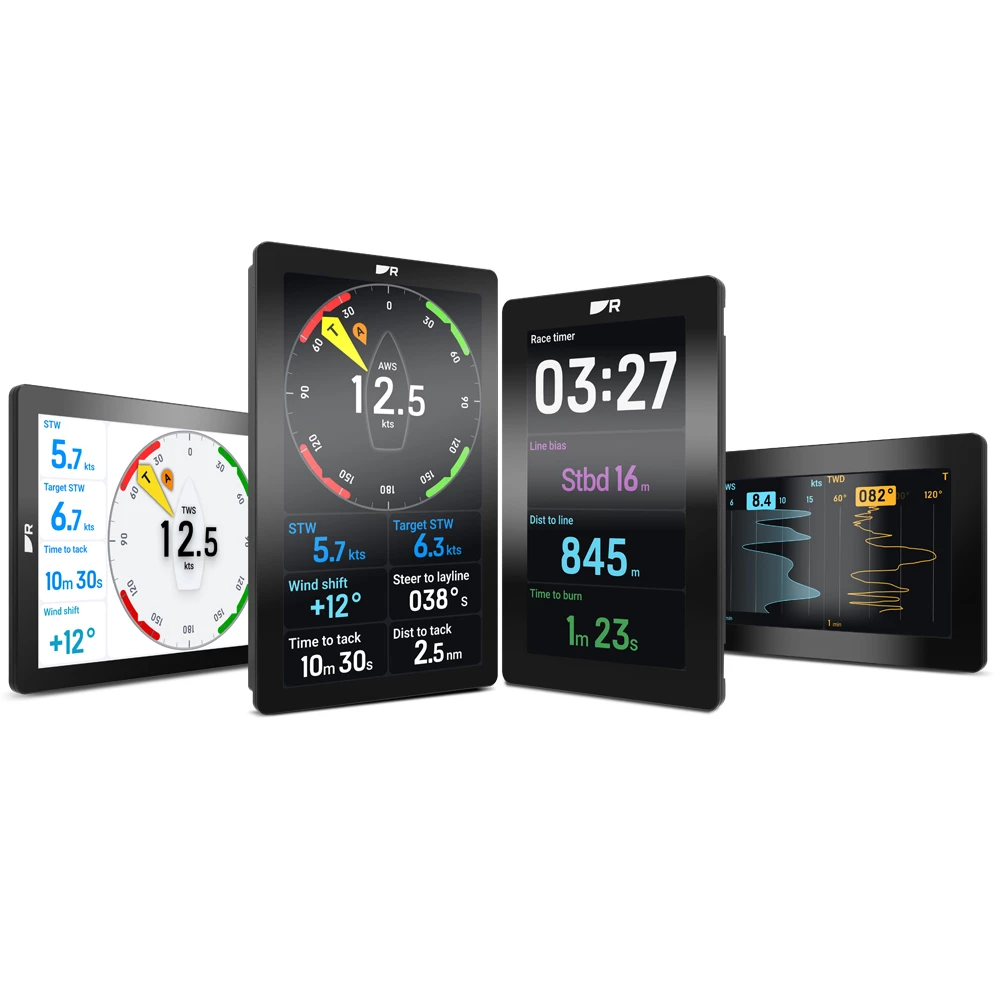

Raymarine Alpha Performance Sailing Display

7" AND 9" PERFORMANCE DISPLAYS

The Alpha series are high-visibility touchscreen displays with fully customisable marine instrument data and graphic displays to help you make smarter sailing decisions. Designed for helm or mast mounting, the Alpha Series is customised and controlled via its touchscreen and controlled remotely from a networked Axiom Chart plotter*.

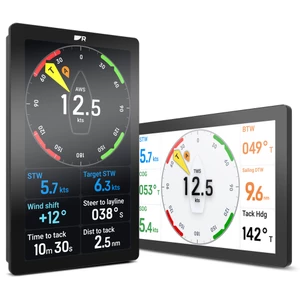

Available in 7" and 9" display sizes and mountable in both portrait and landscape views. The Alpha Performance Display provides a new level of versatility for marine instrument displays.

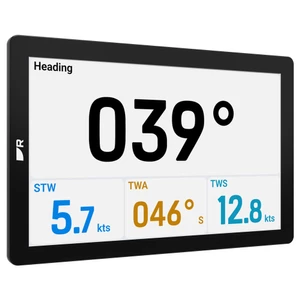

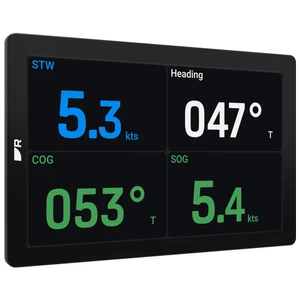

Customisable sailing, navigation, and engine instrument displays.

• SailPoint™ mode provides you with a visual reference of target wind angle, so you achieve your maximum VMG upwind or downwind.
• Polarized sunglasses-friendly displays with extra wide viewing angles, viewable on the mast or remote location.
• Tested to the extreme and built with our exclusive HydroTough TM nano-coating that repels water and oils for reliable touchscreen control.
• Landscape or portrait mounting option.
• Single power and data cable** for fewer cables running through the deck and mast.
• Support for daisy-chaining up to 4 displays.
• Auto-dimming through an integrated ambient light sensor.
• Lockable touch screen with remote control from Axiom.
• Designed to network with Axiom chart plotters for all instrument data, transducer data, and performance sailing calculations.

* The Alpha Performance Display requires a Axiom Chart plotter (on Lighthouse 4.5 software or later) connected on the Raynet network.

** Power and data cables not included and must be purchased separately to match the installation configuration.

High Visibility

Polarized sunglass-friendly displays with extra wide viewing angles, viewable on the mast or remote location.

Rugged Build

Tested to the extreme and built with our exclusive HydroTough^TM nano-coating that repels water and oils for reliable touchscreen control.

Multiple Screens

A single power and data cable for fewer cables running through the deck and mast. Support for daisy-chaining up to 4 Alpha displays.

Tactical Awareness

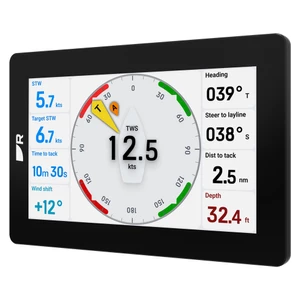

Intuitively designed graphical instrument displays, aimed at enhancing tactical awareness and facilitating better decision-making on the water.

SailPoint^TM Target

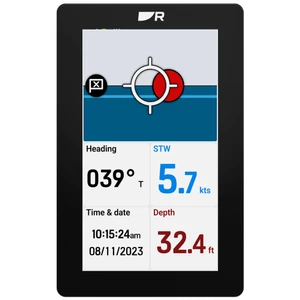

SailPoint™ mode provides you with a visual reference of target wind angle, so you achieve your maximum VMG upwind or downwind.

Dynamic Wind

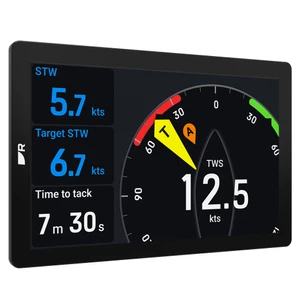

The dynamic wind performance display provides automatic zoom to the most critical part of the instrument display based on wind direction.

Specifications

POWER

• Nominal supply voltage: 12 V / 24 V dc
• Operating voltage range: 10.8 V to 32 V dc
• Power consumption:
  • Alpha 7: 10.10 W (maximum) @ 12 V dc
  • Alpha 9: 12.27 W (maximum) @ 12 V dc

ENVIRONMENTAL

• Operating temperature range: -25°C to +55°C (-13°F to +131°F)
• Waterproof rating: IPx6 and IPx7

DISPLAY

• Type: IPS TFT
• Brightness / Luminance: 1500 nits / 1500 cd/m2
• Viewing angles: 85º + / 85º +
• Resolution: Alpha 7: 1024 (H) x 600 (V) Alpha 9: 1280 (H) x 720 (V)
• Aspect ratio: Alpha 7: 15.4 : 9 Alpha 9: 16 : 9
• PPI (Pixels Per Inch): Alpha 7: 170 PPI Alpha 9: 163 PPI
• Colours: 24-bit colour (16.7 million colours)
• Refresh rate: 60 Hz

CONNECTIONS

• Data connections: 1x Daisy-chain connector and 1x Power / RayNet Ethernet connector

PHYSICAL

• Width: Alpha 7: 118.6 mm (4.67 in) Alpha 9: 148.9 mm (5.86 in)
• Height: Alpha 7: 188.4 mm (7.42 in) Alpha 9: 235.9 mm (9.29 in)
• Depth: Alpha 7: 32 mm (1.26 in) Alpha 9: 34 mm (1.34 in)
• Weight: Alpha 7: 0.72 kg (1.59 lbs) Alpha 9: 1.18 kg (2.60 lbs)

In the box

• Alpha Series Performance Display
• Suncover
• Waterproof gasket
• Documentation pack
• 4x Threaded studs, M4 x 40 mm
• 4x Thumb nuts
• 2x mounting brackets
