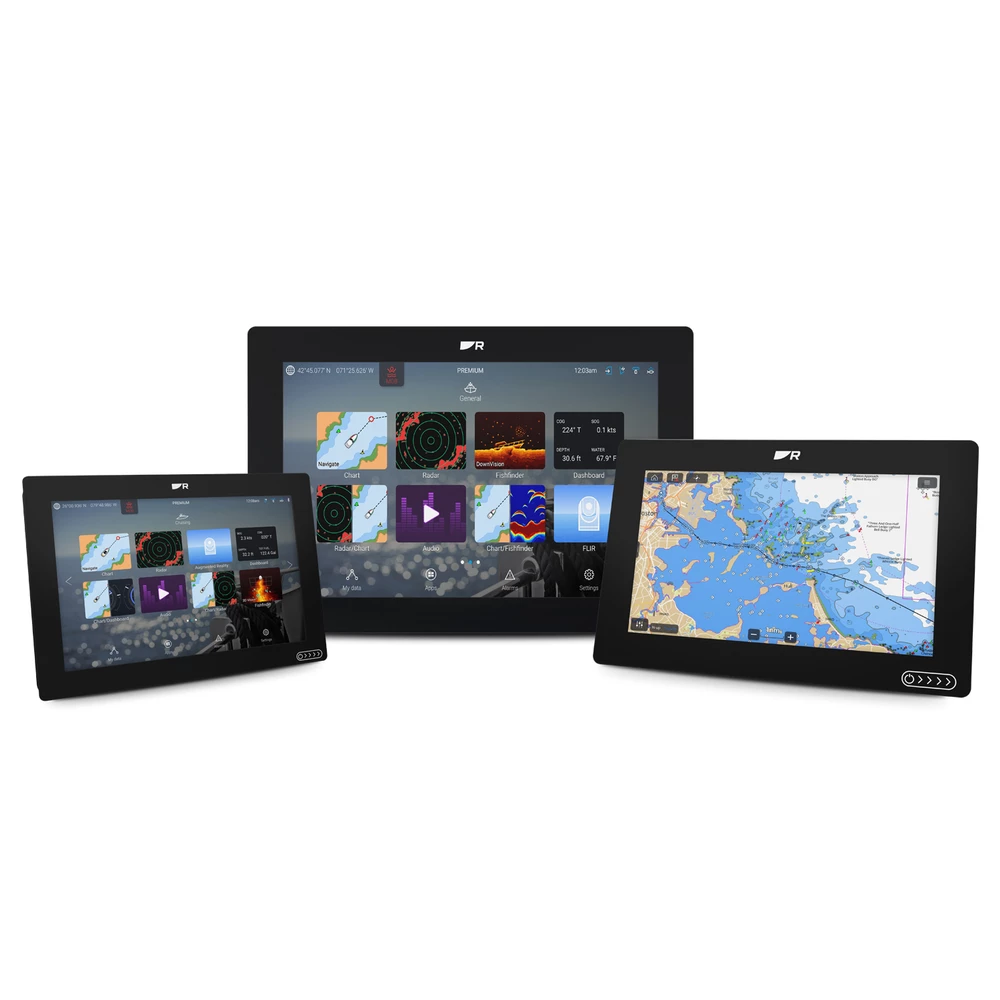

Raymarine Axiom 2 Multifunction Display Black

What’s New in Axiom 2

• Upgraded 6-core processor for noticeably faster startup, chart rendering and multitasking.
• Gigabit RayNet® Ethernet for faster chart sharing, data transfer and lower-latency video.
• Expanded system memory (64 GB) for storage of apps, charts, screenshots and data.
• Choose from Axiom 2 Chartplotters or Axiom 2 RV models with built-in RealVision® 3D Sonar.

Raymarines’ most popular marine chartplotters — now faster, more connected and built for the future. Axiom 2 unifies navigation, sonar, radar, video and NMEA 2000 networks into one powerful display. Choose Axiom 2 as a dedicated chartplotter for confident navigation, or step up to Axiom 2 RV for the ultimate all‑in‑one chartplotter and fish finder combo.

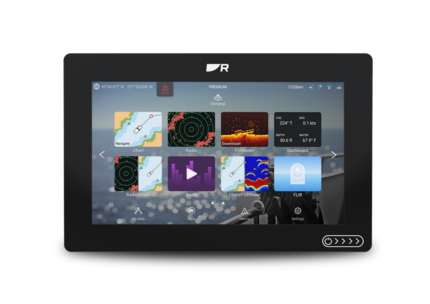

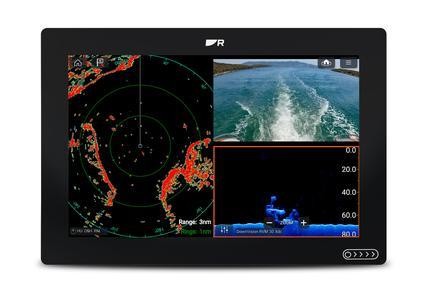

One Display. Total Control

Axiom 2's LightHouse operating system is a single, simple-to-use interface for complete situational awareness. Make Axiom 2 your all-in-one multifunction display or connect additional Axiom 2 displays at your helm or a remote station.

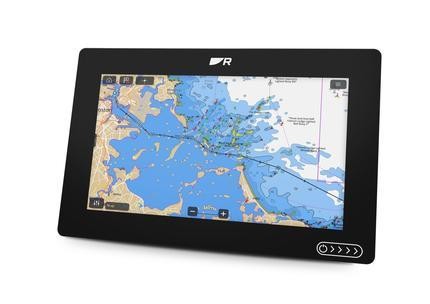

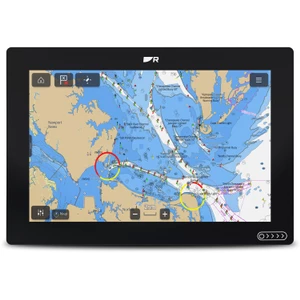

Navigate Smarter with LightHouse Charts GEN 2

Up to 30% faster chart rendering with a new 6‑core processor and LightHouse OS. Choose Axiom 2 bundled with LightHouse Charts GEN 2 for smoother panning, faster redraws and expanded coverage.

Built for Speed and Expansion

Gigabit RayNet Ethernet enables faster networking between displays and sensors. Experience smoother radar, sonar and video performance across the system.

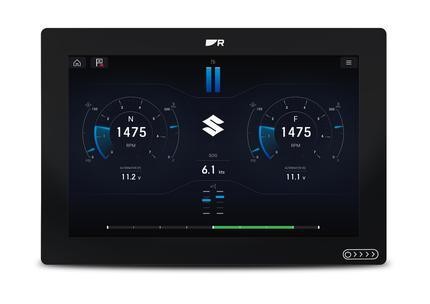

Engine Monitoring

Connect with leading engines including Mercury, Yamaha Suzuki and more. Monitor performance, fuel, and propulsion data directly from the helm.

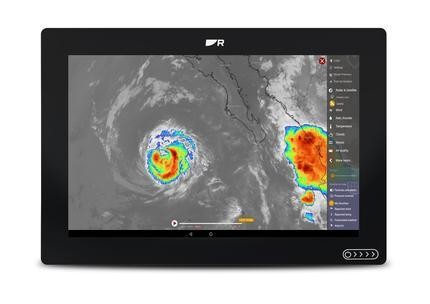

More capability, built in

Expand your Axiom 2 with access to 30+ marine apps. Take control of lighting, audio, energy monitoring and weather systems. Or stream entertainment from Netflix, YouTube and Spotify.

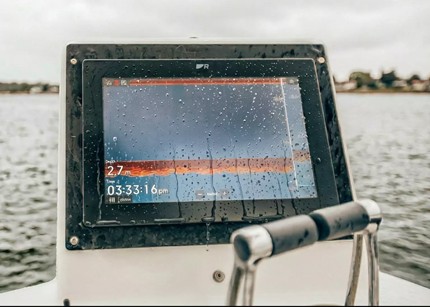

All-Weather Performance

Rugged IPX6 waterproof construction and bright HydroTough™ displays repel water for reliable touchscreen control in all conditions.

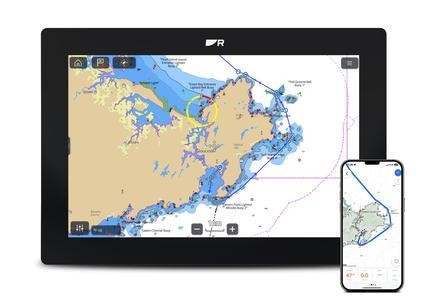

Plan Routes with the Orca App

Share a route from the Orca mobile app to Axiom 2 via Wi-Fi. Simply identify your starting point, your destination, and Orca’s advanced navigational algorithms will find the best route for your vessel.

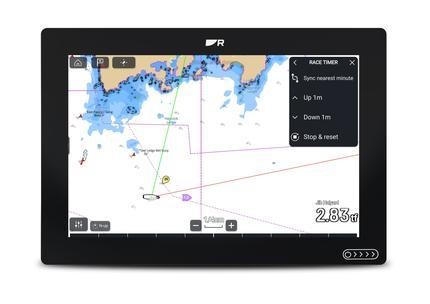

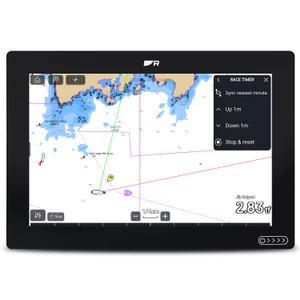

Advanced Sailing Tools

Optimize your performance under sail with Axiom 2's suite of powerful sailing features including polar profiles, dynamic laylines, race timers and tactical sailing displays.

Specifications

Dimensions (Trunnion mounted)

• Axiom 2 7" Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in)
• Axiom 2 9" Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in)
• Axiom 2 12" Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in)

Dimensions (Surface/Flush mounted)

• Axiom 2 7" Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in)
• Axiom 2  9" Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in)
• Axiom 2 12" Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in)

Connections

• Accessory connection: USB Micro B
• Ethernet connection: RayNet (10 / 100 / 1000 Mbit/sec Ethernet)
• External storage: MicroSDXC card slot x 1
• NMEA 2000 connection: DeviceNet (male connector built into power cable)
• Wireless connections: Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
• Internal storage: 64 GB

Environmental

• Operating temperature:-25°C to +55°C (-13°F to 131°F)
• Storage temperature: -30°C to +70°C (-22°F to 158°F)
• Relative humidity: Up to 93% @ 40°C (104°F)
• Waterproof rating: IPx6, IPx7

Power

• Power consumption
  • Axiom+ 7: 9.84 W
  • Axiom+ 9: 11.98 W
  • Axiom+ 12: 18.96 W
• Operating voltage range: 8 V dc to 16 V dc
• Fuse rating: 7 A
• Nominal supply voltage: 12 V dc
• LEN (NMEA 2000 Load Equivalency Number): 1

Display

• Resolution
  • Axiom 2 7: WSVGA 1024 x 600
  • Axiom 2 9: Widescreen HD 1280 x 720
  • Axiom 2 12: WXGA 1280 x 800
• Display Brightness
  • Axiom 2 7: 1800 nits / 1800 cd/m2
  • Axiom 2 9: 1500 nits / 1500 cd/m2
  • Axiom 2 12: 1800 nits / 1800 cd/m2
• Protective coating: HydroToughTM Oleophobic
• LCD Type: IPS (In-Plane Switching)

GPS

• Position Accuracy: Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
• Geodetic Datum: WGS-84 (alternatives can be selected on the MFD)
• Satellite Differential Type (SBAS): WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
• Channels: Track up to 28 satellites simultaneously
• Antenna: Internal - Ceramic chip mounted near top of unit
• GNSS compatibility: GPS, GLONASS, Beidou
• Almanac Update: Automatic
• Refresh rate: 10 Hz (10 times per second)
• Time to first fix from cold start: < 2 minutes

Chartplotter

• Waypoints:  Up to 10,000 waypoints can be stored in up to 200 waypoint groups
• Routes: Up to 250 routes can be stored, each route can contain up to 500 waypoints. The route capacity limit is subject to your chartplotter’s 10,000 waypoint limit (for example, 20 routes can be stored each containing 500 waypoints).
• Automatic Route Planning: Yes with Navionics charts or via the Orca mobile app
• Tracks: Up to 15 tracks can be stored, each track can contain up to 10,000 track points.

Compatible Charts

• Raymarine LightHouseCharts
• Navionics+ & Platinum +
• C-MAP 4D
• Imray Digital Charts
• S-63 encrypted charts

In The Box

• Axiom 2 MFD (supplied with Trunnion adaptor fitted)
• Trunnion bracket
• Trunnion knobs x 2
• Suncover
• Panel mount gasket for surface/flush mounting
• M5x58 Threaded studs x 4
• M5 Thumb nuts x 4
• Documentation pack
• Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
