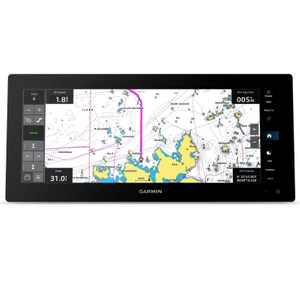

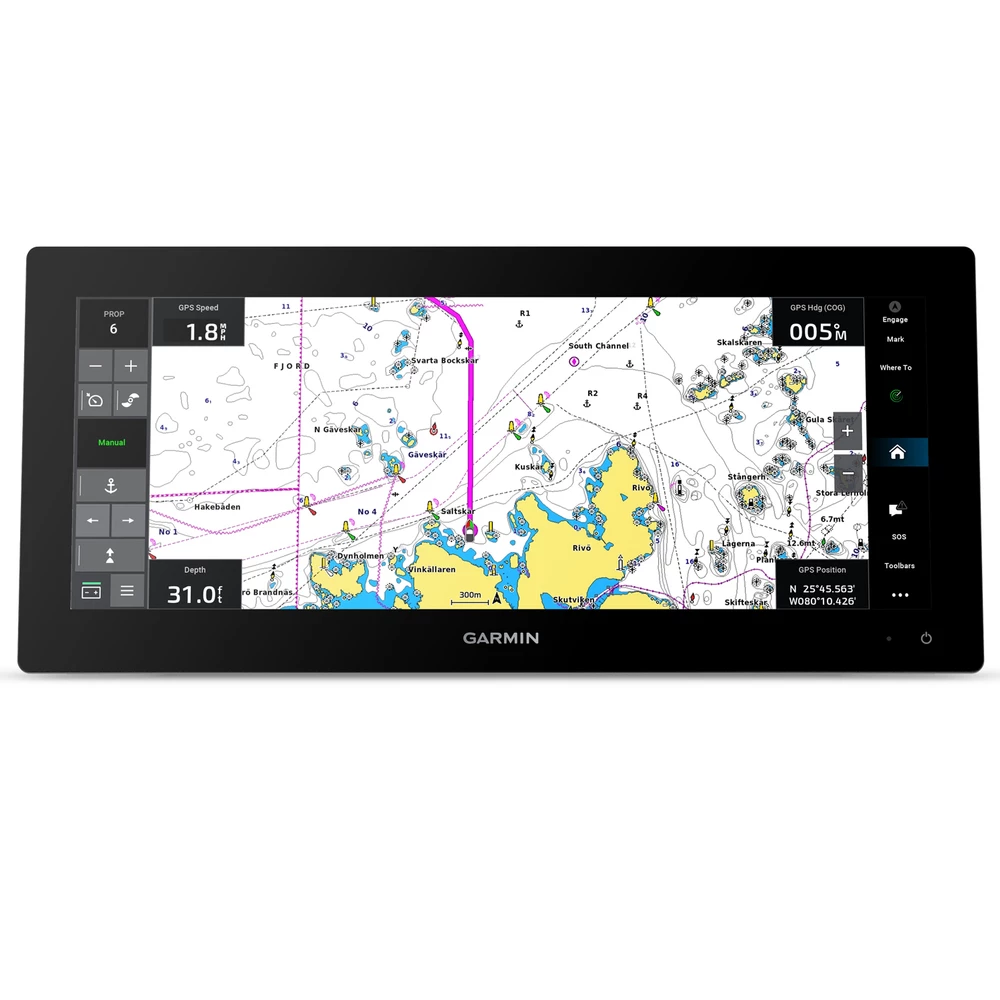

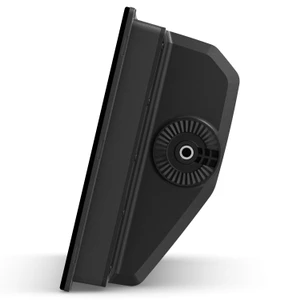

Garmin GPSMAP 1523xsv Ultrawide Chartplotter

Offering a sleek aesthetic in an ultrawide edge-to-edge glass format, this advanced 15-inch chartplotter clearly expands your perspective at the helm. It is 74% wider and boasts more pixels than a standard 9-inch GPSMAP® 923 chartplotter, providing enhanced viewing clarity.

• Ultrawide in-plane switching (ips) 15-inch display fits a variety of helm layouts, including “floating display” configurations
• Navigate waters confidently with support for Garmin Navionics+™ and Garmin Navionics vision+™ charts
• See below your boat with built-in sonar capabilities
• Easily build your marine system by using Garmins advanced network connectivity
• Connect to compatible third-party devices with digital switching and Onehelm™ integrations
• Manage your marine experience from nearly anywhere1

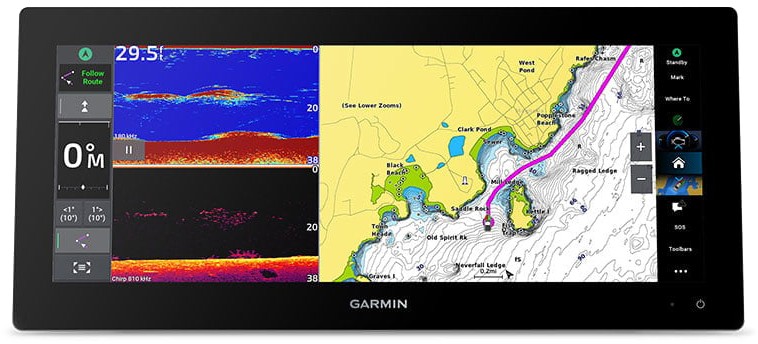

SLEEK MODERN DESIGN

Offering a stunning display, with minimal trim borders and edge-to-edge glass, the GPSMAP 15x3 chartplotter features an ultrawide, high-resolution touchscreen interface with the familiar, easy-to-use functionality of our existing GPSMAP x3 series chartplotters.

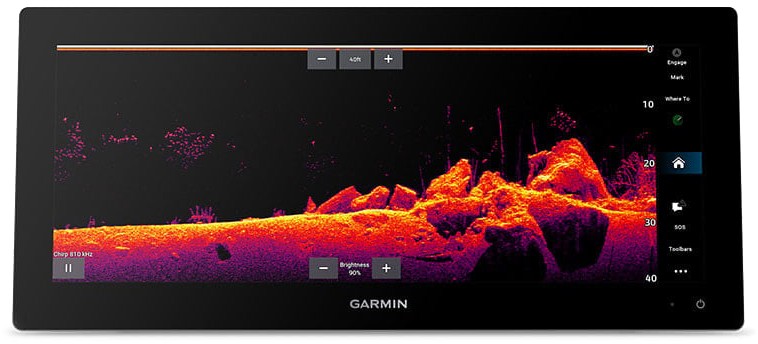

BRIGHT AND CLEAR OPTICS

This versatile chartplotter’s ultrawide IPS display provides wider viewing angles, accurate colours, superior clarity and sunlight readability — even with polarised sunglasses.

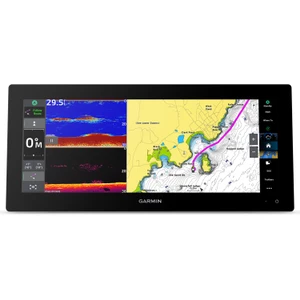

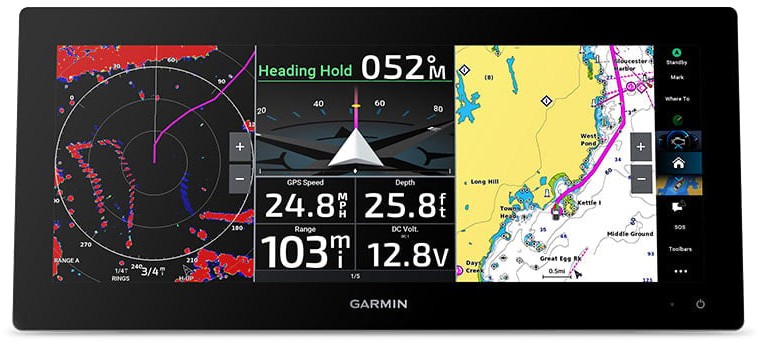

SPLIT TO FIT

Experience the benefits of dual screens with the convenience of seamless control. Split-screen functionality lets you size and organise your display configuration to put the data you need right where you want it

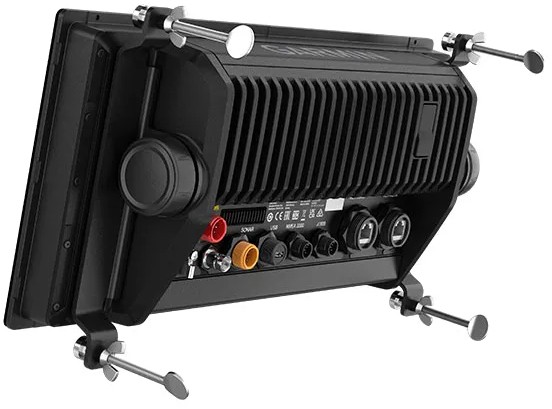

TWO MOUNTING OPTIONS

A bail-mount option with inset knobs and a bracket supports unique “floating display” installations (sold separately), while a rear-mount option is provided for secure flush- and flat-mount helm solutions.

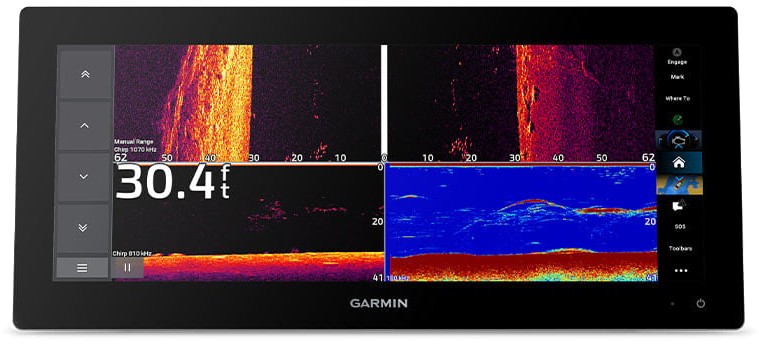

TRADITIONAL AND SCANNING SONAR SUPPORT

Get built-in support for 1 kW CHIRP traditional sonar for superior target separation. Plus, Ultra High-Definition ClearVü™ and SideVü™ scanning sonars feature vivid, high-contrast colour palettes to help distinguish fish from structure (transducer required - sold separately).

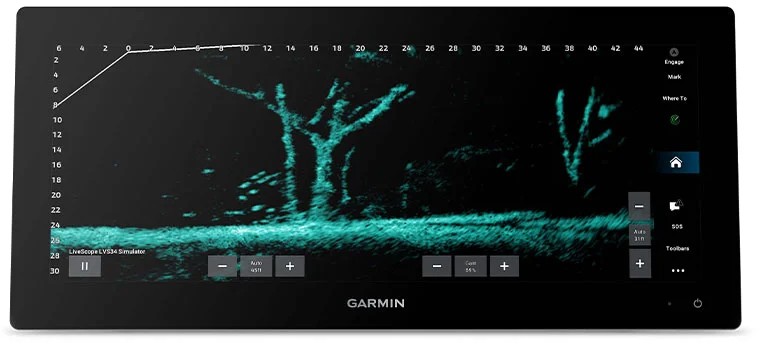

PANOPTIX™ SONAR SUPPORT

Pair with Panoptix™ or LiveScope™ easy-to-interpret live sonar (transducer required - sold separately) to see all around your boat in real time.

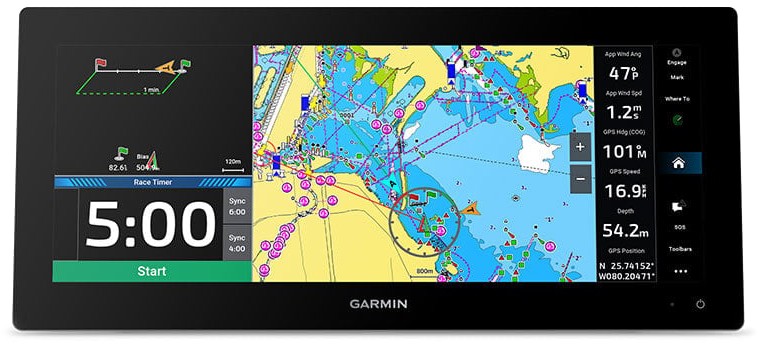

GARMIN SAILASSIST™ SAILING FEATURES

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.

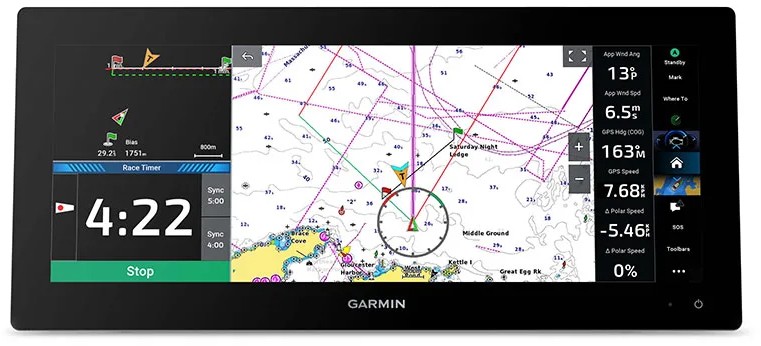

SAILING POLARS

Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.

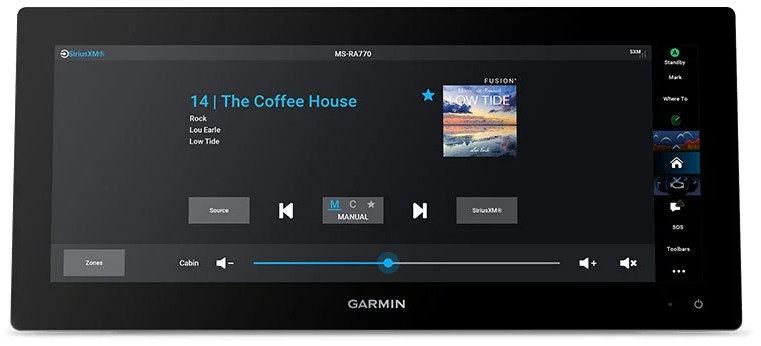

NMEA 2000® AND NMEA 0183 NETWORKS

Connect to compatible autopilots, digital switching, weather, the Fusion® audio system, media, VHF, AIS and more from one screen.

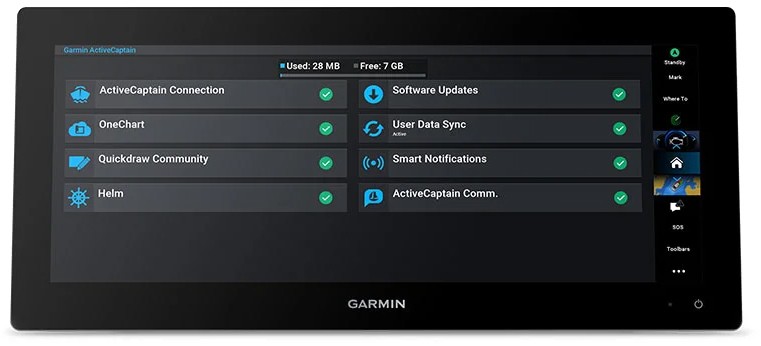

ACTIVECAPTAIN® APP

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications (when paired with your smartphone), software updates, Helm™ app, Garmin Quickdraw™ Community data and more¹.

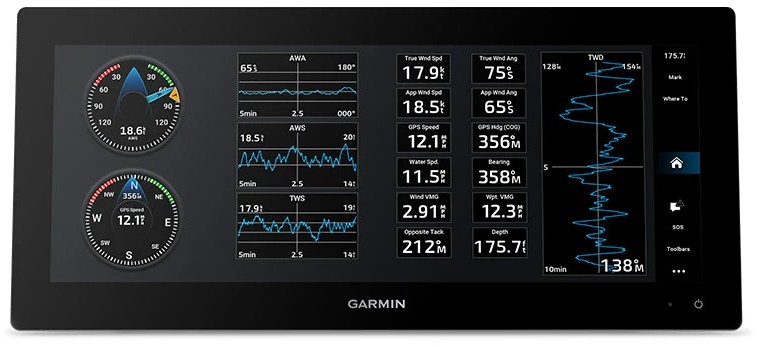

INTEGRATED ANT® TECHNOLOGY

Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.

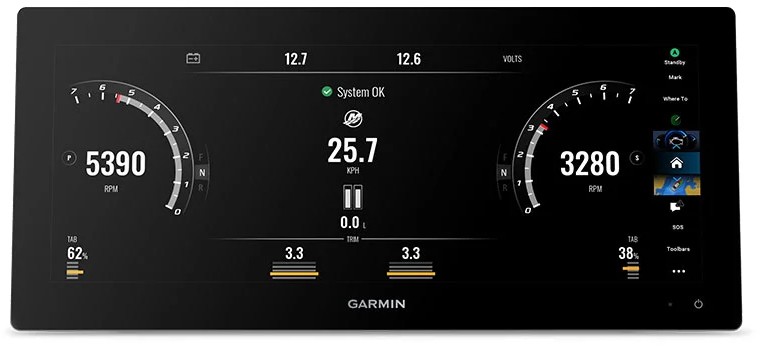

ENGINE CONNECTIVITY

You can connect your chartplotter to different engines, including select Yamaha® and Mercury® engines

ONEHELM FEATURE

This feature brings together all of the operations and capabilities of EmpirBus™ digital switching and other third-party devices on one screen.

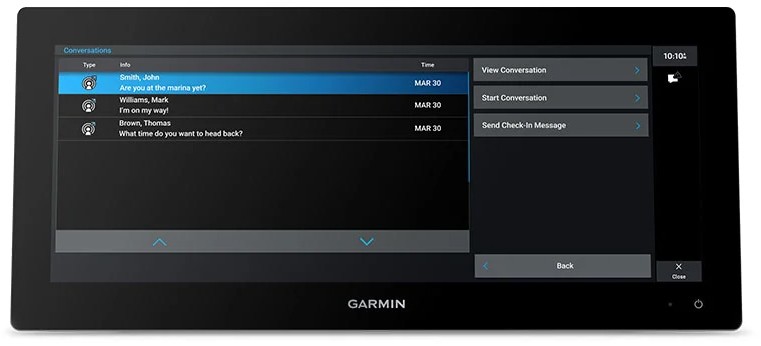

SEND INREACH® DEVICE MESSAGES

Pair your inReach satellite communicator3 to your chartplotter, and type custom messages by using your MFD’s on-screen keyboard. Access your contact list, or enter an email, inReach address or phone number. You can also group messages by conversation for a texting-like experience.

^{​​​​​​}Specifications

• Dimension: 388.9 x 178.5 x 82.9 mm (15.3″ x 7.02″ x 3.3″)
• Weight: 3.26 kg (7.2 lbs)
• Water rating: IPX7
• Display Type: Ultrawide Touchscreen display, IPS
• Display Size: 34.6 x 12.9 cm; 36.8 cm diagonal (13.6″ x 5.1″; 14.5″ diagonal)
• Display Resolution: 1920 x 720 pixels
• Accepts Data Cards: 2 microSD™ cards (back of device)
• Compatible with Garmin SD card reader: Yes (USB card reader)
• Waypoints: 5000
• Track points: 50,000
• Tracks: 50 saved tracks
• Navigation Routes: 100
• GPS Receiver: Built-in 10 Hz
• Supply Voltage:                10 to 32 Vdc
• Typical current draw at 12 Vdc: 2.44 A
• Maximum current draw at 12 Vdc: 4.21 A
• Maximum power usage at 10 Vdc: 56.93 W

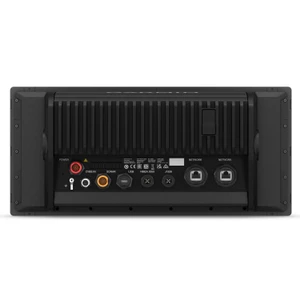

• NMEA 2000® ports: 1
• NMEA 0183 Input (Rx) Ports: 1
• NMEA 0183 output (Tx) ports: 1
• Video input ports: 1 (BNC composite)
• J1939 ports: 1
• Garmin Marine Network Ports: 2
• 12-pin transducer ports: 1
• USB ports: 1
• Bluetooth® calling: Yes (BLE)
• ANT® (Connectivity): Yes

In The Box

• GPSMAP 1523xsv Ultrawide chartplotter
• Power Cable
• Thin flush mount kit with gasket
• Protective Cover
• 8-pin transducer to 12-pin sounder adapter cable
• 2 m backbone/drop cable and T-connector for NMEA 2000® Network
• Documentation

¹Requires ActiveCaptain app on your smartphone paired to your chartplotter.

²Auto Guidance+ is for planning purposes only and does not replace safe navigation operations.

³Satellite subscription required. Some jurisdictions regulate or prohibit the use of satellite communication devices. It is your responsibility to know and follow all applicable laws in the jurisdictions where the device is intended to be used.
