Garmin OnBoard Wireless MOB And Engine Cut Off System

Tag what matters with Garmin OnBoard™ — the wireless MOB detection and engine cutoff system. Built so you can move freely and boat confidently, Garmin OnBoard uses wireless technology instead of the more traditional tethered cords. You can easily designate a captain to allow for emergency engine shutoff should they fall overboard. The Garmin OnBoard system allows for up to 8 MOB tags to be tracked at one time — giving you peace of mind while out on the water. Garmin chartplotter integration allows for automatic MOB waypoint recording at the time of MOB detection. Furthermore, the GOS 10 hub includes a loud external alarm for increased awareness.

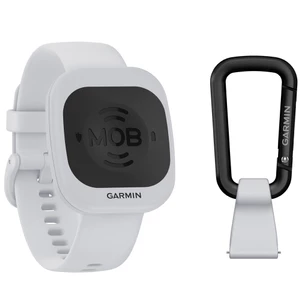

• Wireless wearable MOB tags can be worn on a wrist band, carabiner or key ring float
• MOB tags can be designated as either captain or passenger — changing their MOB actions
• Passenger MOB tag detection will trigger MOB on MFDs — plus an audible alarm on MFDs and hub
• Captain MOB tag detection will trigger engine cutoff, MOB on the chartplotter and an audio alarm on MFDs and hub
• Garmin chartplotter integration lets you temporarily disable tags to allow for hassle-free fun on the water
• GOS 10 hub includes a loud external alarm for increased awareness
• MOB tag battery life exceeds a single season of typical operation
• The Garmin OnBoard™ system easily pairs with your compatible Garmin chartplotters

CAPTAIN TAG

Captain MOB detection will trigger engine cutoff, a MOB waypoint on the chartplotter and an audible alarm on the MFDs and hub.

WIRELESS: NO STRINGS ATTACHED

The wearable MOB tags are part of a wireless MOB system — letting you move untethered while still being monitored.

PASSENGER TAG

Passenger MOB detection will trigger a MOB waypoint on MFDs plus an audible alarm on the MFDs and hub.

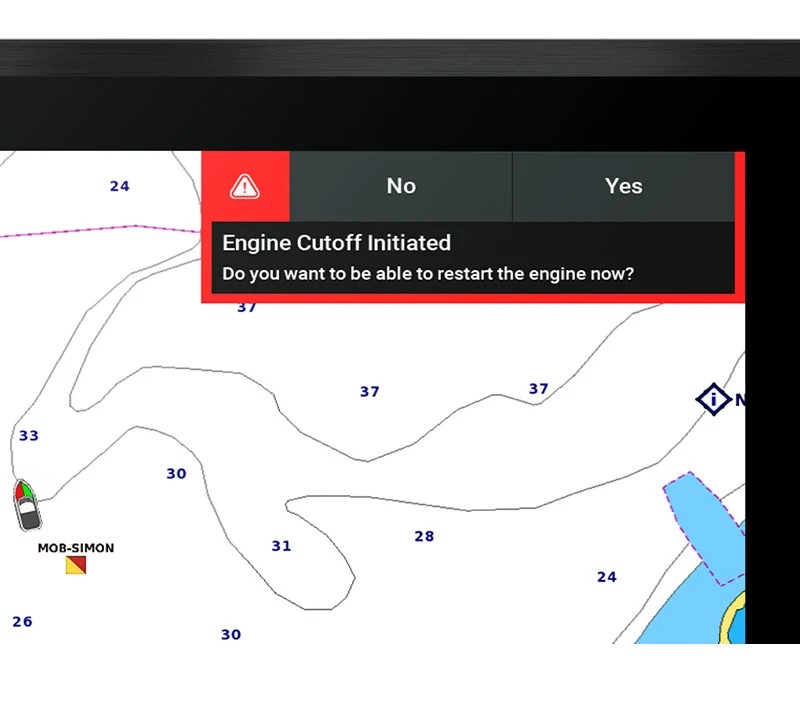

ENGINE CUTOFF SYSTEM

Should a captain tag trigger an MOB event, the system will cut power to the engines — letting the captain return to the vessel.

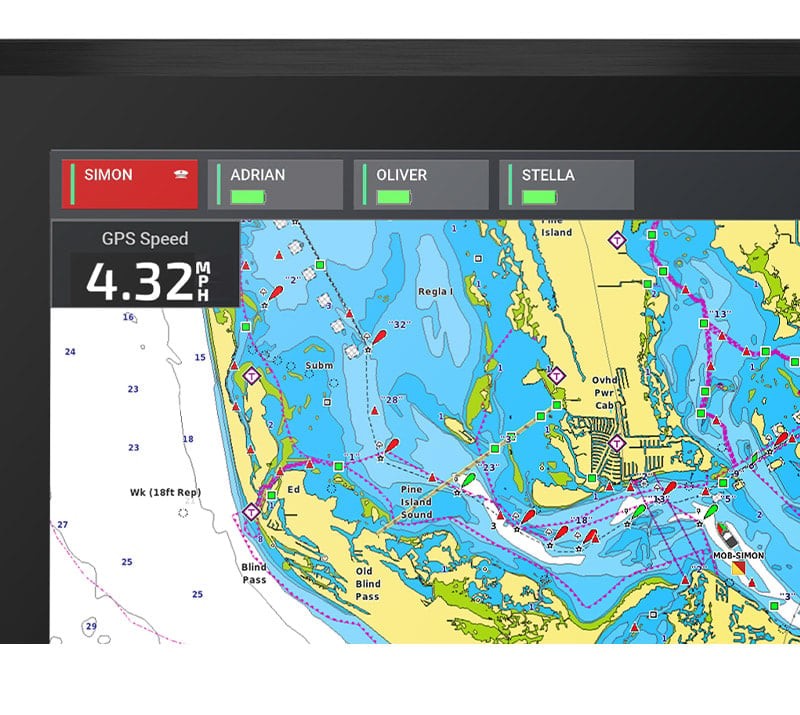

CAPTAIN OR PASSENGER TAGS

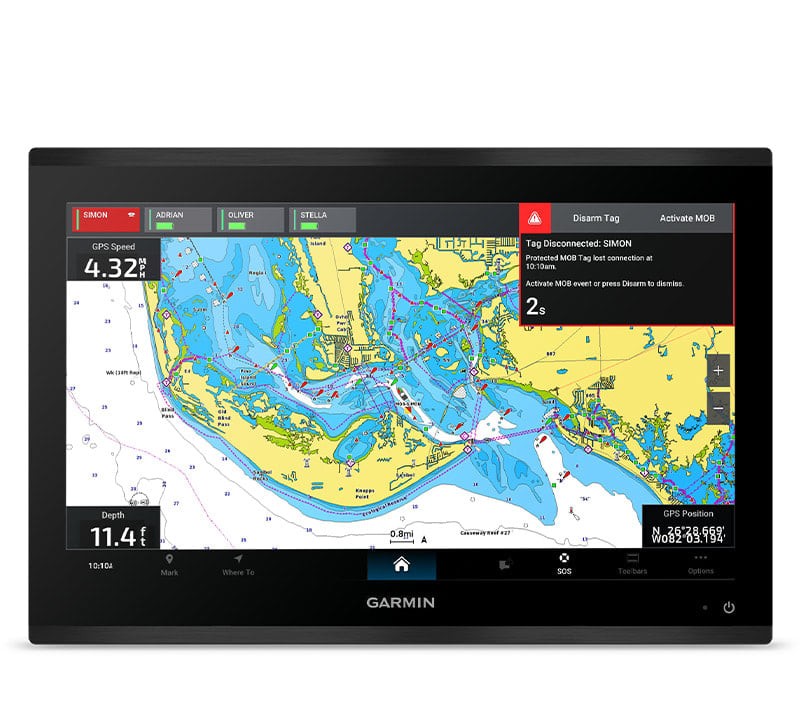

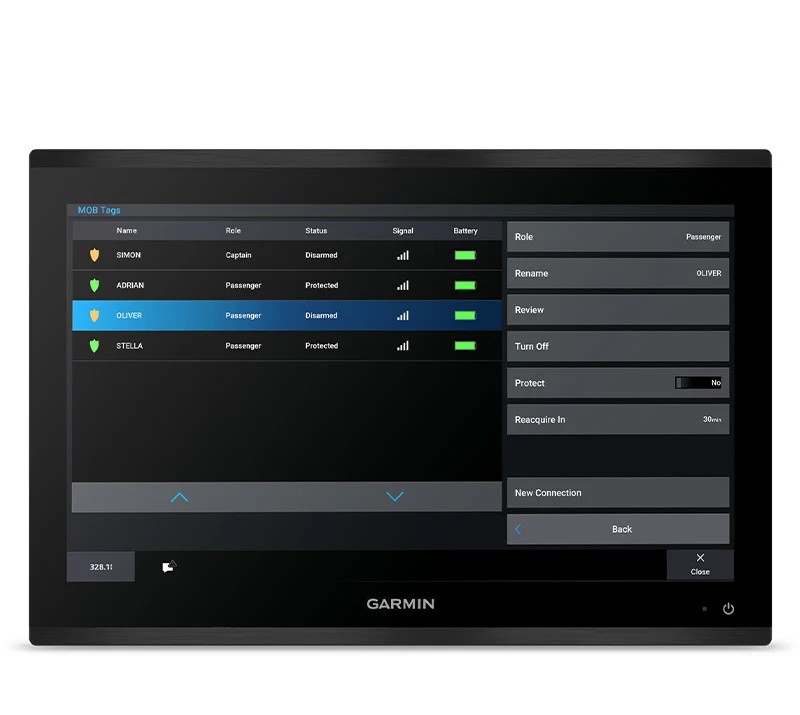

Through the Garmin chartplotter interface, you can designate each tag as either captain or passenger — changing their MOB action.

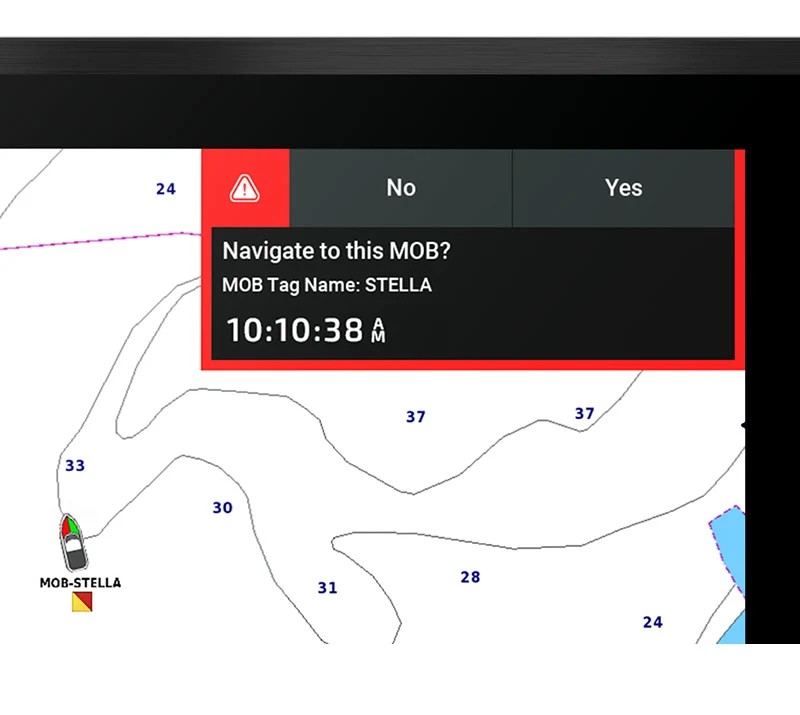

WAYPOINTS

When paired to your compatible Garmin chartplotter, a waypoint will be marked at the location where the MOB tag lost connection with the vessel.

Specifications

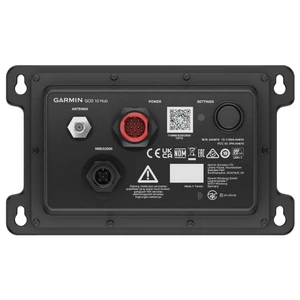

Hub

• Dimensions (HxWxD): 91.55 mm x 155.12 mm x 48.47 mm
• Weight: 171.7 g
• Wireless range: Up to 20 m (66 ft)
• Supply voltage range: 10-32 V
• Operating temperature range: -15 C to 70 C
• Typical power consumption: 50mA @ 12 V or 0.6 W
• NMEA 2000 LEN®: 1
• Engine compatibility: Inboard, outboard, sterndrive from all major manufacturers
• Engine interface: Hardwired, in-line connection to ignition harness
• Number of engines supported: Up to 4 close-to-stop or 2 open-to-stop engines
• Water rating: IPX6 and IPX7
• Compass-safe distance: 5 cm

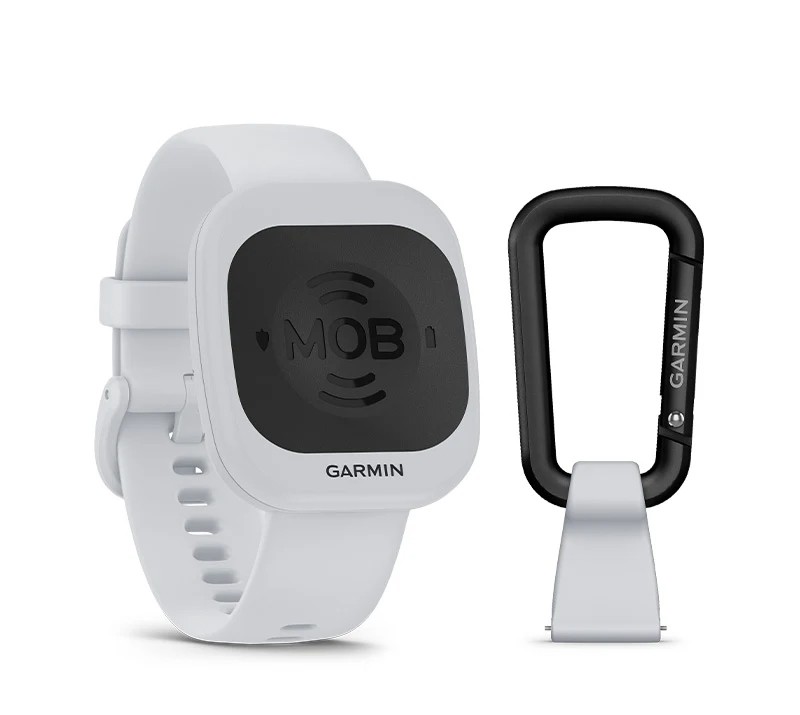

Tag

• Dimensions (HxWxD): 43.94 mm x 38.60 mm x 11.96 mm
• Weight: 21.5 g
• Wireless range: Up to 20 m (66 ft)
• Battery type: CR 2032 coin cell
• Battery life: >1200 hours of connected time
• Water rating: IEC 60529 IPX8 (5 ATM)
• Attachment: Wrist strap or carabiner

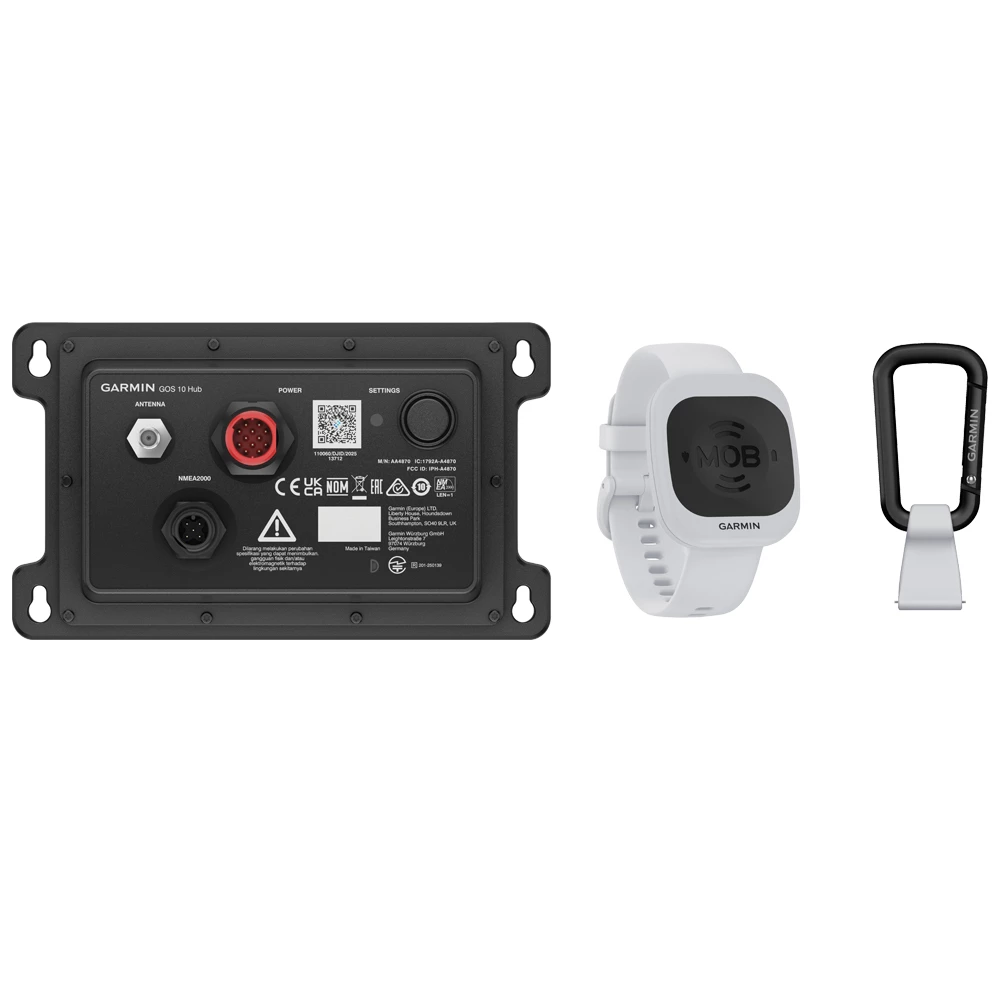

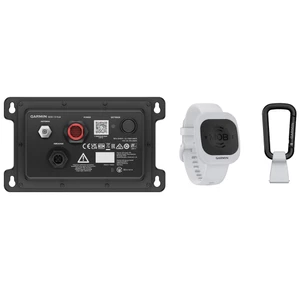

In The Box

• GOS™ 10 hub
• 12-pin fused power and engine cut-off harness with external buzzer
• External antenna for wireless connection to MOB tags
• NMEA 2000® tee and 6 ft drop cable
• White wireless MOB tag
• CR2032 coin cell battery
• White 20 mm quick release band
• Carabiner with 20 mm quick release attachment
• Floating foam keychain
• Installation hardware
• Documentation

Click here for the installation manual.
