GMR Fantom 18X Radar
GMR Fantom 18X Radar
GMR Fantom 18X Radar
GMR Fantom 18X Radar GMR Fantom 18X Radar GMR Fantom 18X Radar
Garmin

Garmin GMR Fantom 18X Radar

Catalogue Code: 220668
From
£1879.95
In Stock Online
Save £400.04 RRP £2,349.99
Select Your Colour (Required):
Size Guide
Select Your Size (Required):
Size Guide
Select Your Size (Required):
See Product Description Check Stock in Store Add to Wish List
  • Get it on Tuesday, 17th December if ordered within the next --:--:-- and select Next Day Delivery *UK Mainland Only
  • Ask a question
Optional Extras Tick to add optional extras to your basket
Aluminium PowerTower 150mm APT-150 150mm White
Aluminium PowerTower 150mm APT-150 150mm White £367.95 Save £40.05 RRP £408.00
Aluminium PowerTower 250mm White
Aluminium PowerTower 250mm White £389.95 Save £48.05 RRP £438.00

View all 4 optional extras

  • Description
  • Videos
  • Availability
  • Delivery & Returns
  • Questions & Answers
  • Reviews
Description

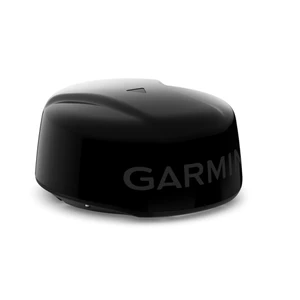

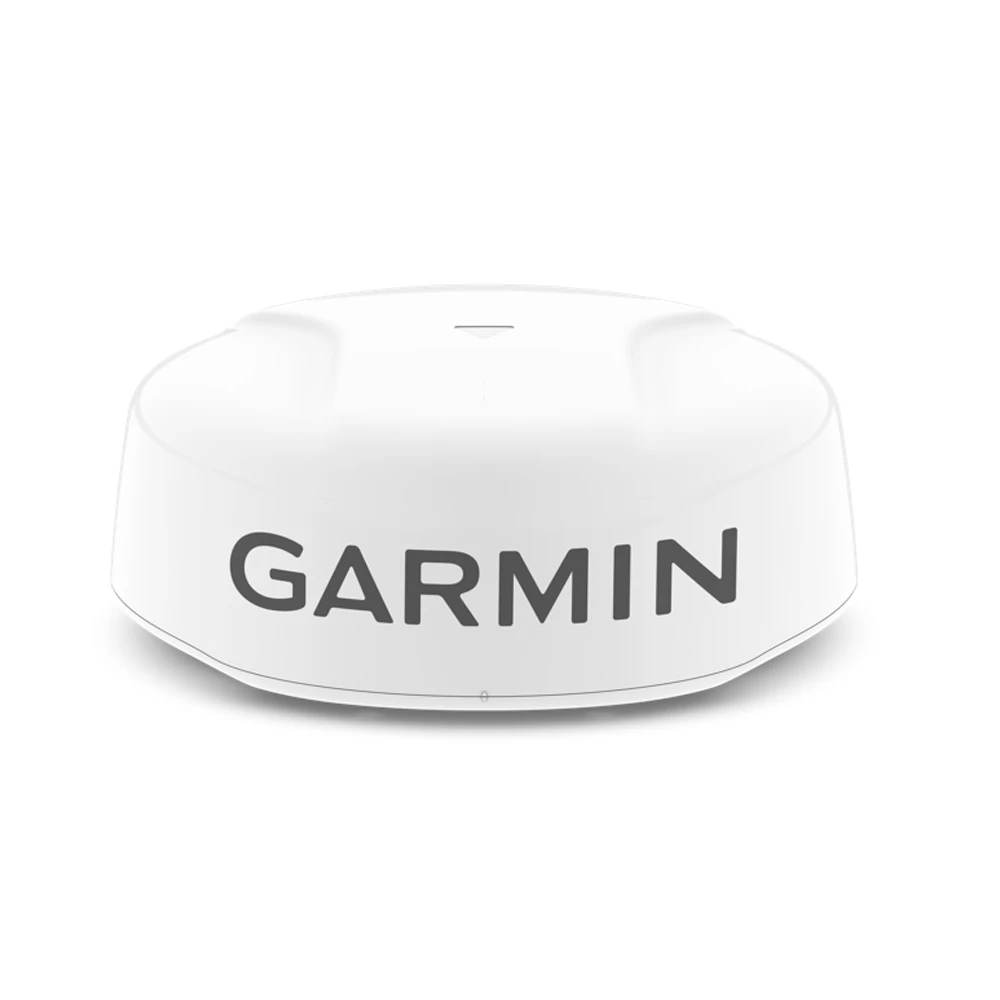

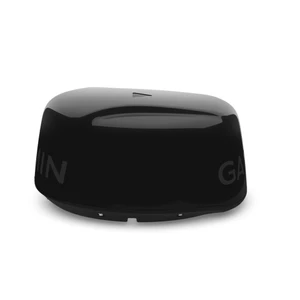

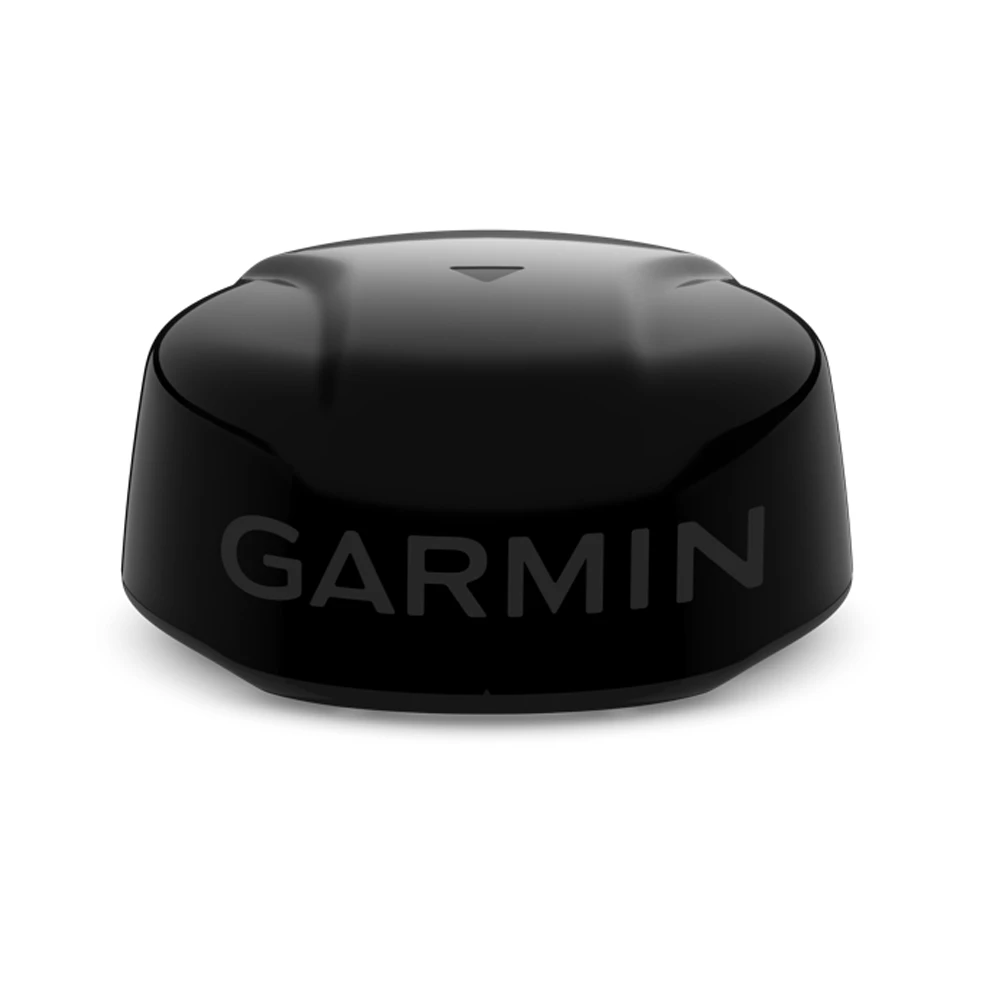

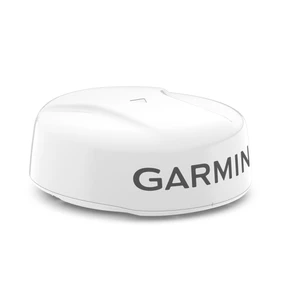

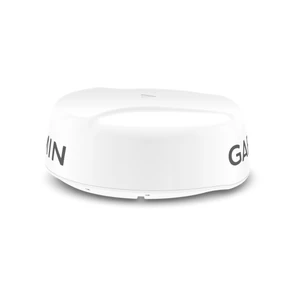

Garmin GMR Fantom 18X Radar

See what’s coming on your compatible chartplotter with the GMR Fantom™ 18x radar. When visibility is low and situational awareness is crucial, you need radar you can depend on. Get 50 watts of output power for long range and better target detection. Confidently travel at higher speeds — and detect boats approaching at high speeds — with up to 60 RPM rotation speed.

The power save feature lets you choose when you need more power or less, so you have power when you need it and can conserve it when you don’t. With timed transmit mode, you can even specify active and inactive times down to the second to help reduce power consumption so you can stay on the water longer than ever.

MotionScope™ technology helps detect moving targets and highlights them in different colours so you can navigate around other boats or severe weather.

Features

  • 8” 50-watt solid-state dome radars feature a long range and improved target detection on your compatible chartplotter *
  • Adjust on-screen target resolution for better separation based on your surroundings by using the target size feature
  • Up to 60 RPM rotation speed for a refresh rate that can detect movement at any speed
  • The power save feature lets you draw more or less power based on the performance you need
  • Timed transmit mode lets you specify active and inactive times down to seconds instead of minutes for reduced power consumption
  • MotionScope™ technology uses the Doppler effect to detect moving targets and highlight targets on your compatible chartplotter in different colours as they move toward or away from you
  • True echo trails leave a historical “trail” on your compatible chartplotter to help you quickly and easily identify moving targets and potential collision threats
  • Dual range provides split-screen images on your compatible chartplotter with separate range settings and controls for both close and long range
  • Dual radar support allows each of your compatible chartplotters on your boat to pull data from one of two different radar sources to provide redundancy
  • Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions
  • Dynamic Sea Filter automatically adjusts sea clutter based on sea conditions
  • Radar overlay displays radar images over maps on your compatible chartplotter

Compatibility

  • GPSMAP 722, 722 PLUS, 723, 922, 922 PLUS, 923, 1022, 1222, 1222 PLUS, 1223 and xs/xsv models
  • GPSMAP 7400 series, 8000 series, 8400 series
  • GPSMAP 8500, 8530, 8700 Black Box series
  • Volvo Penta Glass Cockpit System

Target Size

Adjust on-screen target resolution for better separation based on your surroundings.

Auto Bird Gain

Locate flocks of birds at the water’s surface where baitfish are also likely to be found.

Echo Trails

See a historical ″trail″ on the screen to help you quickly and easily identify moving targets and potential collision threats.

Dual Range

The single radar antenna can provide split-screen images on your chartplotter side by side, with independent range setting and controls for both close and long range.

Dynamic Auto Gain

This feature automatically adjusts to your surroundings for optimal performance in all conditions.

Dynamic Sea Filter

Gain automatically adjusts sea clutter for calm, medium and rough sea conditions.

Radar Overlay

Overlay radar images onto your chartplotter’s map page. You can add an optional autopilot or heading sensor (sold separately) for best results.

Automatic Acquisition

New mini-automatic radar plotting aid (MARPA) automatic acquisition allows for triggering and tracking of up to 30 targets with no user prompting on all returns, boundary zones, guard zones or MotionScope technology.

Guard Zone

Set the safety zone and receive an alarm when an object enters the zone.

VRM and EBL

Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.

Specifications

  • PHYSICAL DIMENSIONS: 20″ x 9.80″ (50.80 x 24.90 cm)
  • WEIGHT: 14.0 lbs
  • WATER RATING: IPX7
  • PEAK TRANSMIT POWER: 50 W
  • ANTENNA LENGTH: 18x: 17″ (43.18 cm)
  • ROTATION SPEED (RPM): Up to 60 rpm, depending on settings
  • BEAM WIDTH: 18x: 5.20° horizontal, 25° vertical
  • MAXIMUM RANGE: 48 NM
  • MINIMUM RANGE: 6 metres
  • VOLTAGE INPUT: 10-32VDC
  • POWER CONSUMPTION (STANDBY): 4W
  • MAX POWER CONSUMPTION (TRANSMITTING, POWER SAVE): 25W
  • MAX POWER CONSUMPTION (TRANSMITTING, NORMAL): 33W

In The Box

  • GMR Fantom 18xDome Radar
  • Power cable (15 m/49.21 ft)
  • Network cable (15 m/49.21 ft)
  • Installation instructions
  • Mounting hardware kit and template
