Description

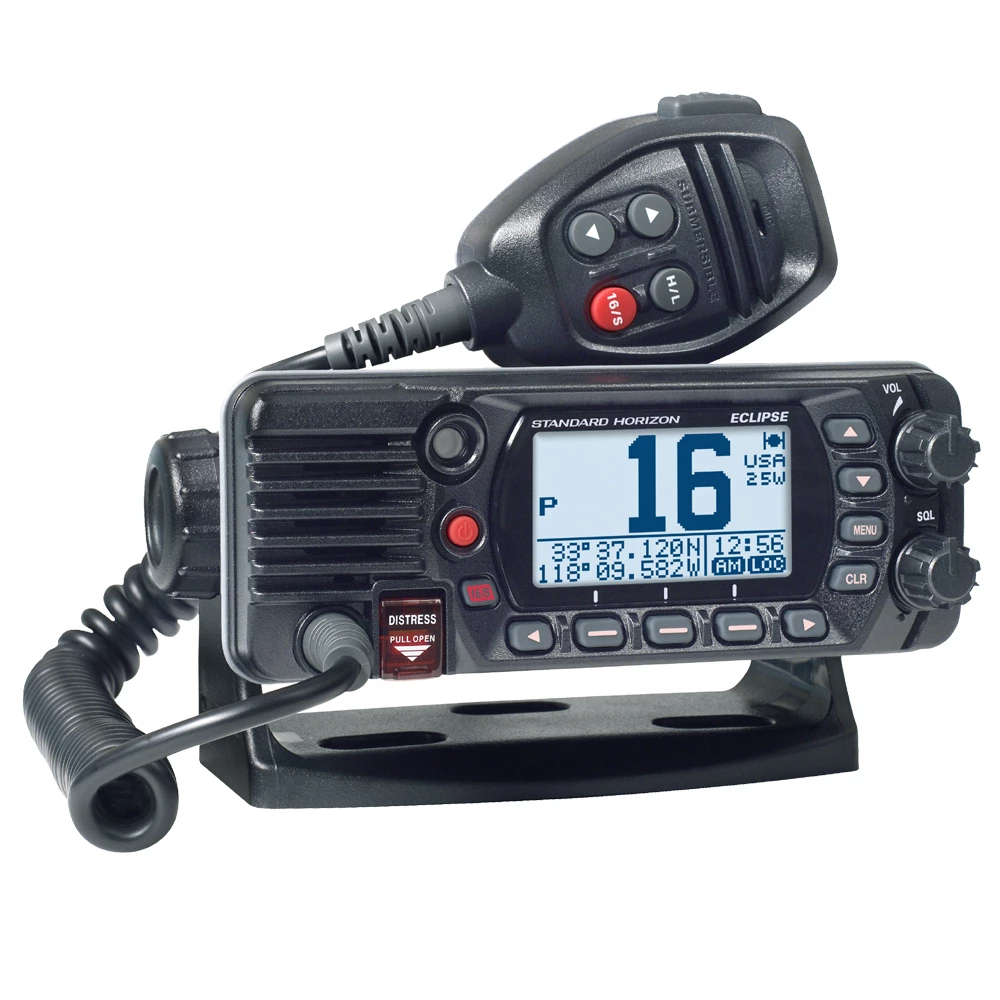

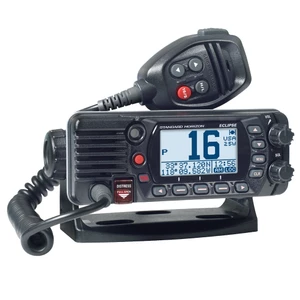

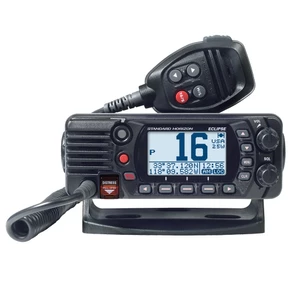

Standard Horizon GX1400GPS E VHF with Internal GPS

An affordable Ultra Compact Class D Fixed Mount VHF Radio with an internal 66 channel GPS reciever



  • Built-in 66 Channel WAAS GPS receiver

  • Noise cancelling Microphone

  • ATIS mode for European Inland Waterways

  • Radio controls on the Microphone

  • E2O Easy to Operate Icon/Menu System

  • Oversized Full dot matrix display (31 mm x 55 mm)

  • Built in Separate Receiver for CH70 (Receiving DSC Calls)

  • DSC test call and Auto DSC channel change selection

  • GPS position and Time Shown on a Full-dot Matrix Display

  • NMEA In and Output Connections to a Compatible GPS Chart Plotter

  • Programmable soft keys

  • Automatically poll the GPS position of up to 6 ships using DSC

  • Submersible IPX8 waterproof rating (1.5M or 4.92 feet for 30 minutes)

  • All USA/International and Canadian Marine Channels

  • Preset key used to recall up to 10 favorite channels

  • Programmable Scan, Priority Scan, and Dual Watch



Easy DSC Installation
The GX1400G makes DSC easy. With an internal 66 Channel GPS built into the front panel, there is no need to hassle with wiring the radio to a GPS for DSC. Out of the box and ready to go, DSC calling, position sharing, waypoint navigation, navigation to DSC distress calls can all be performed with just a few simple steps.


Clearvoice Noise reduction Technology
Eliminates unwanted background sounds during transmissions, like engine noises and wind. This assures that transmissions are crystal clear.


ITU-R M493-13 Class D Digital Selective Calling
The GX1400 Eclipse Series is an ITU-R M493-13 Class D class VHF with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to communications.
The DSC DISTRESS function when activated transmits a digital MAYDAY including vessel identification, Latitude / Longitude and time, to facilitate prompt response. Additional calls that can be made are Individual, Urgency, Safety, Position Report and Send.


New Dot Matrix Display
High resolution dot matrix display makes navigating the radios many features smooth and easy. Now with a new brighter backlight for better display contrast


E20 Easy to Operate Menu System
Redesigned with the operator in mind, the new Easy to Operate menu system is now more intuitive than ever. Access all the menu functions and settings with just a few simple steps. DSC calling and DSC programming has never been easier.


3-Year Waterproof Warranty
If your GX1400E Series radio fails for any reason (including water damage) during normal use for the first 3 years of ownership, STANDARD HORIZON will repair or replace it free, without hassles or charges.



Specifications



  • Dimensions(mm): 156W x 61H x 100D

  • Weight (g): 800

  • Waterproof rating: IPX8


In the Box



  • GX1400E GPS VHF Radio

  • Mounting Bracket & Knobs

  • Mic Hanger

  • Power cable

  • User Manual
