Simrad NSX 3009 Multifunction Navigation Display

SIMRAD CASHBACK OFFER - Get £300 Cashback when you purchase a new NSX 3009 Multifunction Display and qualifying accessory.
See All Qualifying SIMRAD products here

See Full Terms & Conditions Here

Offer Ends 20/12/2024. Whilst Stocks Last.

Simrad NSX 3009 9” Multifunction Navigation Display

Take your experience to a whole new level with the Simrad® NSX™ smart chartplotter and fishfinder. With an innovative, modern interface featuring powerful navigation capability with C-MAP® support, you’ll see everything like never before. The NSX features integrated Sonar, full Radar and Autopilot systems compatibility, and with a handy Setup Wizard tool, you’ll be up and running in no time. All you need to do now is choose your next on-the-water adventure.

• Support for marine-optimized C-MAP® DISCOVER™ X and REVEAL™ X Charts featuring a fresh, intuitive chart presentation and daily updates
• High definition IPS touch screen with extreme viewing angles, even viewable through polarised lenses
• Support for high resolution views of fish and structure with Active Imaging™ featuring CHIRP, SideScan and DownScan Imaging™, plus 1kW transducer capability to reach greater depths
• Setup Wizard to get you up and running quickly, plus simpler sonar setup
• Integrated 1 kW Simrad® sonar, with capability to expand the system with autopilot, radar, and more
• Faster Autorouting with seamless accessibility
• See near and far simultaneously (up to 72nm), with HALO® Radar support and get ultra-fast updates every second
• Stay on course with full Simrad® autopilot integration
• Modern and straightforward interface
• Simrad® App integration – keep your chart data at your fingertips, both on and off the water
• Third-party app integration
• Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability
• IP Video Support

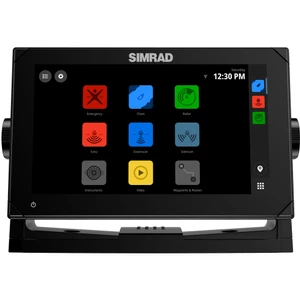

Modern simplicity in an interface

Making it easier to access and use all of the NSX™ features.

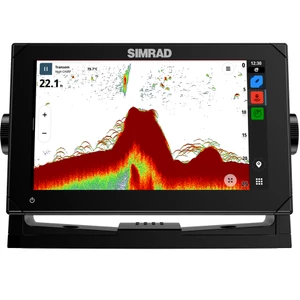

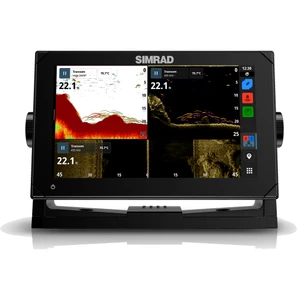

CHIRP sonar, SideScan/DownScan Imaging™ & FishReveal™

Get high resolution images below and to the sides of your vessel. ?

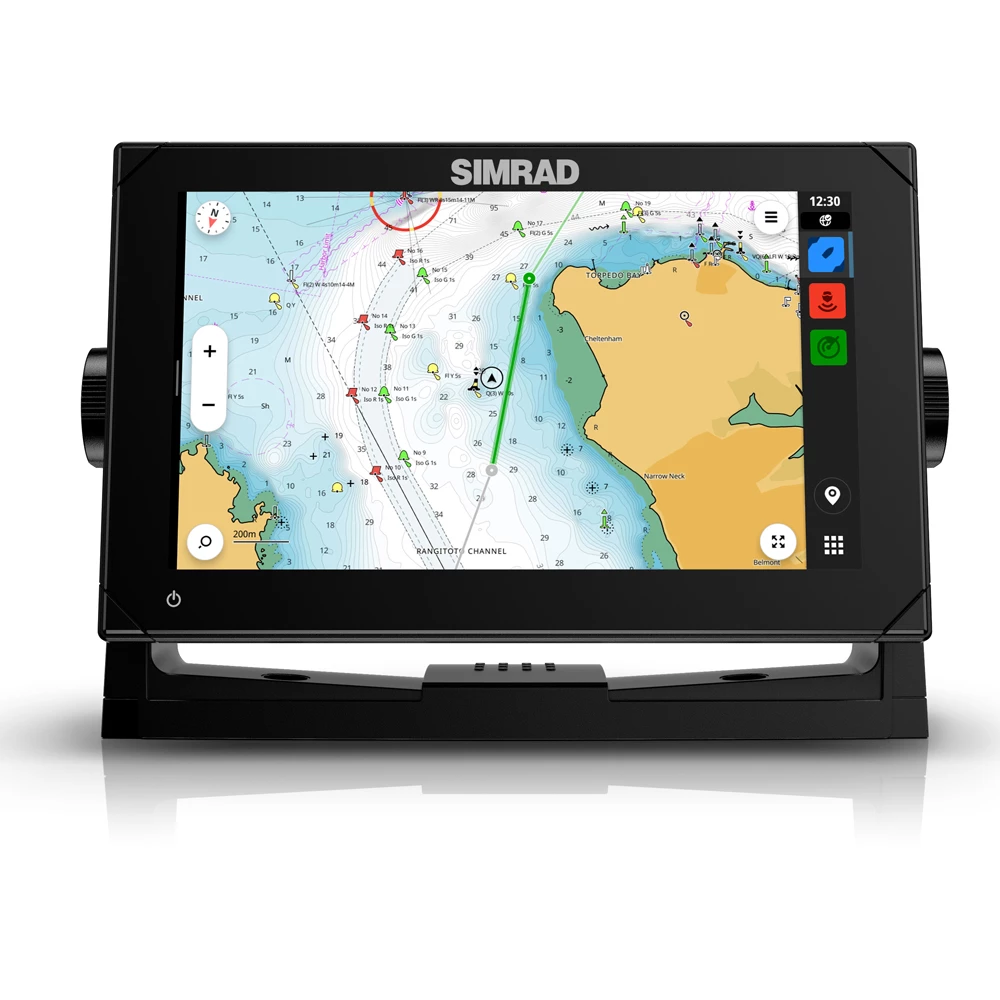

C-MAP® DISCOVER™ X and REVEAL™ X charts

Next-generation charts featuring a fresh, intuitive chart presentation and daily updates.

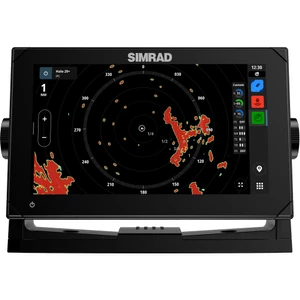

Award-winning pule compression HALO® radars

Identify hazards immediately and see near and far simultaneously.?

Get your system up and running in no time

Engine and tank setup, Autopilot optimisation, Radar dockside and on the water calibration, and much more.

Integrated with the Simrad® Companion App

Plan trips, review Tracks and plot Waypoints, and sync directly to your NSXTM.

Specifications

• Connectivity: WiFi, Bluetooth, Ethernet, NMEA 2000
• Video: IP Camera Support
• Display Resolution: 1280 x 720
• Screen: 9” SolarMax IPS Touchscreen
• Viewing Angles: 85 degrees (top,bottom,left and right)
• Max Power Consumption: 11.8W (1360mA at 13.8V)
• Supply Voltage: 12V DC
• Waterproof: IPx6 and IPx7
• Operating Temp Range: -15 – 55 deg C
• GPS update rate: 10Hz
• GPS Receiver Channels: 32
• Sonar port: 1 x 9pin Xsonic port
• Weight: 1.2kg
• SD Card: 1 slot
• Waypoints, Routes & Tracks: 6000, 500 & 50
• Charts Supported: C-MAP Discover™ X, C-MAP Reveal™ X
• Dimensions W x H x D mm: 239 x 149 x 86: With Bracket 263 x 173 x 81

In the Box

• NSX Display
• Active Imaging 3-in-1 Transducer (3-in-1 version only)
• HDI Transducer (CHIRP & Downscan version only)
• Suncover
• Connector caps
• Power cable
• Dash gasket
• Gimbal bracket with knobs
• Documentation
