NSS Evo3 12 Multifunction Display
NSS Evo3 12 Multifunction Display
NSS Evo3 12 Multifunction Display
NSS Evo3 12 Multifunction Display
NSS Evo3 12 Multifunction Display NSS Evo3 12 Multifunction Display NSS Evo3 12 Multifunction Display NSS Evo3 12 Multifunction Display
Simrad

NSS Evo3 12 Multifunction Display

Catalogue Code: 220453
£ 2,949.95 In Stock
Save £ 705.05 RRP £ 3,655.00
See Product Description Add to Wish List
  • Order will be dispatched within 5 working days
  • Ask a question
Optional Extras Tick to add optional extras to your basket
and Simrad Structurescan 3D Sonar With Transducer
and Simrad Structurescan 3D Sonar With Transducer £849.95 Save £190.04 RRP £1,039.99
Halo24 Radar
Halo24 Radar £2,299.95 Save £553.04 RRP £2,852.99

View all 10 optional extras

  • Description
  • Videos
  • Availability
  • Size Guide
  • Delivery & Returns
Description

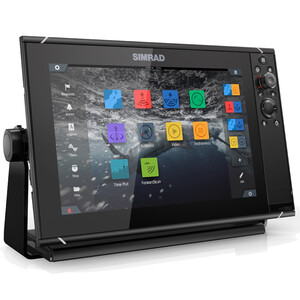

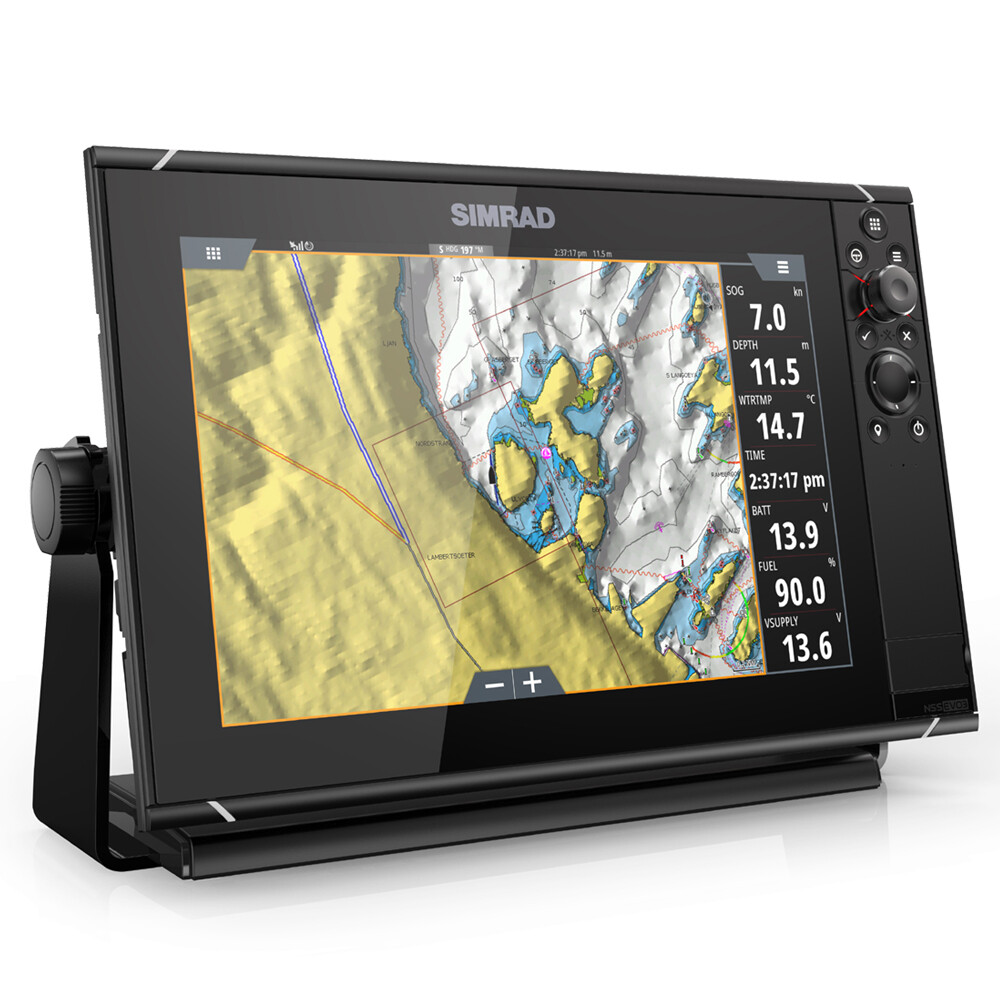

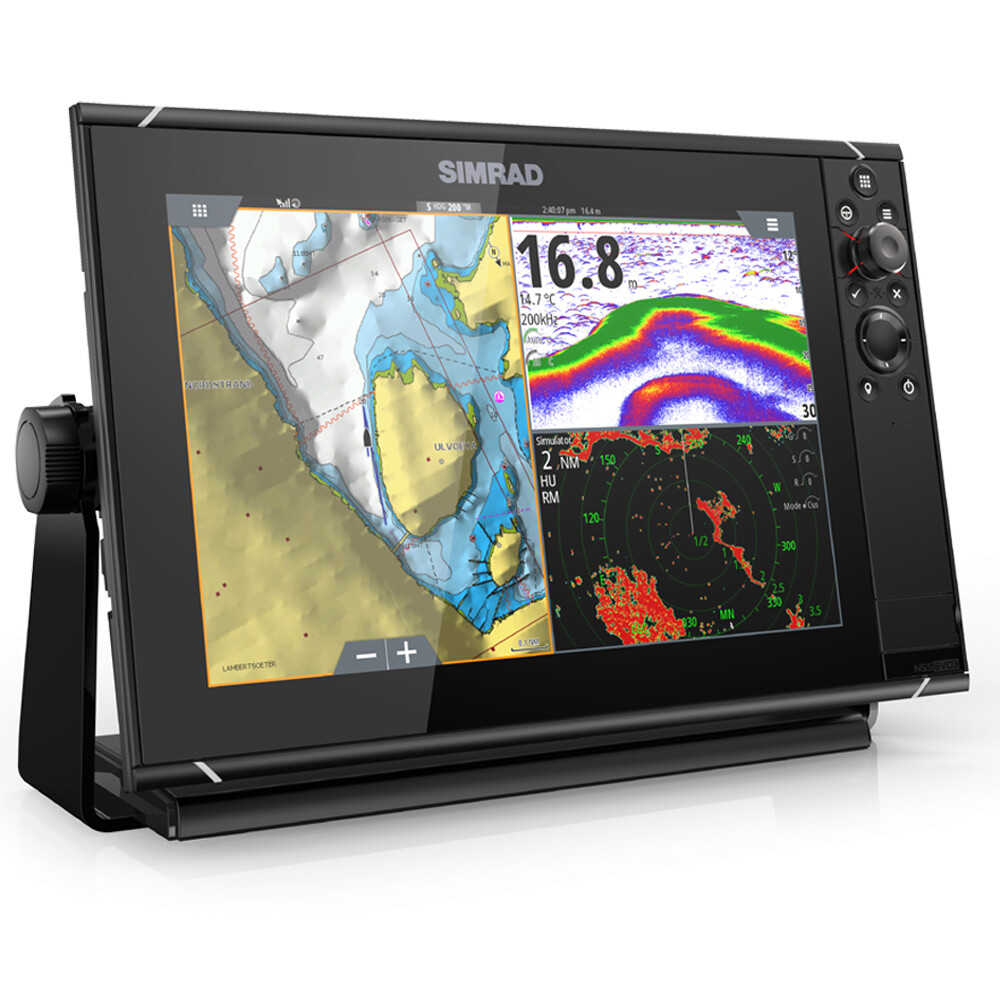

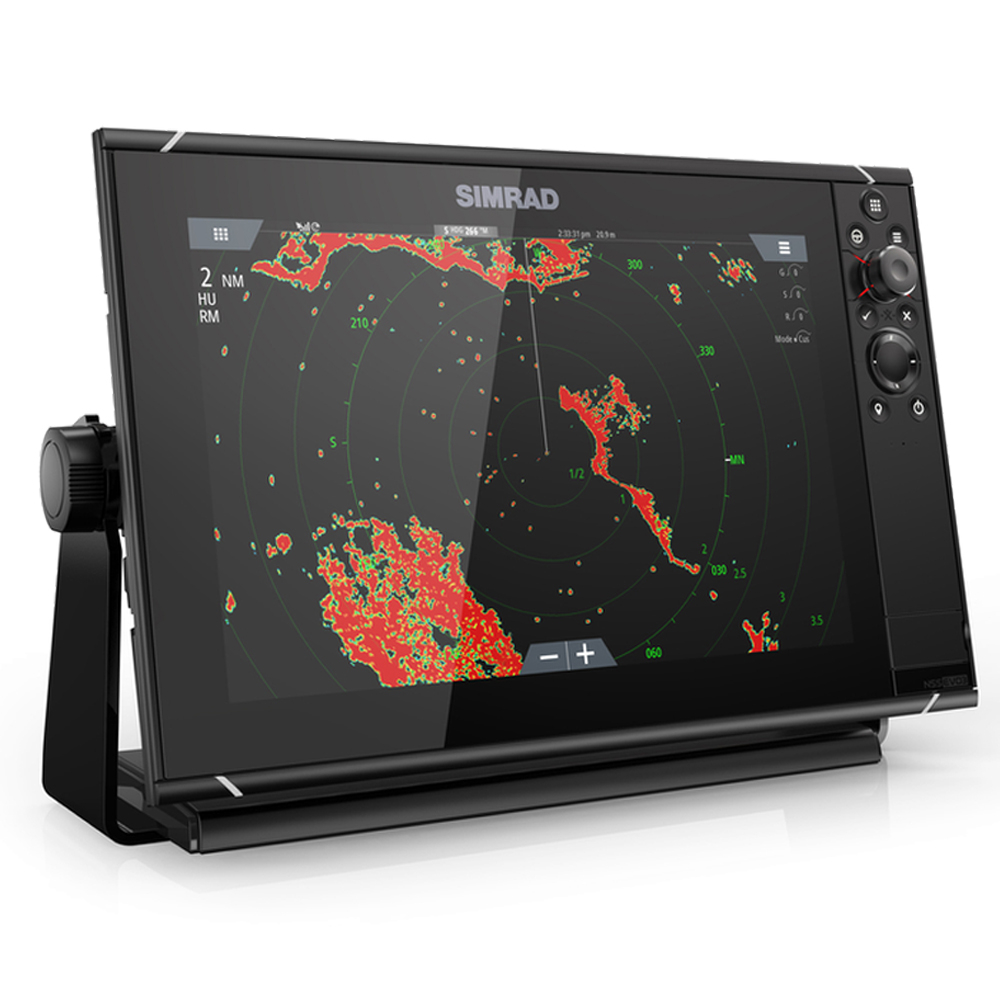

Simrad NSS Evo3 12 Multifunction Display
Spring Offer – Purchase a C-Map Max N+ Local, Wide or Continental Chart with this unit and get a further £300 off the combined package price. Please call us for on 0345 1300710 for more details

Navigate, take control, and enjoy an unprecedented level of built-in functionality with NSS evo3. SolarMAX™ HD display technology offers exceptional clarity and ultra-wide viewing angles, combined with an all-weather touchscreen and expanded keypad for total control in all conditions. Cruise confidently with ForwardScan sonar, or fish easier with StructureScan® HD imaging and dual-channel CHIRP-enabled Broadband Sounder™ technology. Built-in Wi-Fi enables access to GoFree® online services, and delivers smartphone monitoring and tablet control to extend your display’s reach well beyond the helm. The NSS12 evo3 features a 12-inch display perfect for centre consoles and other installations where space is at a premium. Includes world basemap.

Key Features



  • 12-inch widescreen SolarMAX™ HD display
  • Reliable control in all conditions: switch seamlessly between multi-touch and a full keypad with rotary dial
  • Integrated echosounder featuring dual-channel CHIRP, ForwardScan® sonar, and StructureScan® HD imaging
  • Add StructureScan® 3D imaging, advanced Broadband Sounder™ capabilities and more via Simrad modules
  • Expand your view with Halo™ Pulse Compression radar, Broadband 3G™/4G™, and other Simrad radar solutions
  • Take complete control of Simrad autopilot systems with the NSS evo3 touchscreen or keypad
  • NMEA 2000® connectivity enables integrated engine monitoring, sound system control, and much more
  • Navigate accurately with an embedded high-gain 10 Hz GPS/GLONASS receiver
  • Enjoy easier trip planning with TripIntel™ technology and support for Navionics Autorouting/C-MAP Easy Routing
  • Built-in GoFree™ Wi-Fi enables online features and smartphone monitoring/tablet control
  • Choose flush-mount installation for a low-profile Glass Bridge look, or bracket-mount to install almost anywhere
  • Includes world basemap

Specifications

  • Dimensions (W x H x D) 352 x255 x 98 mm (13.84 x 8.87 x 3.82")
  • Size and Type 12" IPS optically bonded TFT
  • Resolution 800 x 1280
  • Interface Full touch screen (multi-touch )
  • Weight 3.1 kg (6.83 lbs.)
  • External Storage 2 MicroSD slots, max. 32GB each
  • Internal Storage 16GB
  • Waterproof rating IPX6 and 7
  • Supply Voltage 10 - 31.2 V DC
  • Operating Temperature Range -15°C to +55°C (5° F to 131° F)
  • Connectivity: WiFi, Bluetooth, NMEA 0183, NMEA 2000, Ethernet
  • Video 2 x composite (RCA connectors) video inputs.
  • Waypoints, Routes, Tracks 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
  • Cartography included World basemap (no detailed charts)
  • Cartography supported Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
  • Compatible with Radar, AIS, Sonichub, Fusion Link
  • Weather : GRIB
  • GPS: Internal GPS & GLONASS
  • Autopilot Support Full auto pilot control and commissioning
  • Sonar (inc. compatibility) Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan.

In the box

  • NSS Evo3 12 MFD
  • Mounting bracket
  • Dash mount Kit
  • Edge bezels
  • Sun cover
  • 2m power cable
