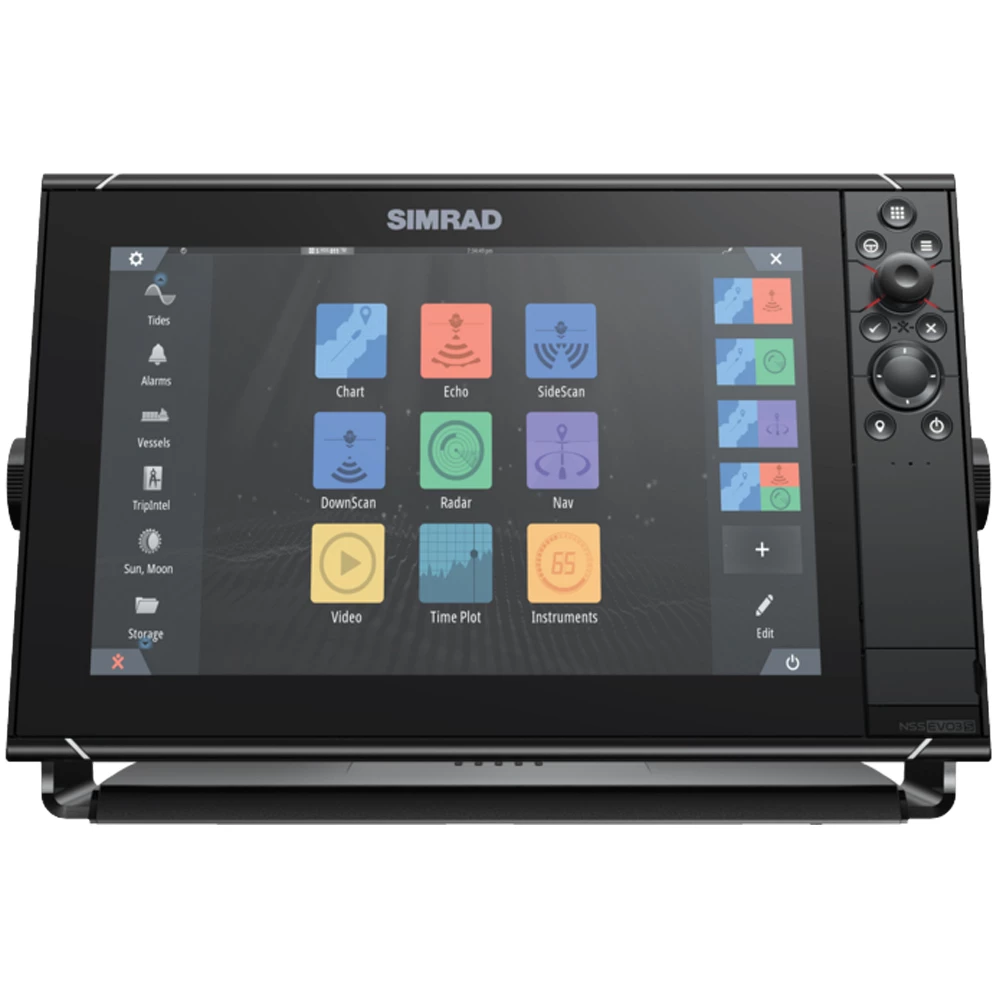

Simrad NSS EVO3S Multifunction Display

NSSevo3S features a high-definition display that delivers big-picture views of charts, radar, sonar, and more under all conditions. Featuring the new iMX 8 high-performance processor, with superfast response times, you have control of an unprecedented level of built-in functionality, ultra-wide viewing angles, and reliable touch or keypad operation. Includes world basemap.

• iMX 8 Integrated six-core processor for superior performance
• Available with 9,12 & 16-inch SolarMAX ™ IPS display with ultra-wide viewing angles; viewable through Polarized sunglasses
• Switch seamlessly between touchscreen and keypad control
• Built in high-performance echosounder with 1kW CHIRP
• Built-in GPS receiver and wireless connectivity
• Control Simrad sonar, radar, autopilot, and other accessories
• Industry-standard connectivity to engines, sound system, and more
• TripIntel™ trip planning and support for automatic routing
• Choose low-profile flush mounting or convenient bracket mounting
• Download the Simrad App and connect with smartphones, tablets, and internet hotspots
• Includes world basemap

Make the most of your boating experience

Take total control of your on-water experience. SolarMAX® IPS displays offer exceptional clarity and ultra-wide viewing angles in any light conditions, while the new iMX 8 high-performance processor delivers superfast response times for seamless screen transitions.  Choose between all-weather touchscreen technology or keypad with a rotary dial as the situation demands. It’s easy to monitor and control all of your on-board electronics with simple menus, customisable split-screen layouts, and a programmable function key for one-button access to the features you use most.

SolarMAX IPS displays ensure clear views in any conditions

Get a clear view under any lighting conditions with SolarMax IPS technology, which keeps everything in sight with ultra-wide viewing angles, even if you’re wearing polarised sunglasses. These all-weather screens have been engineered to withstand the heat of the summer sun and are optically bonded to prevent condensation or fogging within the display. It’s easier than ever to instantly access and control all of your on-board electronics via simple menus and customisable split-screen layouts.

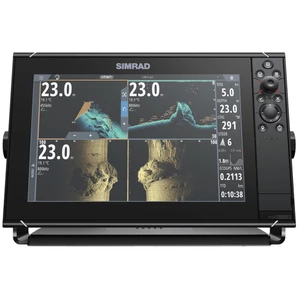

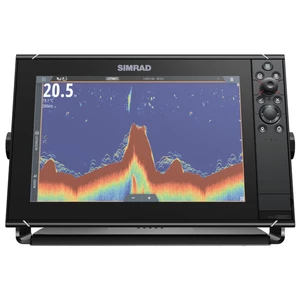

Built-in high performance echosounder supports fishing and safer cruising

Just add your choice of transducer. 1kW CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance, including support for dual-channel CHIRP transducers that deliver multiple depth range coverage from a single unit. Dual transducer ports offer the convenience of connecting multiple transducers to a single display. Better-than-ever processing power easily powers Active Imaging™, providing picture-like views of fish-holding structure, and ForwardScan® sonar,

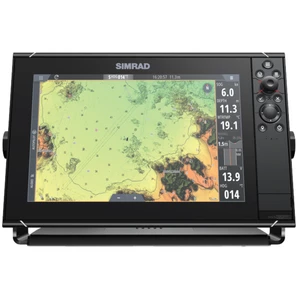

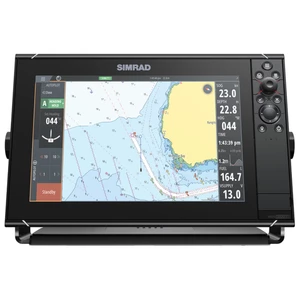

Enhanced charting capabilities for expanded coverage

Choice of any split screen combination, views in 3D or Navigation perspective, and Radar overlay. Includes compatibility with a range of 3rd party chart vendors.which offers the safest on-water experience with crystal clear views of the bottom ahead.

Fast and Simple networking connects a wide range of accessories

Industry-standard connectivity makes it easy to create multi-display systems and link displays to all of your on-board electronics; while the new iMX 8 high-performance processor ensures engine and fuel monitoring in real-time, control of on-board sound systems and much more. Expand your system with Simrad modules and accessories, fish smarter with the game-changing S5100 or StructureScan® 3D, see further with legendary HALO™ Pulse Compression radar, and free your hands from the wheel with a fully integrated Simrad autopilot.

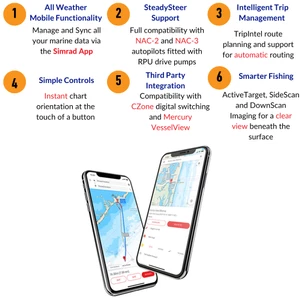

Wireless connectivity to your smartphone or tablet

Mirror your display to compatible iOS and Android devices and enjoy access to charts, radar, sonar, engine data and more from anywhere on board. Wireless connectivity also enables easy on-line software upgrades through any internet hotspot, giving you access to the latest features and accessory support. Or download the Simrad App for an even richer experience – from device registration, manual downloads to saving waypoints and your favourite fishing spots – accessible both on- and off- the water.

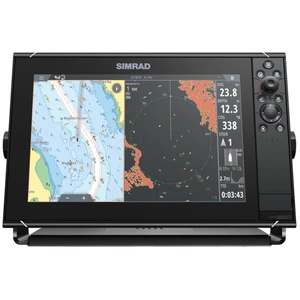

Radar options

Add Halo™ Pulse Compression radar system to cruise safely through crowded harbours, navigate in poor visibility, keep an eye on distant weather calls and even locate flocks of feeding birds that hint at good fishing spots.

Specifications

• Ethernet Ports : 9”- 1/12”-2/16”-2
• NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
• Weight (kg): 9”-1.41/12”-3.1/16”-4.65
• Supply Voltage: 10 - 31.2 V DC
• Update rate: 10 Hz
• Screen Brightness: 1200 nits
• Display Resolution: 9”-1280x720/12”-1280x800/16”-1920x1080
• Operating Temperature Range: -15°C to +55°C (5° F to 131° F)
• Internal Storage: 16 GB
• SD Card Storage: 2 MicroSD slots
• Video: 2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). HDMI output on 12 & 16” models
• Warranty Period: 2 Years
• Power Consumption max (Watts):  9”-21/ 12”-28/16”-40
• Dimensions W x H x D (mm) : 9”-287 x 166 x 90/12”-352 x 225 x 98/16”- 437 x 256 x 98
• GPS Receiver Channels: 34 Channels
• Compass Safe: 50 cm (1.7 ft)
• Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
• Viewing Angles: 80° top/bottom, 80° left/right
• Mounting Type: Bracket (Supplied) or panel mount
• GPS: Built-in 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS.SBAS (WAAS, EGNOS, MSAS, GAGAN)
• Digital Switching: C-Zone, Naviop
• Autopilot: Full auto pilot control and commissioning
• Interface: Full touch screen (multi-touch ) and full keypad control, OP50 remote controllers
• Radar compatibility: Halo Pulse Compression Radars, Broadband Radars, HD Pulse Radar
• Position Accuracy: Horizontal Accuracy 3 m (9.8 ft)
• NMEA 0183: Yes
• Charts supported: Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+,Reveal) NV Digital (Raster US Charts)
• Wireless Connectivity:  WiFi, Bluetooth
• Waterproof rating: IPX6 and 7
• AIS: Receive AIS data over NMEA 2000 or *NMEA 0183 (*NMEA 0183 has to be wired to all NSS processors)
• Sonar Compatibility: Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan. Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders
• Languages: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, SwedishOther languages supported by Unlock:Japanese, Korean, Thai, Chinese, Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Ukrainian, Arabic,Farsi

In the Box

• NSS Evo3s MFD
• Sun Cover
• Mounting bracket (not included with 16" model)
• Dash mount kit
• Edge bezels
• Power cable
