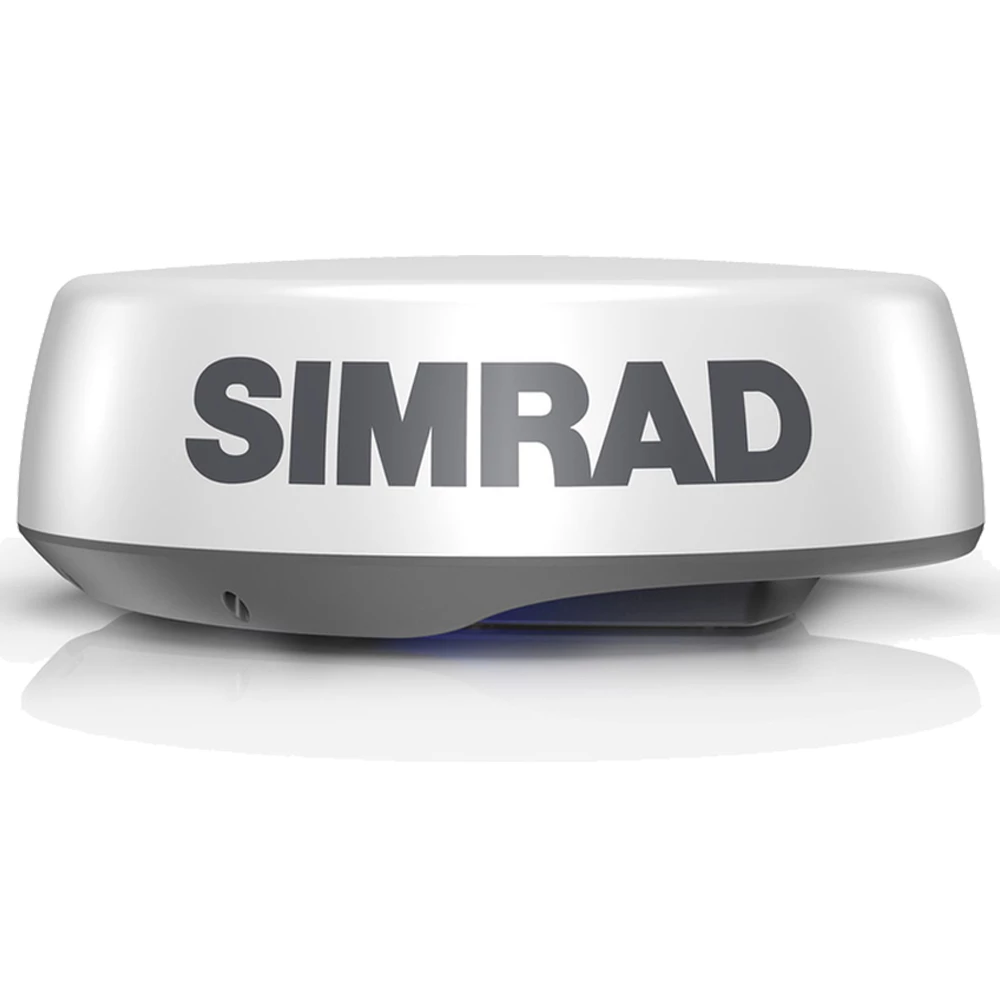

Simrad Halo24 Radar

SIMRAD CASHBACK OFFER - Get Up To £1000 Cashback when you purchase a new NSS EVO3S Multifunction Display and qualifying accessory.
See All Qualifying SIMRAD products here

See Full Terms & Conditions Here

Offer Ends 20/12/2024. Whilst Stocks Last.

HALO24 radar offers an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack™ Doppler technology, and enjoy simultaneous short and long-range coverage—up to 48 nautical miles—from one compact 24-inch dome antenna

Features

• 48 nm range from a compact 24-inch dome
• Advanced pulse compression technology with beam sharpening
• Simultaneous Dual Range operation sees both near and far
• Ultra-fast 60 RPM operation at ranges up to 2nm
• VelocityTrack™ Doppler technology for collision avoidance
• Easy operation with harbour, offshore, weather, and bird modes
• MARPA target tracking (up to 10 targets, 20 in dual range).
• Ready instantly from standby
• All new lightweight, low profile dome design, with integrated LED light

The Ultimate View for Collision Avoidance

HALO24 radar introduces industry-first 60 RPM rotation at ranges up to 2 nautical miles, delivering a full 360-degree sweep every single second. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance. Whether you’re navigating through crowded waterways or contending with poor visibility, Halo radar cuts through the clutter to give you a clear and current picture of your surroundings

VelocityTrack™ Doppler Technology Built-In

VelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Using the Doppler effect, this feature automatically checks every target seen by your radar; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time. Simple colour coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision.

See Near and Far with One Compact Dome

Perfect for a wide range of powerboats, HALO24 comes in a compact dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode which enables you to keep an eye on far away weather cells while watching for collision hazards up close. HALO24 radar’s pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.

Ready When You Are

HALO24 radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly when and where you need it. Even if your HALO24 radar is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO24 radar immediately cuts through the clutter to give you a clear and current picture of your surroundings.

Specifications

• Power consumption (with 10m cable) Operating: 14.5 to 27W at 13.8 V
• Standby 3.9 W (Typ.) at 13.8 V DC ~ 170 mA
• Supply voltage: 12/24 V DC

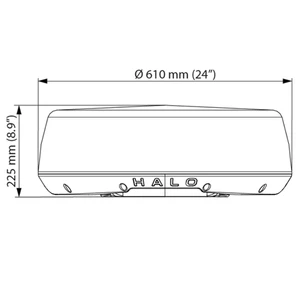

• Outside dimensions Ø Diameter 610 mm (24”), Height 225 mm (8.9”)
• Scanner weight (no cable) 6.75kg (14.9 lbs)
• Radar ranges 100 m (328 ft) to 48nm with 18 range settings, (nm/sm/km)
• Rotation (mode dependent) 20 - 60 rpm (mode and MFD dependent)
• Transmitter peak power output: 25W
• Minimum range: 6 m (19.7 ft)
• Horizontal beam width (Tx and Rx antenna) 3.9° nominal (-3 dB width)
• Vertical beam width (Tx and Rx antenna) 22° (-3B width nominal)

In The Box

• Simrad Halo24 radome
• 10m radar cable
• 1.5m ethernet adapter cable, RJ45 TO 5 Pin male.
• RJ45 waterproof boot
