Raymarine

Element S Chartplotter

Catalogue Code: 220606
From £574.95 In Stock Online
Save £55.05 RRP £445.00
Colour: No Colour
Size Guide
Select Your Size (Required):
See Product Description Check Stock in Store Add to Wish List
  • Get it on Wednesday, 3rd April if ordered within the next --:--:-- and select Next Day Delivery *UK Mainland Only
  • Ask a question
Optional Extras Tick to add optional extras to your basket
CPT-S Plastic CHIRP Transom Mount Transducer
CPT-S Plastic CHIRP Transom Mount Transducer £62.95 Save £7.05 RRP £70.00
Quantum Q24W Wi-Fi Only Chirp Radar
Quantum Q24W Wi-Fi Only Chirp Radar £1,649.95 Save £245.05 RRP £1,895.00

View all 9 optional extras

  • Description
  • Videos
  • Availability
  • Delivery & Returns
  • Questions & Answers
  • Reviews
Description

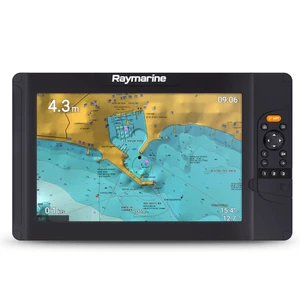

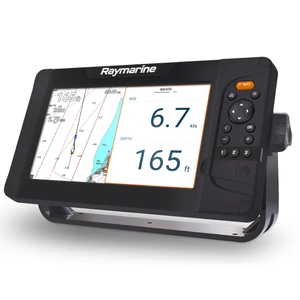

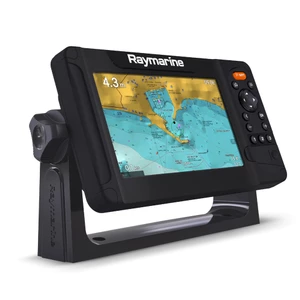

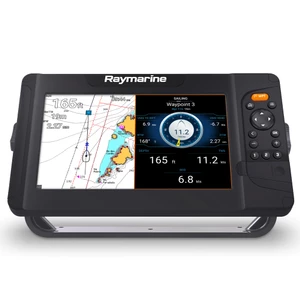

Raymarine Element S Chartplotter

A button controlled wide screen chartplotter with NMEA2000 and Wifi Radar connection. Engineered for simplicity and affordable performance.

A quad-core processor offers responsive performance and Element’s all-weather, sunlight viewable display delivers crystal clear chart and navigation data.

Element’s simple and straightforward LightHouse Sport operating system lets you navigate with confidence. Once underway, Element S will keep you on course with a smart list of user-friendly features, such as AIS target overlays, autopilot integration, and sailing instruments displays.

SIMPLE AND STRAIGHT FORWARD

Element’s LightHouse Sport OS Designed for boaters that like to keep things simple.

  • From sailing to power cruising to fishing, the LightHouse Sport OS is easy to customize to your type of boating
  • An oversized waypoint key for quick and easy marking of your favorite locations
  • Three user-programmable quick keys to access your favorite pages with one button push
  • Live menus let you customize charts while seeing the navigation display change in real time

A TRUSTED CRUISING COMPANION

Easy planning and GPS navigation with your favorite charts.

  • Support for Raymarine LightHouse™ charts, Navionics, and C-MAP

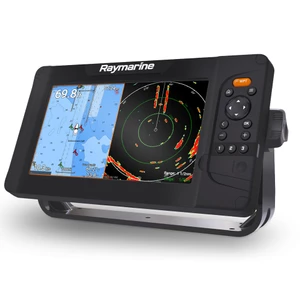

  • Safely navigate busy waterways with an optional Quantum™ wireless radar and AIS receiver
  • Built-in High CHIRP sonar for depth and bottom contour imaging
  • Map uncharted areas with Raymarine RealBathy™ personal sonar mapping
  • Connect with NMEA2000 compatible AIS, autopilot, sailing instruments, engines, tanks, and VHF

SUPERIOR PERFORMANCE

Enjoy legendary Raymarine display and navigation technology at an affordable price.

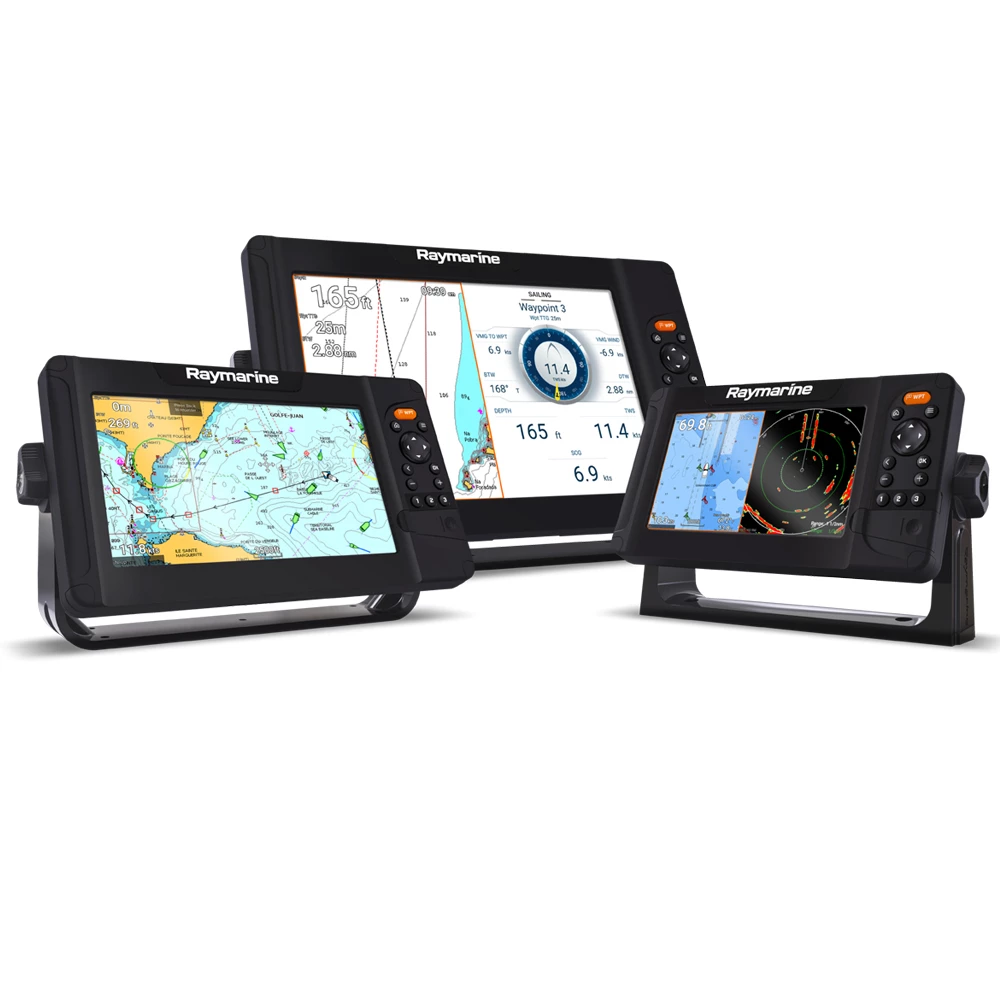

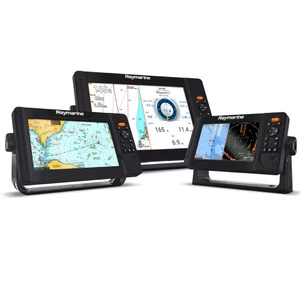

  • 7, 9, and 12 inch super bright display for all weather conditions
  • Category-leading quad-core processor delivers fast chart redraw and responsive performance
  • Fast and accurate 10hz GPS/GNSS sensor
  • Rugged design and backed by Raymarine’s three-year warranty (product registration required)

High CHIRP Transducers

Compatible with the CPT-S family of transom and thru-hull transducers

Specifications

  • Display Size: 7.0", 9.0" or 12.0" Optically Bonded LCD
  • Display Resolution: 800 x 480 WVGA (7 & 9") 1280 x 800 XVGA (12")
  • Display Type: Non-Touch
  • Brightness: 1,500 nits
  • Display Dimensions W x H x D (mm):
    • 7" - 240 x 135 x  62mm
    • 9" - 287 x 161 x 62mm
    • 12" - 357 x 215 x 62mm
  • Product Weight (Kg): 7" - 1.36: 9" - 2.27: 12" - 2.95
  • Water Ingress Protection: IPx6 and IPx7
  • Operating Temperature Range:  -25°C to + 55°C (-13°F to 131°F)
  • Voltage 12V DC (8V to 16V DC)
  • Power Consumption (max 12V DC): 7" - 15 Watts: 9" - 20 Watts: 12" - 25 Watts
  • GNSS / GPS: Built-in GPS/GLONASS
  • Sonar Type (Built-in): Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers
  • Sonar Depth :CHIRP Sonar = 274m (900 feet)
  • Radar: Quantum wireless CHIRP compatible Wi-Fi only connection
  • NMEA2000:1 x NMEA2000 port (DeviceNet microC)
    • Supported NMEA2000 Networking: INPUT: NMEA2000 Compatible Engines (Max 2) | NMEA2000 Compatible Tank Sensors (Max 4) | Heading Sensor (for Chart Stabilization)
    • OUTPUT: GPS (for VHF Distress and DSC). Waypoint, Routes, and XTE for Autopilot. Waypoint and Route sharing between Element displays
  • SeaTalkng: Requires A06045 DeviceNet female (F) adapter cable - 400mm
  • Wi-Fi : WiFi - 802.11 b / g / n
  • Cartography: Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX
  • Tides & Currents: Requires LightHouse LNC2, Navionics or *C-MAP
  • Sonar Mapping: Raymarine RealBathy and Navionics SonarChart Live
  • Waypoint / Routes / Tracks: 5,000 wpts / 200 wpt groups / 50 rts - 250 wpt max / 15 tracks - 10,000 max trk pts
  • External Memory: 1 x microSD slots

 In The Box

  • Element display
  • Surface mount gasket
  • Suncover
  • Trunnion knobs x2
  • Documentation pack
  • Trunnion bracket
  • Surface mount stainless steel fixings x4 (M4x40 machine screw, M4 flatwasher, M4 lockingnut)
  • Power / NMEA2000 cable (includes 1.5m (4.92ft) power lead and 0.5m (1.64ft) NMEA2000 lead).





Videos
Videos
Availability
Stock Availability

Stock can move quickly, so this is just a suggestion of current levels, please phone the shop to confirm.

The ship to store service is based on Head Office sending stock to a branch.

If you wish to call & collect stock, please do so over the phone using the number provided.

No Colour - 7

Store Availability Telephone
Cardiff 02920 220929
Chichester 01243 773788
Deacons 02380 402182
Lymington Not currently in stock 01590 673698
Plymouth 01752 548301
Poole 01202 723311
Port Hamble 02380 454858
Southampton 02380 632 725
Gloucestershire (Distribution Hub) Not currently in stock 0345 130 0710

No Colour - 9

Store Availability Telephone
Cardiff Not currently in stock 02920 220929
Chichester 01243 773788
Deacons 02380 402182
Lymington Not currently in stock 01590 673698
Plymouth 01752 548301
Poole 01202 723311
Port Hamble Not currently in stock 02380 454858
Southampton Not currently in stock 02380 632 725
Gloucestershire (Distribution Hub) 0345 130 0710

No Colour - 12

Store Availability Telephone
Cardiff Not currently in stock 02920 220929
Chichester Not currently in stock 01243 773788
Deacons 02380 402182
Lymington Not currently in stock 01590 673698
Plymouth Not currently in stock 01752 548301
Poole Not currently in stock 01202 723311
Port Hamble Not currently in stock 02380 454858
Southampton Not currently in stock 02380 632 725
Gloucestershire (Distribution Hub) 0345 130 0710

- Good Availability

- Low Availability

- One item left

Delivery & Returns
Delivery

Royal Mail Service Update: Please be aware when choosing Royal Mail as your preferred delivery method, your delivery time may be impacted by ongoing strikes and may take up to 20 working days. If your order is time critical we suggest choosing a courier or Next Day Service



Our Mail Order team ship chandlery, yacht parts and sailing clothing around the world. We use the best value couriers available, and we will endeavour to get your products to you as quickly and as cost effectively as possible.

International Orders: Due to delays we have had to suspend our international delivery options.

UK Standard Delivery

  • UK Mainland 0 - 2Kg (small jiffy) £3.95 Royal Mail Service. Despatch within 3- 5 working days, delivery in 7-10 working days for orders under £50.00
  • UK Mainland up to 25Kg £5.95 Courier service with signature. Despatch within 3- 5 working days, delivery in 7-10 working days
  • UK Mainland 25Kg+ Price on request
  • UK Mainland Next Day 0 - 25Kg £9.95 Courier service with signature, orders must be placed before midday
  • Northern Ireland, Highlands & Islands 0 - 2Kg (small jiffy) £3.95 Royal Mail Service. Despatch within 3- 5 working days, delivery in 5-7 working days for orders under £50.00
  • Northern Ireland, Highlands & Islands 1 - 25Kg £10.95 Courier service with signature. Despatch within 3- 5 working days, delivery in 7-10 working days
  • Northern Ireland, Highlands & Islands 25Kg+ Price on request
  • Channel Islands 0 - 2Kg (small jiffy) £5.95 Royal Mail Service Despatch within 3- 5 working days, delivery in 5-7 working days for orders under £50.00
  • Channel Islands 1 - 25Kg £13.50 Courier service with signature. Despatch within 3- 5 working days, delivery in 5-7 working days
  • Channel Islands 25Kg+ Price on request

UK Exceptional Delivery

  • UK Mainland; Antifoul & paints £5.95
  • UK Mainland; Inflatable dinghy £10.00
  • UK Mainland; Liferafts £17.50
  • UK Mainland; Flares £49.95
  • Northern Ireland, Highlands & Islands; Antifoul & paints £9.95
  • Northern Ireland, Highlands & Islands; Inflatable dinghy price on request
  • Northern Ireland, Highlands & Islands; Liferafts price on request
  • Northern Ireland, Highlands & Islands; Flares not available to ship at this time
  • Channel Islands; Antifoul & paints £13.50
  • Channel Islands; Inflatable dinghy price on request Channel Islands; Flares not available to ship at this time

For further delivery information click here.

Returns

Standard Returns

If you are not entirely happy with your purchase, we will exchange or refund your goods in full, provided that the items are returned within 14 days of receipt.*

Please check the condition of goods on arrival - we are unable to accept goods damaged during shipping after 14 days.

Returned goods must be packaged securely, with all original packaging undamaged and in a saleable condition i.e. shoe boxes must be in the same condition as when received.

Goods must be unused and security seals intact.*

If you would like to return goods because they were ordered incorrectly or if clothing does not fit, return postage will be at your expense. If you would like us to replace the goods with another size or colour, we will charge carriage on the replacement.

Please be aware that some navigational and safety products may be dated, and as such a full refund may in some cases not be possible. If you are purchasing dated navigational charts we suggest you contact us for more information.

Faulty Goods

If you receive your goods and believe them to be faulty, please contact us straight away with a brief description of the problem. If we require you to return the product for a replacement, we will send you a pre-paid Royal Mail label for delivery back to us. Unfortuantely we cannot send the courier back to collect the items.

Returning goods to Force 4 is easy!

  1. Please contact us by ringing 0345 1300 710 or email on [email protected]. This way we'll be able to determine whether you would like to return the product for a refund or whether you'd like to exchange the product. We are unable to process the return of faulty goods that we're not expecting.
  2. We'll then give you a returns number. This returns number will need to be clearly marked on the outside of your parcel so it can be identified on arrival. Please note, failure to mark a returns reference number on the outside of your parcel may result in a delay in processing your return.
  3. Don't forget your proof of postage, just in case!
  4. Once we receive the item we'll be able to proceed with a refund or an exchange.

*this excludes faulty goods with manufacturers defects. If goods are found to be faulty during use, after the returns period, please just give us a ring on 0345 1300 710 and we'll be happy to help.

Questions & Answers
Questions & Answers
Has the unit got a built in aerial russell murphy

If you are refering to a GPS/GLONASS antenna then yes it does have this in-built to the unit for GPS location fixing.  It also has in-built WiFi.

9/7/19

If you are refering to a GPS/GLONASS antenna then yes it does have this in-built to the unit for GPS location fixing.  It also has in-built WiFi.

9/7/19

What size is the screen? L to R /top to Bottom David

Element 7 - 90mm x 153mm Element 9 - 122mm x 198mm Element 12 - 165mm x 262mm 24/03/21

Element 7 - 90mm x 153mm Element 9 - 122mm x 198mm Element 12 - 165mm x 262mm 24/03/21

Can memory map/Antares charts be transferred onto this device from a tablet/android smartphone? Bob Gray

This is compatible with Navionics Plus, C-Map 4D and Raymarine Lighthouse charts - All of these need to run off of a Micro SD inserted into the unit

This is compatible with Navionics Plus, C-Map 4D and Raymarine Lighthouse charts - All of these need to run off of a Micro SD inserted into the unit

Do the power cable and transducer cable push fit into the unit?

Stephen Rees

These do not need to be permanently fixed to the back of the unit, so you are able to easily remove it

These do not need to be permanently fixed to the back of the unit, so you are able to easily remove it

Can you advise of the size of each unit 7.9 and 12 to see how it will fit in with my chart table layout as I am replacing a Raychart 4365 chartplotter. Regards

Iain Angus Campbell
Good afternoon Iain, Display Dimensions W x H x D (mm): 7" - 240 x 135 x 62mm 9" - 287 x 161 x 62mm 12" - 357 x 215 x 62mm You can view the cut-out and overall dimensions on the Raymarine website here : https://www.raymarine.com/element-series/element-s/models.html Good afternoon Iain, Display Dimensions W x H x D (mm): 7" - 240 x 135 x 62mm 9" - 287 x 161 x 62mm 12" - 357 x 215 x 62mm You can view the cut-out and overall dimensions on the Raymarine website here : https://www.raymarine.com/element-series/element-s/models.html
will the cmap N+ and N- work with this device as i bought these maps last year by mistake and looking for a compatible device thanks. IAN FLANNERY
Yes these are, along as they are in a Micro SD format. Yes these are, along as they are in a Micro SD format.
Is the 12in good for poting fishing. And can i transfer my trawling info on to this plotter. Chris smyth
Hello Yes this unit is great for plotting fishing. What unit do you currently have, I can find out how to transfer data over for you ? 20/01/22 Hello Yes this unit is great for plotting fishing. What unit do you currently have, I can find out how to transfer data over for you ? 20/01/22
I am replacing a previous Raymarine plotter with Element S and was hoping to run the 9S as a standalone unit not linked to autopilot or course computer - will the autopilot operate without data from a chart plotter? Chas Leppich
If you disconnect the autopilot from the plotter and your autopilot has a control head, you will be able to use the autopilot to steer to a bearing. You will not be able to steer to a waypoint or follow a route. If you disconnect the autopilot from the plotter and your autopilot has a control head, you will be able to use the autopilot to steer to a bearing. You will not be able to steer to a waypoint or follow a route.
How do you connect this unit to an earlier Seatalk network (I have a series of ST60 instruments; depth, speed, wind, autohelm). Craig Simmons
You will need the following adaptor cable https://www.force4.co.uk/item/Raymarine/STng-to-Female-DeviceNet-Adaptor-Cable-400mm/AVS You will need the following adaptor cable https://www.force4.co.uk/item/Raymarine/STng-to-Female-DeviceNet-Adaptor-Cable-400mm/AVS
