Element S Chartplotter With Navionics Silver EU Chart Element S Chartplotter With Navionics Silver EU Chart Element S Chartplotter With Navionics Silver EU Chart Element S Chartplotter With Navionics Silver EU Chart
Element S Chartplotter With Navionics Silver EU Chart Element S Chartplotter With Navionics Silver EU Chart Element S Chartplotter With Navionics Silver EU Chart Element S Chartplotter With Navionics Silver EU Chart
Raymarine

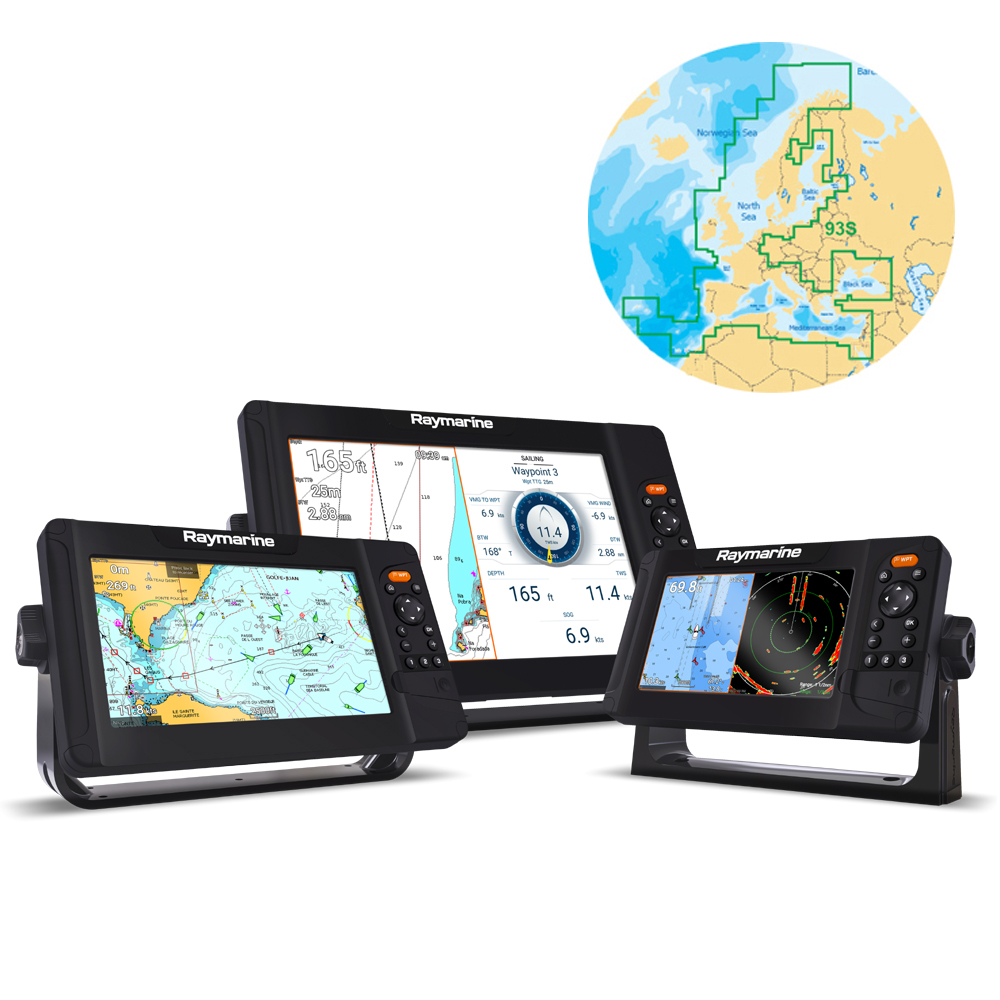

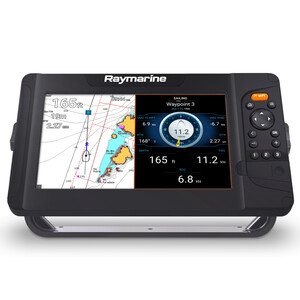

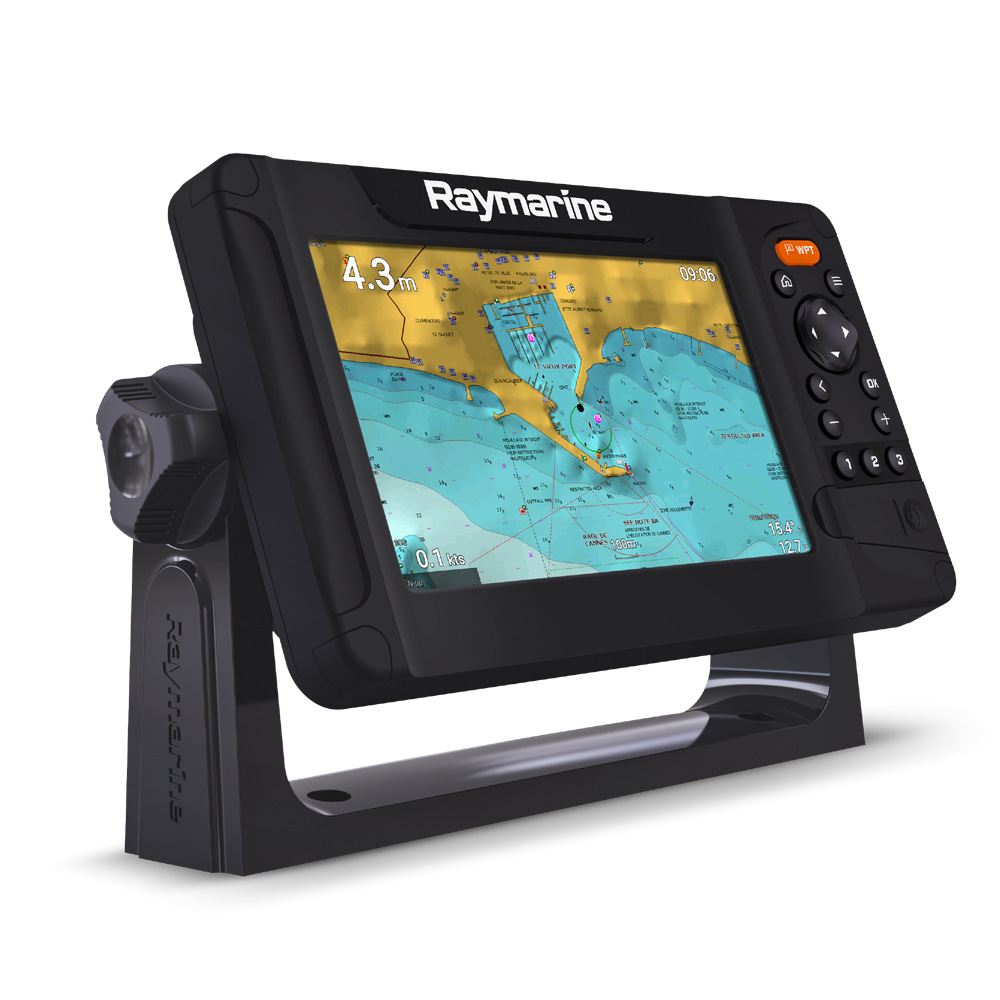

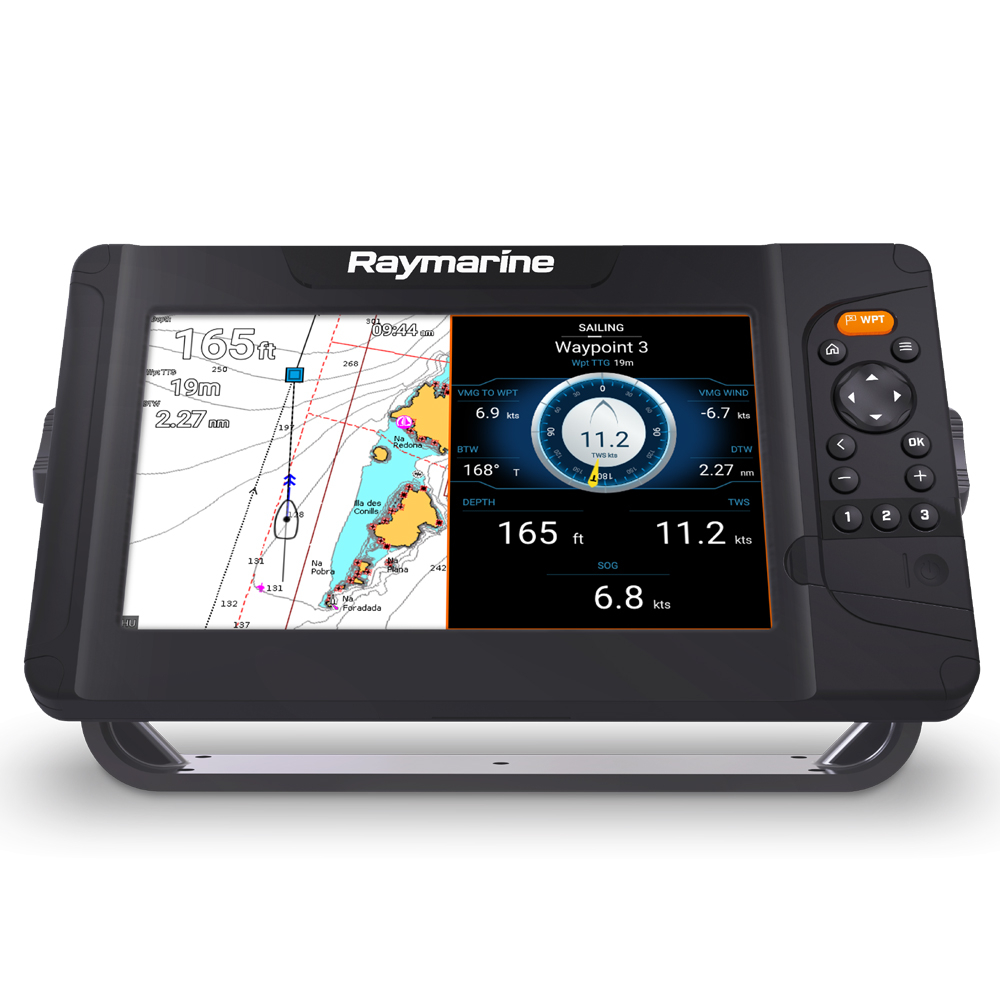

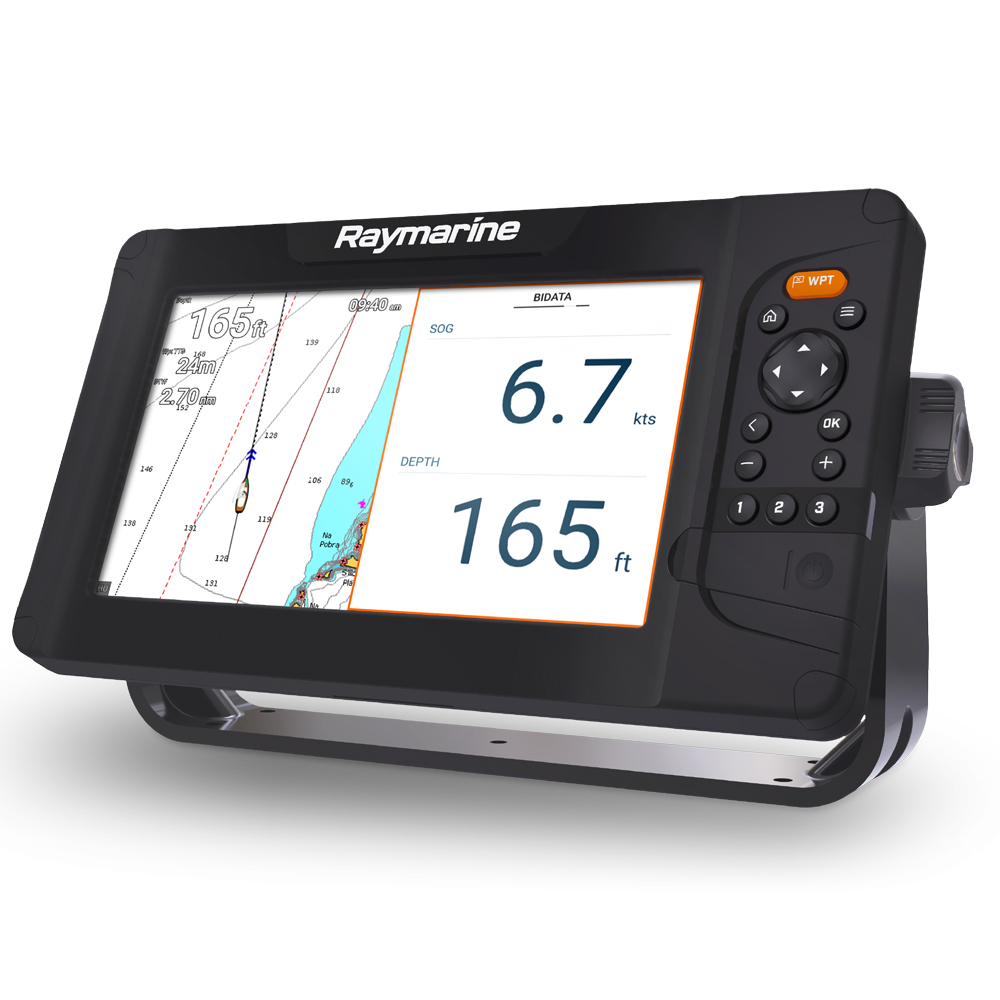

Element S Chartplotter With Navionics Silver EU Chart

Catalogue Code: 220607
From £ 694.95 In Stock
Colour: No Colour
Select Your Size (Required):
Size Guide
See Product Description Add to Wish List
  • Order now for dispatch next working day
  • Ask a question
Optional Extras Tick to add optional extras to your basket
AIS350 AIS Receiver
AIS350 AIS Receiver £379.95 Save £45.05 RRP £425.00
CPT-S Plastic Chirp Thru Hull Transducer
CPT-S Plastic Chirp Thru Hull Transducer £144.95 Save £15.05 RRP £160.00

View all 8 optional extras

  • Description
  • Videos
  • Availability
  • Size Guide
  • Delivery & Returns
  • Questions & Answers
Description
Raymarine Element S Chartplotter With Navionics Silver EU Chart

A button controlled wide screen chartplotter with NMEA2000 and Wifi Radar connection. Engineered for simplicity and affordable performance. A quad-core processor offers responsive performance and Element’s all-weather, sunlight viewable display delivers crystal clear chart and navigation data. Element’s simple and straightforward LightHouse Sport operating system lets you navigate with confidence. Once underway, Element S will keep you on course with a smart list of user-friendly features, such as AIS target overlays, autopilot integration, and sailing instruments displays.




SIMPLE AND STRAIGHT FORWARD


Element’s LightHouse Sport OS Designed for boaters that like to keep things simple.



  • From sailing to power cruising to fishing, the LightHouse Sport OS is easy to customize to your type of boating

  • An oversized waypoint key for quick and easy marking of your favorite locations

  • Three user-programmable quick keys to access your favorite pages with one button push

  • Live menus let you customize charts while seeing the navigation display change in real time


A TRUSTED CRUISING COMPANION


Easy planning and GPS navigation with your favorite charts.



  • Support for Raymarine LightHouse™ charts, Navionics, and C-MAP

  • Safely navigate busy waterways with an optional Quantum™ wireless radar and AIS receiver

  • Built-in High CHIRP sonar for depth and bottom contour imaging

  • Map uncharted areas with Raymarine RealBathy™ personal sonar mapping

  • Connect with NMEA2000 compatible AIS, autopilot, sailing instruments, engines, tanks, and VHF


SUPERIOR PERFORMANCE


Enjoy legendary Raymarine display and navigation technology at an affordable price.



  • 7, 9, and 12 inch super bright display for all weather conditions

  • Category-leading quad-core processor delivers fast chart redraw and responsive performance

  • Fast and accurate 10hz GPS/GNSS sensor

  • Rugged design and backed by Raymarine’s three-year warranty (product registration required)


High CHIRP Transducers


Compatible with the CPT-S family of transom and thru-hull transducers


Specifications




  • Display Size: 7.0", 9.0" or 12.0" Optically Bonded LCD

  • Display Resolution: 800 x 480 WVGA (7 & 9") 1280 x 800 XVGA (12")

  • Display Type: Non-Touch

  • Brightness: 1,500 nits

  • D imensions W x H x D (mm): 7" - 240 x 135 x  62mm: 9" - 287 x 161 x 62mm: 12" - 357 x 215 x 62mm

  • Product Weight (Kg): 7" - 1.36: 9" - 2.27: 12" - 2.95

  • Water Ingress Protection: IPx6 and IPx7

  • Operating Temperature Range:  -25°C to + 55°C (-13°F to 131°F)

  • Voltage 12V DC (8V to 16V DC)

  • Power Consumption (max 12V DC): 7" - 15 Watts: 9" - 20 Watts: 12" - 25 Watts


  • GNSS / GPS: Built-in GPS/GLONASS



  • Sonar Type (Built-in): Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers

  • Sonar Depth :CHIRP Sonar = 274m (900 feet)

  • Radar: Quantum wireless CHIRP compatible Wi-Fi only connection


  • NMEA2000:1 x NMEA2000 port (DeviceNet microC)




    • Supported NMEA2000 Networking: INPUT: NMEA2000 Compatible Engines (Max 2) | NMEA2000 Compatible Tank Sensors (Max 4) | Heading Sensor (for Chart Stabilization)

    • OUTPUT: GPS (for VHF Distress and DSC). Waypoint, Routes, and XTE for Autopilot. Waypoint and Route sharing between Element displays


  • SeaTalkng: Requires A06045 DeviceNet female (F) adapter cable - 400mm

  • Wi-Fi : WiFi - 802.11 b / g / n


  • Cartography: Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX



  • Tides & Currents: Requires LightHouse LNC2, Navionics or *C-MAP

  • Sonar Mapping: Raymarine RealBathy and Navionics SonarChart Live

  • Waypoint / Routes / Tracks: 5,000 wpts / 200 wpt groups / 50 rts - 250 wpt max / 15 tracks - 10,000 max trk pts

  • External Memory: 1 x microSD slots


 In The Box




  • Element display

  • Surface mount gasket

  • Suncover

  • Trunnion knobs x2

  • Documentation pack

  • Trunnion bracket

  • Surface mount stainless steel fixings x4 (M4x40 machine screw, M4 flatwasher, M4 lockingnut)

  • Power / NMEA2000 cable (includes 1.5m (4.92ft) power lead and 0.5m (1.64ft) NMEA2000 lead).
