PV Logic Flexi Solar Panel

PV Logic FLEXi is well suited for use where a super robust, low profile and lightweight panel is needed, or the substrate to which the panel will be fixed has a slight curve. Ideal for marine buoys, boat decks, camper vans etc.

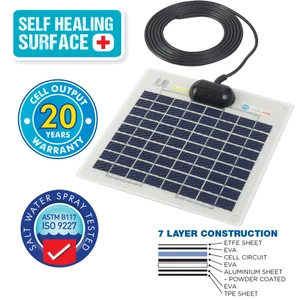

Self-healing top surface
The ETFE top layer gives the PV Logic Flexi extra resilience in really tough conditions. ETFE has a memory effect or self-healing capacity in the event the panel comes into contact with branches etc, thus ensuring any slight abrasions are ‘healed’ within a few hours. The Flexi range can even be walked on with soft deck shoes! During production the ETFE is dimpled to further protect the panel and provide an anti-slip surface, particularly useful if the panel is fitted to a boat deck.

Completely waterproof
Each panel is assembled to ensure complete encapsulation. This ensures the 6 layer heavy duty laminate protects the solar cell circuit from extreme conditions. The junction box is also injected with special silicon, guaranteeing no water ingress.

Cells protected from hot spots.
Where used on a camper van or boat, partial shading of a solar panel is typical. In these circumstances, heat build-up and damaging hot spots can occur leading to a significantly reduced life cycle of the panel. The larger 60w and 80w PV Logic Flexi panels have up to two shading diodes housed within the fully waterproof junction box to prevent this occurrence.

Superior design
There are no square edges on a PV Logic Flexi! Rounded panel corners and a unique curved junction box provide superior adhesion, no snag lamination and no sharp edges. The junction box is mechanically fixed in addition to being bonded to the panel. Strain relief is provided for the fitted 4m UV stabilised PV cable ensuring it cannot be accidentally pulled from the junction box.

Easy fix
The Flexi range can be bonded to flat or slight curved surfaces (3cm curve per metre) such as painted aluminium, metal, GRP and fibreglass using Simson ISR 70-03.

Warranty
The Flexi range is setting new standards with a 2 year product and a 20 year performance warranty* .
*Cell performance warranty states that at 20 years the cell output will be no less than 80% of new performance values – i.e the cell degradation rate will be no greater than 20% in 20 years

Specifications

5w Panel

• Power (Wp) 5watts
• Nominal Voltage (Vmp) 18V DC
• Nominal Current (Imp) 0.28A
• Open Circuit Voltage (Voc) 21.6V
• Short Circuit Current (Isc) 0.30A
• Operating Temperature -40 to + 80 Deg C
• Max System Voltage 750V DC
• Dimensions 240x250x4mm (Junction box 10mm)
• Weight 0.36Kg
• Approx. watt-hours/day** 30W
• Approx. amp-hours/day** 1.68A

10Watt panel

• Power (Wp) 10watts
• Nominal Voltage (Vmp) 18V DC
• Nominal Current (Imp) 0.56A
• Open Circuit Voltage (Voc) 21.6V
• Short Circuit Current (Isc) 0.61A
• Operating Temperature -40 to + 80 Deg C
• Max System Voltage 750V DC
• Dimensions 390x250x4mm (Junction box 10mm)
• Weight 0.56Kg
• Approx. watt-hours/day** 60W
• Approx. amp-hours/day** 3.36A

20Watt panel

• Power (Wp) 20watts
• Nominal Voltage (Vmp) 18V DC
• Nominal Current (Imp) 1.11A
• Open Circuit Voltage (Voc) 21.6V
• Short Circuit Current (Isc) 1.21A
• Operating Temperature -40 to + 80 Deg C
• Max System Voltage 750V DC
• Dimensions 505x345x4mm (Junction box 10mm)
• Weight 0.70Kg
• Approx. watt-hours/day** 120W
• Approx. amp-hours/day** 6.66A

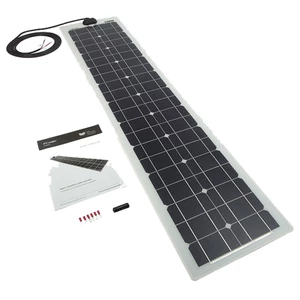

60Watt panel

• Power (Wp) 60watts
• Nominal Voltage (Vmp) 18V DC
• Nominal Current (Imp) 3.37A
• Open Circuit Voltage (Voc) 22.1V
• Short Circuit Current (Isc) 3.64A
• Operating Temperature -40 to + 80 Deg C
• Max System Voltage 750V DC
• Dimensions 1450x315x4mm (Junction box 10mm)
• Weight 3.00Kg
• Approx. watt-hours/day** 360W
• Approx. amp-hours/day** 20.22A

80Watt panel

• Power (Wp) 80watts
• Nominal Voltage (Vmp) 18V DC
• Nominal Current (Imp) 4.55A
• Open Circuit Voltage (Voc) 21.9V
• Short Circuit Current (Isc) 4.55A
• Operating Temperature -40 to + 80 Deg C
• Max System Voltage 750V DC
• Dimensions 806x665x4mm (Junction box 10mm)
• Weight 3.75Kg
• Approx. watt-hours/day** 480W
• Approx. amp-hours/day** 27.3A

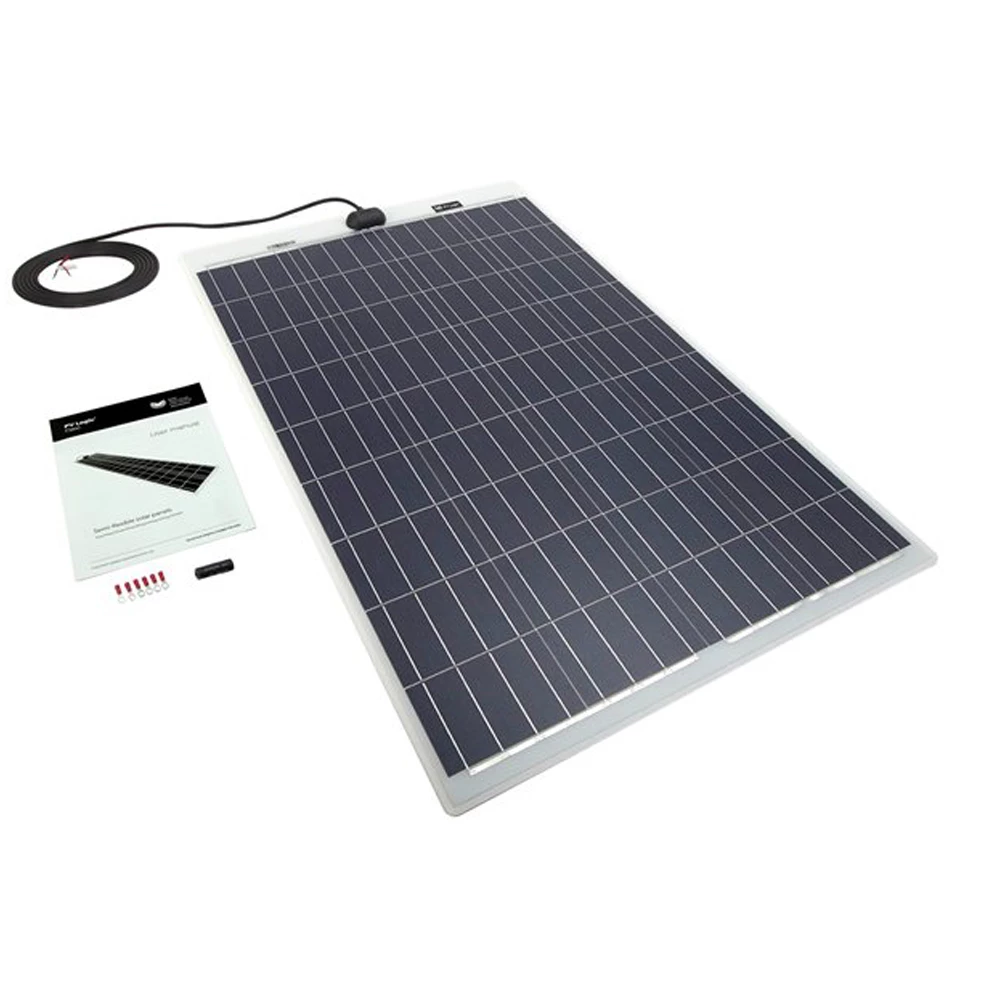

120Watt panel

• Power (Wp) 120watts
• Nominal Voltage (Vmp) 18V DC
• Nominal Current (Imp) 6.82A
• Open Circuit Voltage (Voc) 21.9V
• Short Circuit Current (Isc) 7.36A
• Operating Temperature -40 to + 80 Deg C
• Max System Voltage 750V DC
• Dimensions 1160x665x4mm (Junction box 10mm)
• Weight 5.6Kg
• Approx. watt-hours/day** 720W
• Approx. amp-hours/day** 40.92A

** Based on 6 hours of average daily peak sunlight hours

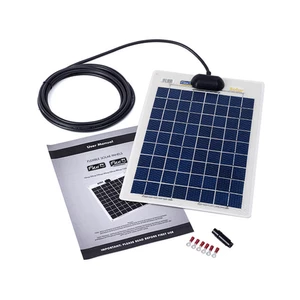

In The Box

• 1 x Flexi solar panel
• 1 x 4m Cable (attached)
• 1 x Fuse
• 2 x Crocodile Clips
• 2 x Ring Terminals
• 1 x Instruction Sheet
