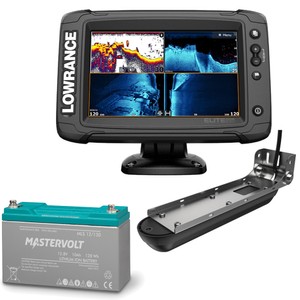

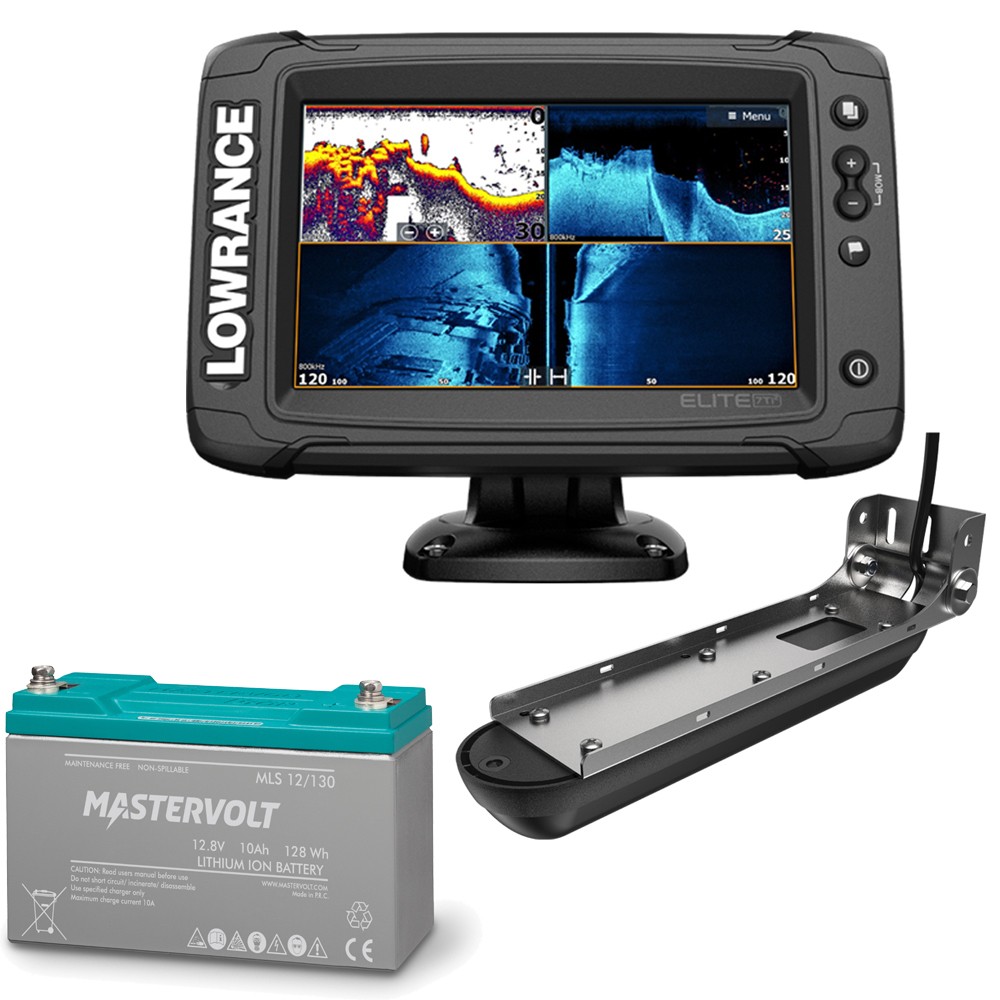

Elite-7 Ti2 Chartplotter & Fishfinder and Mastervolt MLS Lithium Ion Battery 10A Bundle
- Delivery & Returns
Make the Elite-7Ti2 portable with this bundle. The lightweight 10Ah Lithium Battery will power the Ti2 for your day out on the water. Great for Kayaks, fishing hire boats or small day boats without a 12v system.
Please Note: Due to the battery this item cannot be shipped and is only available for purchase in our stores
With the Elite-7 Ti2, you get more advanced fishfinding features and connectivity, without the premium price.
From high-detail Active Imaging™, FishReveal™, built-in Genesis Live real-time mapping and enhanced screen clarity and target separation to features that make your life easier on the water, like an easy-to-use touchscreen, wireless networking, smartphone notifications and trolling motor/Power Pole® integration – Elite Ti2 was designed to help you have an easier time finding fish
- Active Imaging™ 3-in-1 (CHIRP/SideScan/DownScan) ready
- C-MAP® Genesis Live contour map creation
- Smartphone Notifications
- Wireless Networking
- FishReveal™ Smart Target View
- C-MAP® Easy Routing, Navionics Autorouting capability
- Easy-to-use, high-resolution 7-inch SolarMAX™ touchscreen display
- Built-in CHIRP and Broadband Sounder®
- Touchscreen control of Power-Pole® anchors, MotorGuide® Xi5 Trolling Motor
- Integrated wireless connectivity
- SonicHub®2 compatible
- NMEA 2000® engine support
- Enhanced Surface Clarity lets you see more fish targets near the surface
- Quick Access Control Bar provides one–touch access to system controls
Enhanced display technology
High-resolution, 7-inch SolarMAX™ display that makes it easier to identify fish and structure with new, enhanced screen clarity and target separation.
Touchscreen provides fast, fingertip access to all Elite-Ti2 features
FishReveal Smart Target View
Makes fish easier to see on DownScan Imaging™ by combining clear CHIRP sonar fish targets with superior, high-resolution views of bottom detail, structure and bait fish.
See structure and cover with a new level of high-resolution detail and unmatched sidescan range with new, Lowrance 3-in-1 Active Imaging featuring CHIRP sonar, SideScan and DownScan Imaging™
Update the mapping of your favorite fishing spot or map unmapped areas with ½ foot contours – in real time – on the screen of your fishfinder/chartplotter with C-MAP Genesis Live.
Share sonar, mapping, waypoint and route data between Elite Ti2 displays without connecting a cable with the new wireless networking capability of Elite Ti2.
Scroll back through your sonar, SideScan or DownScan history to review structure or fish targets and mark the location with a waypoint.
Enhanced Color Palettes
Customize the look and feel of your display with the enhanced color and contrast of Elite Ti2 color palettes, which make it even easier to distinguish fish from structure, the bottom and each other.
Optional chart compatibility
C-MAP MAX-N, Navionics® HotMaps® Premium, Navionics + and Fishing Hotspots® PRO.
Built-in wireless connectivity
Shop, purchase and download mapping upgrades directly to Elite Ti2 displays via the integrated GoFree™ Cloud interface.
Integration and System Control
Enjoy touchscreen control of Power-Pole® Shallow Water anchors, Motorguide® Xi5 trolling motors and the SonicHub®2 Marine Audio server. Get instant access to system controls from the Quick Access Control Bar.
- Display: 7" Touchscreen 800W x 480H
- Power Supply: 12 vDC (10-17 vDC min-max)
- Current Draw: 0.9 A @ 13 vDC
- Dimensions (mm) 218W x 64D x 142H
- Media port: 1 microSD slot
- Sonar range with Active Imaging 3-in-1 transducer:
- DownScan Imaging™ at 455 kHz: Max 300 ft / 91 m
- SideScan Imaging at 455kHz: Max 300 ft./91 m to each side
- CHIRP Sonar High Range/200 kHz: 1000 ft / 305 m
- CHIRP Sonar Med Range/83 kHz: 1000 ft / 305 m
- Sonar power output: Max 500W RMS
- Transducer Connection: 9 pin or 7 pin with optional adapter
- Transducer cable length: 7.6 m (25 ft)
- Chart options: C-map Max-N, Navionics+
- Routes: 100
- Waypoints: 3000
- Plot Trails: Up to 100 trails with upto 10,000 points per trail
- GPS Antenna Type: 10kHz Internal high-sensitivity WAAS/EGNOS/MSAS
- Connections: NMEA 0183( with optional cable), NMEA2000, Bluetooth
In The Box
- Elite-7 Ti2
- Power cable
- Fuse & Fuse Holder
- Quick release tilt & swivel bracket
- Active imaging 3-in-1 transom mount transducer
- Transducer mounting bracket and hardware
Lithium Ion batteries have a high energy density, offering savings of up to 70% in volume and weight compared to traditional lead-acid batteries. They are perfect for cyclic applications, making over 2000 cycles with very deep (80%) discharges, effectively storing 5 times as much energy over its lifespan compared to lead-acid with minimal self-discharge. Plus, they have three times the lifespan of traditional batteries. The Mastervolt MLS series is perfect for smaller capacity applications where reducing weight/volume is key, such as on smaller vessels including dinghies and kayaks, for portable applications such as fishfinders, plotters etc, or for power back up. They are specifically designed to be as easy as possible to install with an integrated safety switch saving installation time making them a straight-forward replacement for most existing lead-acid batteries. For higher capacity, multiple MLS batteries can easily be connected in parallel. Features:
- Tough waterproof (IP65) plastic case
- Drop-in replacement for lead-acid batteries
- Mountable in multiple orientations • Saves up to 70 % in space and weight
- High cycle efficiency
- Fast charging up to one hour
- High discharge rate up to 1C
- Integrated Battery Management System (BMS)
- Self-regulating due to its integrated automatic safety disconnect
- Suitable for unlimited parallel operation
- Extremely safe LiFePO4 chemistry (Lithium Iron Phosphate)
- Tested and certified according to UN38.3
- Over voltage, under voltage, over temperature protections
- Battery terminals: M5
- Cycle life: ~2000 at 80 % DoD
- Nominal battery voltage: 12 V
- No-load voltage, fully charged: 12,8 V
- Two year warranty 10Ah
- Nominal battery energy capacity: 128Wh
- Size (incl. terminals/handles): L151 x W65 x H102mm
- Weight: 1.5kg
