Echomap Ultra 122sv Chartplotter Fishfinder with Transducer
- Delivery & Returns
- Questions & Answers
RRP £2789.99 WAS £2279.95 NOW £1999.95
Offer ends 31.10.20 While stocks last

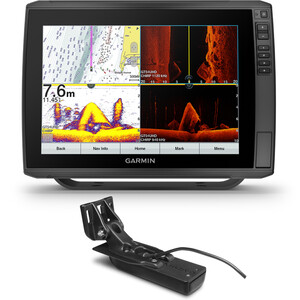

The ECHOMAP™ Ultra 122sv combo with a bright, sunlight-readable 12” keyed-assist touchscreen display has all the built-in tools you need for successful fishing. It comes with a transducer that provides Garmin CHIRP traditional sonar and amazingly sharp Ultra High-Definition ClearVü and SideVü scanning sonars. It also has built-in support for Panoptix LiveScope™ LVS12 sonar and the full line of Panoptix™ sonars. Share sonar, waypoints and routes with other compatible chartplotters. Plus, it includes Quickdraw Contours software and supports optional premium BlueChart® g3 charts and BlueChart g3 Vision cartography with integrated data from Navionics® and Auto Guidance technology.
- 12” keyed-assist touchscreen combo with all the built-in tools you need to find and catch fish
- Includes a transducer that provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars
- Share sonar, waypoints and routes with other ECHOMAP™ Ultra 10” and 12” units as well as ECHOMAP Plus 7” and 9” units
- Built-in Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1’ contours as you fish
- Built-in Wi-Fi® connectivity pairs with free ActiveCaptain® app for access to OneChart™ to purchase and download new charts; also receive smart notifications1, software updates, Garmin Quickdraw™ Community data and more
- Quick-disconnect bail mount
- Preloaded worldwide basemap; compatible with optional BlueChart® g3 charts and BlueChart g3 Vision cartography with integrated data from Navionics® and Auto Guidance technology2
- Built-in support for Garmins' premium sonars: CHIRP traditional, ClearVü and SideVü scanning sonars, Ultra High-Definition scanning sonar and the full line of Panoptix™ sonars, including the Panoptix LiveScope™ system (transducers sold separately)

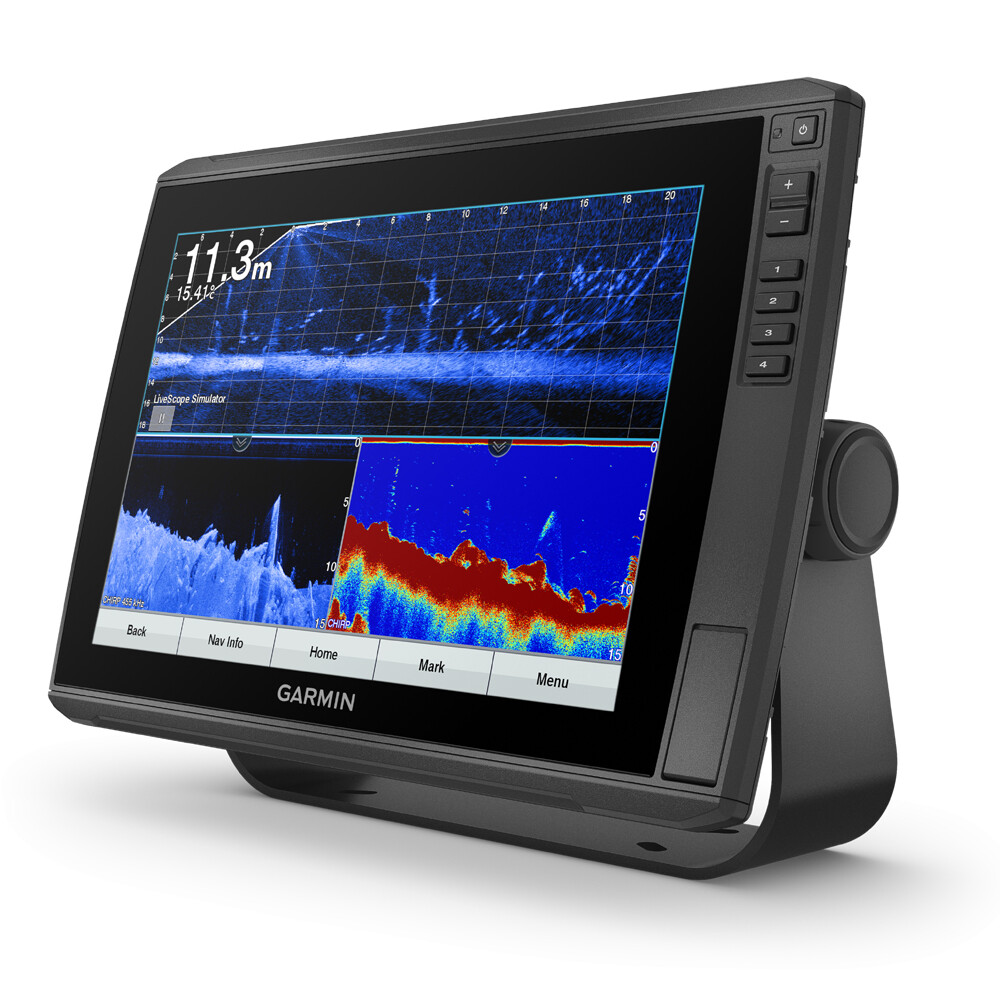

Panoptix sonar support
The ECHOMAP Ultra 102sv with GT54UHD-TM Transducer2sv combo also supports optional Panoptix LiveScope LVS12 sonar (no black boxes required) plus the full line of Panoptix™ all-seeing sonar transducers. It also supports the Panoptix LiveScope system.
Share sonar, waypoints and routes
Have more than one unit? You can share sonar, waypoints and routes with other ECHOMAP Ultra 10” and 12” units as well as ECHOMAP Plus 7” and 9” units.
Quickdraw contours to create your own maps
Instantly create personalised fishing maps on-screen with 0.3-metre contours as you fish. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™, our online community.

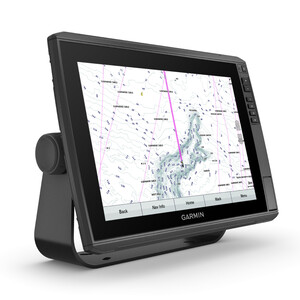

Upgrade to the best maps on the water
Upgrade the preloaded worldwide basemap to optional premium BlueChart® g3 charts or BlueChart® g3 Vision cartography with integrated data from Navionics, which add Auto Guidance1 technology that uses your desired depth and overhead clearance to easily calculate routes and see a suggested path to follow.
The ultimate connected boating app
Built-in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications2 on your chartplotter screen. You can also plan a trip or pre-fish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.
Take your ECHOMAP Ultra with you

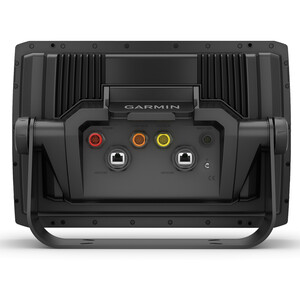

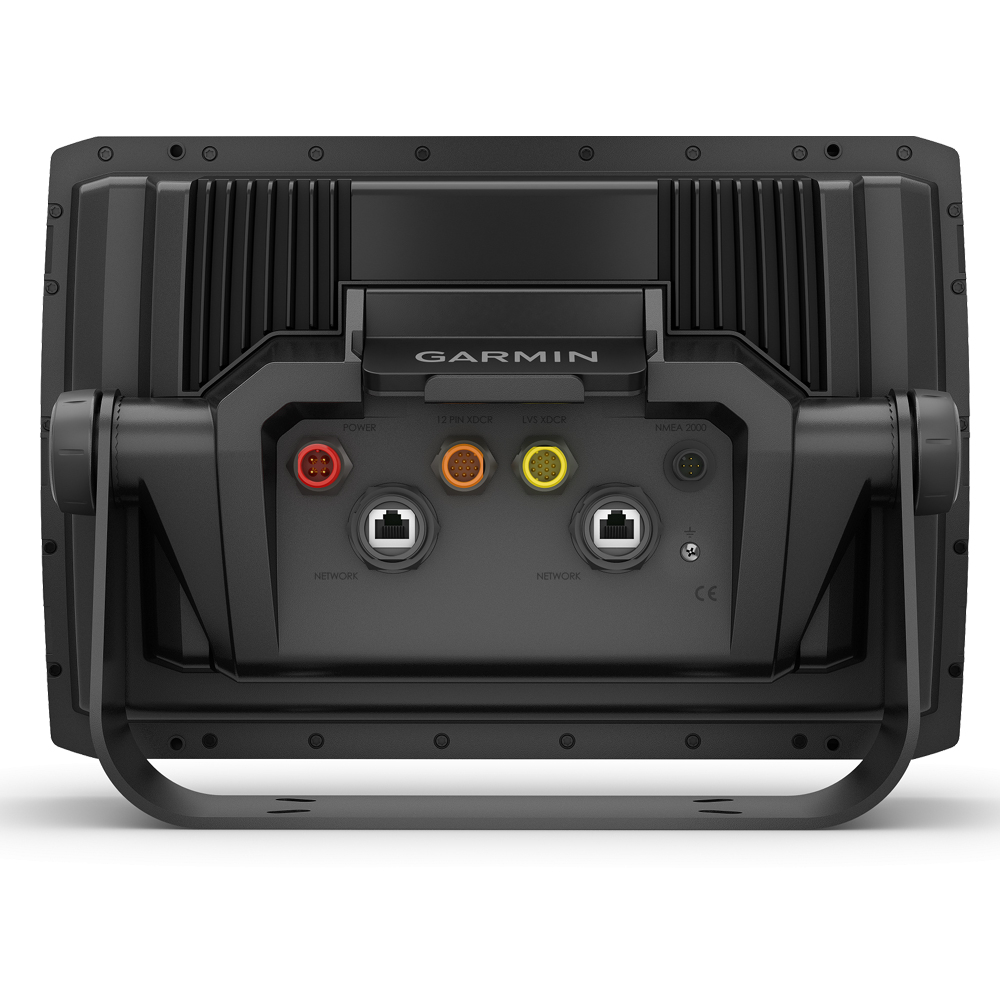

When you’re off the water, it’s easy to keep your ECHOMAP Ultra combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit, because the cords plug directly into the quick-disconnect bail mount. This allows you to quickly install and remove your ECHOMAP Ultra from power and the mount.
- Physical dimensions: 295 x 195 x 98 mm
- Display size: 26.1 cm x 16.3 cm; 12" diagonal
- Display resolution: 1280 x 800 pixels
- Display type: WXGA display
- Weight: 2.5 kg
- Water rating: IPX7
- Power consumption : 26 W
- Antenna: Internal
- Mounting options: Bail or flush
- Receiver: 10 Hz
- Garmin Marine Network™ ports: 2 (large connector)
- Accepts data cards: 2 microSD™ cards
- Waypoints :5,000 Routes: 100: Track log: 50,000 points; 50 saved tracks
- Outdoor recreation features
- Supports AIS (tracks target ships position)
- Supports DSC (displays position data from DSC-capable VHF radio)
- Supports FUSION-Link™ compatible radios
- Dual-frequency (50/200 kHz) sonar capable
- Dual-beam (77/200 kHz) sonar capable
- Frequencies supported CHIRP High-Wide: 150-240 kHz
- Ultra High-definition ClearVü: 800 kHz (760-880 kHz)
- CHIRP ClearVü: 455 kHz (425-845 kHz)
- Ultra High-definition SideVü: 1,200 kHz (1060-1170 kHz)
- Transmit power: 500 W (RMS) / 4,000 W (peak to peak)
- CHIRP sonar technology Yes (Built-in)
- Maximum depth: 2,300 ft @ 77 kHz, freshwater: 1,100 ft @ 77 kHz, saltwater
- (depth capacity is dependent on water bottom type and other water conditions)
- Bottom lock (shows return from the bottom up)
- Water temperature log and graph
- Sonar recording
- Sonar history rewind
- NMEA 2000® compatible
- Transducer pin numbers 12
- NMEA 0183 input ports 1
- NMEA 0183 output ports 1
- Wireless connectivity
In The Box
- ECHOMAP Ultra 122sv with worldwide basemap
- GT54UHD-TM transducer
- Power/data cable
- Tilt mount with quick release cradle
- Flush mount
- Protective cover
1When paired with a compatible smartphone; see Garmin.com/ble
2Auto Guidance is for planning purposes only and does not replace safe navigation operations
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
