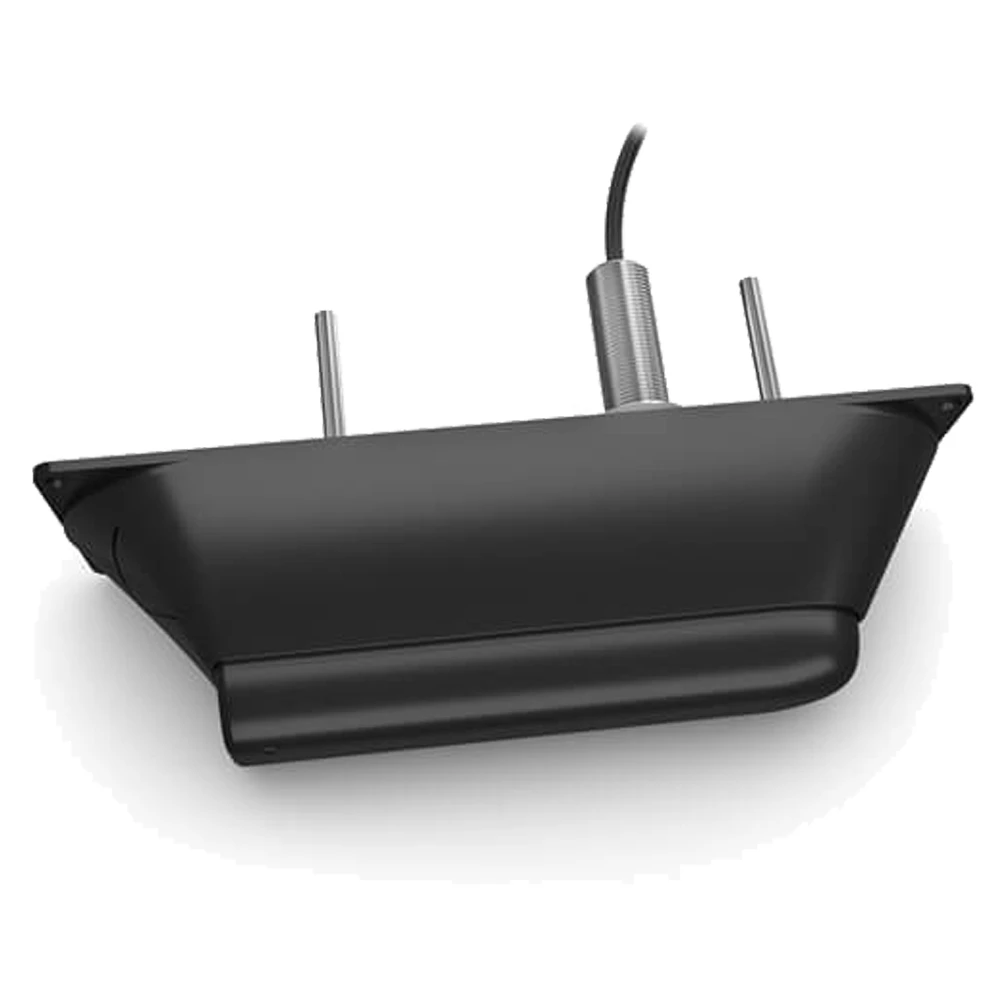

Garmin GT56UHD Thru-Hull Transducer

The GT56 transducer is now available in a thru-hull and thru-hull pair option that provides better sonar clarity at speed. The GT56 transducer is the ultimate all-in-one sonar solution, featuring Ultra High-Definition SideVü™ and ClearVü™ scanning sonar and amazingly clear high wide CHIRP traditional sonar. With three scanning sonar frequencies, you’ll get top performances at all depths. High wide CHIRP traditional sonar shows crisp fish arches with minimal noise for incredible clarity. Vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.

ULTRA HIGH-DEFINITION SIDEVÜ - Get Ultra High-Definition SideVü scanning sonar with 20% greater range at 1000 kHz, Ultra High-Definition ClearVü scanning sonar and amazingly clear high wide CHIRP traditional sonar.

HIGH WIDE CHIRP- High wide CHIRP traditional sonar provides remarkably clear target separation and definition up to 800’ below your boat.

SIDEVÜ SCANNING - 455 kHz SideVü scanning sonar lets you see up to 500’ on each side of your boat.

SCANNING SONARS - Three scanning sonar frequencies — 455 kHz, 800 kHz and 1000 kHz — and 500 watts of power deliver top performances at all depths.

VIVID COLOUR - Vivid scanning sonar colour palettes make it easy to distinguish targets and structure.

Specifications

• Transducer cable length: 7.62 m
• Transducer frequency: Traditional High wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)
• Transducer power: Traditional 350 W; ClearVü/SideVü 500 W
• Transducer beamwidth: Traditional CHIRP: 24-16; ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
• Transducer maximum depth: Traditional: 244 m freshwater; ClearVü: 122 m; SideVü: 152 m
• Functions: Depth and temperature
• Transducer plug pins: 12
• Transducer supported deadrise angles: 0°-70° degree transom
• Dimensions (without mount): 218.5 x 51.8 x 27.7mm

Compatibility

• GPSMAP® 8400xsv and GPSMAP 8600xsv chartplotters
• GPSMAP 7x3, GPSMAP 9x3 and GPSMAP 12x3
• GPSMAP 7x2 and GPSMAP 9x2
• ECHOMAP Ultra chartplotters
• ECHOMAP UHD sv chartplotters

In The Box

GT56UHD-TH (Single)

• GT56UHD-TH transducer
• Stainless steel stem
• Fairing block
• Isolation plate and bushings
• Extension cable
• Mounting hardware
• Documentation

GT56UHD-THP (Pair)

• 2 GT56UHD-TH transducers
• Stainless steel stems
• Fairing blocks
• Isolation plate and bushings
• Y-cable
• Mounting hardware
• Documentation
