Active-XS With A/R White LED Light
Active-XS With A/R White LED Light
Echomax

Active-XS With A/R White LED Light

Catalogue Code: 560074
£ 799.95 In Stock
Save £ 160.04 RRP £ 959.99
See Product Description Add to Wish List
  • Order will be dispatched within 5 working days
  • Ask a question
Optional Extras Tick to add optional extras to your basket
Ocean Mast Head Bracket - Active XS
Ocean Mast Head Bracket - Active XS £64.95 Save £6.55 RRP £71.50

View all 3 optional extras

  • Description
  • Availability
  • Size Guide
  • Delivery & Returns
Description

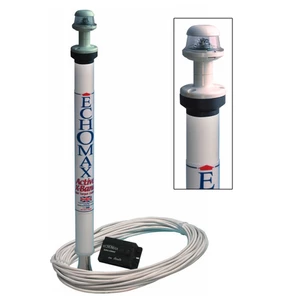

Echomax Active-XS With A/R White LED Light
The state of the art Echomax Active-XS Dual Band Radar Target Enhancer receives the signals from transmitting X and S band radars, amplifies them and returns a stronger signal. This increases the likelihood of detection thereby reducing the risk of collision and helps to alert oncoming vessels of your position.
This version of the Active-XS is pre-fitted with an LED All-Round white light and uses a single 5-core cable meaning easier installation and enabling individual remote on/off control. Plus there is no need for a separate masthead light and no shadowing - a must for Ocean rowers and ideal for RIBS, yachts or anything that moves around on water that wants to be seen!
The unit is supplied with a control box with base or rear cable entry facility, LED indicators to show power and radar signal reception & an externally accessible fuse. It also features a switchable internal buzzer which sounds when the unit is being “painted" by radar signals and the option of attaching to an 8A Volt free external alarm facility.
Specification:
• Exceeds ISO 8729-2
• Antenna Voltage: 12V DC - +30%-10% (voltage surge and cross polarity protected)
• Standby Current Consumption: <23mA
• Position Accuracy: Within 1 metre
X-Band Performance Response (ISO Standard 7.5m.sq):
• Zero Degrees of heel: 118.33m.sq
• +/- 10 Degrees of heel: 65.07m.sq
• +/- 20 Degrees of heel: 19.49m.sq
S-Band Performance Response (ISO Standard 0.5m.sq):
• Zero Degrees of heel: 6.26m.sq
• +/- 10 Degrees of heel: 6.44m.sq
• +/- 20 Degrees of heel: 5.36m.sq
• LED Light Voltage: 12V DC
• LED Light Wattage: 1W max
Dimensions:
• Antenna: L685mm x D40.5mm, Light: H79.7mm x D49.4mm
• Weight: 509g (excl cable)
• Cable Length: 24m
• Control Box: W92mm x H51mm x D38mm
Please Note: Mounting bracket shown is not supplied. The unit has a standard 1" x 14 female threaded socket on the base. For optional base mount bracket see Product Code: 230074 and for a mast mounting bracket see Product Code: 230083
