Echomax Active-XS Dual Band Radar Target Enhancer
- Get it on Friday, 8th July if ordered within the next --:--:-- and select Next Day Delivery *UK Mainland Only
- Order will be dispatched within 5 working days
- This is a special order product and may experience shipping delays. Please call our Mail Order team to confirm delivery lead time.
- Ask a question
- Delivery & Returns
- Questions & Answers
The state of the art Echomax Active-XS Dual Band Radar Target Enhancer receives the signals from transmitting X or S band radars, amplifies them and returns a stronger signal. This increases the likelihood of detection thereby reducing the risk of collision and helps to alert oncoming vessels of your position.
The unit is supplied with a control box with base or rear cable entry facility, LED indicators to show power and radar signal reception & an externally accessible fuse. It also features a switchable internal buzzer which sounds when the unit is being "painted" by radar signals and the option of attaching to an 8A Volt free external alarm facility.
- Exceeds ISO 8729-2
- Voltage: 12V DC - +30%-10% (voltage surge and cross polarity protected)
- Standby Current Consumption: 23mA
- Position Accuracy: Within 1 metre
X-Band Performance Response (ISO Standard 7.5m.sq)
- Zero Degrees of heel: 118.33m.sq
- +/- 10 Degrees of heel: 65.07m.sq
- +/- 20 Degrees of heel: 19.49m.sq
S-Band Performance Response (ISO Standard 0.5m.sq)
- Zero Degrees of heel: 6.26m.sq
- +/- 10 Degrees of heel: 6.44m.sq
- +/- 20 Degrees of heel: 5.36m.sq
- Antenna: L685mm x W40.5mm
- Weight: 509g (excl cable)
- Cable Length: 24m
- Control Box: W92mm x H51mm x D38mm

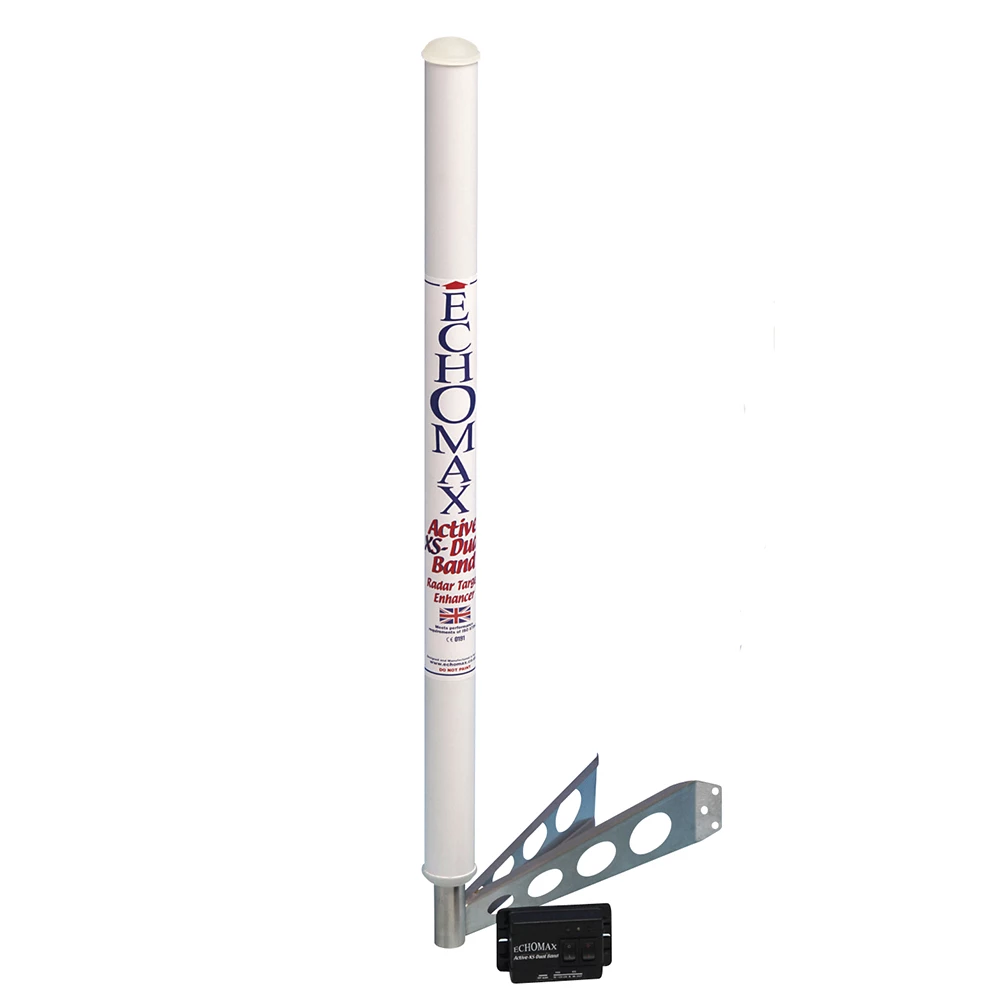

Please Note: The unit has a standard 1" x 14 female threaded socket on the base. Mounting bracket in image not included
For optional base mount bracket see Product Code: 230074 and for a mast mounting bracket see Product Code: 230083
