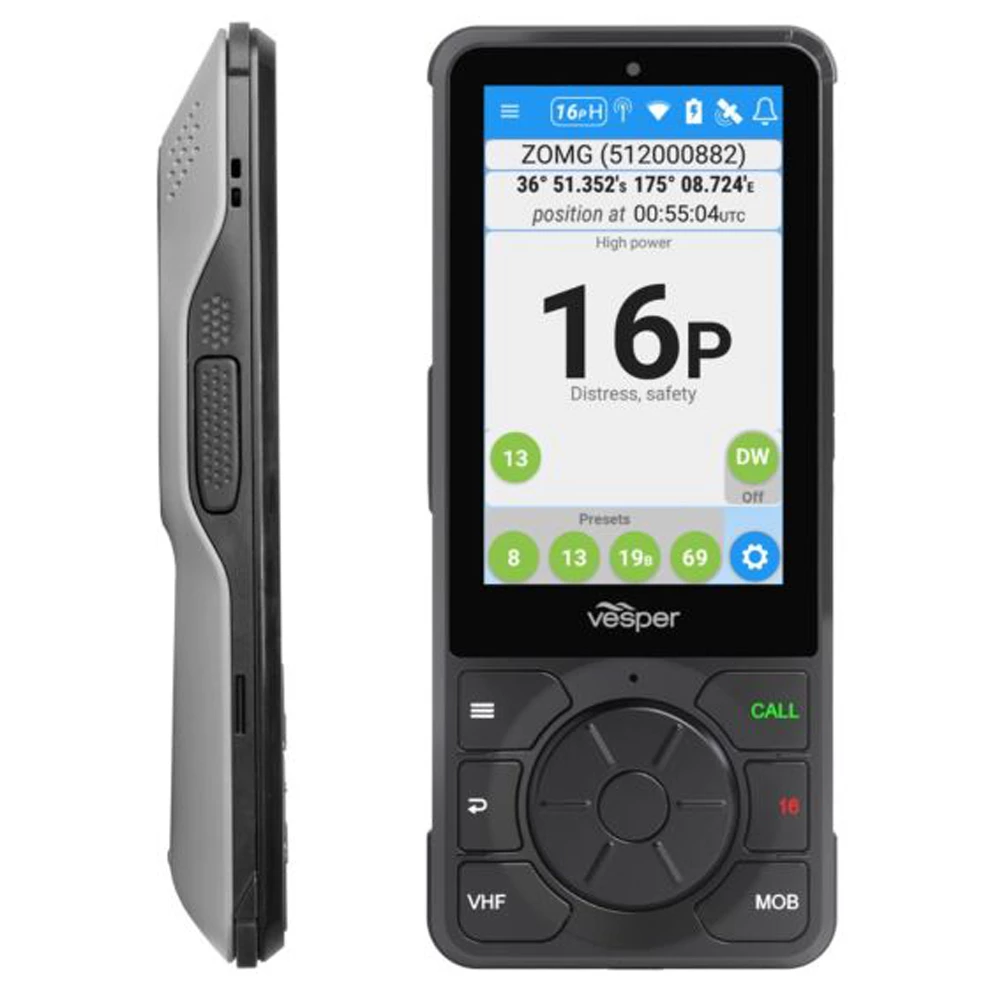

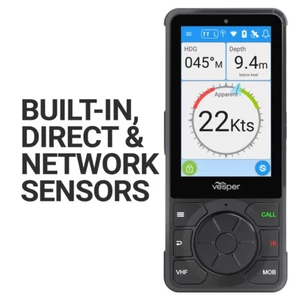

Vesper Cortex H1P Portable VHF Radio Handset

The Cortex H1P Portable Handset connects to the Cortex Hub (M1) and is the voice and calling interface used for VHF and DSC calls.

The handset’s touchscreen display is the primary interface together with dedicated buttons and the Click-Wheel for swift navigation, ease of operation and single-handed use. The touchscreen is purpose-built for the harsh marine environment and is designed and manufactured for use in wet conditions and with gloves.

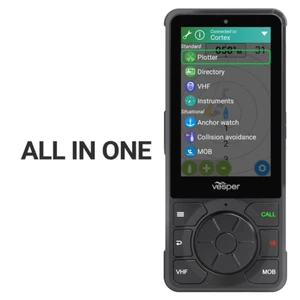

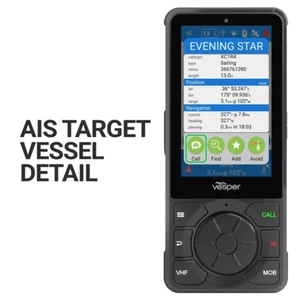

The handset provides a screen to set up and manage the Cortex M1 hub, view AIS target data and vessel instrumentation, manage and monitor alarms and configure the remote vessel monitoring.

• 4-inch multi-touch display with gorilla glass for maximum durability
• Single hand operation with a unique click wheel and dedicated buttons
• Wet and gloves capable touchscreen
• Optically bonded display for wide-angle and sunlight viewability, even in the harshest midday sun.
• 85 dBA of crystal-clear audio

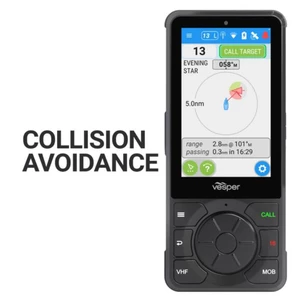

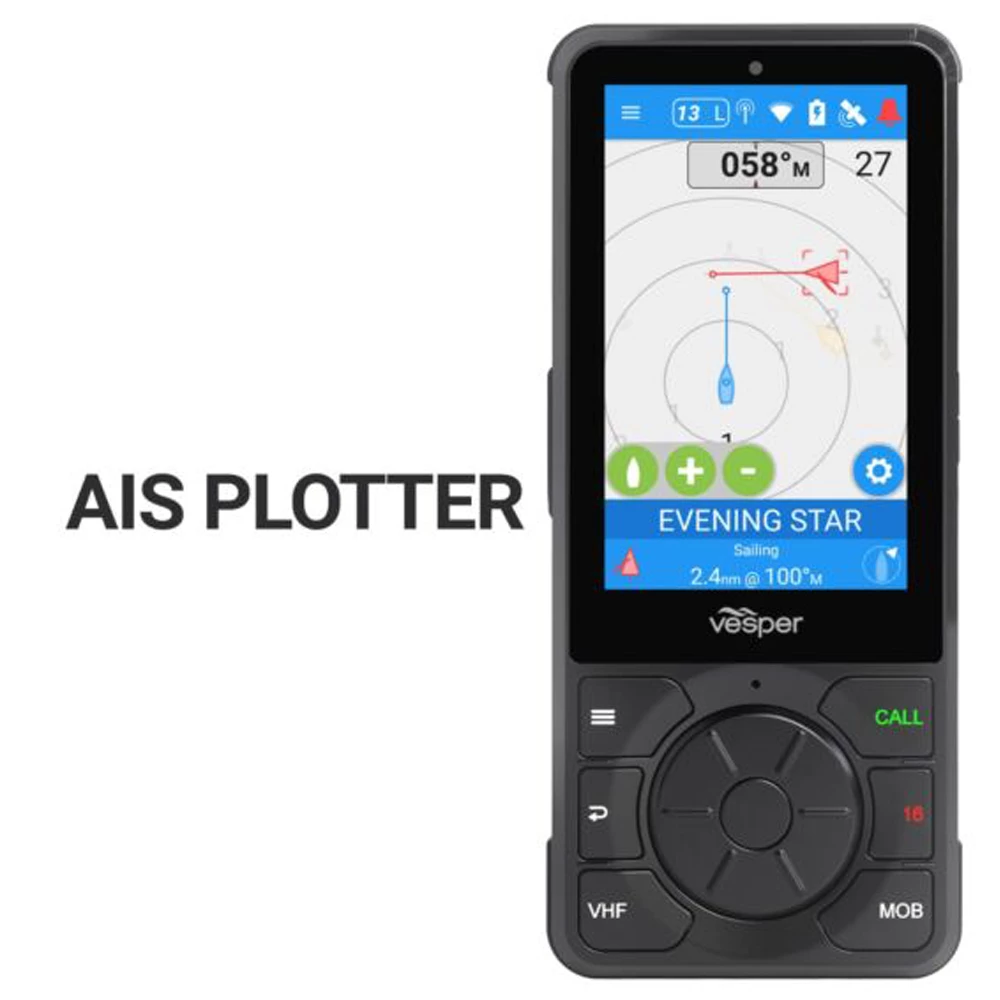

• Combined AIS and VHF display with voiced alerts

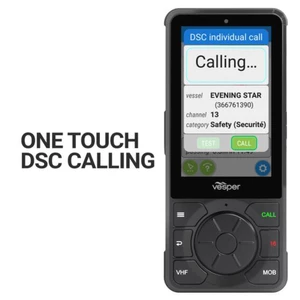

• Touch a vessel onscreen for direct calling (DSC)
• Add up to 10 handsets, 5 direct and 5 additionally via Boat Network
• 12V or 24V DC

Specifications

• Size: 164.8 mm x 71.8 mm x 21.4 mm
• Power Supply: 12V, 1A max, 200mA nominal, 12 -24V compatible
• Battery: Lithium Polymer, 2 hour full charge, >12 hours nominal operation
• Weight: 235g
• Environmental: Waterproof (IPX8)
• Operating temperature: -25°C to +55°C (-13°F to 131°F)
• Audio: 3W Class D amplifier, THD < 5% @ 85dBA
• Screen: LCD TFT Si, 640 x 800, 24bit Colour
• Touch: Capacitive, optically bonded to LCD. Glove and salt water operable.
• Backlight: 600 cd/m2. Ambient light sensor for auto dimming

In The Box

• H1P portable Handset
• Powered H1P Cradle
• Non powered H1 Cradle
