Hyco-OBF Hydraulic Boxed Steering System Hyco-OBF Hydraulic Boxed Steering System Hyco-OBF Hydraulic Boxed Steering System
Hyco-OBF Hydraulic Boxed Steering System Hyco-OBF Hydraulic Boxed Steering System Hyco-OBF Hydraulic Boxed Steering System
Ultraflex

Hyco-OBF Hydraulic Boxed Steering System

Catalogue Code: M640077
From £ 869.95 In Stock
Save £ 107.10 RRP £ 977.05
Colour: No Colour
Select Your Size (Required):
Size Guide
See Product Description Add to Wish List
  • Order will be dispatched within 5 working days
  • Ask a question
Optional Extras Tick to add optional extras to your basket
Teleflex Sunbird Power Boat Steering Wheel White
Teleflex Sunbird Power Boat Steering Wheel White £49.95 Save £13.85 RRP £63.80

View all 5 optional extras

  • Description
  • Availability
  • Size Guide
  • Delivery & Returns
Description
Ultraflex Hyco-OBF Hydraulic Boxed Steering System
Ultraflex Hyco-OBF Hydraulic Boxed Steering System for Outboards
- Hydraulic steering offers extremely smooth, precise and effortless control thus reducing driver fatigue and also improving boat control. This boxed kit is designed for use with most outboards up to 150Hp and gives you everything you need to upgrade your mechanical system to hydraulic.
• 4.7 wheel turns lock to lock

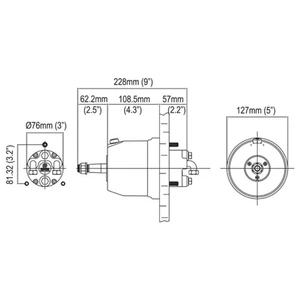

HELM FEATURES:
• Standard 3/4” tapered stainless steel shaft that fits most steering wheels (wheel not included)
• Corrosion proof composite housing
• Front mounting
• Integral relief valve for over-pressure protection
• Built-in lock valve for positive rudder lock
• Easily accessible lock valve & shaft seal
• Includes 90deg adjustable elbow fittings for 3/8” tube
• Overall Diam: 120mm, Depth (excl shaft): 108.5mm
• Max Wheel Diameter: 508mm (20”)
HYDRAULIC CYLINDER FEATURES:
• Adjustable boss style fittings for easy installation
• Front mounting
• Balanced: the number of turns lock to lock is equal port to starboard or vice-versa
• Compact design that fits most splashwells
• High resistance stainless steel connection bolt
• Split and pinned cylinder mounting rod for easy installation and bushings to prevent friction with engine tilt tube
• Output Force: 278kg
• Stroke: 186mm
• 3/8” (9.5mm) fittings for connection to hoses
• DN5 Quick connect bleed fittings

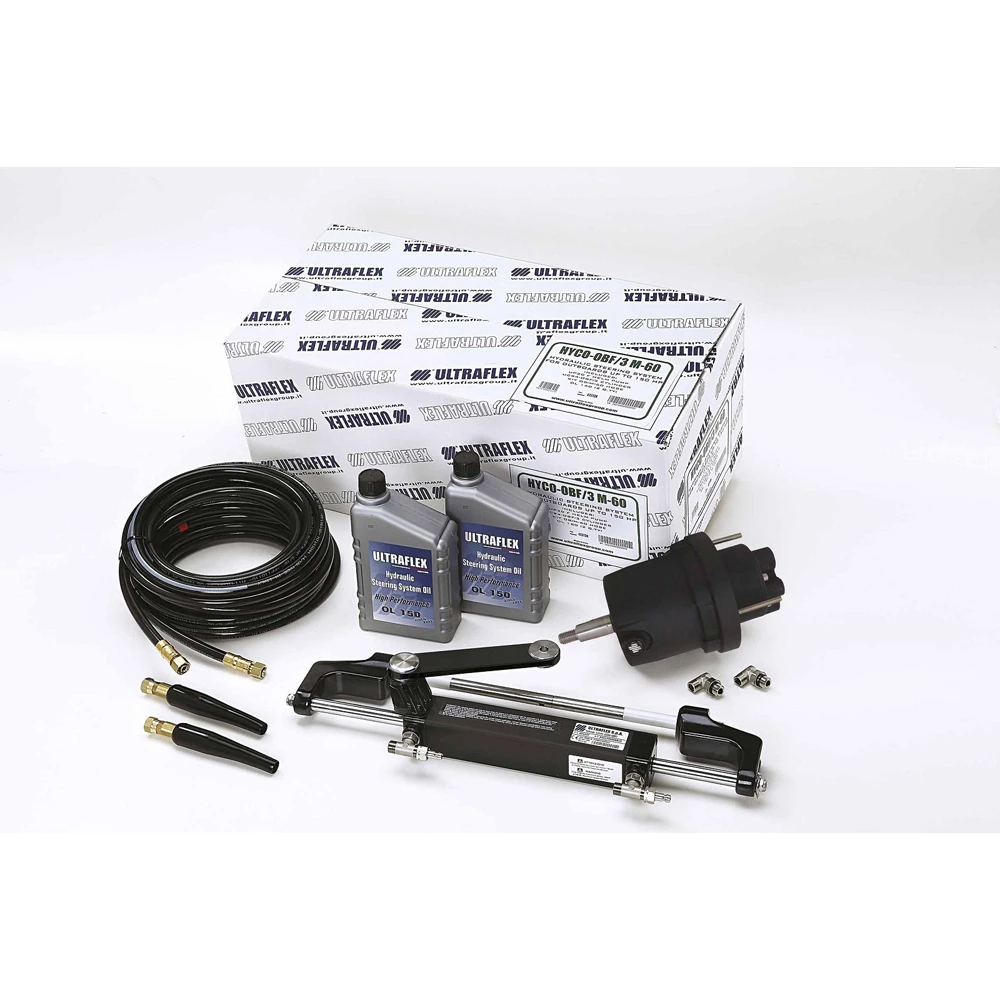

Kit includes:-
• 1 x 20cc Front mount helm pump

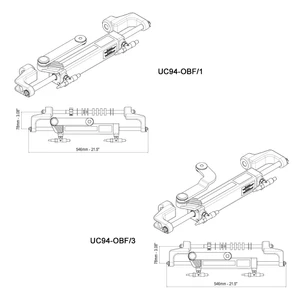

• 1 x Front mount hydraulic cylinder (UC94-OBF/1 or UC94-OBF/3 - see below)
• 2Ltr Hydraulic oil
• Hydraulic hoses with pre-assembled fittings
• Fitting instructions

PLEASE SPECIFY MAKE AND MODEL OF OUTBOARD WHEN ORDERING (IN THE NOTES FIELD) SO WE CAN ENSURE THE CORRECT HYDRAULIC CYLINDER FOR YOUR OUTBOARD.

Available with the following hose lengths:
4.5m, 5.0m, 5.5m, 6.0m, 6.5m, 7.0m or 7.5m

For twin engine applications a tie bar is required.
