Connector (Adapter) 90°- Female to Male Thread
Connector (Adapter) 90°- Female to Male Thread
TruDesign

Connector (Adapter) 90°- Female to Male Thread

Catalogue Code: 830907
£10.95 Out Of Stock
See Product Description Add to Wish List
  • Order will be dispatched within 5 working days
  • Ask a question
  • Description
  • Availability
  • Delivery & Returns
  • Reviews
Description

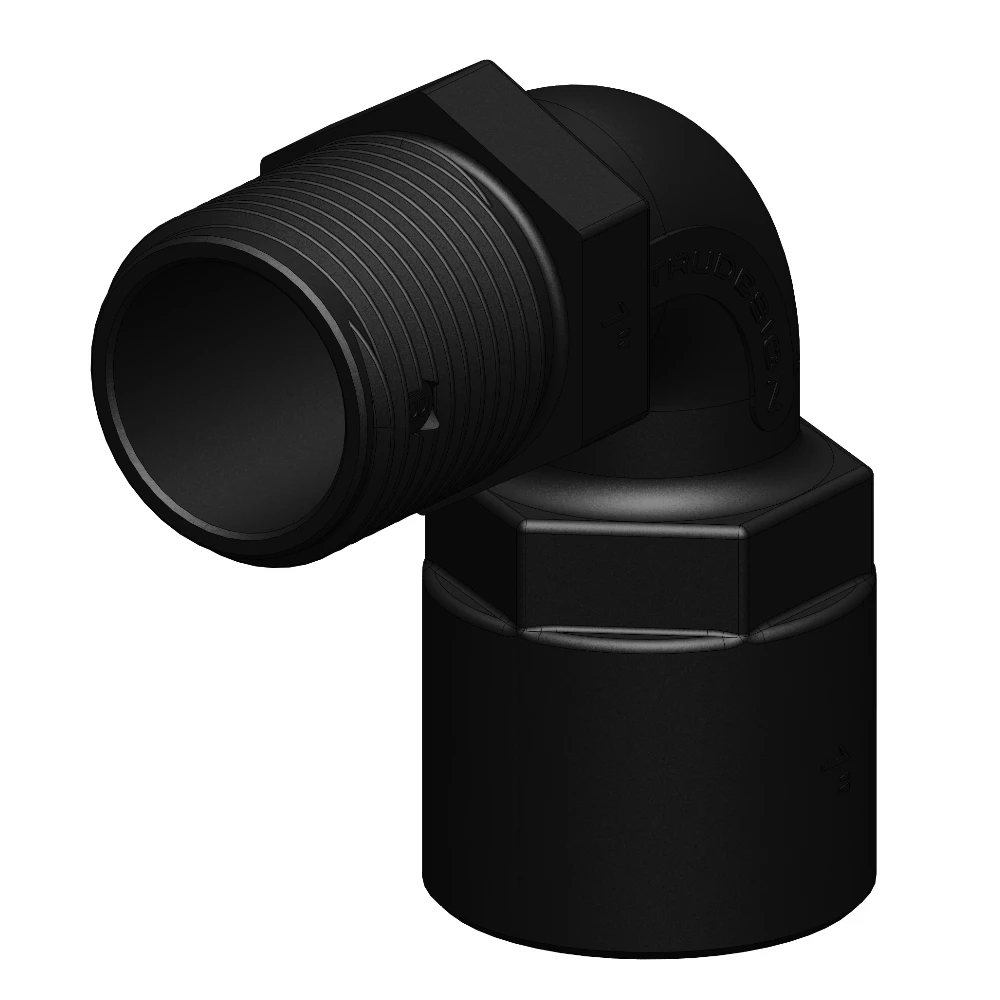

TruDesign Connector (Adapter) 90°- Female to Male Thread

Designed and made in New Zealand, truDesign Connectors/Adaptors are moulded from a glass reinforced nylon composite. High strength, high-modulus, glass reinforced nylon provides dramatic strength, stiffness, toughness and dimensional stability.

Note: For above water line only, ISO and ABYC require a Ball Valve to be directly fitted to a skin fitting in below water line applications.

Features:

  • Manufactured from a glass reinforced nylon composite - High strength and light weight.
  • When connected to Skin Fitting - Must be above water line. Below water line skin fittings must have a Ball Valve directly fitted to it.
  • Compatible with all hull types - Can be used on aluminum, steel, wood or FRP hulls.
  • Immune to corrosion and electrolysis - Long life with no concerns over decreased performance due to corrosion.
  • Chemical resistant - Impervious to diesel, petrol and antifouling paints.
  • UV resistant - These fittings will not break down with ultraviolet light or discolour from the sun.
  • High quality surface finish - Will not discolour with green film as similar bronze fittings do.
  • Fits TruDesign Skin Fittings and Ball Valves - Universal compatibility to other TruDesign fittings, and other marine components.
  • Large operating temperature range - Suitable for all marine environments, from -40°C to +110°C

Installation:

For thread sealing see TruDesign Technical information sheet on our web site www.trudesignplastics.com - for suitable adhesive sealants and or thread tapes.

The connecting thread type are either BSP or NPS and clearly marked on the side of the fitting along with size. The advantage of parallel threads rather than tapered is that there can be maximum engagement between the mating threads providing a stronger connection.

Do not over tighten, allow the adhesive sealant to provide the seal. To achieve the correct orientation simply screw the fitting all the way home then “back it off” to the correct orientation to suit hose direction. Adhesive sealants best provide both the mechanical strength and sealing.

Available in a variety of sizes:

  • F4 P/No: 830907-9771  (TruDesign P/No: 90777)  ¾” BSP Female Thread – ¾” BSP 90° Male Thread
  • F4 P/No: 830907-9770  (TruDesign P/No: 90779)  1” BSP Female Thread – 1” BSP 90° Male Thread
  • F4 P/No: 830907-9769  (TruDesign P/No: 90632)  1 ¼” BSP Female Thread – 1 ¼” BSP 90° Male Thread
  • F4 P/No: 830907-9768  (TrueDesign P/No: 90630)  1 ½” BSP Female Thread – 1 ½” BSP 90° Male Thread
  • F4 P/No: 830907-9766  (TrueDesign P/No: 90628)  2” BSP Female Thread – 2” BSP 90° Male Thread



Download Product Datasheet here.
