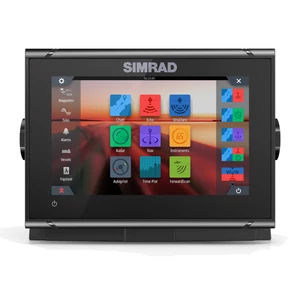

Go7 XSR Multifunction Display With Active Imaging 3in1 Transducer
- Delivery & Returns
The Simrad GO7 XSR chartplotter navigation display is a perfect way to expand the capabilities of sportboats, cruisers, and smaller center consoles with plug-and-play support for Simrad Broadband Radar™ and Halo™ Pulse Compression radar systems (excludes Go5 XSE). Behind a super-bright, multi-touch widescreen display lies a built-in GPS receiver, wireless connectivity, and industry standard NMEA 2000® networking. Connect with smartphones and tablets, control your onboard sound system, monitor engine data, and choose from an array of built-in sonar technology to cruise with confidence and find fish like a pro.
- Easy to use multi-touch interface
- Full-featured chartplotter with widest available cartography support (Navionics+, CMAP Max-N, Max-N+)
- Radar display for Simrad Broadband 3G™/4G™ and Halo™ Pulse Compression radar
- 7-inch flush or bracket mount display
- Widescreen with bright LED backlight
- High-speed 10 Hz GPS receiver
- Broadband echosounder with CHIRP
- Built-in ForwardScan™ sonar (transducer required - see product code 210327)
- Built-in StructureScan® imaging (totalscan transducer included)
- Built-in GoFree™ Wi-Fi
- NMEA 2000® compatible
Expand Your View with a Simrad Radar Solution
The Simrad GO7 XSR is a full-featured radar display with plug-and-play connectivity to Simrad Broadband 3G™, Broadband 4G™, and Halo™ Pulse Compression radar systems. Cruise confidently through crowded harbours, navigate safely in poor visibility, keep an eye on distant weather cells, and find flocks of feeding birds that hint at good fishing spots. Automatic tuning helps to provide a clear radar picture in any conditions, while radar overlay combines radar data with navigational charts for an easy-to-interpret view of your surroundings.
Easy to Use Multi-Touch Display
The GO7 XSR offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Tap to create or select waypoints, pinch to zoom, or tap and drag to pan smoothly across charts. Simple home screen and menu layouts make all functions quickly accessible, with large and clearly-captioned icons that are easy to recognise and tap.
Chartplotter Navigation & Waypoint Management
The GO7 XSR is a full-featured chartplotter, with support for the widest available range of cartography options including C-MAP® MAX-N & MAX-N+, Navionics Gold,+ & Platinum+, Insight Genesis® Charts. Navigate confidently to destinations near and far, with the flexibility to choose charts that best fit your needs and location. Set and record those destinations easily with simple waypoint mangement: mark waypoints with a touch, and assign meaningful names that make it easy to look up your desired destination whether you’ve mapped out ten places or a thousand.
Fully Customisable Interface
The Simrad GO7 XSR is fully customisable to suit your vessel and your favourite on-water activities – from power boating, to fishing, to water sports. Customise your home screen with shortcuts to the features you use most, and personalise it with your choice of wallpaper. Adjustable split-screen views and customisable panel layouts let you see everything you need on-screen at once, whatever your activity.
Plan Smarter with TripIntel™ Technology
Designed for power boaters, TripIntel technology tracks and displays the key information you need to plan safe and enjoyable days on the water. Make smart decisions with fuel range overlaid on charts, easy access to current and future tide levels, and a detailed history of your previous trips including the route you took and how your boat performed.
Built-in 10 Hz GPS receiver*
With a high-speed GPS receiver updating your position ten times every second, the Simrad GO7 XSR is ideal for use aboard fast-moving RIBs and powerboats. Watch your boat’s movement tracked smoothly, accurately, and in real-time, without ‘jumping’ from point to point on the display.
Cruise Charting View
Designed with power boating in mind, the Simrad GO7 XSR offers a unique Cruise Charting page that brings together crucial navigation data and charts in one easily readable display. Choose the information most relevant to your cruising style and on-water activities with the ability to edit on-screen data items.
NMEA 2000® Engine Monitoring & Instrumentation
The Simrad GO7 XSR connects to any NMEA 2000®-capable equipment aboard your vessel including outboard and inboard engines; fuel level and flow meters; speed, heading, and water temperature sensors; and much more. Create your own custom digital instrument displays, bringing a wealth of information to even the most crowded dash while keeping a clean look with as few gauges as possible.
Watch Your Depth with Built-in Sonar
Knowing the true depth beneath your hull can help you enjoy your time on the water with fewer worries, and makes it easier to locate suitable anchorages in unfamiliar waters. With built-in sonar, just add a suitable sonar transducer for accurate, real-time depth tracking. A scrollable depth history view lets you track back and easily set waypoints for promising anchorages, while StructureScan Imaging™ combines DownScan and SideScan sonar to offer a picture-like view of the bottom beneath your vessel.
Cruise Confidently with ForwardScan™ Sonar
Using an optional ForwardScan transducer, this forward-looking sonar technology provides a clear two-dimensional image of the bottom in front of your vessel, allowing you to navigate shallow or poorly-charted waters with confidence. With real-time updates and a forward-looking view of up to eight times your current depth, ForwardScan lets you relax and enjoy a safer day on the water.

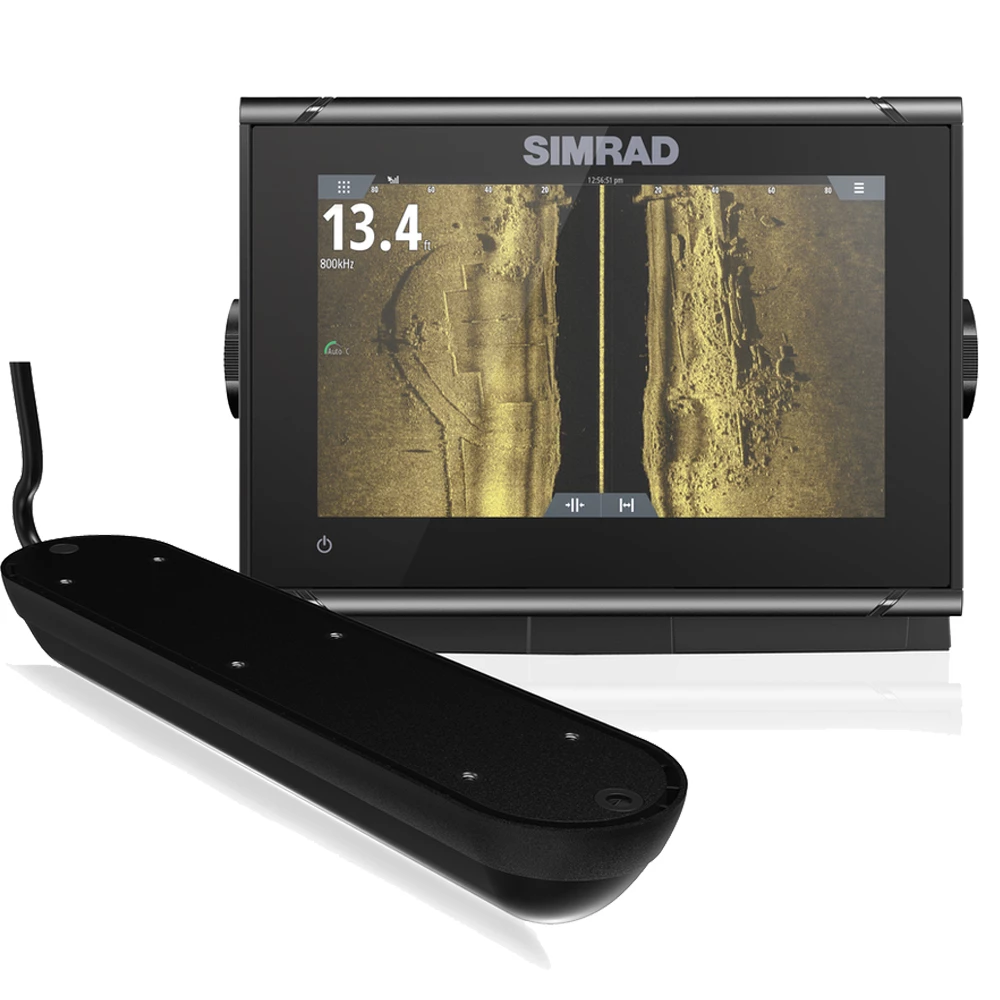

Find fish with CHIRP & StructureScan® HD sidescan imaging
Whether fishing is your life or just a casual hobby, any fishing trip will benefit from the extensive array of built-in sonar technology on the Simrad GO7 XSR. Add a suitable transducer, available separately or bundled with your display, and the GO7 XSR works as a powerful fishfinder with CHIRP-enabled broadband sonar for clear detection of fish throughout the water column. With an optional HDI or TotalScan transducer, the GO7 XSR also offers StructureScan HD sidescan imaging for a picture-like view of fish-holding structure beneath and around your boat.
Simrad SonicHub®2 & Bluetooth® Audio Integration
If you’re not at home on the water without a good soundtrack, the Simrad SonicHub®2 marine audio system is the perfect companion to a GO7 XSE display. Stream music from Bluetooth® connected tablets, smartphones, and other mobile devices, play MP3 files from a USB flash drive, or listen to the SonicHub 2’s built-in AM/FM radio. SonicHub 2 brings complete control of your audio entertainment to your GO7 XSE display, eliminating the need for a separate stereo head-unit and letting you listen to your music, your way.
GoFree™ cloud enabled with Built-in Wi-Fi
With Wi-Fi built in, the Simrad GO7 XSE provides direct access to GoFree cloud services including easy wireless map downloads, software updates, and more. Whether hooked up to your home Wi-Fi with your boat trailered in the driveway, logged in to your marina’s Wi-Fi, or tethered to your smartphone out on the lake, you can access GoFree cloud services anywhere you have an internet connection. On the water, GoFree connects the Simrad GO7 XSE to your mobile devices, mirroring your display’s screen on your smartphone or giving you full remote control from your tablet with the free GoFree Controller app.
* Built-in GPS receiver works in any bracket-mount installation, and when flush-mounted with most fibreglass hulls. When flush-mounted in a metal hulled vessel, an external GPS receiver such as the Simrad GS25 may be required.
- Display Type WVGA Colour TFT LCD
- Display Size 7-inch Widescreen
- Display Resolution [pixels x pixels] 800 x 480
- Backlighting Levels LED / 1200 nits
- GPS Antenna Type 10 Hz built-in GPS
- Operating Temperature -15 °C to +55 °C (5 °F to 131 °F)
- Waterproof Standard/rating IPX7
- Dimensions mm:Width 197W x 82.7D x 141H
- Weight: 1.32 kg
- Max Power Consumption: 20w
- Power Supply: 12 V DC
- Transducer cable length: 7.6m(25ft)
In the Box
- Simrad Go7 XSR MFD
- 2m Power cable
- Active Imaging 3-in-1 transom mount transducer
- U bracket and knobs
- User Manual
