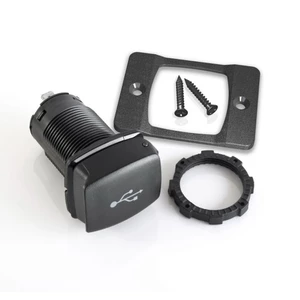

Scanstrut Flip Pro 12/24V Fast Charge Dual USB-A/C Socket With front Fit Bezel

Ultra-fast USB charging for the next generation boater.

Flip Pro is designed for use with either a 12V or 24V input and features 1x USB-A and 1x USB-C charging port. This provides the optimum choice of connection for any device and the fastest charging for your device onboard.

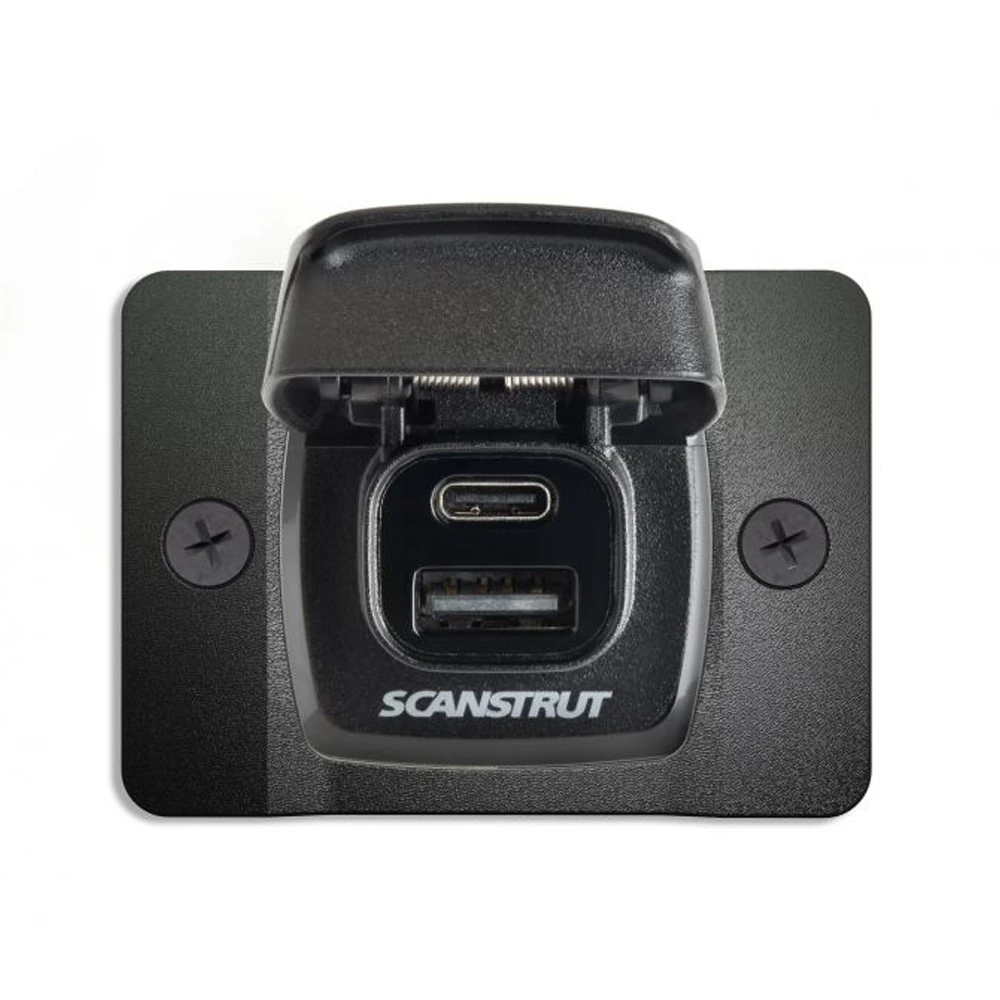

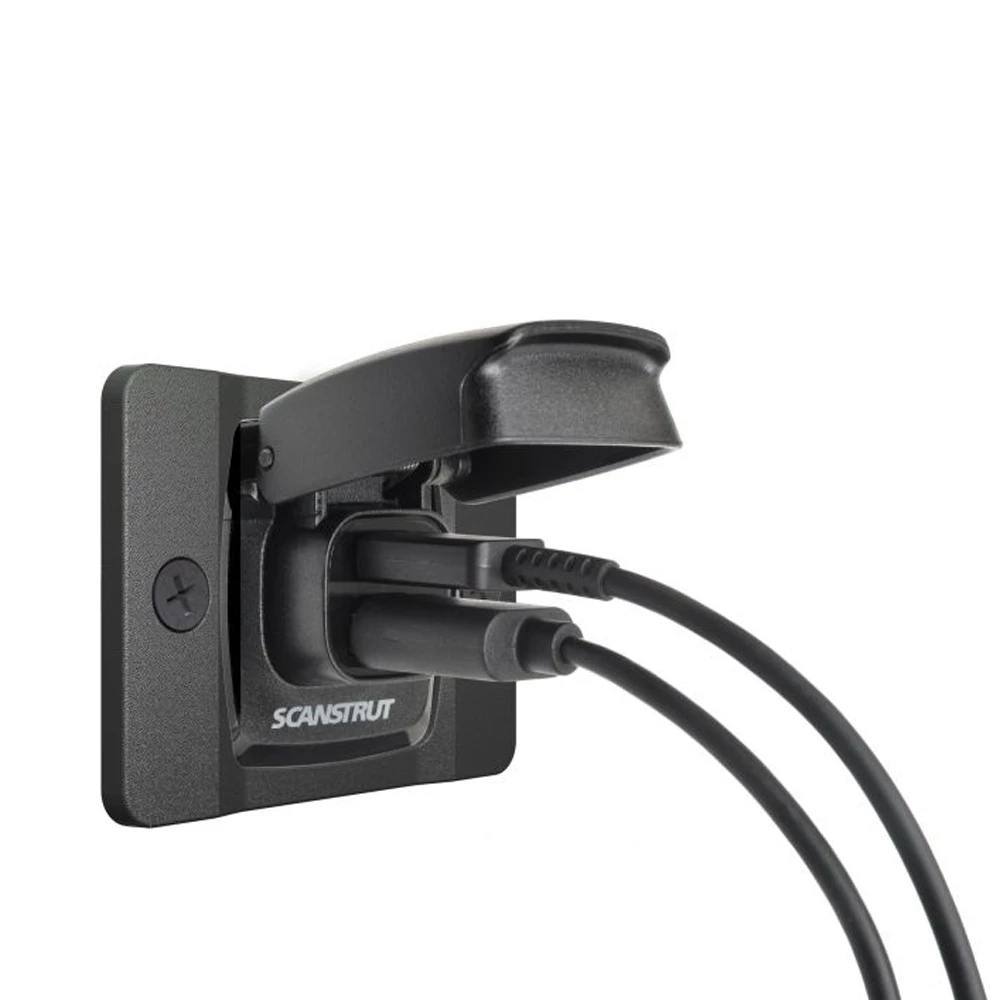

When not in use, the spring-loaded cap remains tightly closed, protecting the ports from the elements. When charging, it quickly locks open to protect your cables when plugged in.

Featuring a super compact footprint, Flip Pro is constructed from premium, marine-grade materials. and is IPX4 waterproof, making it completely washdown-ready.

Flip Pro is FAST! It will charge at up 36W on a 12V system or up to 60W on a 24V system. This makes it perfect for charging modern laptops via the USB-C port. It’s also 2x faster for charging large tablets and is designed to effortlessly charge both an iPad Pro & iPhone at the same time.

The install cut out matches those of standard USB sockets for easy retrofit or swap of an existing USB charger, allowing you to keep up with the heavier power draws of modern electronic devices.

Universal

• Universal fit for any USB-A or USB-C connectors.
• Fast charge (60W max) up to 2 devices at a time.
• Easy Install, using standard USB mounting hole - 29mm (1 1/8”)

Washdown Proof

• IPX4 waterproof with the cover closed.

Marine Ready
• Internal anti-corrosion protective coating
• UV resistant.
• 316 stainless hinge and spring.

Electrical Information

• Input voltage: 10-30V DC (12/24V System)

• Input current Max: 6A (10A fuse recommended)

• Standby power draw: 0.01W

USB – C output: 60W max on 24V system

     36W max on 12V system

USB – A output: 36W max

Important information

The charge cable supplied with your device (tablet, phone, action camera, etc) must be used to achieve maximum charge performance from this charger. Phones will charge at the same speed whether on a 12V or 24V input voltage system. However, a 24V system must be used to get the full 60W output suitable for fast charging laptops.

What is USB-C?

More powerful

Our USB-C has no problems charging even the largest iPad Pro at twice the speed as a USB-A.

More compact

The slim, oval shape is smaller than USB-A and is also symmetrical and reversible - no more having to flip the cable over to get it into the port!

More flexible

It’s fast becoming the universal connector/charge type on all devices, replacing the USB-A, USB-B, Micro-USB. New devices are being launched with this charge option only e.g. iPhone 13.

Click here for the Installation Instructions.

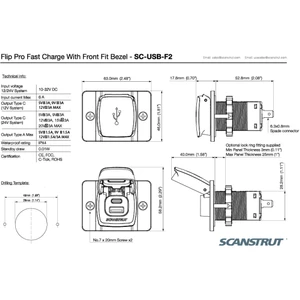

Click here for the Technical Drawing
