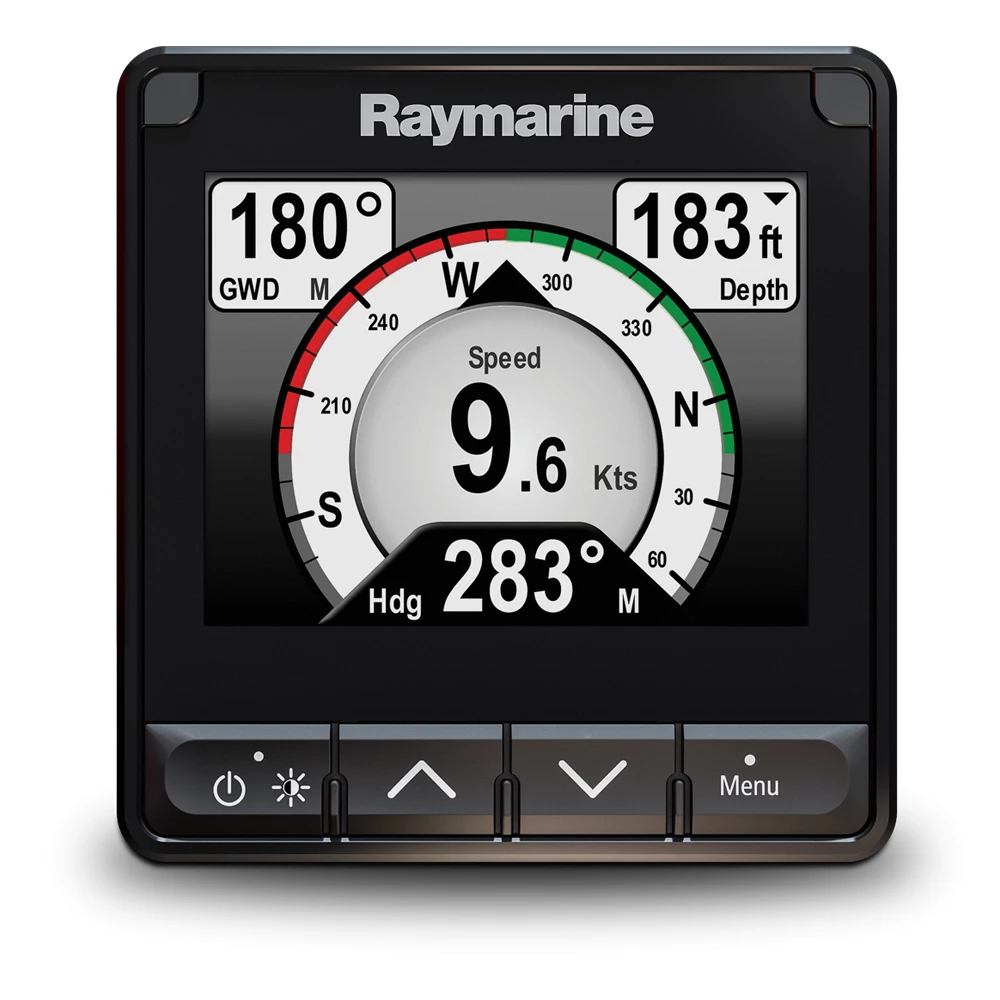

Raymarine i70s Multifunction Instrument Display

The i70s multifunction gives you the flexibility to display instrument and navigation data that is most important to you.

Equipped with a bold and bright 4.1” display the i70s is easy-to-customise with digital, analogue and graphical displays of depth, speed, wind and more. Add the i70s to your existing Raymarine instrument system or create a network of i70s displays and sensors, the choice is yours.

Key Features

• 4.1” super bright oversized LCD for maximum visibility
• All weather optically bonded display technology delivers brighter colours, sharper contrast, and a wide viewing angle
• New glass bridge industrial design compliments Raymarine eS and gS Series multifunction displays
• Simple user interface with sculpted rubber keypad for precise operation in all conditions

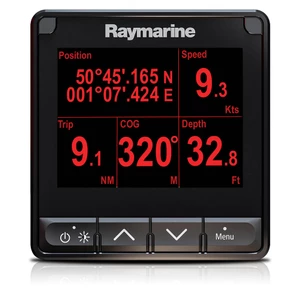

• Customisable data displays of depth, speed, wind and more
• SeaTalkng networking for seamless connectivity to Raymarine systems and NMEA2000* networks

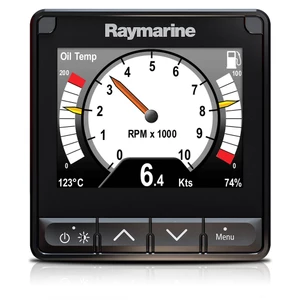

• NMEA2000 connectivity* for engine, environment fuel and navigation data
• Convenient AIS repeater mode allows you to visually track nearby AIS targets
• Combine the i70s with the ITC-5 instrument transducer convertor and connect to analog depth, speed, and wind sensors
• Network the i70s with Airmar DST800 transducers and the new in-hull P70s smart transducer
• Supplied with both black (eS Series style) & (e Series style) gunmetal bezels and protective suncover

Raymarine i70s allows for connectivity to the following on board networks:

• First generation SeaTalk networks using a SeaTalk to SeaTalkng adapter cable
• Current generation SeaTalkng networks
• NMEA2000 networks using a SeaTalkng to DeviceNet adaptor
• In addition to flexible networking capability the i70s features user-selectable data sources, for integration with multi-sensor networks.

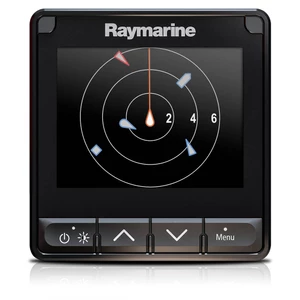

AIS Repeater

Display AIS targets from NMEA 2000 AIS receivers. View the closest 25 AIS-equipped vessels and select individual targets to obtain vessel information.

Transducer Connectivity

Pair i70s instruments with the innovative iTC-5 instrument transducer converter for seamless integration with analogue depth, wind, speed, compass and rudder transducer. Alternatively, you can network the i70s to DST800 and p79s Airmar smart tranducers.

Specifications

• Nominal Voltage: 12 V dc
• Voltage Range: 9 to 16 V dc
• Power Consumption 1.7 Watts
• Mounting method Surface mount
• LCD Brightness 1,200cd/m2
• Display 4.1" TFT LCD 16 bit colour
• (64K colours)
• 320 x 240 pixels
• Colour palettes Four colour pallettes- two day, inverse and red/black
• Operating Temperature -20° to 55 °(-4°F to 131°F)
• Storage Temperature -30° to 70° (-22°F to 158°F)
• Relative Humidity and Waterproofing 93% max. IPX6 IPX7
• Connections 1 x SeaTalkng® connector
• Conformance NMEA 2000 certification pending • Europe 2004/108/EC • Australia and New Zealand C-Tick, compliance level 2
• Display dimensions(mm): 110w x 115H x 14D

 In The Box

• Documentation
• Panel Seal Gasket
• 400mm (15.7in) SeaTalkng® spurcable (A06038)
• i70s Instrument Display (supplied with keymat and black bezel (A80353) fitted)
• Suncover (A80357)
• Spare gunmetal bezel (A80354)
• Mounting screws x4
