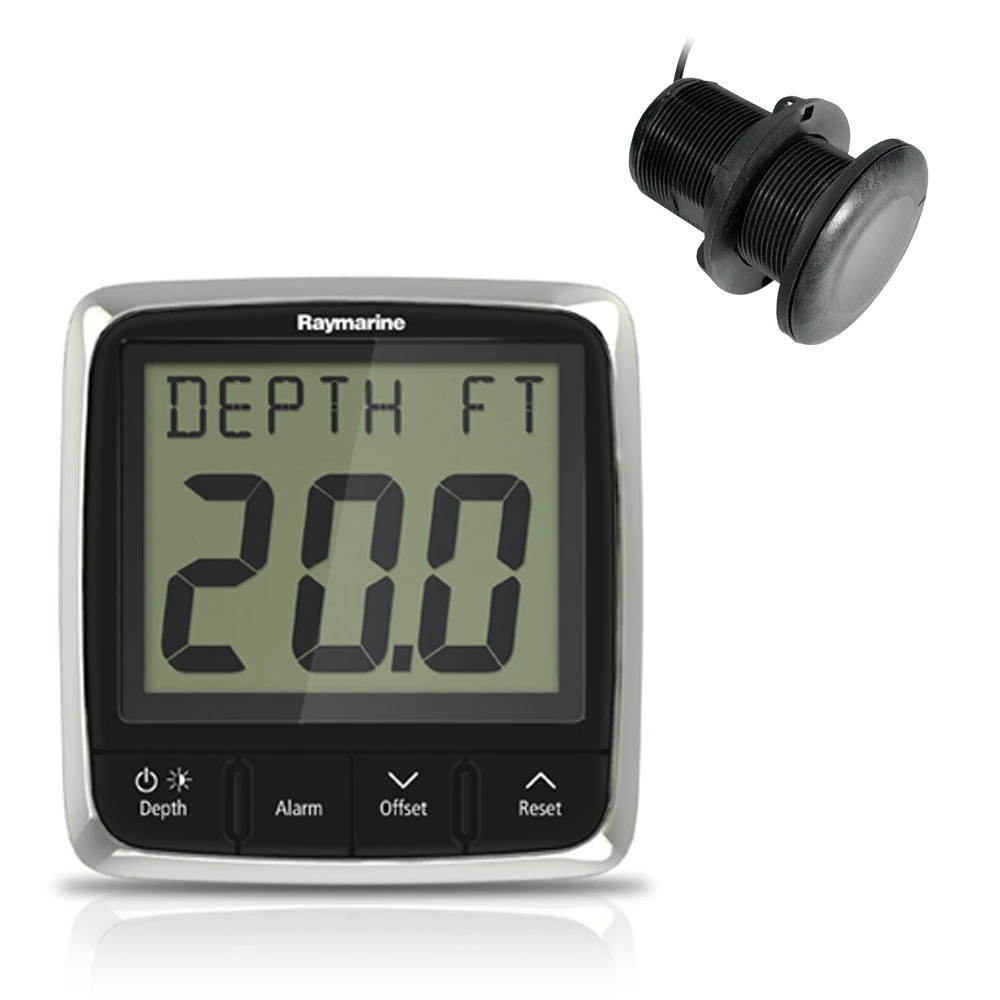

Raymarine i50 Depth Pack

Raymarine’s i50 Depth Pack delivers the clarity, accuracy, and ease of use that sailors and motorboaters trust. Designed as a direct modern upgrade to the classic ST60+ range, the i50 series combines simple operation with excellent visibility, even in bright sunlight or at a distance.

This pack includes the Raymarine i50 Depth display and a P19 through‑hull transducer, giving you a complete, ready‑to‑install depth solution.

Why Choose the Raymarine i50 Depth Pack

• Clear, easy‑to‑read display – Large digits and wide viewing angles make depth information instantly visible at a glance.
• Effortless installation – Front‑mount design and identical footprint to the ST60+ range make upgrades straightforward.
• Fully network‑ready – Seamlessly integrates with SeaTalk, SeaTalkng and NMEA 2000 networks.
• Reliable depth monitoring – Includes shallow/deep alarms, min/max depth logging, and keel offset for safer navigation.

Key Functions

• Depth in feet, metres, or fathoms
• Minimum and maximum depth recorded since power‑on
• Audible shallow and deep alarms
• Adjustable keel offset

Features

• Large, high‑contrast numerals
• Red backlighting for improved night visibility
• SeaTalk & SeaTalkng interfaces
• NMEA 2000‑compatible
• Built‑in transducer interface
• 110mm × 115mm footprint (matches Raymarine ST60+)
• Large, glove‑friendly controls
• Low power consumption
• Supports multiple data sources to avoid conflicts
• Front‑mounted for simple installation

Specifications

• Operating voltage: 10–16 V DC
• Current consumption: 30 mA
• Connections: 2 × SeaTalkng, transducer
• Display size: 110 × 115 mm
• Waterproof rating: IPX6
• Transducer cut‑out diameter: 51 mm
• Transducer cable length: 45 ft

In the Box

• Raymarine i50 Depth instrument
• Front bezel
• P19 through‑hull depth transducer
• Sun cover
• Mounting gasket
• SeaTalk to SeaTalkng adaptor cable
• SeaTalkng spur cable
• SeaTalkng blanking plug
• 4 × fixing screws
• Documentation pack
