Yachtsense Link Marine Mobile Router

Catalogue Code: 220686
£1,129.95 In Stock Online
Save £165.05 RRP £1,295.00
See Product Description Check Stock in Store Add to Wish List
  • Get it on Friday, 14th June if ordered within the next --:--:-- and select Next Day Delivery *UK Mainland Only
  • Ask a question
  • Description
  • Videos
  • Availability
  • Delivery & Returns
  • Reviews
Description

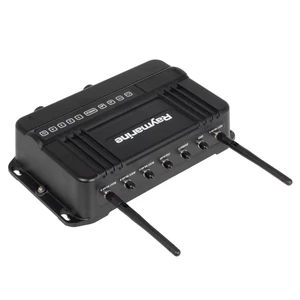

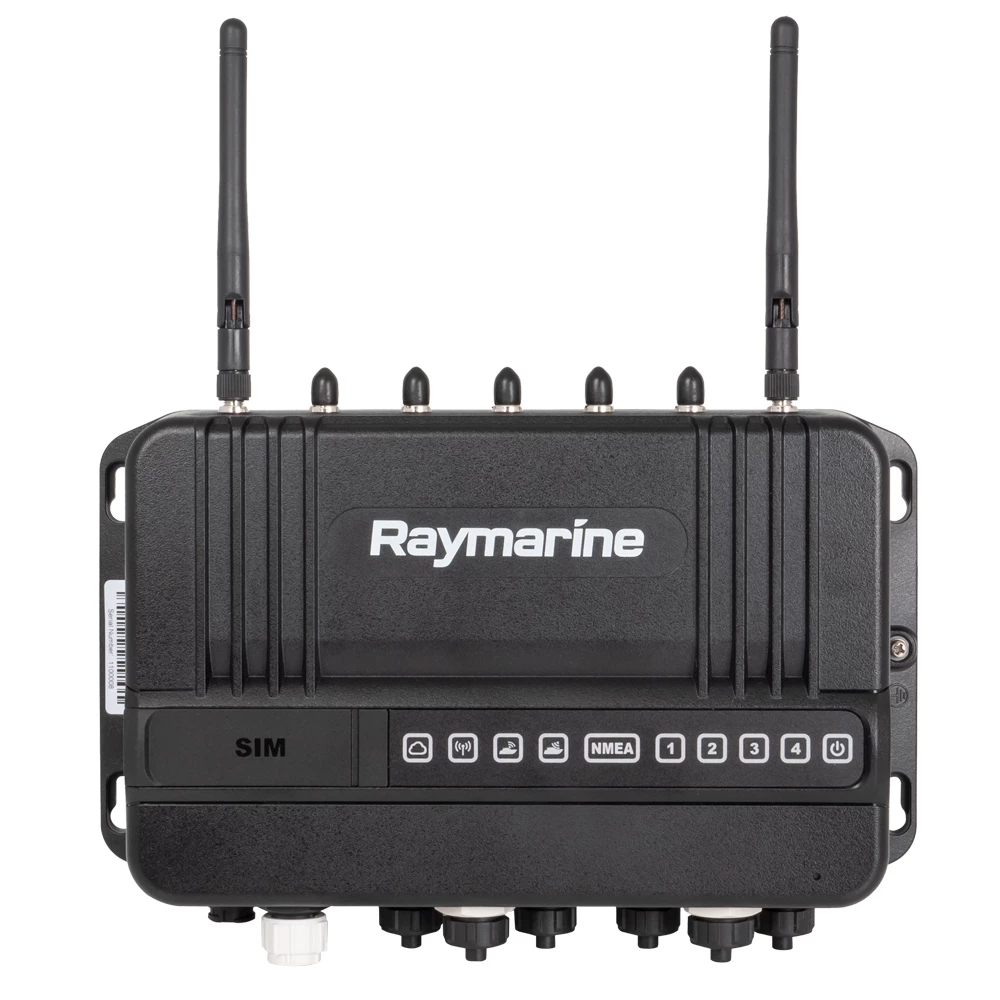

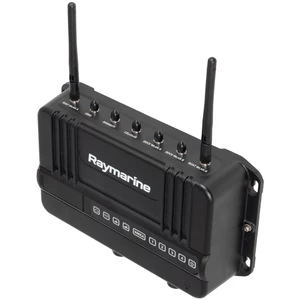

Raymarine Yachtsense Link Marine Mobile Router

YachtSense Link is a multi-purpose marine mobile router equipped with Raynet Ethernet ports, mobile broadband connectivity, and onboard Wi-Fi. YachtSense Link allows crew and family to connect Axiom® displays, phones, tablets, and PCs to a unified onboard network. YachtSense Link automatically switches between marina Wi-Fi and mobile networks to ensure you are always connected. Combine YachtSense Link with the Raymarine mobile app for remote access to your Raymarine network and enjoy the added security of remote GeoFence vessel monitoring. YachtSense Link also features low-voltage digital switching / monitoring channels for controlling and monitoring onboard electrical devices like pumps, batteries, lighting, and more.

REMOTE MONITORING

  • GeoFence provides alerts and notifi cations if your vessel moves in or outside a safety zone.
  • Low power consumption mode supports GeoFence remote monitoring (subscription required)
  • x4 input and output low voltage digital switching channels
  • Easy DIY setup using a web browser or Axiom display

ALWAYS CONNECTED

  • Connect Raymarine equipment, tablets, smart TVs, and other wireless devices to a unified onboard network
  • Mobile broadband connection to 4G (LTE) networks (SIM card and data plan required)
  • Supports dual SIM cards for seamless connectivity to international mobile networks
  • Integrated GPS with a range extending 4 in 1 antenna (GPS/GNSS, 3G, 4G, and Wi-Fi)

STAY INFORMED

  • Connect and view real time instrument and navigation data on board or remotely

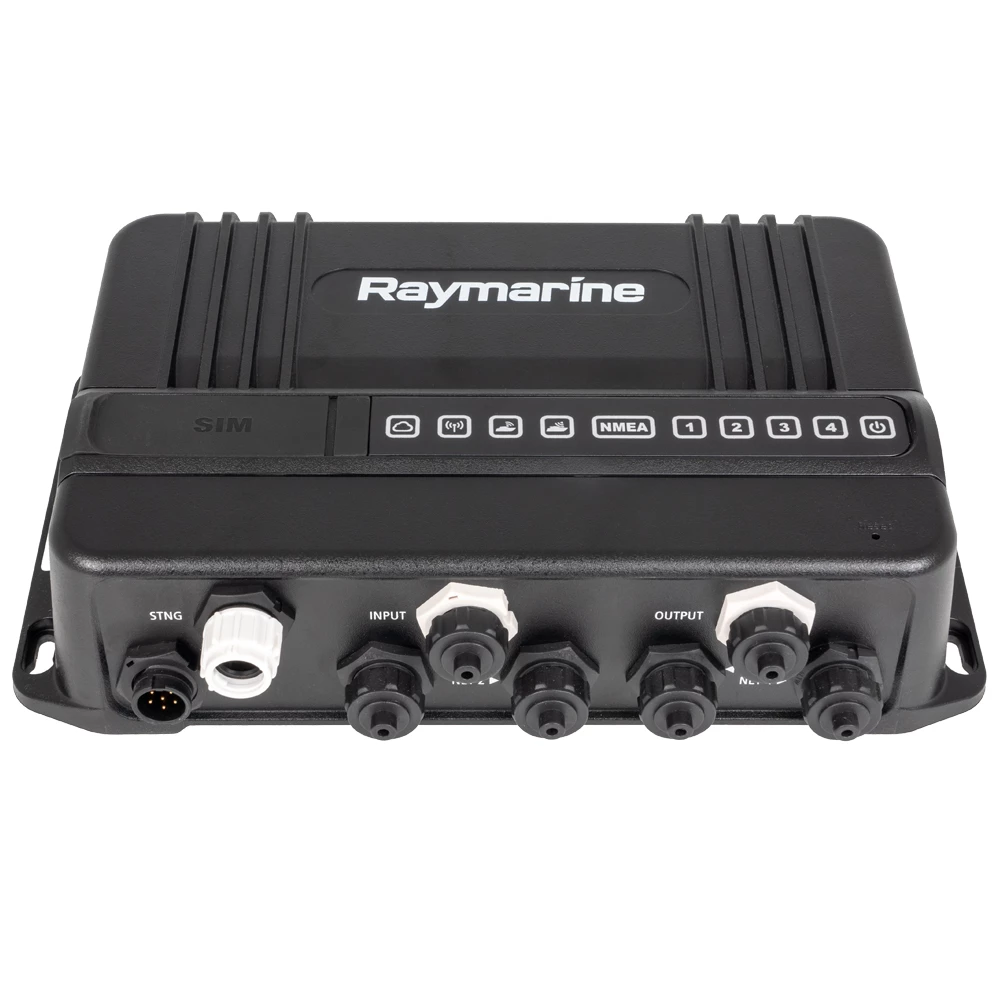

  • x4 Raynet Ethernet ports for connecting Raymarine devices
  • SeaTalkNG/NMEA2000 port
  • Rugged IPX6 enclosure is shock and vibration resistant

Specifications

  • Nominal supply voltage: 12 Vdc / 24 Vdc
  • Operating voltage range: 8 Vdc to 32 Vdc
  • Operating temperature range: -25°C (-13°F) to + 55°C (131°F)
  • Storage temperature range: -30°C (–22°F) to + 70°C (158°F)
  • Humidity: up to 93% @ 40°C (104°F)
  • Water ingress protection: IPx6
  • Dimensions (w x h x d): 00 mm (9.53 in) x 162.20 mm (6.39 in) x 63.00 mm (2.48 in)
  • Weight: 03 Kg (2.26 lb)
  • Boat Wi-Fi: Wi-Fi access point mode frequencies:
    • 4 GHz (2412 MHz to 2472 MHz
    • 2422 MHz to 2462 MHz): 13.28 dBm
  • Dock WLAN: Wi-Fi station mode frequencies:
    • 4 GHz:(2412 MHz to 2472 MHz / 2422 MHz to 2462 MHz): 14.79 dBm
    • 5 GHz (5150 MHz to 5350 MHz / 5470 MHz to 5725 MHz): 14.94 dBm
    • 8 GHz (5725 MHz to 5875 MHz): 13.74 dBm
  • Cellular / Diversity: 2G/3G/4G frequencies:
    • LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18 /B19/B20/B25/B26/B28
    • LTE-TDD: B38/B39/B40/B41
    • WCDMA: B1/B2/B4/B5/B6/B8/B19
    • GSM: B2/B3/B5/B8

In The Box

  • 1 YachtSense™ Link Marine Cloud Router (supplied with grounding point fixings and protective caps fitted).
  • 2 x4 mounting fixings (PA 4 x 25 mm self tapping screws).
  • 3 Documentation pack
  • 4 5-in-1 antenna (GNSS, Cellular, Diversity, DOCK WLAN) with 5 m (16.4 ft) cables and M20 nut and mounting gasket.
  • 5 x2 Dipole antenna (BOAT Wi-Fi).
  • 6 RayNet to RJ45 cable 1 m (3.3 ft).
  • 7 SeaTalkng® spur cable 1 m (3.3 ft).
  • 8 8Power cable with 8 A fitted fuse 1.5 m (4.9 ft).
  • 9 x2 Input/Output (I/O) cables 0.5 m (1.64 ft).

Click here for the manufacturer’s data sheet

Click here for the User manual
