Description

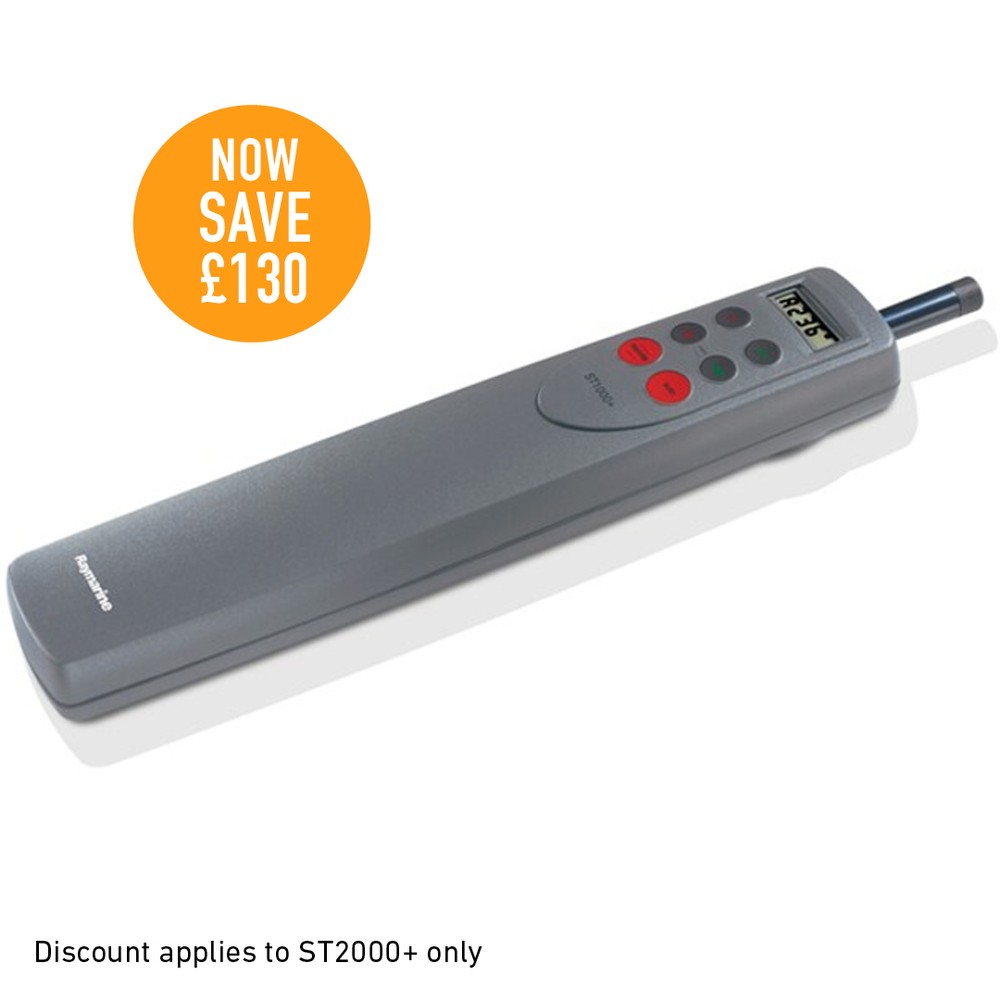

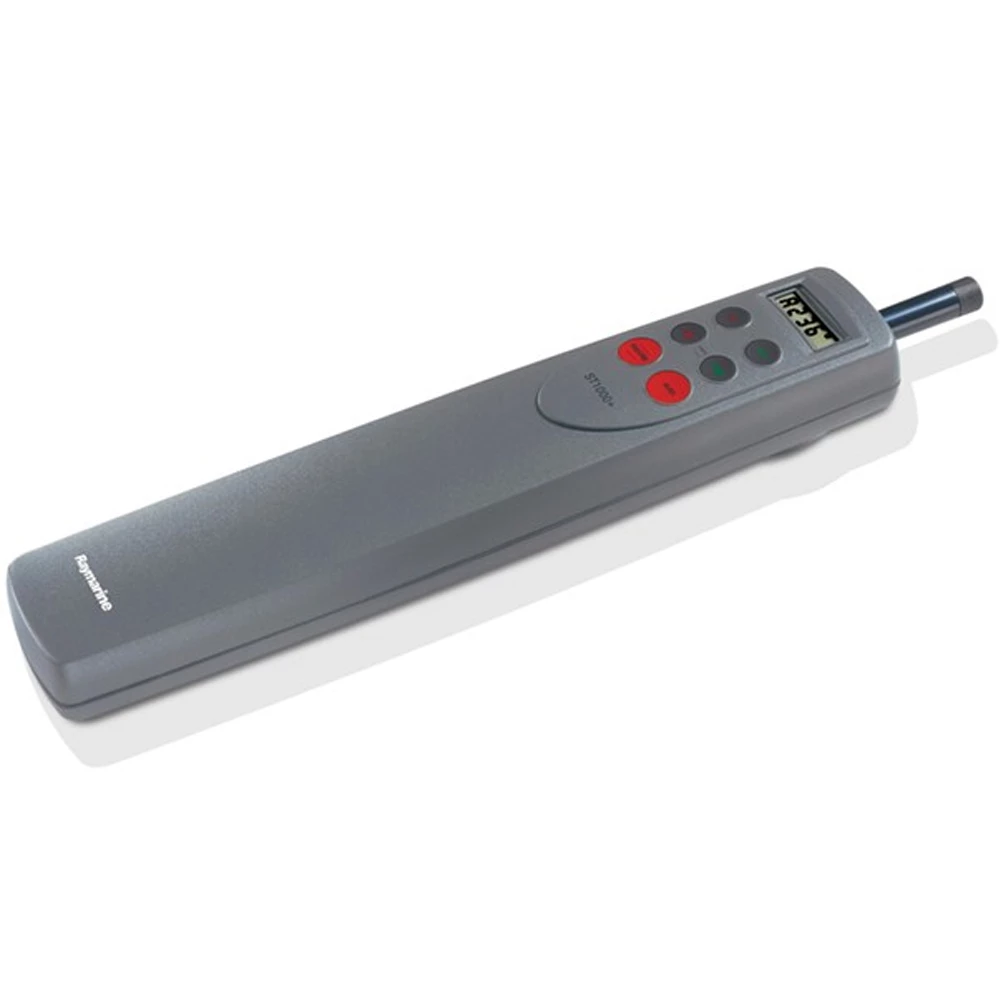

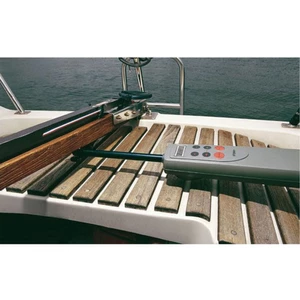

Raymarine Tillerpilot

This waterproof and robust tiller pilot can be used as a stand alone pilot or can be connected to GPS for auto control. 6 large tactile buttons enable the user to switch in and out of Auto mode and to make simple one button press course adjustments. A backlit LCD display will give navigational data such as a heading, distance to waypoint, bearing to waypoint and cross track error.


Features

  • Auto Seastate feature within the pilot teaches the pilot to ignore the repetitive movements of the boat and to respond to only true course changes thus providing a more comfortable passage.
  • Wind trim mode - the tiller pilot maintains a course relative to an apparent wind angle ( input from Wind vane required).
  • Auto tack - a simple two button press to turn the boat through 100 degrees.


Specifications

  • Voltage: 10-16V DC
  • Power Consumption 40mA (Stanby mode)
  • Weight 1.53kg
  • Mounting methods: Reversible port or Starboard
  • Connection: NMEA0183 and Seatalk
  • Stroke: 236mm


*Always take the fully laden displacement weight into account, often 20% above the designed displacement.

Available in:

Force 4 P/N: 220194   ST1000+

  • Thrust: 57kg
  • Maximum Displacement*: 3,000kg

Force 4 P/N: 220195    ST2000+
  • Thrust: 77kg
  • Maximum Displacement * 4,500kg



Download Quick Start Guide here.

Download Owner Handbook here.
