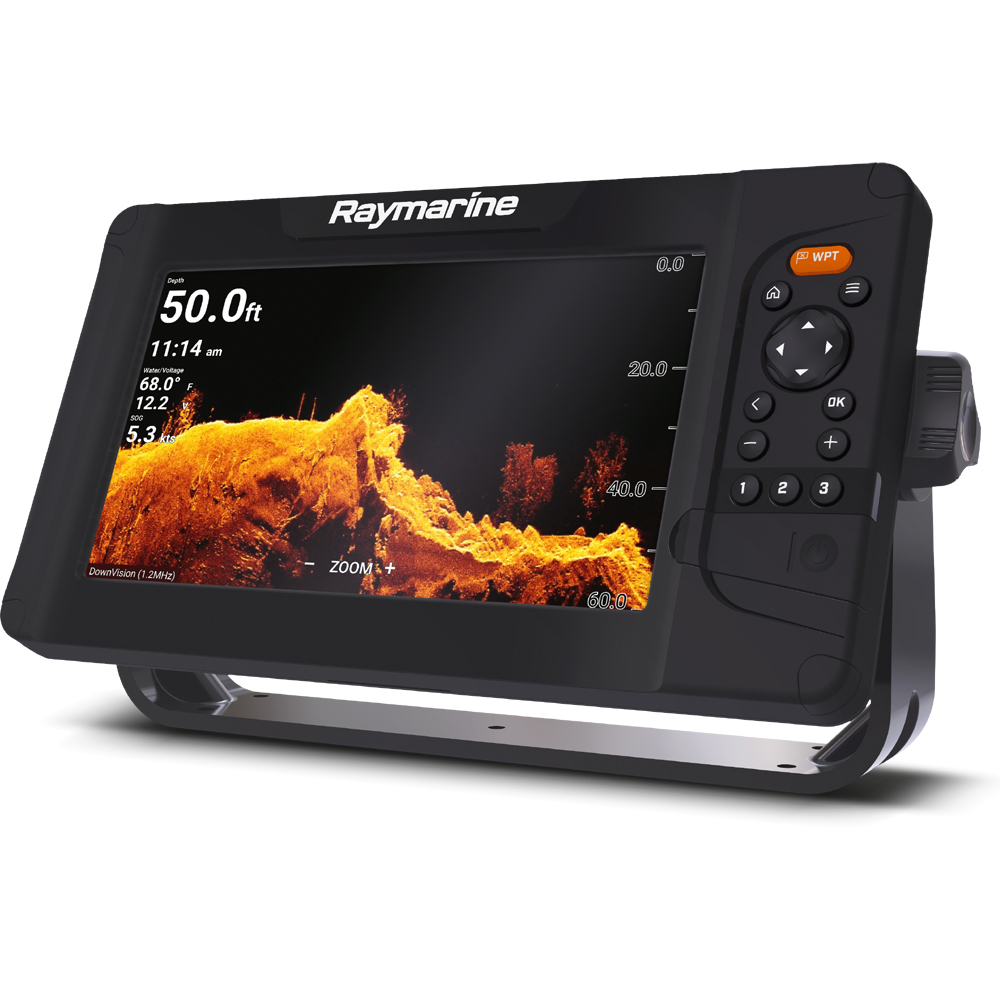

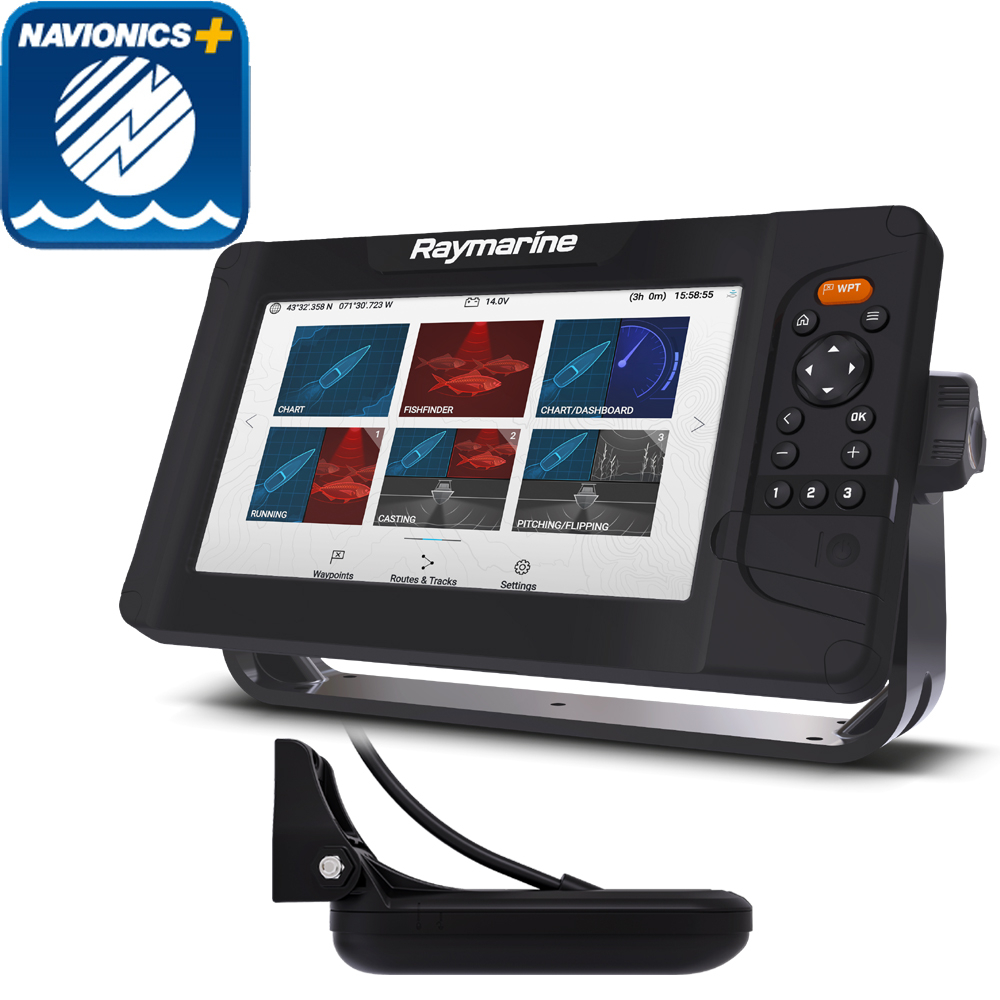

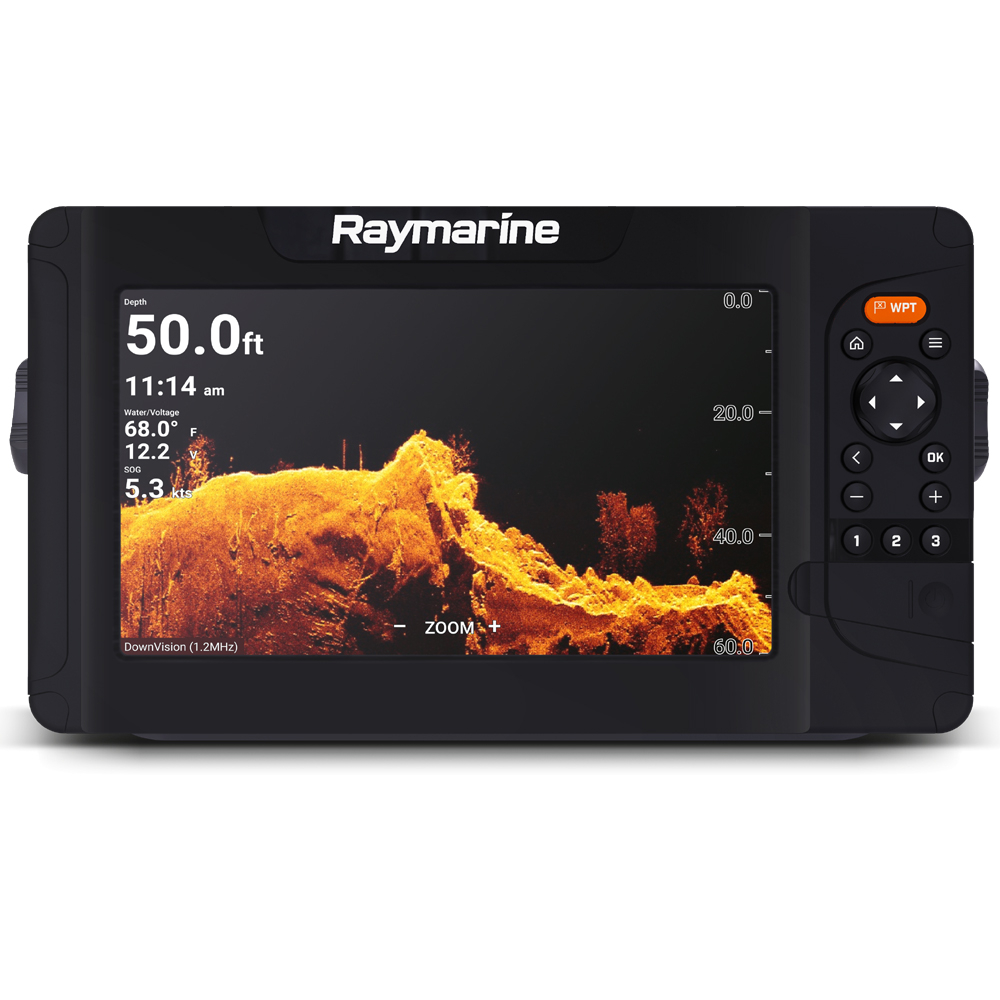

Raymarine Element 9 HV with HV-100 & Navionics Plus Small
Sorry this item is no longer available
- Delivery & Returns
Raymarine’s small & medium sized fishing boat solution that offers superior sonar technology and unrivaled quad-core processing speed. Ideal for single station boat owners who want the performance, but don’t have the need for a fully-fledged multifunctional navigation system. Delivering the sharpest view of the underwater world, Element’s HyperVision™ 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.
Simple LightHouse Sport Operating System - Optimized for fishing, the LightHouse Sport OS is fast and easy-to-learn.
Intuitive Controls - An oversized waypoint key for marking your favorite spots and three user-programmable keys.
Make Your Own Maps - Raymarine RealBathy™ personal sonar mapping and Navionics SonarCharts Live support.
- Rugged, high-visibility sunlight viewable 9” display with built-in GPS/GNSS receiver
- Multi-channel 1.2 megahertz HyperVision sonar provides super high-resolution imaging up to 125’ while 350kHz DownVision delivers photo-like imaging up to 600’ and SideVision out to 300’
- Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes
- Take 3D sonar to the next level with HyperVision mode for unprecedented 3D resolution and positional awareness
- New compact HV-100, all-in-one transom transducer, combines Hyper, Down, Side, RealVision 3D and conventional CHIRP sonar channels into one simple installation
- Plentiful memory for waypoints, routes and tracks
- NMEA2000 for AIS, VHF & Engine connection
- Compatible with Navionics+ & C-MAP 4D MAX+
Turn Up the Resolution with HyperVision™
- HyperVision uses super high frequencies (1.2 megahertz) and CHIRP technology to bring a new level of precision imaging to DownVision, SideVision and RealVision 3D
- 1.2 megahertz HyperVision mode is optimized for super high-resolution imagery up to 100’ (30 meters)
- Switch to standard 350 kHz CHIRP sonar for longer range, high-resolution imaging, and ranges up to 600’ (180 meters)
- Element’s advanced CHIRP sonar also operates in the high-frequency 200kHz range for fish targeting, high-speed bottom tracking, and depths up to 900ft
- Display size: 9.0" Optically Bonded LCD
- Display resolution: 800 x 480 WVGA
- Display type: Non- Touch
- Display brightness:1,500 nits
- Viewing angle: Top 50° / Bottom 60° / Left 70° / Right 70°
- Overall dimensions: 287 x 161 x 62mm (11.3 x 6.3 x 2.4 inches)
- Water Ingress Protection: IPx6 and IPx7
- Product Weight: 2.3Kg
- Supply voltage: 12V DC (8V to 16V DC)
- Sonar Depth: CHIRP Sonar = 274m (900 feet)
- DownVision™ Standard = 183m (600 feet) | DownVision™ Hyper = 30m (100 feet)
- SideVision™ Standard = 91m (300 feet) | SideVision™ Hyper = 30m (100 feet)
- RealVision™ 3D Standard = 91m (300 feet) | RealVision™ 3D Hyper = 30m (100 feet)
- Built-in GNSS Receiver: GPS/GLONASS
- NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
- Supported NMEA2000 Networking: INPUT: NMEA2000 Compatible Engines (Max 2) | NMEA2000 Compatible Tank Sensors (Max 4) | Heading Sensor (for Chart Stabilization). OUTPUT: GPS (for VHF Distress and DSC)
- Wi-Fi: WiFi - 802.11 b / g / n
- BlueTooth: Bluetooth 4.0 + Low Energy + Power Class 1.5
In The Box
- Element 9HV
- Trunnion bracket with mounting hardware
- Surface mount kit with mounting hardware
- Sun cover
- 1.5m Power/NMEA2000 cable
- Documentation pack
- Navionics Small Area Download chart
- HV-100 Transducer with 6m cable
- Transom bracket with mounting hardware
- P-clips with mounting hardware (x5)
