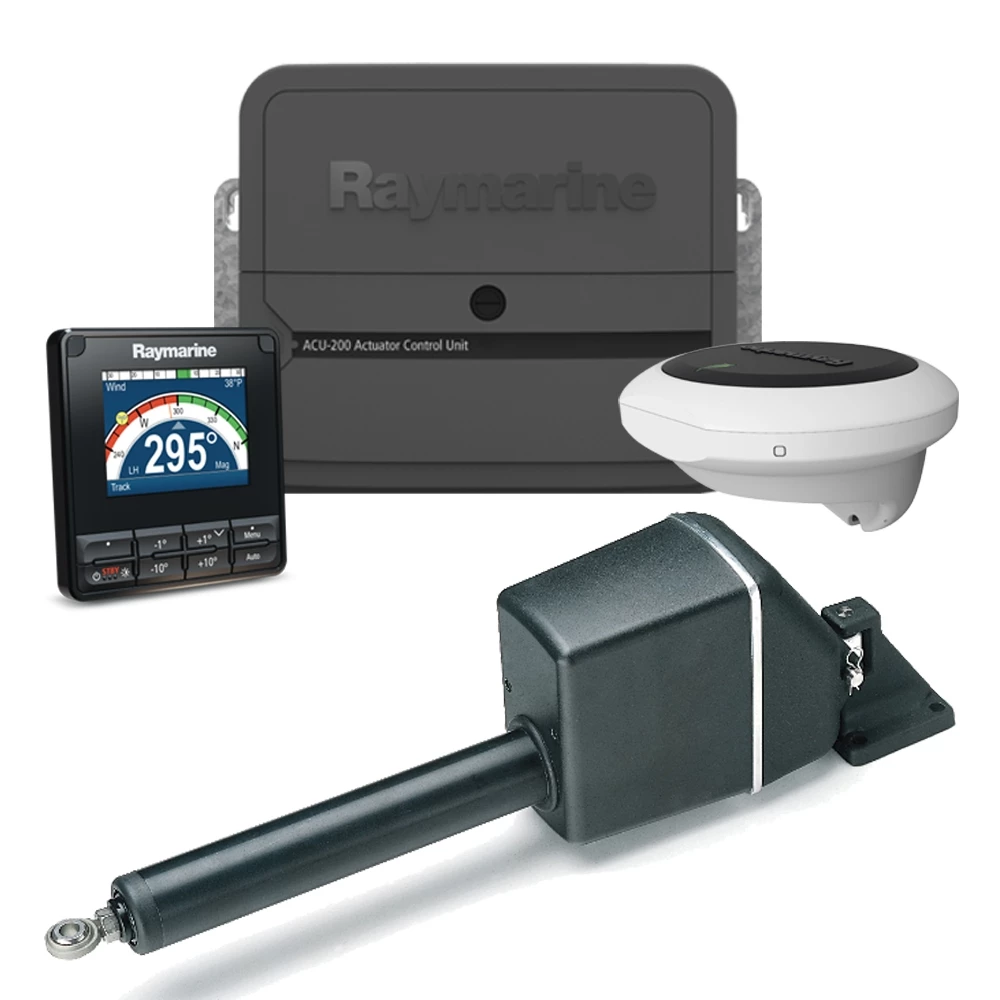

Raymarine EV-200 Autopilot Linear Pack

Evolution Autopilot with p70s, ACU-200 and Type 1 Mechanical Linear Drive designed for mid-sized sailing vessels with mechanical steering.

EV1 Sensor Core
The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.

ACU-200
The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.

p70s Autopilot Control Head (Sail)
The p70s autopilot control head is a push-button operation controller designed primarily for sailboats. Advanced LED backlighting offers low power consumption and delivers vibrant colour and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions. The p70s control head also features the LightHouse user interface and a start up wizard to help you configure the pilot quickly and easily.

Type 1 Mechanical Linear (12V)
The outstanding design of the Raymarine linear drive unit provides: powerful thrust, fast hardover times and quiet operation
low backdrive force, to minimize the drive’s effect on the boat’s steering when the autopilot is in standby
a powerful electric motor controlled by an electromagnetic fail-safe clutch, using a high tensile belt drive and epicyclic gearbox
high performance for minimum current consumption


Features
Automagic™ - No lengthy calibration procedures to perform. No compass calibration required. Plug and play connections
Easy to install - Freedom from the restrictions of conventional heading sensors. EV sensor core can be installed above or below deck. Install upside-down or off the vessel's centre line.
Aerospace technology - 9-axis precision monitoring of pitch, roll, yaw and heading


Specifcations

EV-1 Sensor Core

  • Nominal supply voltage 12 V (powered by SeaTalkng system)
  • Power consumption (taken from SeaTalkng system) 30 mA
  • Sensors: 3-axis digital accelerometer, 3-axis digital compass,3-axis gyro digital angular rate sensor
  • Data connections: SeaTalkng
  • Waterproof rating: IPX 6
  • Diameter: 140 mm (5.5 in)
  • Depth (including mounting enclosure): 35 mm (1.4 in)
  • Depth (including wall bracket): 95 mm (3.8 in)
  • Weight: 0.29 kg (0.64 lbs)

P70s Control Head

  • Autopilot controller (button) Raymarine p70s
  • Raymarine Part Number E70328
  • Nominal voltage 12v DC
  • Voltage range 9 to 16v DC
  • Screen size 3.5"
  • Display Sunlight readable optically bonded LCD
  • Resolution 320 x 240 QVGA
  • Colours 16 bit colour (64K colours)
  • Colour Palettes Four colour pallettes - two day, inverse and red / black
  • LCD Brightness 1200 nit
  • Power consumption 1.6 Watts
  • Connections SeaTalk & SeaTalkng compliant with NMEA2000 marine networks
  • Operating temperature -025ºC to 55ºC (-13ºF to 131ºF)
  • Storage temperature -030ºC to 70ºC (-22ºF to 158ºF)
  • Relative humidity 93% max
  • Waterproofing IPX6

ACU-200

  • Nominal power supply: 12 V or 24 V
  • Drive current output: maximum continuous 15 A at supply voltage
  • Drive clutch output: up to 2.0 A continuous, selectable between 12/24 V
  • Connections: Rudder reference sensor, Sleep switch, Power, Drive motor, Drive clutch, Ground
  • Power consumption (standby)
  • main power supply: ACU-200/300/400: 300 mA (12/24 V)
  • Power consumption (standby)
  • SeaTalkng power supply: 20 mA (12 V)
  • SeaTalkng power out: 3 A at 12 V (fuse protected at 3 A)
  • Data connections: SeaTalkng
  • Waterproof rating : Drip resistant
  • Dimensions (mm): 285W x 211.5H x 64.5D
  • Weight: 2.2kg (4.84 lbs)


Type-1 Linear Drive

  • Maximum boat displacement: 11,000 kg (24,000 lb)
  • Peak thrust: 295 kg (650 lb)
  • Maximum stroke: 300 mm (12")
  • Hard-over to hard-over times: 11 Seconds
  • Maximum rudder torque: 735 nm (6,500 lb.in)
  • Power consumption: 18-36 W

In The Box

  • Ev-1 Sensor Core
  • ACU-200 Actuator Control Unit
  • P70s  Autpilot Control Head (Sail)
  • Type 1 Mechanical Linear Drive
  • STNG 5m Backbone Cable
  • STNG 5 Way Connector Block
  • STNG 0.4m Spur Cable
  • STNG 0.4m Power Cable
  • STNG T Piece x 2
  • STNG Terminators x 2
  • Documentation
