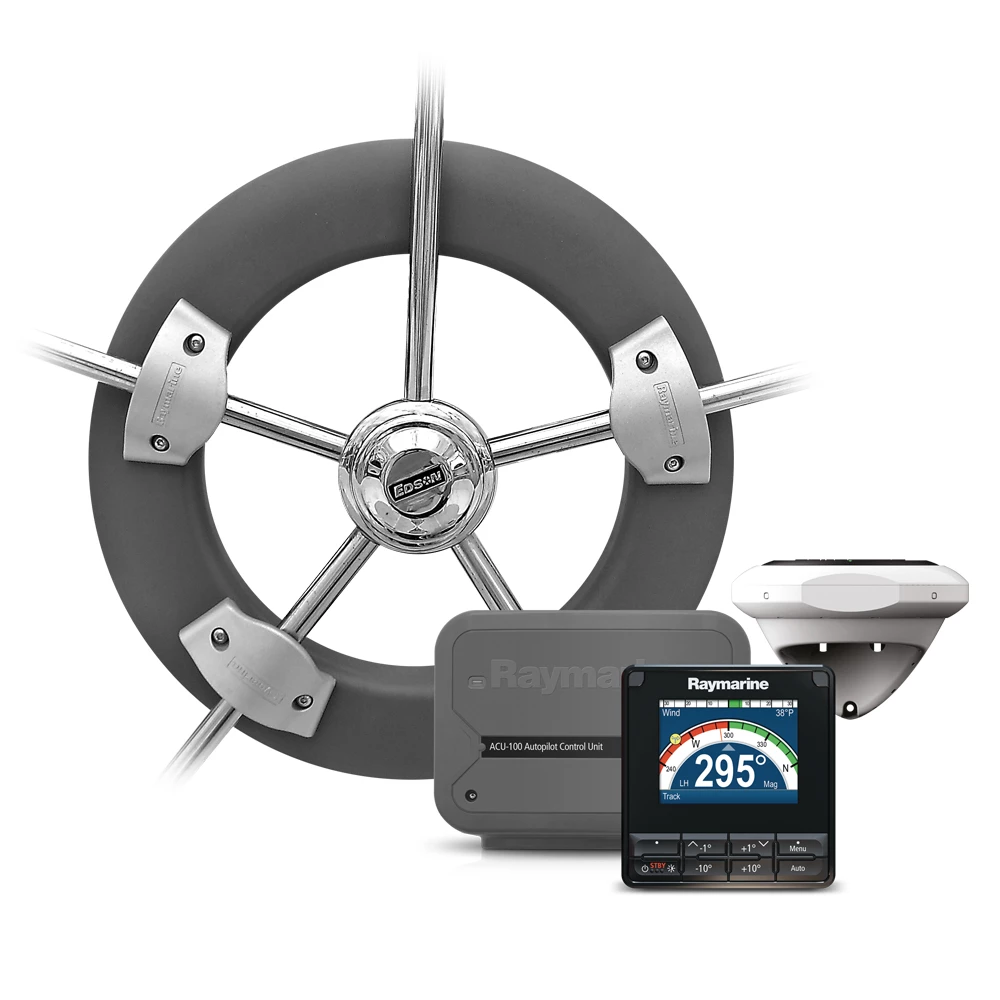

Raymarine EV-100 Wheel Pilot Pack

DOWN IN PRICE - Save On Raymarine EV-100 Wheel Pilot during the Raymarine Roadshow.
RRP: £1795.00 Now Only: £1399.95 Save: £395!

Offers Whilst Stocks Last. Ending 30/04/2024.

Raymarine EV-100 Wheel Pilot Pack - A system pack designed for small-wheel drive sailboats.

Raymarine part no. T70152

Features

  • Intelligent EV sensor core that evolves and adapts to your vessel’s steering characteristics without any user adjustments
  • No lengthy calibration procedures to perform
  • 9-axis precision monitoring of pitch, roll, yaw and heading
  • More freedom on Ev sensor core installation - can be installed above or below deck, upside down or off the vessels centreline
  • Simple SeaTalkng connectivity to the control head and ACU
  • Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions.
  • Auto-compensation for onboard magnetic fields and reliable heading accuracy in the northern and southern extremes
  • Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays
  • The p70 control head features vibrant colour displays and is powered by Raymarine’s intuitive LightHouse user interface
  • LightHouse organises all options into simple menu structures and with Evolution’s quick setup process you will be up and running in minutes
  • Designed for sailing yachts, the p70 offers simple 1 and 10 direct course change push buttons
  • The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus
  • Simple to fit wheel drive unit that fits most wheels
  • Simple robust clutch engagement mechanism

Specifications

  • EV-1 Sensor core
    • Voltage: 12V
    • Waterproofing: IPX6
    • Power consumption: 30mA
    • Connection: STNG & NMEA2000
    • Diameter: 140mm P70
  • Control head
    • Voltage: 12V
    • Screen size: 3.5”
    • Waterproofing: IPX6
    • Power consumption: 134mA
    • Connection: STNG & ST1
    • Size: 110w x 115Tmm ACU-100
  • Control Unit
    • Voltage: 12 or 24V
    • Waterproofing: connector panel IPX2 & drive electronics IPX6
    • Power consumption standby: 300mA
    • Connection: STNG, Rudder ref, drive motor, GND
    • Size: 180w x 140T x 52Dmm
  • Wheel Drive
  • Maximum recommended laden boat displacement: 7,500kg (16,500lbs)
  • Revs per minute (rpm): 9
  • Thrust: 30Nm
  • Connections: STng (x1), NMEA 2000 with adapter cable Pack contents

What's In The Box

  • EV-1 Sensor core
  • ACU-100
  • P70 control head
  • Wheel drive
  • 1 x 0.4m STNG power cable
  • 1 x 5m STNG backbone cable
  • 1 x 0.4m STNG spur cable
  • 1 x STNG 5way connector block
  • 2 x STNG Tpiece connectors
  • 2 x STNG Terminators
Availability
Stock Availability

Stock can move quickly, so this is just a suggestion of current levels, please phone the shop to confirm.

The ship to store service is based on Head Office sending stock to a branch.

If you wish to call & collect stock, please do so over the phone using the number provided.

Store Availability Telephone
Cardiff Not currently in stock 02920 220929
Chichester Not currently in stock 01243 773788
Deacons 02380 402182
Lymington Not currently in stock 01590 673698
Plymouth Not currently in stock 01752 548301
Poole Not currently in stock 01202 723311
Port Hamble Not currently in stock 02380 454858
Southampton Not currently in stock 02380 632 725
Gloucestershire (Distribution Hub) 0345 130 0710

- Good Availability

- Low Availability

- One item left

Delivery & Returns
Delivery

Royal Mail Service Update: Please be aware when choosing Royal Mail as your preferred delivery method, your delivery time may be impacted by ongoing strikes and may take up to 20 working days. If your order is time critical we suggest choosing a courier or Next Day Service



Our Mail Order team ship chandlery, yacht parts and sailing clothing around the world. We use the best value couriers available, and we will endeavour to get your products to you as quickly and as cost effectively as possible.

International Orders: Due to delays we have had to suspend our international delivery options.

UK Standard Delivery

  • UK Mainland 0 - 2Kg (small jiffy) £3.95 Royal Mail Service. Despatch within 3- 5 working days, delivery in 7-10 working days for orders under £50.00
  • UK Mainland up to 25Kg £5.95 Courier service with signature. Despatch within 3- 5 working days, delivery in 7-10 working days
  • UK Mainland 25Kg+ Price on request
  • UK Mainland Next Day 0 - 25Kg £9.95 Courier service with signature, orders must be placed before midday
  • Northern Ireland, Highlands & Islands 0 - 2Kg (small jiffy) £3.95 Royal Mail Service. Despatch within 3- 5 working days, delivery in 5-7 working days for orders under £50.00
  • Northern Ireland, Highlands & Islands 1 - 25Kg £10.95 Courier service with signature. Despatch within 3- 5 working days, delivery in 7-10 working days
  • Northern Ireland, Highlands & Islands 25Kg+ Price on request
  • Channel Islands 0 - 2Kg (small jiffy) £5.95 Royal Mail Service Despatch within 3- 5 working days, delivery in 5-7 working days for orders under £50.00
  • Channel Islands 1 - 25Kg £13.50 Courier service with signature. Despatch within 3- 5 working days, delivery in 5-7 working days
  • Channel Islands 25Kg+ Price on request

UK Exceptional Delivery

  • UK Mainland; Antifoul & paints £5.95
  • UK Mainland; Inflatable dinghy £10.00
  • UK Mainland; Liferafts £17.50
  • UK Mainland; Flares £49.95
  • Northern Ireland, Highlands & Islands; Antifoul & paints £9.95
  • Northern Ireland, Highlands & Islands; Inflatable dinghy price on request
  • Northern Ireland, Highlands & Islands; Liferafts price on request
  • Northern Ireland, Highlands & Islands; Flares not available to ship at this time
  • Channel Islands; Antifoul & paints £13.50
  • Channel Islands; Inflatable dinghy price on request Channel Islands; Flares not available to ship at this time

For further delivery information click here.

Returns

Standard Returns

If you are not entirely happy with your purchase, we will exchange or refund your goods in full, provided that the items are returned within 14 days of receipt.*

Please check the condition of goods on arrival - we are unable to accept goods damaged during shipping after 14 days.

Returned goods must be packaged securely, with all original packaging undamaged and in a saleable condition i.e. shoe boxes must be in the same condition as when received.

Goods must be unused and security seals intact.*

If you would like to return goods because they were ordered incorrectly or if clothing does not fit, return postage will be at your expense. If you would like us to replace the goods with another size or colour, we will charge carriage on the replacement.

Please be aware that some navigational and safety products may be dated, and as such a full refund may in some cases not be possible. If you are purchasing dated navigational charts we suggest you contact us for more information.

Faulty Goods

If you receive your goods and believe them to be faulty, please contact us straight away with a brief description of the problem. If we require you to return the product for a replacement, we will send you a pre-paid Royal Mail label for delivery back to us. Unfortuantely we cannot send the courier back to collect the items.

Returning goods to Force 4 is easy!

  1. Please contact us by ringing 0345 1300 710 or email on [email protected]. This way we'll be able to determine whether you would like to return the product for a refund or whether you'd like to exchange the product. We are unable to process the return of faulty goods that we're not expecting.
  2. We'll then give you a returns number. This returns number will need to be clearly marked on the outside of your parcel so it can be identified on arrival. Please note, failure to mark a returns reference number on the outside of your parcel may result in a delay in processing your return.
  3. Don't forget your proof of postage, just in case!
  4. Once we receive the item we'll be able to proceed with a refund or an exchange.

*this excludes faulty goods with manufacturers defects. If goods are found to be faulty during use, after the returns period, please just give us a ring on 0345 1300 710 and we'll be happy to help.

Questions & Answers
Questions & Answers
Would the EV-100 Wheel Pilot Pack work on my Halberg-Rassy 38? If not can you recommend an alternative wheel pilot? Thank you Simon Wakeford
This is suitable for most steering wheels and yachts up to 7500kg. Please see web address below to Raymarine for documents and more information on this unit. https://www.raymarine.com/autopilot/evolution-autopilot/ev100-sail/ This is suitable for most steering wheels and yachts up to 7500kg. Please see web address below to Raymarine for documents and more information on this unit. https://www.raymarine.com/autopilot/evolution-autopilot/ev100-sail/
i have a26,5 ft colvic northener motor boat it weighs dead weight lifted by crane 4.4 tons will this wheel pilot drive my boat ok Mr Christopher Wright
The maximum recommended laden boat displacement for this pack is 7,500kg (16,500lbs) so your boat is well under the weight threshold. The maximum recommended laden boat displacement for this pack is 7,500kg (16,500lbs) so your boat is well under the weight threshold.
Reviews

See more reviews

- Easy to fit & set up

Bought to replace ST4000+ autopilot on 18/5/2015 from Force 4 at Lower Swanwick. Fairly easy to fit as replacements although new Controller Head is smaller than old ST4000 head, a problem if you want to replace an old 'flush mounting' style into the larger previous cutout hole. Connecting using new SeaTalk(ng) is easy, as is setting-up using the Wizard set up menus whilst berthed. Have now used on several passages and has proven to be more accurate than previous autopilot and so far is reliable. Rodders on Sunday, 14th February 2016
