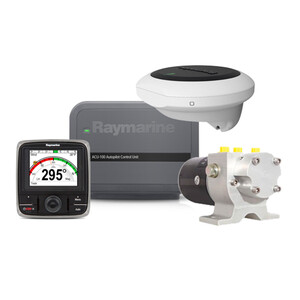

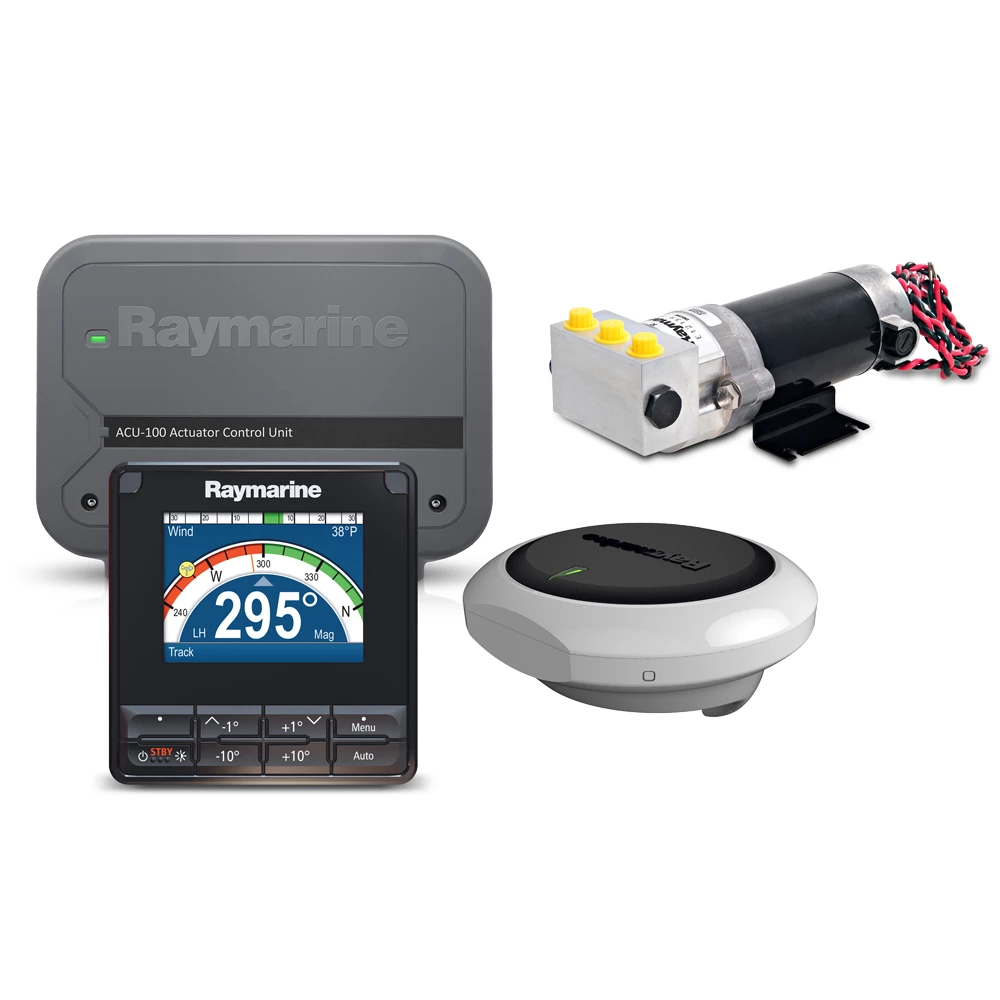

Raymarine EV-100 Power Autopilot Pack - A system pack designed for small power boats with Hydraulic steering.
Raymarine Part Number: T70154
- Intelligent EV sensor core that evolves and adapts to your vessel’s steering characteristics without any user adjustments
- No lengthy calibration procedures to perform
- 9-axis precision monitoring of pitch, roll, yaw and heading
- More freedom on Ev sensor core installation - can be installed above or below deck, upside down or off the vessels centreline
- Simple SeaTalkng connectivity to the control head and ACU
- Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
- Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes
- Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays
- The p70R control head features vibrant color displays and is powered by Raymarine’s intuitive LightHouse user interface
- LightHouse organises all options into simple menu structures and with Evolution’s quick setup process you will be up and running in minutes
- Designed for small power boats with hydraulic or mechanical ram assisted steering
- The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus
EV-1 Sensor core
- Voltage: 12V
- Waterproofing: IPX6
- Power consumption: 30mA
- Connection: STNG & NMEA2000
- Diameter: 140mm
P70 Control head
- Voltage: 12V
- Screen size: 3.5”
- Waterproofing: IPX6
- Power consumption: 134mA
- Connection: STNG & ST1
- Size: 110w x 115Tmm
ACU-100 Control Unit
- Voltage: 12 or 24V
- Waterproofing: connector panel IPX2 & drive electronics IPX6
- Power consumption standby: 300mA
- Connection: STNG, Rudder ref, drive motor, GND
- Size: 180w x 140T x 52Dmm
- Maximum recommended laden boat displacement: 3,181kg (7,000lbs)
- Ram capacity: 50-110 cc
- Voltage: 12V
- EV-1 Sensor core
- P70 control head
- 0.5ltr Hydraulic pump
- 1 x 0.4m STNG power cable
- 1 x 5m STNG backbone cable
- 1 x 0.4m STNG spur cable
- 1 x STNG 5way connector block
- 2 x STNG T piece connectors
- 2 x STNG Terminators
