Navico

V3100 SOTDMA Class B AIS Transponder

Catalogue Code: 220629
£939.95 Discontinued
Save £50.04 RRP £989.99

Sorry this item is no longer available

Optional Extras Tick to add optional extras to your basket
SBN-2 Small Boat Starter Kit NMEA 2000
SBN-2 Small Boat Starter Kit NMEA 2000 £149.95 Save £0.15 RRP £150.10
NMEA 2000 4-Way Joiner
NMEA 2000 4-Way Joiner £51.95 Save £2.04 RRP £53.99

View all 13 optional extras

  • Description
  • Availability
  • Delivery & Returns
  • Questions & Answers
  • Reviews
Description

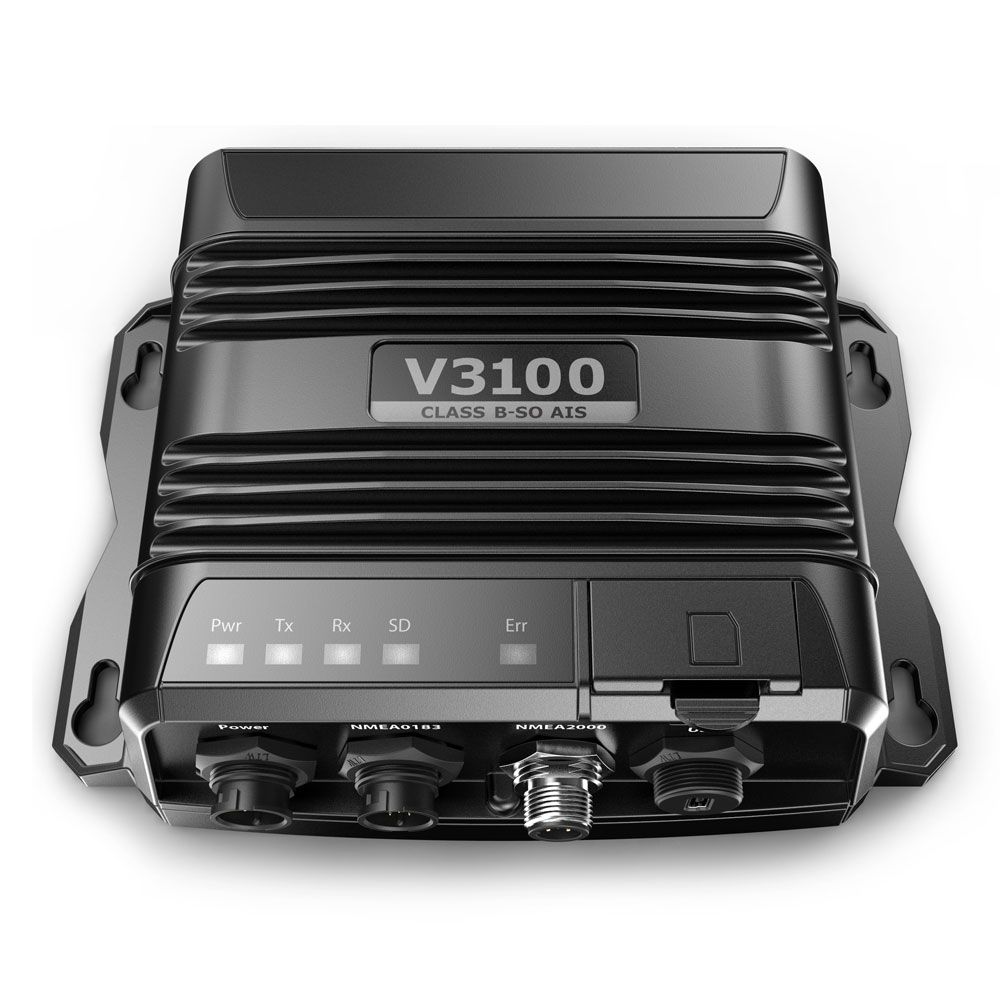

Navico V3100 SOTDMA Class B AIS Transponder

This ‘black box’ AIS solution is designed to work with Lowrance, Simrad and B&G multifunction displays, and other NMEA 2000® or NMEA 0183® connected marine electronics. Output to a standard PC is also supported via USB connectivity. The V3100 is contained in a compact IP67 water-resistant housing, and includes a built-in SD card slot for standalone AIS data logging.

  • Enhanced performance compared to standard Class B AIS
  • Transmit over greater distances with 5-Watt output power
  • Transmit more frequent position updates with SOTDMA
  • Greater transmission reliability in high-traffic areas
  • Integrated ‘black-box’ solution
  • NMEA 2000®, dual NMEA 0183®, and USB connectivity
  • IP67 water-resistant housing
  • Built-in SD card slot for AIS data logging

Increased Transmission Frequency and Reliability
The V3100 Class B AIS incorporates the same SOTDMA technology found in Class A solutions. This self-organising transmission technology allows the system to negotiate a regular transmission timeslot with other AIS units in range, facilitating more frequent and reliable position updates in high-traffic areas. The V3100 transmits updates, based on vessel speed, up to once every five seconds; this provides up to six times the reporting frequency of standard Class B AIS.

Increased Transmission Range
The V3100 features a maximum transmission power of 5 Watts, 2.5 times the transmission power of standard Class B AIS solutions. This allows vessels equipped with the V3100 to be detected over AIS at a greater range, and provides more reliable transmission to satellite-based AIS receivers.

Specifications

  • Supply Voltage: 12/24 VDC 3A
  • Power Consumption: Typically less than 3W average @ 12V DC
  • Waterproof Rating: IP67
  • Dimensions(mm): 177W x 60H x 132D
  • Weight: 500g

In The Box

  • V3100 AIS Transponder
  • GPS-500 External antenna with 10m cable
  • 12 pin data cable
  • Mini USB to USB cable
  • TNC to SMA adaptor for GPS connection
  • 4 Mounting screws
  • User Manual
  • Programming CD
