NAC-2 Autopilot Core Pack
NAC-2 Autopilot Core Pack
Navico

NAC-2 Autopilot Core Pack

Catalogue Code: 220412
£1,557.95 In Stock Online
Save £82.04 RRP £1,639.99
See Product Description Check Stock in Store Add to Wish List
  • Get it on Wednesday, 3rd April if ordered within the next --:--:-- and select Next Day Delivery *UK Mainland Only
  • Ask a question
Optional Extras Tick to add optional extras to your basket
Triton2 Pilot Controller
Triton2 Pilot Controller £332.95 Save £17.04 RRP £349.99
Triton2 Multifunction Instrument Display
Triton2 Multifunction Instrument Display £499.95 Save £30.04 RRP £529.99

View all 5 optional extras

  • Description
  • Availability
  • Delivery & Returns
  • Reviews
Description

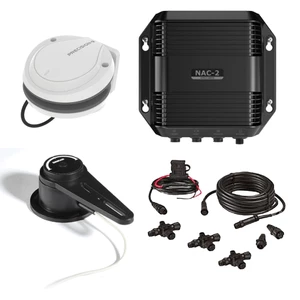

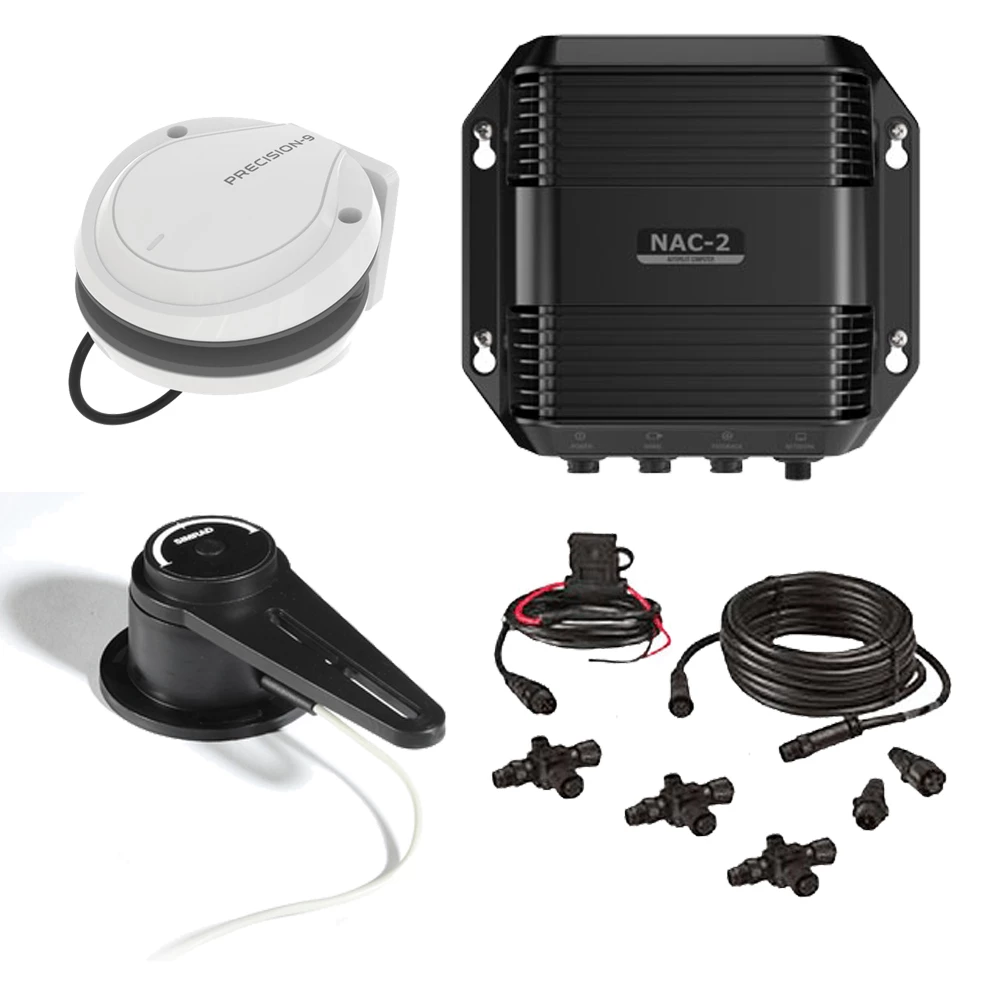

Navico NAC-2 Autopilot Core Pack

NAC-2 Autopilot Core Pack: Comprising of the low-current NAC-2 autopilot computer, Precision-9 compass and RF-25 rudder feedback unit Ideal for smaller vessels, designed to run small hydraulic drives and mechanical drives for vessels up to 10 meters (33 feet) in length.

NAC-2 Autopilot Computer

The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units.

The NAC-2 was designed for boats up to 10 metres (33 feet) in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (16 Amps peak).

  • B&G Reflex Sailing algorithms
  • Plug and Play installation
  • 12/24V input 8A continuous output, 12A peak Solenoid output capable 3A clutch output
  • Optional Auto/Standby Switch

Precision-9 Compass

The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.

  • Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000® Heading and ROT calculated using sensor data from 9 axes of rotation and motion Accurate and reliable solid-state sensor technology
  • Heading accuracy of ±2° after calibration
  • Easily adjustable mounting bracket allows bulkhead or up-mast installation
  • IPX7 waterproof
  • Simple installation with a single NMEA 2000® connection

RF25 Rudder Feedback Unit

The RF25 is a medium duty rudder feedback unit with a micro-C interface. The RF25 will attach directly to industry standard micro-C systems for straight-forward installation.

  • +/- 120 Degree Measurement Precise and Accurate; +/- 0.5 Deg
  • Micro-C Connectivity 5.5m attached micro-C Cable

In the box

  • NAC-2 Course Computer
  • Precision-9 Compass
  • RF25 Rudder Feedback Unit
  • NMEA 2000 Backbone kit
  • Documentation
