Maypole Trailer Wheels

Catalogue Code: M630085
From
£44.95
In Stock Online
Colour: No Colour
Size Guide
Select Your Size (Required):
See Product Description Check Stock in Store Add to Wish List
  • Get it on Friday, 13th December if ordered within the next --:--:-- and select Next Day Delivery *UK Mainland Only
  • Ask a question
Optional Extras Tick to add optional extras to your basket
Wheel Chock
Wheel Chock £4.95 Save £2.00 RRP £6.95
  • Description
  • Availability
  • Delivery & Returns
  • Questions & Answers
  • Reviews
Description

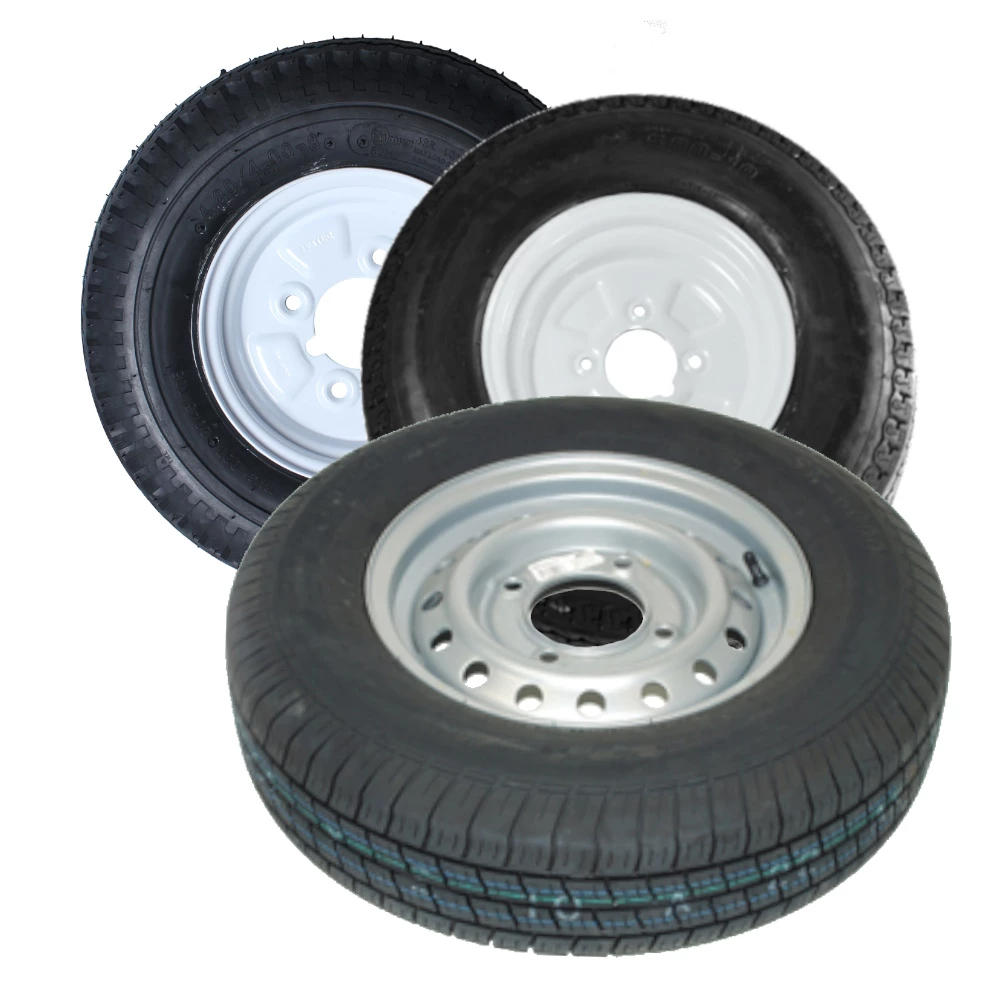

Maypole Trailer Wheels

Road trailer wheels fitted with quality tyres, ready to fit and use (make sure you set your air pressure correctly!). See below for exact specifications of each wheel/tyre combination. Ideal for boat trailers (and many other types of trailer too).

Available in 4 Sizes

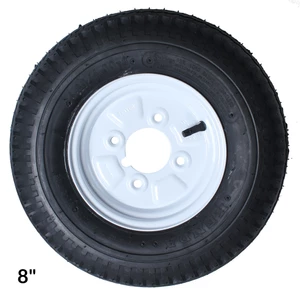

Code: 630085 - 8” Wheel & Tyre

  • 4 cross-ply pneumatic tyre.
  • Wheel Size: 400 x 8”
  • Load Capacity: 265kg
  • PCD: 4 x studs on 4” (101.6mm) Diameter
  • Rim Diameter: 8″
  • Wheel size: 4.00-8
  • Load & Speed Index: 62M
  • Studs: 4 x 3/8″
  • Centre Bore: 67mm & grease nipple cut out
  • Rim: 2.50×8
  • Rim Colour: White



Code: 630417 - 10” Wheel & Tyre

  • 4 cross-ply pneumatic tyre.
  • Wheel Size: 500 x 10”
  • Load Capacity: 308kg
  • PCD: 4 x studs on 4” (101.6mm) Diameter
  • Rim Diameter: 10″
  • Wheel size: 5.00-10
  • Load & Speed Index: 72M
  • Studs: 4 x 3/8″
  • Centre Bore: 67mm
  • Rim: 3.50Bx10H2
  • Rim Colour: Silver

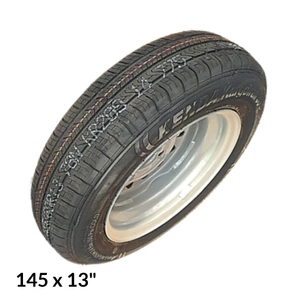

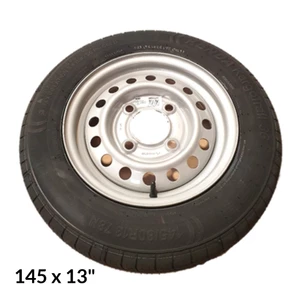

Code: 630935 - 145x13 Wheel & Tyre

Tyre Details

  • Construction type: Radial
  • Dimension: 145/R13
  • Load index: 78
  • Speed index: N
  • Max. load: 425
  • Max. speed: 140
  • Overall diameter: 562mm
  • Static loaded radius: 255mm
  • Section width: 145mm
  • Max pressure: 3.4 bar
  • Tubeless: Yes
  • Rim horn: J
  • Rim width: 4 inch
  • Rim diameter: 13 inch
  • Reinforced: Yes
  • Fuel efficiency: C
  • Wet grip: E
  • External rolling noise: 69 (dB)

Rim Details

  • PCD: 130
  • Rim: T13 x 4.5J
  • Offset: 20mm
  • Centre bore: 85
  • Stud holes: R14 seat 18.5 dia.
  • Seat / Fixing: R14 Spherical
  • Colour: Silver

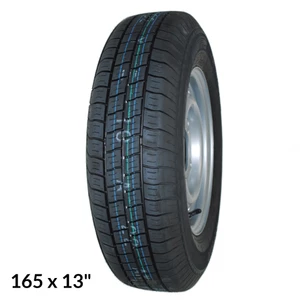

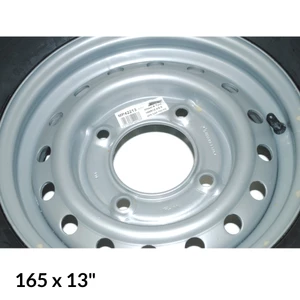

Code: 630936 - 165x13 Wheel & Tyre

  • 165×13 wheel and tyre
  • Diameter: 13″
  • Wheel size: 165R130C
  • Load & Speed Index: Single Axle 96N. Twin Axle 94N
  • Studs: 4 x M12
  • PCD: 139.7mm (5.5")
  • Inset/Offset: +25.4mm
  • Centre Bore: 95.5mm
  • Rim: 4.5Jx13H2 ET25.4
  • Rim Colour: Silver



What is PCD?

PCD stands for Pitch Circle Diameter. It is the diameter of a circle that is used to set the wheel nuts on. It is easy to find the PCD on a 4 stud wheel. Just measure from the centre of one stud to the centre the opposite stud.

Availability
Stock Availability

Stock can move quickly, so this is just a suggestion of current levels, please phone the shop to confirm.

The ship to store service is based on Head Office sending stock to a branch.

If you wish to call & collect stock, please do so over the phone using the number provided.

No Colour - 145 x 13"

Store Availability Telephone
Cardiff Not currently in stock 02920 220929
Chichester Not currently in stock 01243 773788
Deacons Not currently in stock 02380 402182
Lymington Not currently in stock 01590 673698
Plymouth Not currently in stock 01752 548301
Poole Not currently in stock 01202 723311
Port Hamble Not currently in stock 02380 454858
Southampton Not currently in stock 02380 632 725
Gloucestershire (Distribution Hub) 0345 130 0710

No Colour - 8"

Store Availability Telephone
Cardiff 02920 220929
Chichester 01243 773788
Deacons 02380 402182
Lymington 01590 673698
Plymouth 01752 548301
Poole 01202 723311
Port Hamble Not currently in stock 02380 454858
Southampton 02380 632 725
Gloucestershire (Distribution Hub) 0345 130 0710

No Colour - 10"

Store Availability Telephone
Cardiff Not currently in stock 02920 220929
Chichester 01243 773788
Deacons 02380 402182
Lymington 01590 673698
Plymouth 01752 548301
Poole 01202 723311
Port Hamble Not currently in stock 02380 454858
Southampton Not currently in stock 02380 632 725
Gloucestershire (Distribution Hub) 0345 130 0710

No Colour - 165 x 13"

Store Availability Telephone
Cardiff Not currently in stock 02920 220929
Chichester Not currently in stock 01243 773788
Deacons Not currently in stock 02380 402182
Lymington Not currently in stock 01590 673698
Plymouth Not currently in stock 01752 548301
Poole Not currently in stock 01202 723311
Port Hamble Not currently in stock 02380 454858
Southampton Not currently in stock 02380 632 725
Gloucestershire (Distribution Hub) 0345 130 0710

- Good Availability

- Low Availability

- One item left

Delivery & Returns
Delivery

Royal Mail Service Update: Please be aware when choosing Royal Mail as your preferred delivery method, your delivery time may be impacted by ongoing strikes and may take up to 20 working days. If your order is time critical we suggest choosing a courier or Next Day Service



Our Mail Order team ship chandlery, yacht parts and sailing clothing around the world. We use the best value couriers available, and we will endeavour to get your products to you as quickly and as cost effectively as possible.

International Orders: Due to delays we have had to suspend our international delivery options.

UK Standard Delivery

  • UK Mainland 0 - 2Kg (small jiffy) £3.95 Royal Mail Service. Despatch within 3- 5 working days, delivery in 7-10 working days for orders under £50.00
  • UK Mainland up to 25Kg £5.95 Courier service with signature. Despatch within 3- 5 working days, delivery in 7-10 working days
  • UK Mainland 25Kg+ Price on request
  • UK Mainland Next Day 0 - 25Kg £9.95 Courier service with signature, orders must be placed before midday
  • Northern Ireland, Highlands & Islands 0 - 2Kg (small jiffy) £3.95 Royal Mail Service. Despatch within 3- 5 working days, delivery in 5-7 working days for orders under £50.00
  • Northern Ireland, Highlands & Islands 1 - 25Kg £10.95 Courier service with signature. Despatch within 3- 5 working days, delivery in 7-10 working days
  • Northern Ireland, Highlands & Islands 25Kg+ Price on request
  • Channel Islands 0 - 2Kg (small jiffy) £5.95 Royal Mail Service Despatch within 3- 5 working days, delivery in 5-7 working days for orders under £50.00
  • Channel Islands 1 - 25Kg £13.50 Courier service with signature. Despatch within 3- 5 working days, delivery in 5-7 working days
  • Channel Islands 25Kg+ Price on request

UK Exceptional Delivery

  • UK Mainland; Antifoul & paints £5.95
  • UK Mainland; Inflatable dinghy £10.00
  • UK Mainland; Liferafts £17.50
  • UK Mainland; Flares £49.95
  • Northern Ireland, Highlands & Islands; Antifoul & paints £9.95
  • Northern Ireland, Highlands & Islands; Inflatable dinghy price on request
  • Northern Ireland, Highlands & Islands; Liferafts price on request
  • Northern Ireland, Highlands & Islands; Flares not available to ship at this time
  • Channel Islands; Antifoul & paints £13.50
  • Channel Islands; Inflatable dinghy price on request Channel Islands; Flares not available to ship at this time

For further delivery information click here.

Returns

Standard Returns

If you are not entirely happy with your purchase, we will exchange or refund your goods in full, provided that the items are returned within 14 days of receipt.*

Please check the condition of goods on arrival - we are unable to accept goods damaged during shipping after 14 days.

Returned goods must be packaged securely, with all original packaging undamaged and in a saleable condition i.e. shoe boxes must be in the same condition as when received.

Goods must be unused and security seals intact.*

If you would like to return goods because they were ordered incorrectly or if clothing does not fit, return postage will be at your expense. If you would like us to replace the goods with another size or colour, we will charge carriage on the replacement.

Please be aware that some navigational and safety products may be dated, and as such a full refund may in some cases not be possible. If you are purchasing dated navigational charts we suggest you contact us for more information.

Faulty Goods

If you receive your goods and believe them to be faulty, please contact us straight away with a brief description of the problem. If we require you to return the product for a replacement, we will send you a pre-paid Royal Mail label for delivery back to us. Unfortuantely we cannot send the courier back to collect the items.

Returning goods to Force 4 is easy!

  1. Please contact us by ringing 0345 1300 710 or email on [email protected]. This way we'll be able to determine whether you would like to return the product for a refund or whether you'd like to exchange the product. We are unable to process the return of faulty goods that we're not expecting.
  2. We'll then give you a returns number. This returns number will need to be clearly marked on the outside of your parcel so it can be identified on arrival. Please note, failure to mark a returns reference number on the outside of your parcel may result in a delay in processing your return.
  3. Don't forget your proof of postage, just in case!
  4. Once we receive the item we'll be able to proceed with a refund or an exchange.

*this excludes faulty goods with manufacturers defects. If goods are found to be faulty during use, after the returns period, please just give us a ring on 0345 1300 710 and we'll be happy to help.

Questions & Answers
Questions & Answers

What are hole diameters please?

allan trelford

The hole diameter is 11mm.

02.08.2019

Is this a single wheel or a pair? R Millard
A single wheel. 09/06/21
