Solar ChargeMaster Charge Controller
Solar ChargeMaster Charge Controller
Solar ChargeMaster Charge Controller
Solar ChargeMaster Charge Controller Solar ChargeMaster Charge Controller Solar ChargeMaster Charge Controller
Mastervolt

Solar ChargeMaster Charge Controller

Catalogue Code: 120132
From £79.95 In Stock
Save £4.45 RRP £84.40
Colour: color
Size Guide
Select Your Size (Required):
See Product Description Add to Wish List
  • Get it on Wednesday, 25th November if ordered within the next --:--:-- and select Next Day Delivery *UK Mainland Only
  • Ask a question
Optional Extras Tick to add optional extras to your basket
Solar Panel
Solar Panel £309.95 Save £20.00 RRP £329.95
Solar Panels
Solar Panels £69.95

View all 5 optional extras

  • Description
  • Availability
  • Delivery & Returns
Description

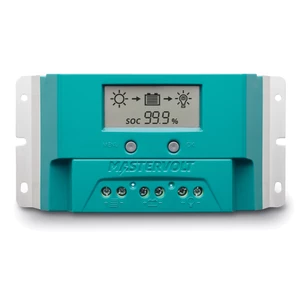

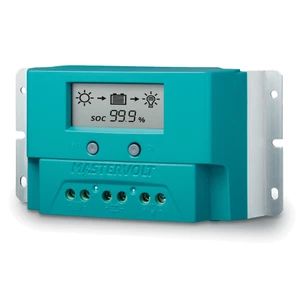

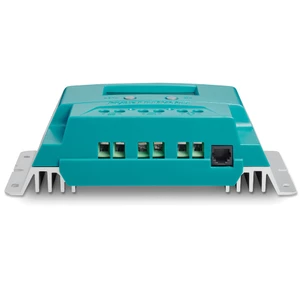

Mastervolt Solar ChargeMaster Charge Controller

The Chargemaster SCM solar charge regulators are based on PWM technology and provide a great solution to charge your batteries with solar energy. Suitable for both 36 cells panels (in 12 V systems) and 72 cells panels (in 24 V systems). Their protection against water spray, suitability for high ambient temperature and compatibility with negative grounding, make them the perfect solar regulators for marine and mobile environments.



Available in 20A and 40A versions

Force 4 P/No: 120132-20A (Mastervolt P/No: 131822000)  -  20A

Download User Manual here.



Force 4 P/No: 120132-40A (Mastervolt P/No: 131824000)  - 40A

Download User Manual here.



Specifications:

  • System voltage (battery) : 12/24 V auto select
  • Nominal charge current: 20A/40A
  • Battery types: AGM, Gel, flooded, Lithium Ion
  • Battery temperature sensor: optional, product code 41500500
  • Switchable output (max. current): 20 A/40A
  • Energy consumption (night): < 7 mA
  • Panel type (12 V system) : 36 cells
  • Panel type (24 V system) : 72 cells
  • Max. PV current (Impp): 20A/ 40A
  • Recommended PV power (12 V system): 360 Wp/720 Wp
  • Recommended PV power (24 V system): 720 Wp/1440 Wp
  • Cooling: passive
  • Display/read-out: backlit LCD with PV power, load power, battery voltage, charge current, warnings, battery state of charge, battery setting
  • Grounding: common negative grounding
  • Protection degree: IP23
  • Dimensions, hxwxd: 98 x 189 x 53 mm
  • Weight: 0.5 kg
  • Temperature range (ambient temp.): -20 °C to 50 °C, derating power > 40 °C
  • Cable size: max. 16 mm²
  • Protections: over temperature, over load, high/low battery voltage, high/low PV voltage, short circuit, reverse polarity & HV transients
  • Relative humidity; 95 % non-condensing
