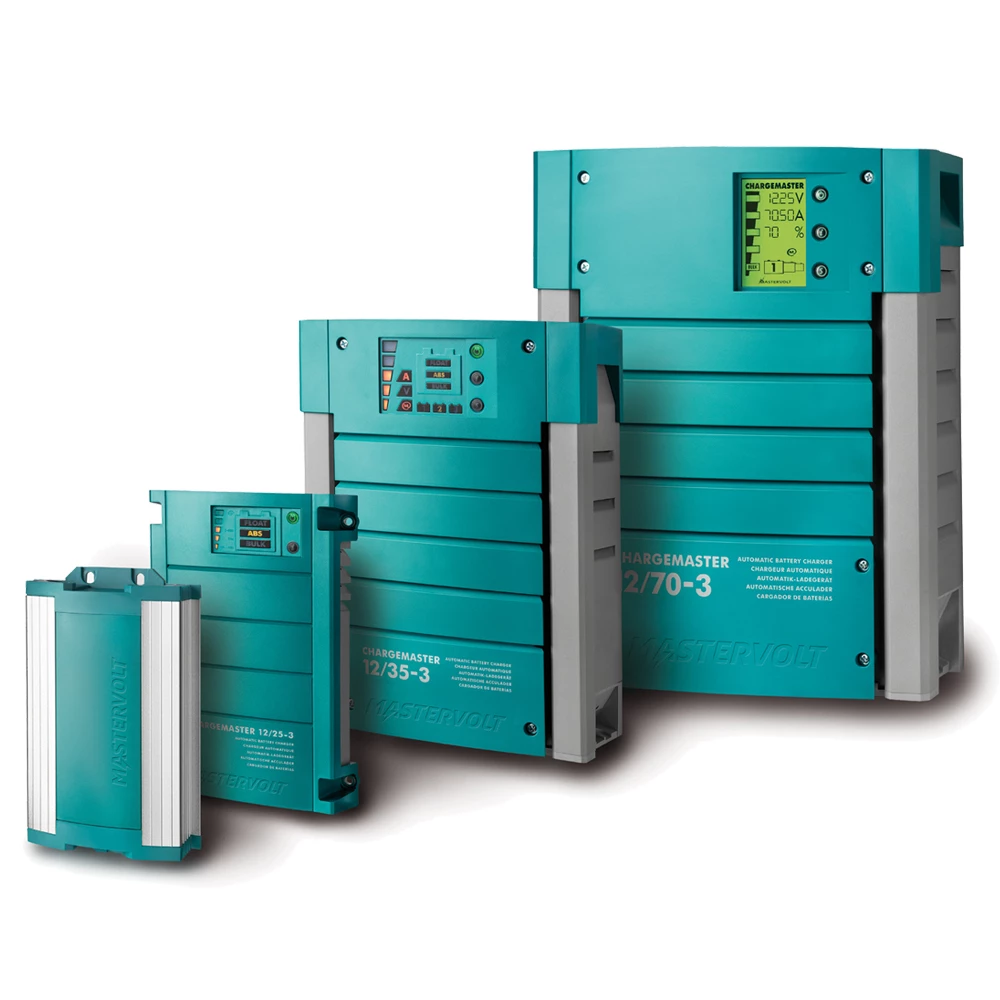

Mastervolt ChargeMaster 12V Battery Chargers

Charge your batteries quickly and completely with the Mastervolt ChargeMaster range of battery chargers. Thanks to Mastervolt’s innovative 3-step+ charging process, batteries also perform better and last longer.

• For recreational and semi-professional use.
• Suitable for any type of battery, including Lithium Ion batteries.
• 3-Step+ charging technology for fast and complete charging, also charges depleted batteries.
• Memory function prevents overcharging in case of unreliable mains.
• Safe and complete charging due to standard safety features.
• Easy to connect and quick to install.

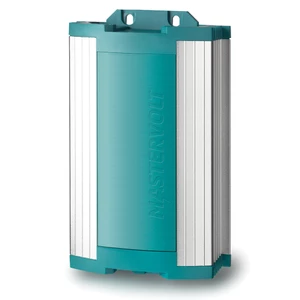

10 & 15A Models

• Pre-installed with two metres of cable with 8mm ring terminals for battery connection.
• Outlets 10A -1 : 15A -2
• LED for charge status

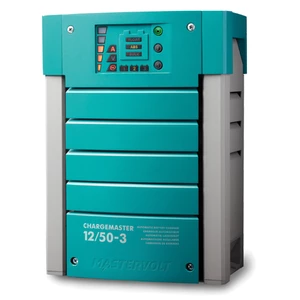

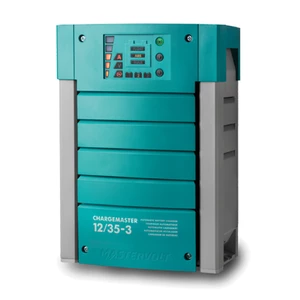

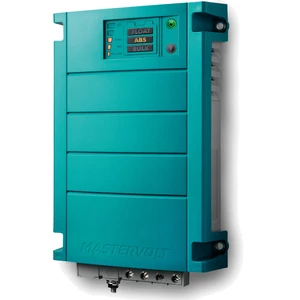

25, 35 & 50A Models

• Supplied with battery temperature sensor with 6m cable and 2m battery connection cables with 8mm ring terminals.
• Clearly lit display on the ChargeMaster provides all essential information: charge current, charge voltage, charge phase and battery content measurement and/or battery condition measurement as a percentage of available Ah capacity. The display also provides an indication of MasterBus communication. Three buttons adjacent to the read-out panel allow for easy operating of the entire system.
• ChargeMasters over 15A can be easily connected to a MasterBus network with only one cable and one connection.
• The ChargeMaster series has three equal charge outputs., while the heavier models have one full output (for example for your service battery) and two outputs of 10 A, ideal for your starter batteries.
• Even if the batteries are not connected, Mastervolt ChargeMaster battery chargers can provide a constant DC output allowing you to turn on lights or keep the fridge cold.



Specifications

General

• Nominal output voltage 12 V
• Charge characteristic IUoUo, automatic 3-step+ for Gel/AGM/wet/Lithium Ion
• Temperature range (ambient temp.) -25 °C to 60 °C, derating < 0 °C and > 40 °C
• Protections over temperature, over load, short circuit, high/low battery voltage



Force 4 P/No: 130101-10A (Mastervolt P/No: 43011000)  -  ChargeMaster 10A

• Number of battery outlets 1
• Total charge current 10 A at 14.25 V
• Battery capacity range 25-100 Ah
• Nominal input voltage 230 V (180-265 V), 50/60 Hz
• Dimensions, hxwxd 180 x 121 x 50 mm
• Weight 1 kg
• MasterBus compatible No
• Protection degree IP65
• Cooling natural cooling
• Approvals CE, ABYC A-31, RRR

Download User Manual here.



Force 4 P/No: 130101-15A (Mastervolt P/No: 43011500)  -  ChargeMaster 15A

• Number of battery outlets 2
• Total charge current 15A at 14.25 V
• Battery capacity range 30-150 Ah
• Nominal input voltage 230 V (180-265 V), 50/60 Hz
• Dimensions, hxwxd 206 x 121 x 50 mm
• Weight 1 kg
• MasterBus compatible No
• Protection degree IP21
• Cooling Vario Fan
• Approvals CE, ABYC A-31, RRR

Download User Manual here.



Force 4 P/No: 130101-25A (Mastervolt P/No: 44010250)  -  ChargeMaster 25A

• Number of battery outlets 3
• Total charge current 25A at 13.25 V
• Battery capacity range 50-250 Ah
• Nominal input voltage 120/230 V (90-265 V), 50/60 Hz
• Dimensions, hxwxd 234 x 132 x 60 mm
• Weight 1.8 kg
• MasterBus compatible Yes
• Protection degree IP23
• Cooling Vario Fan
• Approvals CE, ABYC A-31, SAE J1171/ISO 8846 Ignition protected, RRR

Download User Manual here.



Force 4 P/No: 130101-35A (Mastervolt P/No: 44010350)  -  ChargeMaster 35A

• Number of battery outlets 3
• Total charge current 35A at 14.4 V
• Battery capacity range 70-350 Ah
• Nominal input voltage 120/230 V (90-265 V), 50/60 Hz
• Dimensions, hxwxd 291 x 210 x 131 mm
• Weight 4 kg
• MasterBus compatible Yes
• Protection degree IP23
• Cooling Vario Fan
• Approvals CE, ABYC A-31, SAE J1171/ISO 8846 Ignition protected, RRR

Download User Manual here.

Download Installation Manual here.



Force 4 P/No: 130101-50A (Mastervolt P/No: 44010500)  -  ChargeMaster 50A

• Number of battery outlets 3
• Total charge current 50A at 14.4 V
• Battery capacity range 100-500 Ah
• Nominal input voltage 120/230 V (90-265 V), 50/60 Hz
• Dimensions, hxwxd 291 x 210 x 131 mm
• Weight 4 kg
• MasterBus compatible Yes
• Protection degree IP23
• Cooling Vario Fan
• Approvals CE, ABYC A-31, SAE J1171/ISO 8846 Ignition protected, RRR

Download User Manual here.

Download Installation Manual here.
